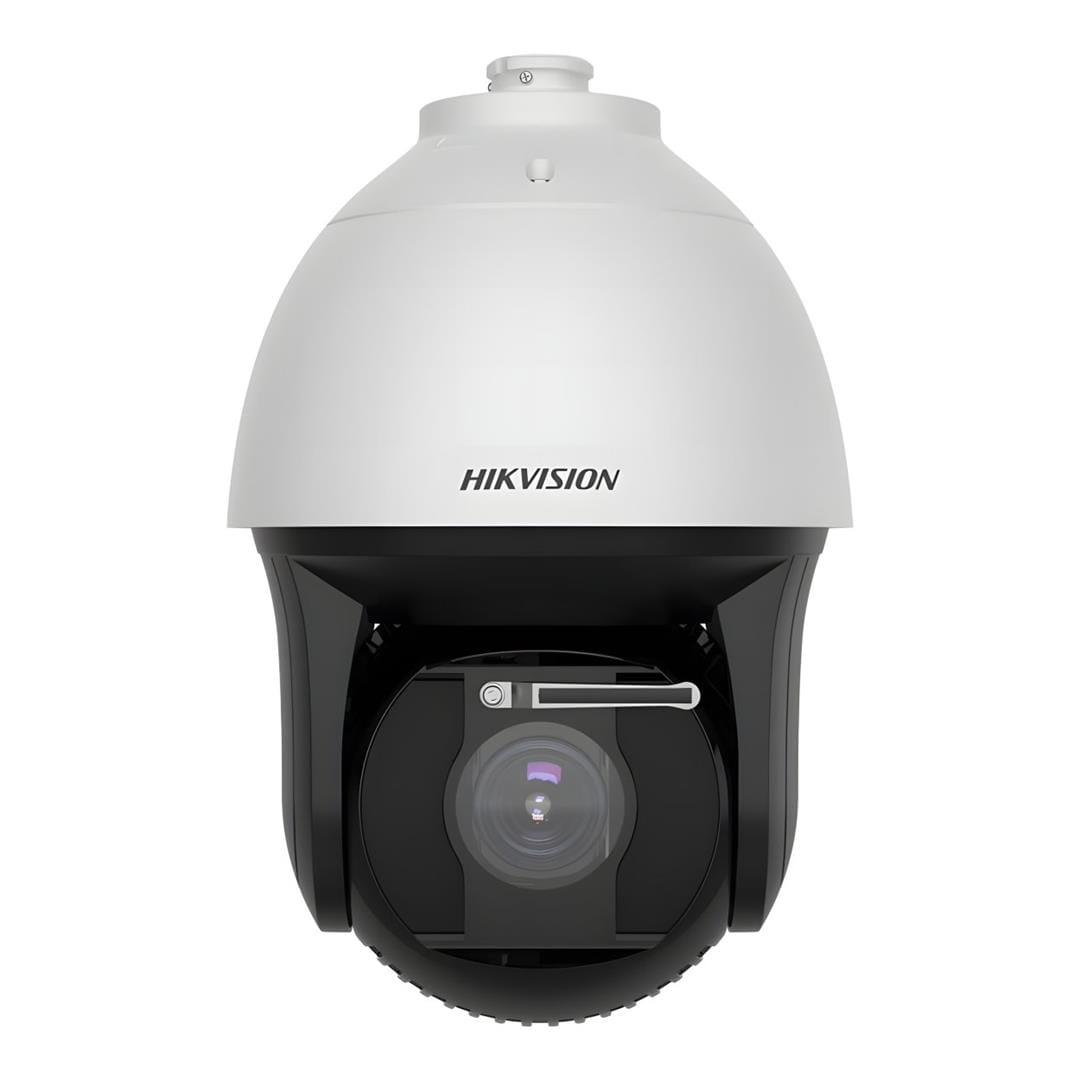

Hikvision DF8 Series 4MP 42X DarkFighter IR Network Speed Dome Camera DS-2DF8442IXG1-EL(W)(Y)

Hikvision DF8 Series 4MP 42X DarkFighter IR Network Speed Dome Camera DS-2DF8442IXG1-EL(W)(Y)

Features

• 1/1.8" Progressive Scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter 2.0 technology
• Clear imaging against strong back light due to 150 dB AWDR technology
• 42 × optical zoom and 16 × digital zoom provide close up views over expansive areas
• Expansive night view with up to 400 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
• Supports face capture to detect, capture, grade, and select faces in motion
• Supports road traffic to detect vehicles

Technical Specifications:

Camera

Image Sensor
Image Sensor: 1/1.8" Progressive Scan CMOS
Minimum Illumination: Color: 0.0003 Lux @ (F1.2, AGC On), B/W: 0.0001 Lux @ (F1.2, AGC On), 0 Lux with IR
Shutter Speed: 1/1 s to 1/30,000 s
Slow Shutter: Yes
Day/Night: IR Cut Filter
Zoom: 42x Optical, 16x Digital
Maximum Resolution: 2688 × 1520

Lens
Focus: Auto, Semi-Auto, Manual, Rapid Focus
Focal Length: 6.0 mm to 250 mm, 42x Optical
Zoom Speed: Approx. 4.5 s (Optical, Wide-Tele)
Field of View: Horizontal 56.6° to 1.7° (Wide-Tele), Vertical 33.7° to 0.9° (Wide-Tele), Diagonal 63.4° to 1.9° (Wide-Tele)
Aperture: Maximum F1.2

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 400 m
Smart Supplement Light: Yes

PTZ
Pan Range: 360°
Tilt Range: -20° to 90° (Auto Flip)
Pan Speed: 0.1° to 210°/s, Preset Speed 280°/s
Tilt Speed: 0.1° to 150°/s, Preset Speed 250°/s
Proportional Pan: Yes
Presets: 300
Patrol Scan: 8 Patrols, Up to 32 Presets per Patrol
Pattern Scan: 4 Pattern Scans, Over 10 Minutes Recording per Scan
Power-Off Memory: Yes
Park Action: Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan
3D Positioning: Yes
PTZ Status Display: Yes
Preset Freezing: Yes
Scheduled Task: Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan, Dome Reboot, Dome Adjust, Auxiliary Output

Video

Streams
Main Stream: 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression
Main Stream Compression: H.265+, H.265, H.264+, H.264
Sub-Stream Compression: H.265, H.264, MJPEG
Third Stream Compression: H.265, H.264, MJPEG
Video Bit Rate: 32 Kbps to 16384 Kbps
H.264 Profile: Baseline Profile, Main Profile, High Profile
H.265 Profile: Main Profile
Scalable Video Coding (SVC): H.264 and H.265 Encoding
Region of Interest (ROI): 8 Fixed Regions for Each Stream
Target Cropping: No

Audio
Audio Compression: G.711a, G.711u, G.722.1, G.726, MP2L2, PCM
Audio Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2)
Audio Sampling Rate: MP2L2 (16 kHz, 32 kHz, 48 kHz), AAC-LC (16 kHz, 32 kHz, 48 kHz), PCM (8 kHz, 16 kHz, 32 kHz, 48 kHz), MP3 (8 kHz, 16 kHz, 32 kHz, 48 kHz)
Environment Noise Filtering: Yes

Network
Smooth Streaming: Yes
Network Storage: NAS (NFS, SMB/CIFS), ANR
Protocols: IPv4, IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API: ISUP, ISAPI, Hikvision SDK, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
Simultaneous Live View: Up to 20 Channels
User/Host: Up to 32 Users, Administrator, Operator and User Access Levels
Client Software: HikCentral, iVMS-4200, Hik-Connect
Web Browser Support: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Security
Security Features: Password Protection, Complex Passwords, HTTPS Encryption, 802.1X Authentication (EAP-TLS, EAP-LEAP, EAP-MD5), Watermark, IP Address Filter, Basic and Digest Authentication, WSSE Authentication, RTP/RTSP over HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.3, Host Authentication (MAC Address), TPM 2.0 (FIPS 140-2 Level 2)

Image Parameters Switch: Yes
Image Settings: Saturation, Brightness, Contrast, Sharpness, Gain and White Balance Adjustable via Client Software or Web Browser
Day/Night Switch: Day, Night, Auto, Scheduled Switch
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 150 dB WDR
Defog: Optical Defog
Image Stabilization: Built-In Gyroscope Enhanced EIS
Regional Exposure: Yes
Regional Focus: Yes
Privacy Mask: Up to 24 Masks, Polygon Regions, Mosaic Masks, Configurable Mask Colour
SNR: ≥ 52 dB

Supplement Detection
Gyroscope: Yes
Satellite Positioning: No
Compass: No

Interfaces
Reset Button: Yes
Ethernet Interface: 1 x RJ45 10/100 Mbps Self-Adaptive Ethernet Port
On-Board Storage: MicroSD, MicroSDHC, MicroSDXC Support up to 1 TB
Alarm Interface: 7 Inputs, 2 Outputs
Audio Interface: 1 x Audio Input (Line-In), 1 x Audio Output (Line-Out)
Video Output: 1.0 Vp-p / 75 Ω, PAL, NTSC, BNC Connector
RS-485: Hikvision, Pelco-P, Pelco-D, Self-Adaptive

Events

Basic Events
Basic Events: Motion Detection, Video Tampering Alarm, Network Disconnection, IP Address Conflict, Illegal Login, HDD Full, HDD Error, Alarm Input and Output, Audio Exception Detection, Unattended Baggage Detection, Object Removal Detection

Linkage
Linkage Actions: Upload to FTP, NAS or Memory Card, Notify Surveillance Centre, Send Email, Trigger Recording, Trigger PTZ Actions

Deep Learning Functions

Perimeter Protection
Perimeter Protection: Line Crossing Detection, Region Entrance Detection, Intrusion Detection, Region Exiting Detection

Multi-Target Detection
Detection Types: Human Body, Face and Vehicle Detection and Capture
Face Features: 7
Human Body Features: 14
Vehicle Features: 8

Face Capture
Face Detection Capacity: Up to 30 Faces Simultaneously
Face Capture Features: Detection, Tracking, Capture, Grading, Selection and Best Face Picture Output

Face Comparison
Face Libraries: Up to 10
Faces per Library: 30,000
Total Face Capacity: 150,000
Face Library Encryption: Supported

Road Traffic and Vehicle Detection
License Plate Recognition: Vehicles and Motorcycles
Vehicle Attributes: Vehicle Type, Colour, Brand, Driving Direction
Vehicle Counting: Vehicle and Non-Vehicle Counting Supported
Blocklist and Allowlist Capacity: Up to 10,000 Records
Supported Regions: Europe, Middle East, Asia-Pacific, Africa, More Than 124 Countries/Regions
License Plate Recognition Accuracy: ≥ 98%
Capture Rate: ≥ 99%
Driving Direction Accuracy: ≥ 98%
Vehicle Capture Speed: Up to 120 km/h (Front Installation), Up to 80 km/h (Side Installation)
Capture Modes: License Plate and Vehicle Mode, Vehicle Priority Mode

Tracking
Smart Tracking: Manual Tracking, Auto-Tracking 3.0
Object Tracking: Human and Vehicle Arming, Alarm Triggering, Tracking and Capture

General
Vandal-Proof Alarm: No
Heater: Yes
Wiper: Yes
De-Icing: No
Demist: Yes
General Functions: Mirror, Password Protection, Watermark, IP Address Filter

Power
Power Input: 36 VDC, Hi-PoE
Maximum Power Consumption: 40 W
IR Power Consumption: Up to 18 W
Heater Power Consumption: Up to 6 W

Environmental
Operating Temperature: -40°C to 70°C
Operating Humidity: ≤ 95%

Physical Characteristics
Dimensions: Ø266 x 410 mm
Weight: Approx. 8 kg

Languages
Languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certifications

EMC
EMC Standards: CE-EMC, RCM, IC VoC, KC

Safety
Safety Standards: CB, CE-LVD, BIS, LOA

Environmental Compliance
Environmental Standards: CE-RoHS, WEEE, REACH

Protection
Ingress Protection: IP67
Impact Protection: IK10
Protection Features: Lightning Protection, Surge Protection, Voltage Transient Protection, ±6 kV Line-to-Ground Protection, ±3 kV Line-to-Line Protection, IEC61000-4-5 Compliance
