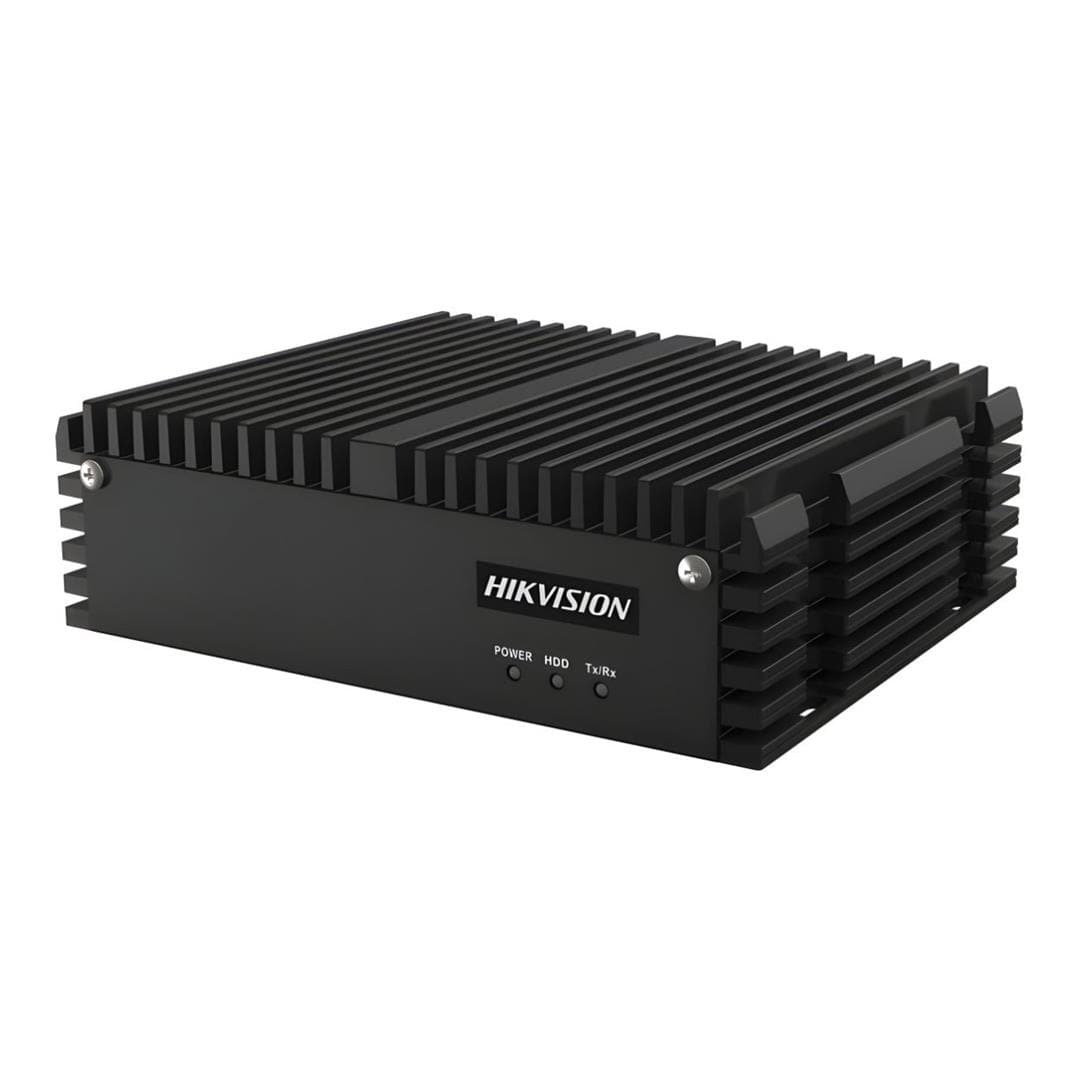

Hikvision DeepinMind NVS IDS-6704NXI-S/T

Hikvision DeepinMind NVS IDS-6704NXI-S/T

Features:

• Powered by Guanlan large-scale AI model
• Up to 4-ch video stream analysis for perimeter protection
• H.265+/H.265/H.264+/H.264 video formats
• Pre-installed 1TB or 2TB SSD
• Wide temperature tolerance: functions flawlessly from -30°C to +60°C

Technical Specifications:

Perimeter Protection

AI Video Analysis: 4-Channel, 6 MP Video Analysis for Human and Vehicle Recognition (Powered by Guanlan Large-Scale AI Model)
Supported Camera Type: HD Network Camera (H.264 / H.265)

Video and Audio

IP Video Input: 4 Channels
Incoming Bandwidth: 64 Mbps
Outgoing Bandwidth: 128 Mbps

Audio Output

• 1 × RCA (Linear, 1 KΩ)

Two-Way Audio

• 1 × RCA (2.0 Vp-p, 1 KΩ, Using Audio Input)

Decoding

Decoding Format

• H.265+
• H.265
• H.264+
• H.264

Recording Resolution

• 8 MP
• 7 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

Network

Remote Connection Capacity: 128

Network Interface

• 2 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interfaces

Network Protocol

• TCP/IP
• DHCP
• IPv4
• IPv6
• DNS
• DDNS
• NTP
• RTSP
• SADP
• SMTP
• SNMP
• ISUP
• UPnP™
• HTTP
• HTTPS

API Support

• ONVIF (Profile S / G)
• SDK
• ISAPI

Auxiliary Interface

Serial Interface

• 1 × RS-232 (Type-C)

Alarm Interface

• 4 × Alarm Inputs
• 4 × Alarm Outputs

USB Interface

• 2 × USB 3.0

General

Power Supply: 12 VDC to 48 VDC (Wide Voltage Input Supported)
Power Consumption: ≤ 20 W
Operating Temperature: -30 °C to 60 °C
Operating Humidity: 10% to 90%

Dimensions (W × D × H): 176 × 143 × 55 mm
Product Weight: ≤ 1 kg

Compliance

Certifications

• CE
• CB
• RoHS
• REACH
• WEEE
• UKCA

Standards

• EN 55032:2015
• EN 61000-3-2
• EN 61000-3-3
• EN 50130-4
