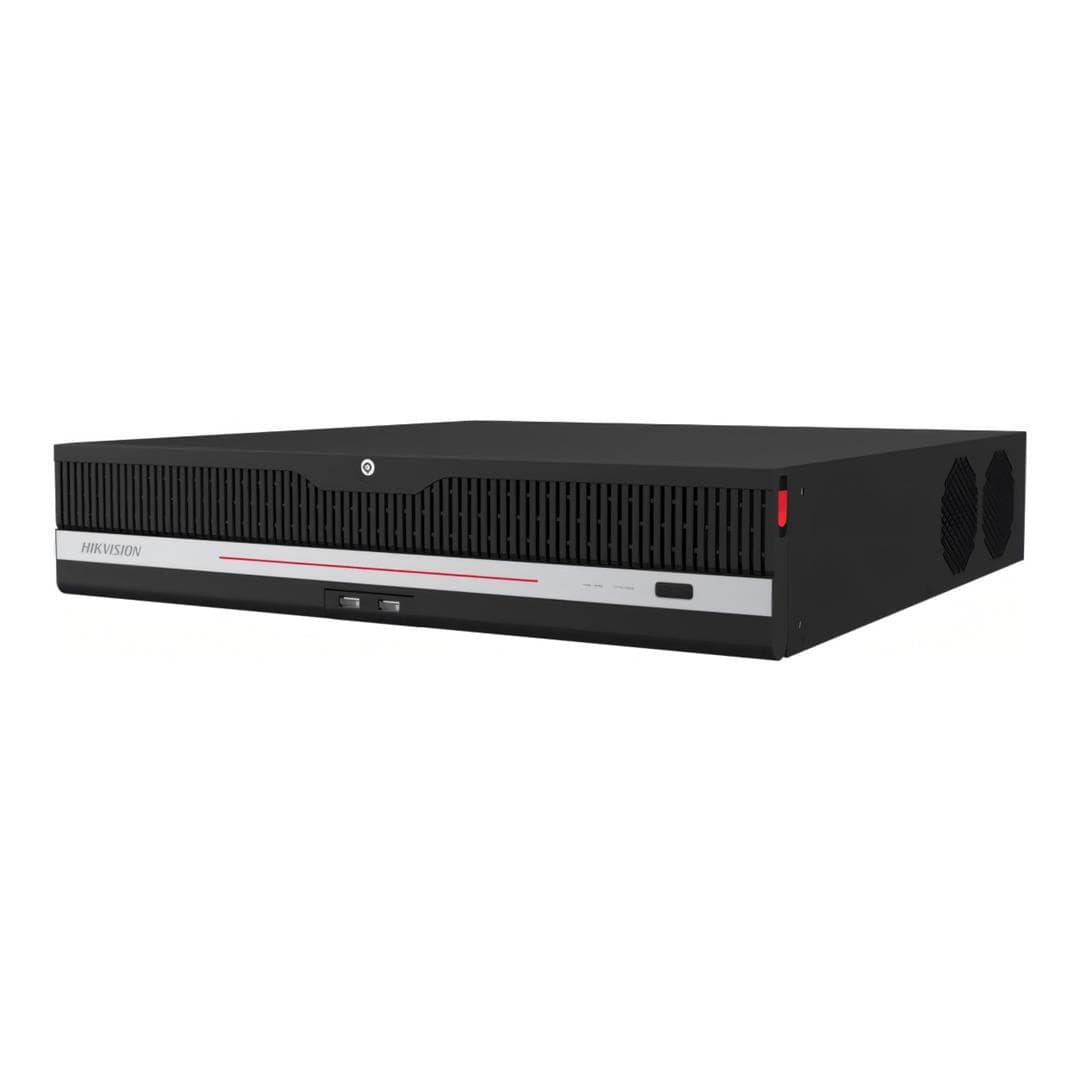

Hikvision DeepinMind 64-channel 2U 8K NVR IDS-9664NXI-M8/X

Hikvision DeepinMind 64-channel 2U 8K NVR IDS-9664NXI-M8/X

The Hikvision iDS-9664NXI-M8/X is a powerful 64-channel 2U 8K DeepinMind Network Video Recorder designed for large-scale professional and enterprise surveillance systems. Combining high-resolution IP camera recording with deep-learning analytics, it supports advanced perimeter protection, facial recognition and video structuralization directly at the recorder. Its high-performance decoding engine supports resolutions up to 32MP, while eight internal SATA drive bays, multiple display outputs and extensive network and peripheral connectivity provide the scalability required for demanding security environments.

Key Features

• 64-channel 2U DeepinMind Network Video Recorder.
• Supports up to 64 IP cameras.
• 8K high-resolution video output capability.
• Supports IP camera resolutions up to 32MP.
• Up to 2-channel 32MP decoding.
• Up to 32-channel 1080p simultaneous decoding.
• H.265+, H.265, H.264+ and H.264 video formats.
• Deep-learning intelligent video analytics.
• Up to 24-channel perimeter protection.
• Up to 16-channel facial recognition from video streams.
• Up to 48-channel facial recognition from face pictures.
• Up to 12-channel video structuralization.
• Supports connection of up to 8 IP speakers.
• 8 internal SATA drive bays.
• External storage expansion through eSATA.
• Dual HDMI and dual VGA display outputs.
• Dual LAN interfaces.
• Professional 2U chassis for enterprise surveillance deployments.

64-Channel Enterprise Video Recording

The iDS-9664NXI-M8/X supports connection of up to 64 IP cameras, making it suitable for large commercial, industrial and enterprise surveillance installations. Its high channel density allows extensive camera deployments to be consolidated into a single professional recording platform.

High-Performance 32MP Decoding

The NVR provides substantial decoding capability for high-resolution surveillance. Depending on the configured camera resolution, it supports up to 2 channels at 32MP, 2 channels at 24MP, 4 channels at 12MP, 8 channels at 8MP, 16 channels at 4MP or 32 channels at 1080p.

DeepinMind Intelligence

Hikvision's DeepinMind architecture incorporates deep-learning algorithms directly into the NVR. This enables the recorder to perform advanced intelligent analysis centrally, helping surveillance operators extract more useful information from connected camera streams and recorded video.

Up to 24-Channel Perimeter Protection

The recorder supports deep-learning perimeter protection on up to 24 channels. This capability is designed to improve event detection and filtering in security applications where accurate monitoring of defined areas and boundaries is important.

Advanced Facial Recognition

The iDS-9664NXI-M8/X supports facial recognition on up to 16 channels when analysing live video streams or up to 48 channels when processing face pictures. This provides powerful centralised facial-analysis capabilities for suitable professional security applications.

Video Structuralization

Up to 12 channels of video structuralization are supported. This intelligent analysis capability allows the recorder to extract structured information from surveillance footage, providing additional searchable data for security monitoring and investigation workflows.

8-Bay Storage Architecture

Eight internal SATA interfaces provide substantial local recording capacity for large surveillance installations. An additional eSATA interface provides further storage expansion options for compatible external storage equipment.

Flexible Display Connectivity

The recorder incorporates two HDMI and two VGA interfaces, allowing flexible connection to surveillance displays and control-room monitoring systems. Its 8K-capable architecture is designed to accommodate modern high-resolution surveillance displays and camera systems.

Professional Network and Peripheral Connectivity

Dual LAN interfaces provide network connectivity for demanding surveillance environments. The recorder also incorporates USB 3.0, RS-232 and RS-485 connectivity together with audio, alarm and control interfaces for integration with compatible security infrastructure.

Technical Specifications

What’s in the Box:

• 1 × Hikvision iDS-9664NXI-M8/X 64-Channel 2U 8K DeepinMind NVR

The Hikvision iDS-9664NXI-M8/X combines 64-channel IP video recording, 8K display capability and high-resolution decoding with advanced DeepinMind analytics. With up to 24-channel perimeter protection, sophisticated facial recognition, video structuralization and eight internal SATA bays, it provides a powerful central recording and analytics platform for large-scale professional surveillance deployments.
