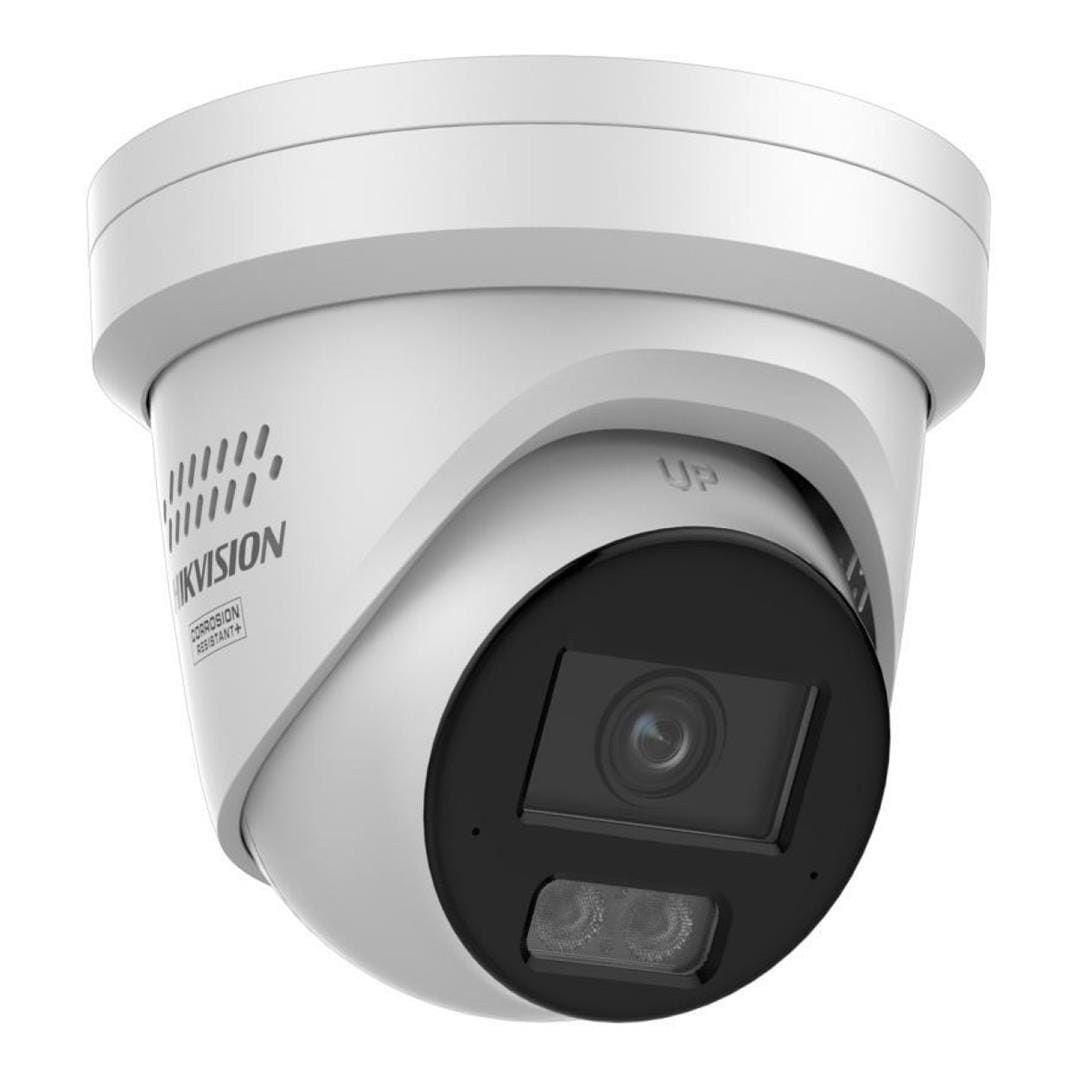

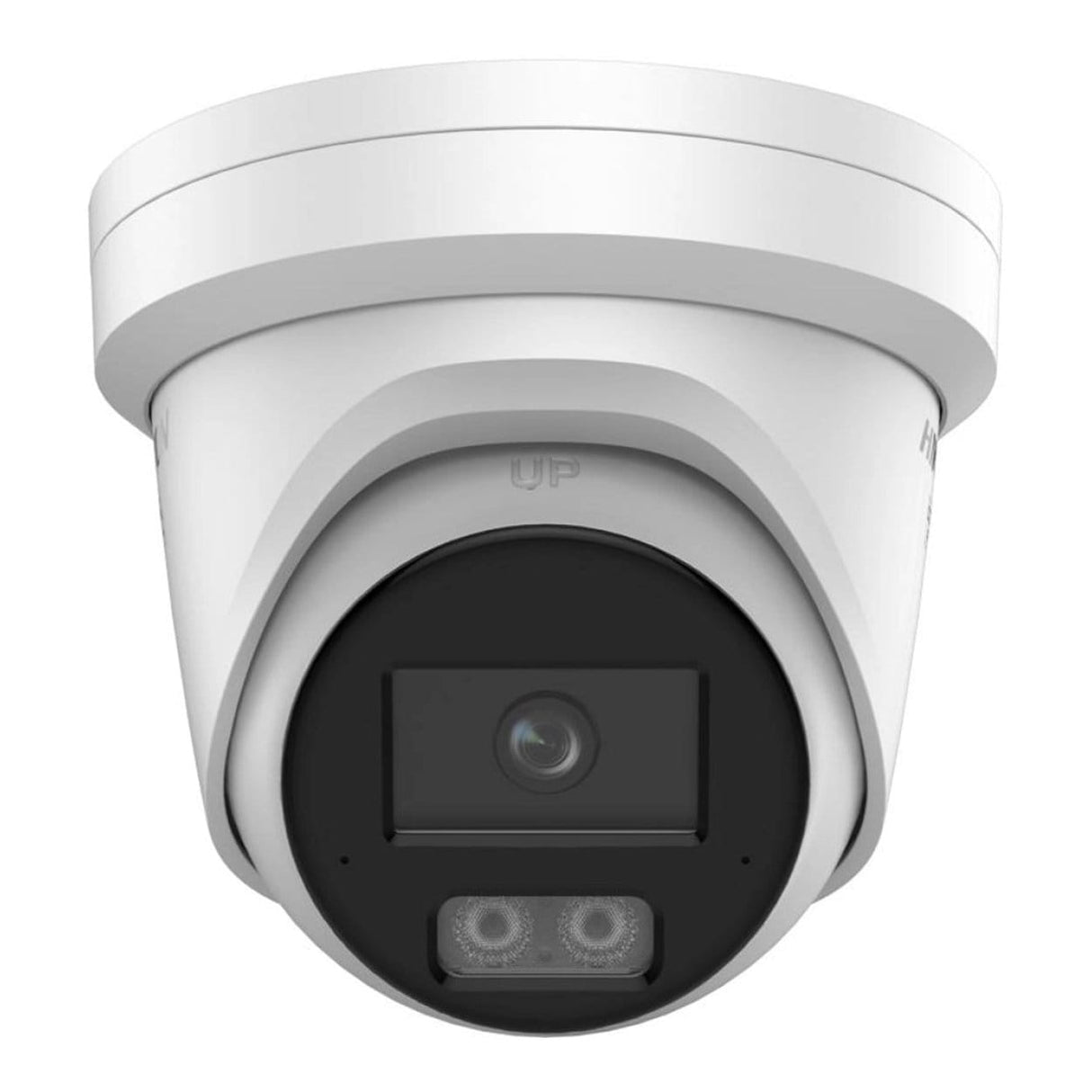

Hikvision ColorVu 8MP Smart Hybrid Light Fixed Turret Network Camera DS-2CD2387G3-LIS2UY/SL(2.8MM)

Hikvision ColorVu 8MP Smart Hybrid Light Fixed Turret Network Camera DS-2CD2387G3-LIS2UY/SL(2.8MM)

Features:

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off

Technical Specifications:

Camera

Image Sensor
1/1.8-Inch Progressive Scan CMOS

Maximum Resolution
3840 × 2160

Minimum Illumination
Color: 0.0005 Lux @(F1.0, AGC On), 0 Lux With Light

Shutter Time
1 s To 1/100,000 s

Day/Night Mode
IR Cut Filter

Angle Adjustment

• Pan: 0° To 360°
• Tilt: 0° To 75°
• Rotate: 0° To 360°

Lens

Lens Type
Fixed Focal Lens (2.8 mm And 4 mm Optional)

Focal Length And Field Of View

2.8 mm

• Horizontal FOV: 108.8°
• Vertical FOV: 56.4°
• Diagonal FOV: 134.3°

4 mm

• Horizontal FOV: 93.3°
• Vertical FOV: 47.2°
• Diagonal FOV: 114.2°

Lens Mount
M16

Iris Type
Fixed

Aperture
F1.0

Depth Of Field

2.8 mm
3.3 m To ∞

4 mm
3.8 m To ∞

DORI Performance

2.8 mm

• Detection: 89 m
• Observation: 35 m
• Recognition: 17 m
• Identification: 8 m

4 mm

• Detection: 109 m
• Observation: 43 m
• Recognition: 21 m
• Identification: 10 m

Illuminator

Supplement Light Type
White Light, IR

Supplement Light Range
Up To 30 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video

Main Stream

50 Hz

• 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz

• 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz

• 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz

• 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz

• 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz

• 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

• Main Stream: H.265, H.264, H.264+, H.265+
• Sub-Stream: H.265, H.264, MJPEG
• Third Stream: H.265, H.264

Video Bit Rate
32 Kbps To 16 Mbps

H.264 Type
Baseline Profile, Main Profile, High Profile

H.265 Type
Main Profile

Bit Rate Control
CBR, VBR

Scalable Video Coding (SVC)
H.264 And H.265 Encoding

Region Of Interest (ROI)
1 Fixed Region For Main Stream

Audio

Audio Type
Mono Sound

Audio Compression

• G.711
• G.722.1
• G.726
• MP2L2
• PCM
• MP3
• AAC-LC

Audio Bit Rate

• 64 Kbps (G.711u/G.711a)
• 16 Kbps (G.722.1)
• 16 Kbps (G.726)
• 32 To 192 Kbps (MP2L2)
• 8 To 320 Kbps (MP3)
• 16 To 64 Kbps (AAC-LC)

Audio Sampling Rate

• 8 kHz
• 16 kHz
• 32 kHz
• 48 kHz

Environment Noise Filtering
Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View
Up To 6 Channels

API Support
ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

User Access
Up To 32 Users With 3 Levels:

• Administrator
• Operator
• User

Security Features

• Password Protection
• Complicated Password Enforcement
• HTTPS Encryption
• 802.1X Authentication
• Watermark
• IP Address Filtering
• HTTP/HTTPS Authentication
• RTP/RTSP Over HTTPS
• TLS 1.1/1.2/1.3
• MAC Address Authentication

Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client Software

• iVMS-4200
• Hik-Connect
• Hik-Central

Web Browser Support

• Chrome 80+
• Firefox 80+
• Edge 89+


Image Parameter Switching
Yes

Image Settings

• Rotate Mode
• Saturation
• Brightness
• Contrast
• Sharpness
• Gain
• White Balance

Day/Night Switching
Day, Night, Auto, Schedule

Image Enhancement

• BLC
• HLC
• 3D DNR
• Distortion Correction
• Defog

Signal-To-Noise Ratio (SNR)
≥ 52 dB

Wide Dynamic Range (WDR)
130 dB

Image Stabilization
EIS

Privacy Mask
4 Programmable Polygon Privacy Masks

Interface

Ethernet Interface
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port

On-Board Storage
MicroSD / MicroSDHC / MicroSDXC Card Slot (Up To 512 GB)

Built-In Speaker
Max Power Consumption: 2 W
Max Sound Pressure Level: 110 dB (At 10 cm)

Audio Interfaces

• Built-In Dual Microphone Array
• 1 × Line-In (Two-Core Terminal Block)
• 1 × Line-Out (Two-Core Terminal Block)

Alarm Interface
1 × Alarm Input
1 × Alarm Output (Max. 24 VDC/24 VAC, 1 A)

Reset Key
Yes

Event And Analytics

Basic Events

• Motion Detection (Human And Vehicle Detection Supported)
• Video Tampering Alarm
• Exception Alarm

Smart Events
Scene Change Detection

Linkage Actions

• Upload To FTP/NAS/Memory Card
• Notify Surveillance Center
• Send Email
• Trigger Alarm Output
• Trigger Recording
• Trigger Capture
• Audible Warning
• Strobe Light Flashing

Deep Learning Functions

Face Capture
Yes

Perimeter Protection

• Line Crossing
• Intrusion
• Region Entrance
• Region Exiting

Supports Human And Vehicle Classification

Power

Power Supply

• 12 V DC ±25%, 1.29 A
• PoE: IEEE 802.3at (Class 4)

Maximum Power Consumption

• 15.5 W (DC)
• 17 W (PoE)

General

Material
Metal Cover And Metal Main Body

Dimensions
Ø138.3 × 115.4 mm

Weight
Approx. 820 g

Package Dimensions
170 × 170 × 160 mm

Package Weight
Approx. 1200 g

Storage Conditions
-30 °C To 60 °C, ≤ 95% RH Non-Condensing

Operating Conditions
-30 °C To 60 °C, ≤ 95% RH Non-Condensing

General Functions

• Heartbeat
• Mirror
• Flash Log
• Password Reset Via Email
• Pixel Counter
• Anti-Banding

Supported Languages
33 Languages Supported

Flashing Light Options

• Red And Blue Light (/SRB Model)
• White Light (/SL Model)

Compliance And Protection

EMC Certifications

• CE-EMC
• RCM
• IC
• KC

Safety Certifications

• UL 62368-1
• IEC 62368-1
• EN 62368-1

Environmental Compliance
CE-RoHS (2011/65/EU)

Protection Rating
IP67 (IEC 60529-2013)

Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
