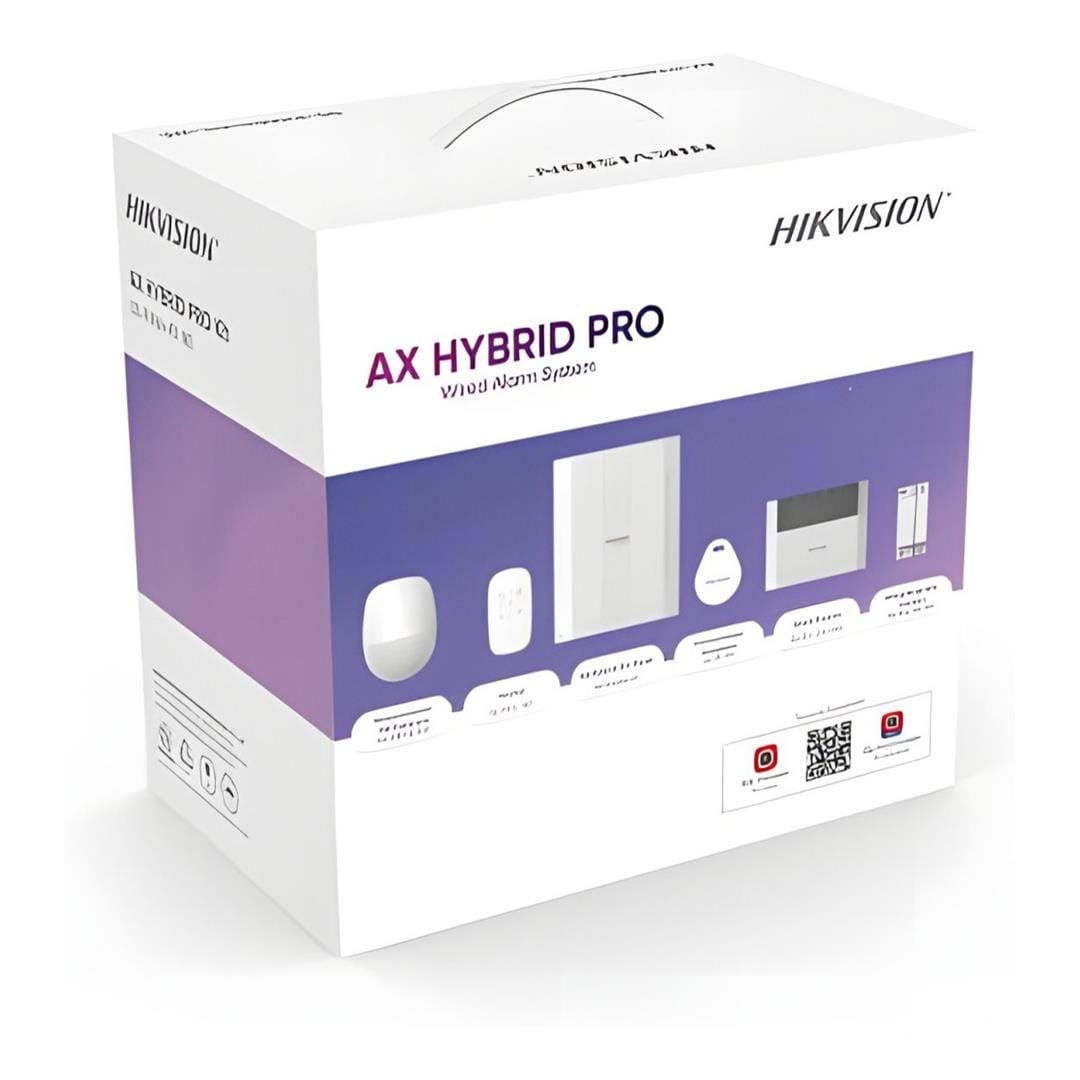

Hikvision AX Hybrid Pro Kit 868MHz DS-PHA64-KIT-WE

Hikvision AX Hybrid Pro Kit 868MHz DS-PHA64-KIT-WE

Technical Specifications:

Software Features

Zones: 64 (8 On-Board Zones, Maximum 8 Wired PIRCam)
Areas: 32

User Capacity

• Installer: 1
• Administrator: 1
• Operator: 62

SMS Notification: Supported (With GPRS/3G/4G Module)
On-Board Video Clips: 4

ARC Protocol Support

• ISAPI (Supports iVMS-4200 Client Software and Web Client)
• Cloud P2P (Supports Cloud P2P Privacy Protocol)
• DC-09 (ADM-CID/SIA-DCS)
• CSV-IP
• ISUP 5.0

Programming Tools

• Web
• iVMS-4200
• Hik-Partner Pro
• Keypad

Firmware Upgrade Methods

• Web
• iVMS-4200
• Hik-ProConnect
• Hik-Partner Pro

End-of-Line Resistance Support

• 1 KΩ
• 2.2 KΩ
• 4.7 KΩ
• 5.6 KΩ
• 6.8 KΩ
• 8.2 KΩ

Hardware Features

Alarm Inputs: 64 (Including 8 On-Board Zones)

Alarm Outputs: 64 (Including 2 On-Board Relay Outputs and 2 On-Board I/O Outputs)

Power Outputs

• Bell: Maximum 12 V, 1.2 A
• AUX: Maximum 12 V, 1.5 A

3G/4G On-Board: Optional
GPRS On-Board: Optional
Wi-Fi Standard: 802.11b/g/n (2.4 GHz)

Bus Interface

• 1 × Speed-X Bus

Sounder Output

• 1 × Wired On-Board Sounder Output

Tamper Protection

• Removal Detection Switch
• Front Cover Opening Detection Switch

Network Interface

• 1 × RJ45 10/100 Mbps Ethernet Port

Display

LED Indicators

• 1 × AC Power Indicator (Green)
• 1 × System Status Indicator (Green/Red)
• 1 × PSTN Status Indicator (Green/Red)
• 1 × Mobile Communication Status Indicator (Green/Red)

Electrical Characteristics

Power Interface: 100 to 240 VAC (On-Board Power Transformer)

Power Consumption

220 V Power Supply

• With Alarm: 2 A, 32 W
• Without Alarm: 250 mA, 4 W

13.5 V Battery Supply

• With Alarm: 1.7 A, 25 W
• Without Alarm: 200 mA, 2.7 W

Battery Type: Lead-Acid Battery (12 V, 7 Ah; Not Included)
Battery Life Span: Up to 36 Hours

General

Operating Temperature: -10 °C to 40 °C
Operating Humidity: 10% to 90%
Shell Material: Plastic
Colour: White

Dimensions (W × H × D): 261 × 199 × 86.4 mm
Product Weight: 997 g

Device Management

Supported Devices

• Tags: 64
• Keyfobs: 64
• Keypads: 8
• Wireless Sounders: 16
