Hikvision AE-DF7351 F6 Pro + B1 Buckline Power Cable 3.5m

Hikvision AE-DF7351 F6 Pro + B1 Buckline Power Cable 3.5m

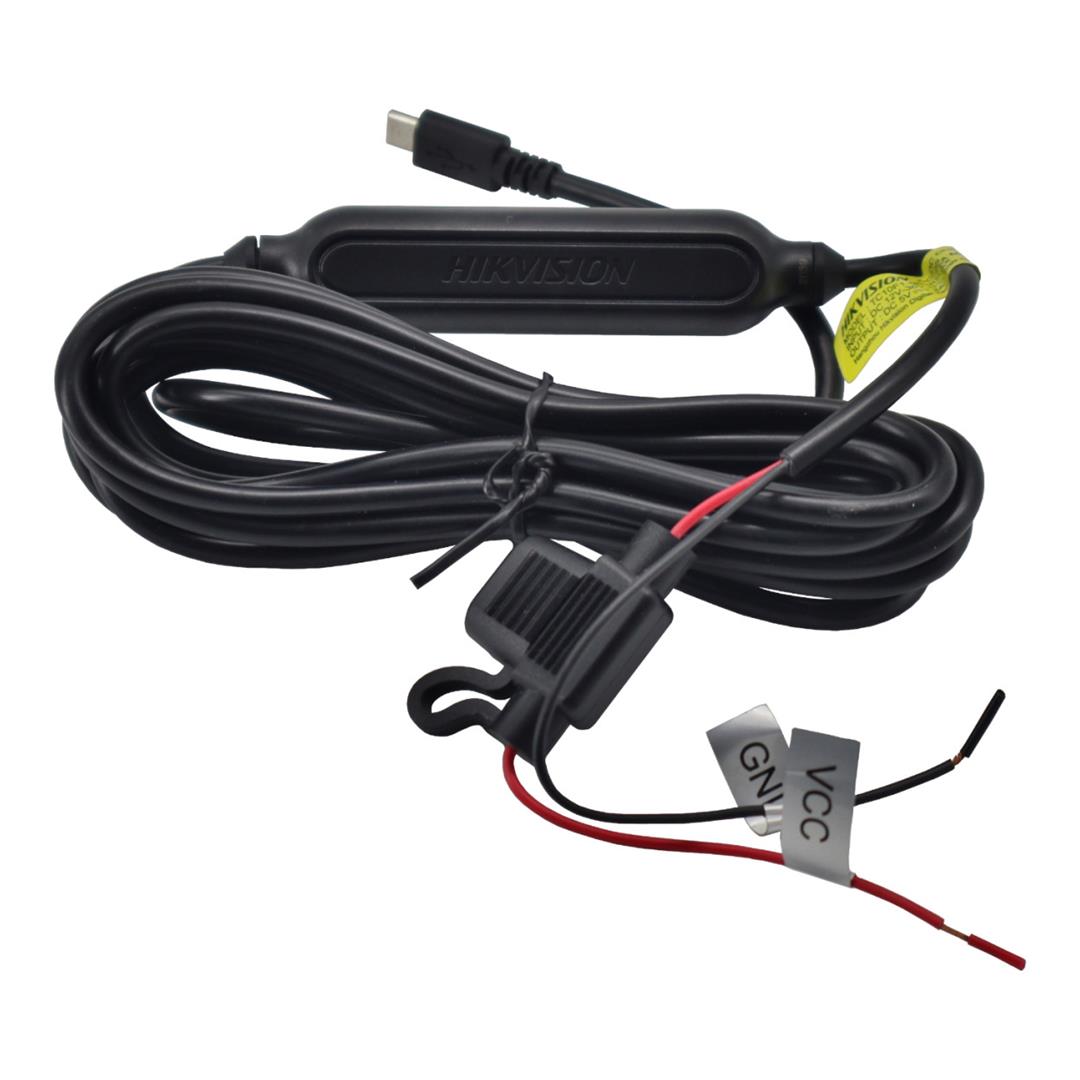

The Hikvision AE-DF7351 Buckline Power Cable is a 3.5m hardwire power solution designed for compatible Hikvision dash cameras and vehicle security systems. It converts a 12-24V DC vehicle supply to a regulated 5.0-5.3V output, allowing supported cameras to remain powered for features such as parking monitoring while helping protect the vehicle battery from excessive discharge.

Key Features:

• 3.5m vehicle hardwire power cable
• Designed for compatible Hikvision dash cameras
• Suitable for F6 Pro, B1 and other supported models
• Micro-USB camera connection
• 12-24V DC vehicle input
• Regulated 5.0-5.3V DC output
• Maximum input current of at least 2A
• 11.3V ±0.2V low-voltage battery protection
• Supports parking monitoring applications
• Stable and reliable power conversion
• Wide -20°C to 65°C operating temperature
• Black cable finish

Features

Hardwired Dash Camera Power

The AE-DF7351 connects a compatible Hikvision dash camera directly to the vehicle electrical system, providing a neat fixed installation without relying on a standard accessory power socket.

Supports Parking Monitoring

Hardwired vehicle power allows supported cameras to remain supplied when parking monitoring is required, helping the camera continue recording supported events while the vehicle is switched off.

Low-Voltage Battery Protection

An integrated low-voltage protection function activates at approximately 11.3V ±0.2V. This helps prevent excessive discharge of the vehicle battery during extended parking surveillance.

12-24V Vehicle Compatibility

The cable accepts a rated 12-24V DC input and converts it to a regulated no-load output of 5.0-5.3V DC for compatible cameras, making it suitable for a range of supported vehicle installations.

Convenient 3.5m Cable Length

The 3.5m cable provides flexibility when routing wiring around the windscreen, dashboard and interior trim for a discreet installation. Syntech specifies approximately 1.3m for the input section and 2.1m for the output section.

• Professional installation is recommended where direct connection to vehicle wiring is required.
• Check camera compatibility before installation.
• This product is a power cable only and does not include a dash camera.

Technical Specifications:

Choose the Hikvision AE-DF7351 Buckline Power Cable for a clean, permanent power connection for compatible Hikvision dash cameras, with 12-24V vehicle support, regulated Micro-USB power and integrated low-voltage protection for parking monitoring applications.
