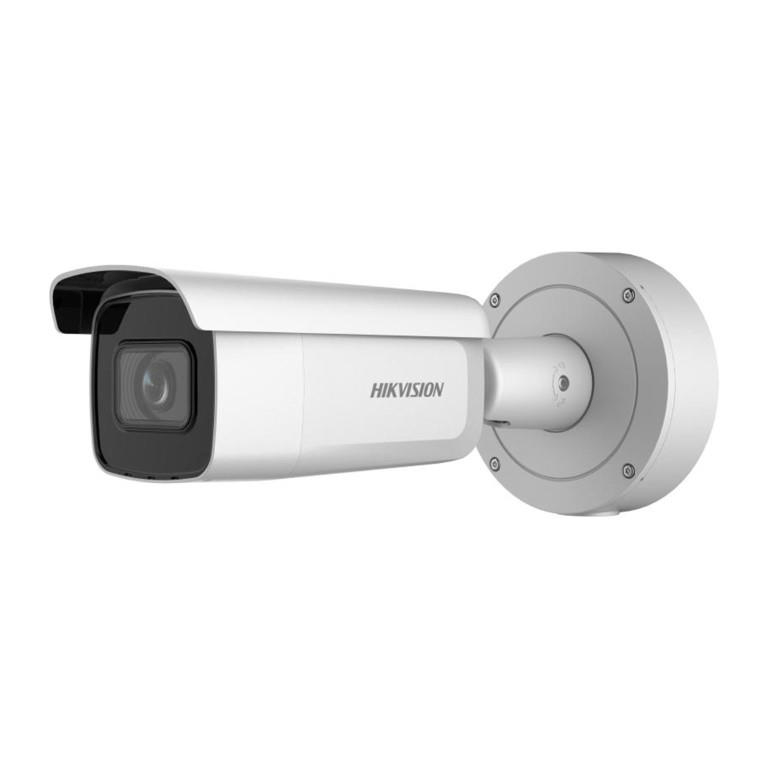

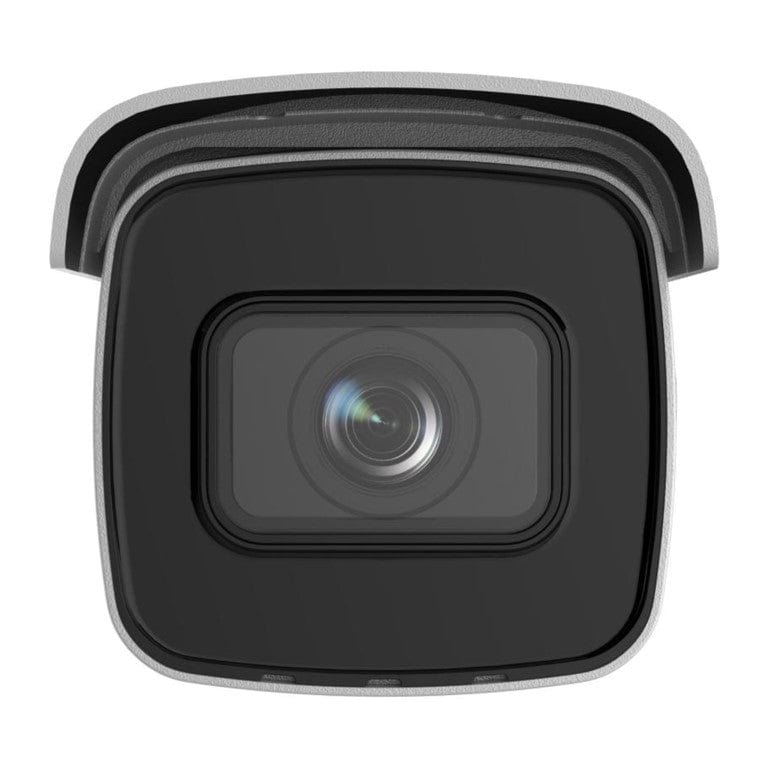

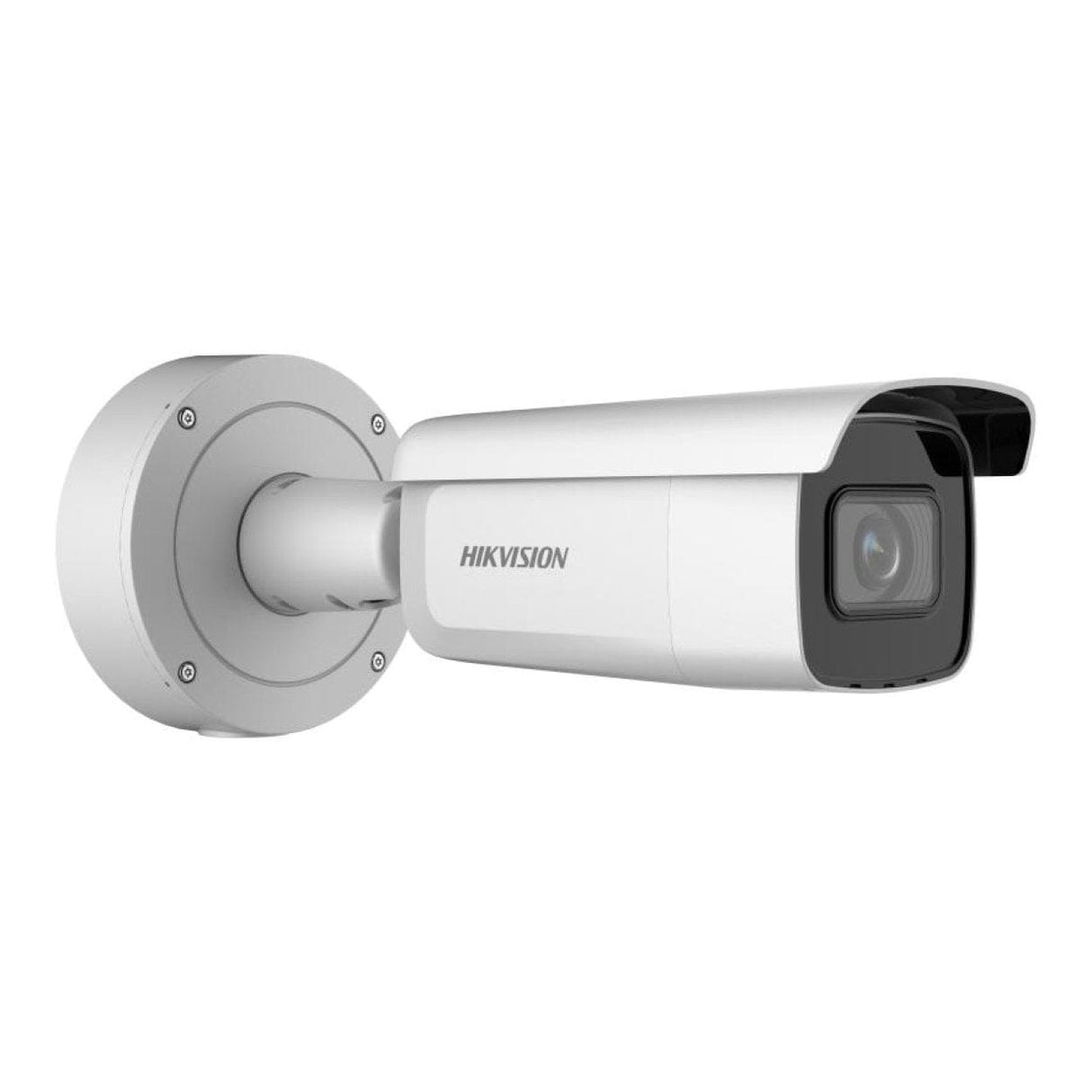

Hikvision AcuSense 8MP Motorized Varifocal Bullet Network Camera DS-2CD2686G2-IZS

Hikvision AcuSense 8MP Motorized Varifocal Bullet Network Camera

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness

Features:

• High quality imaging with 8MP 4K resolution
• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• 1/1.8" Progressive Scan CMOS Image Sensor
• Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Varifocal Motorized lens: 2.8 to 12 mm
• Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
• Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
• IR Supplement Light Type
• Up to 60m Light Range
• Smart Supplement Light
• 850 nm IR Wavelength
• Power Supply Required: 12 VDC, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection or PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

Technical Specifications:

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON); B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Varifocal motorized lens, 2.8 to 12 mm
Focal Length & FOV: 2.8 to 12 mm, Horizontal FOV 108° to 46°, Vertical FOV 58° to 26°, Diagonal FOV 127.4° to 52°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.4

Dori
2.8 to 12 mm
Wide: Detect 86.0 m, Observe 34.1 m, Recognize 17.2 m, Identify 8.6 m
Tele: Detect 214.0 m, Observe 84.9 m, Recognize 42.8 m, Identify 21.4 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 60 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression:
Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Profile: Baseline / Main / High
H.265 Profile: Main
Bit Rate Control: CBR / VBR
Scalable Video Coding (SVC): H.264 and H.265
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Target Cropping: Yes

Audio
Audio Type: Mono
Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC)
Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, G, T), ISAPI, SDK
Users: Up to 32 users (Administrator, Operator, User)
Security: Password protection, complex passwords, HTTPS encryption, IP address filtering, security audit log, HTTP/HTTPS authentication, TLS 1.1/1.2, WSSE
Network Storage: microSD/SDHC/SDXC (up to 256 GB), NAS (NFS, SMB/CIFS), ANR support

Client
Client Software: iVMS-4200, Hik-Connect, Hik-Central
Web Browser:
Plug-in required: IE 10+
Plug-in free: Chrome 57+, Firefox 52+

Image Parameters Switch: Yes
Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch: Day / Night / Auto / Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface
Ethernet Interface: 1 × RJ45 10/100 Mbps self-adaptive
On-Board Storage: Built-in microSD slot, up to 256 GB
Audio Interface:
Input: 1 × Line in (3.5 mm)
Output: 1 × Line out (3.5 mm)
Alarm Interface: 1 input, 1 output (max. 24 VDC / 24 VAC, 1 A)
Reset Key: Yes

Event
Basic Event: Motion detection (human and vehicle classification), video tampering, exception
Smart Event: Line crossing, intrusion, region entrance, region exiting, scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, email, recording, capture, alarm output, audible warning

Deep Learning Function
Face Capture: Yes

Power
Power Supply: 12 VDC, 1.08 A, max. 13 W
PoE: 802.3at, Class 4, max. 15 W

General
Dimensions: Ø144.1 mm × 345.7 mm (Ø5.7" × 13.6")
Package Dimensions: 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight: Approx. 1430 g (3.2 lb.)
Gross Weight: Approx. 2490 g (5.5 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH
Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH
Language: 33 languages
General Functions: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMC: FCC, CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, REACH

Protection
Ingress Protection: IP66
Impact Protection: IK10
