Hikvision Access Controller Module with 2-door Control Support DS-K2M002X

Hikvision Access Controller Module with 2-door Control Support DS-K2M002X

The access module is used to control doors and communciate with access controller via RS-485. It also supports the card reader's single-point fault detection and redundant processing functions to ensure the stability of the system.

Features

• Module only (Casing not included)
• Supports 2 door control. It can connect with access controller via RS-485
• Connects with card reader via RS-485 (OSDP) or Wiegand
• Installs with guide rail
• Supports battery charging and discharging
• Supports indicators for indicating power status, communciation status, running status, and door staus

Technical Specification

Operating system: MCU

Interfaces

• Lock control: 2
• Exit button: 2
• Door contact input: 2
• Alarm input: 4
• Alarm output: 2
• TAMPER: 1
• RS-485: 4 (2 for card reader, 2 for access controller)
• Wiegand: 2 (standard 26/34 input, supports custom Wiegand settings)

Capacity

Linked door capacity: 2 doors

Linked card reader capaciry: 4 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers

General

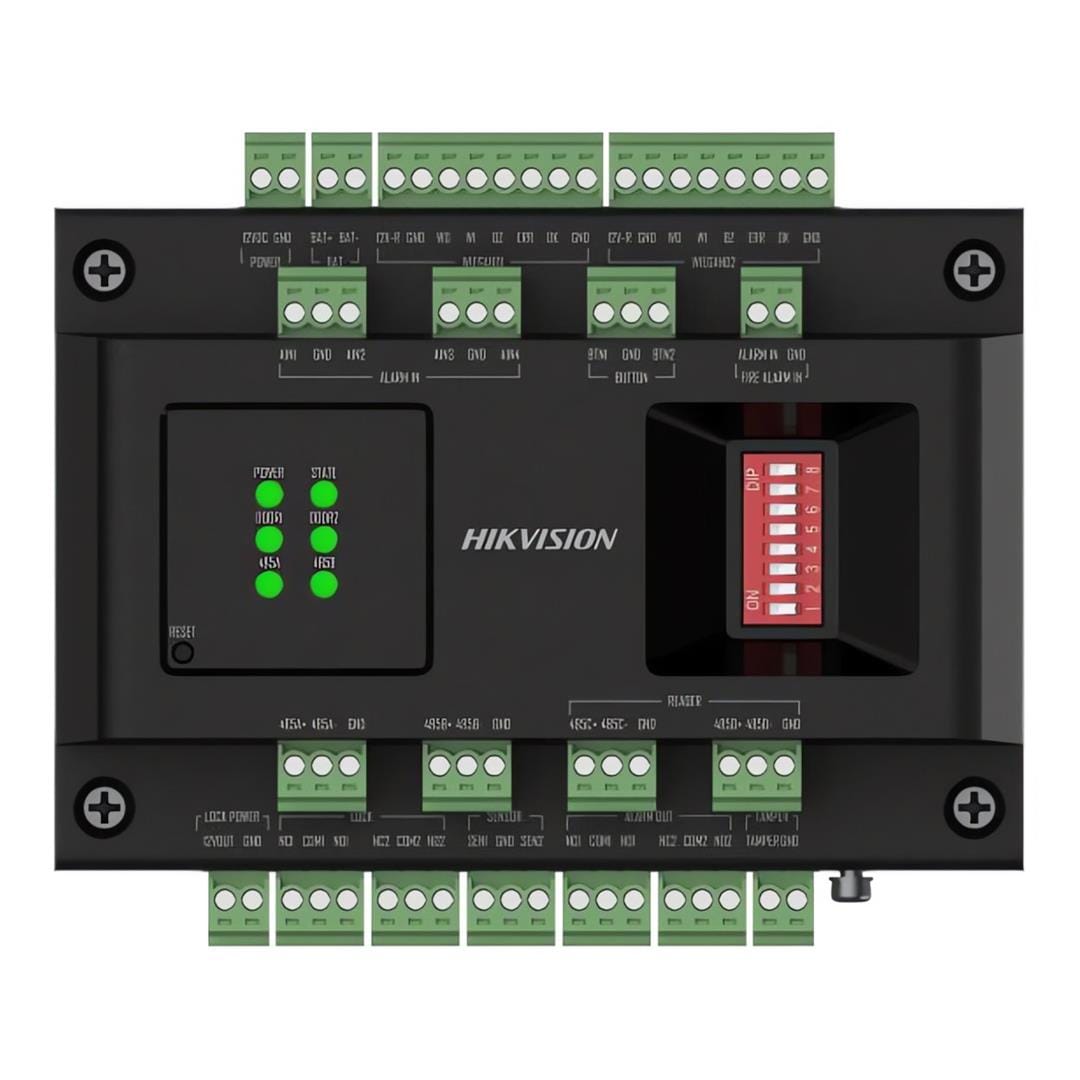

Indicator: 6 indicators, 1 for indicating power status, 1 for running status, 2 for communication status, and 2 for door status

Battery: Charge and discharge

Power supply: 12 ± 15% VDC

Installation: Installation with guide rail

Function

Configuration via Web browser: Support via access controller

Multi-factor authentication: Support via access controller

First person in: Support via access controller

Multi-door interlocking: Support via access controller: supports 32 groups (32 doors each)
