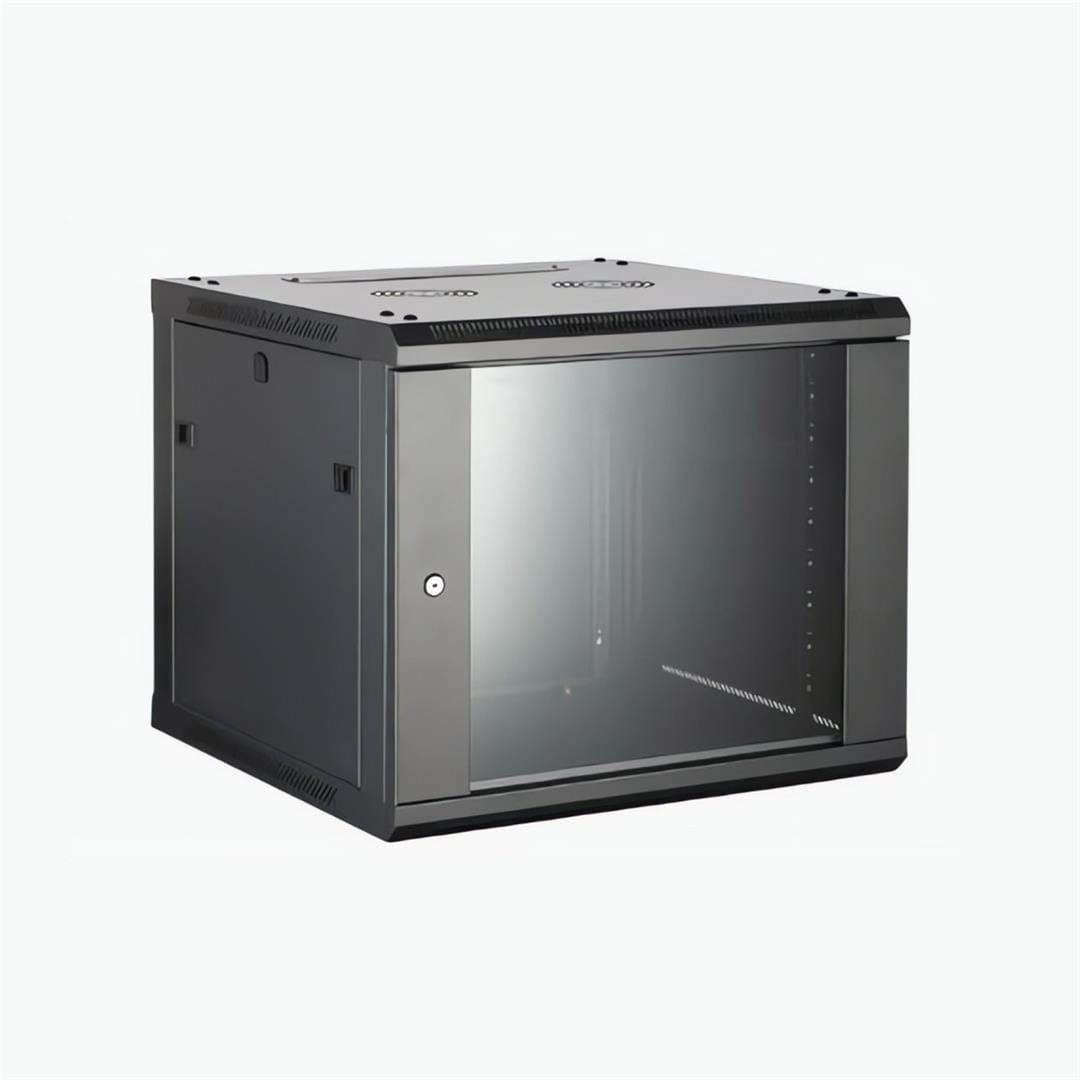

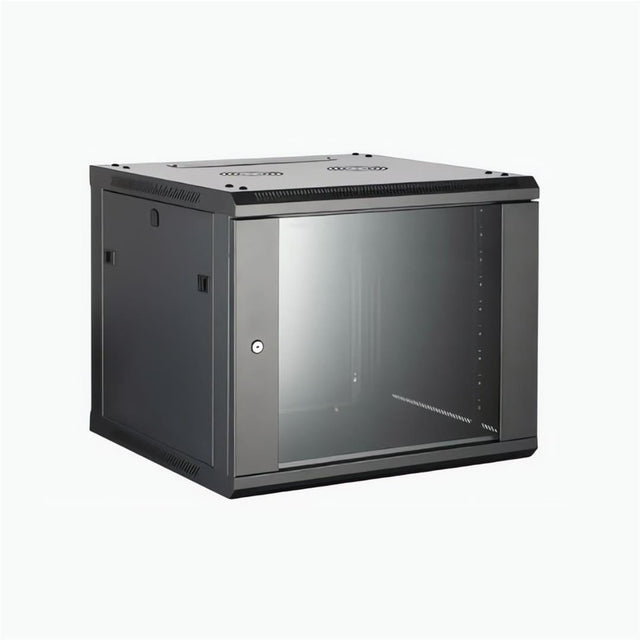

Hikvision 9U 600mm x 450mm Wall-mounted Cabinet DS-XS6409-S/B

Hikvision 9U 600mm x 450mm Wall-mounted Cabinet DS-XS6409-S/B

The enclosures conform to 19-inch mounting standards, are compatible with ETSI standard equipment installations, and are designed for rack-mounted equipment in cabling, telecom, IT, industrial, and home.

Technical Specification

Installation Method: Wall-mounted

Internal Space: 9U

Static Load Capacity: 40 kg

Dimensions (WxDxH): 600 x 450 x 500mm

Net Weight: 18.7 kg

Opening Percentage (Front Door): 78%

Opening Percentage (Rear Door): 0

Front Door: 4mm Glass door,1mm SPCC

Front and Rear Frame: 1.2mm SPCC

Side Panel: 1.0mm SPCC

Beam: 1.2mm SPCC

Top Cover: 1.0mm SPCC

Bottom panel: 1.0mm SPCC

Vertical rail: 1.5mm SPCC

Rear panel: 1.0mm SPCC

Mounting bracket: 1.2mm SPCC

Shelf: Optional, not included

FAN: Optional, not included

PDU: Optional, not included
