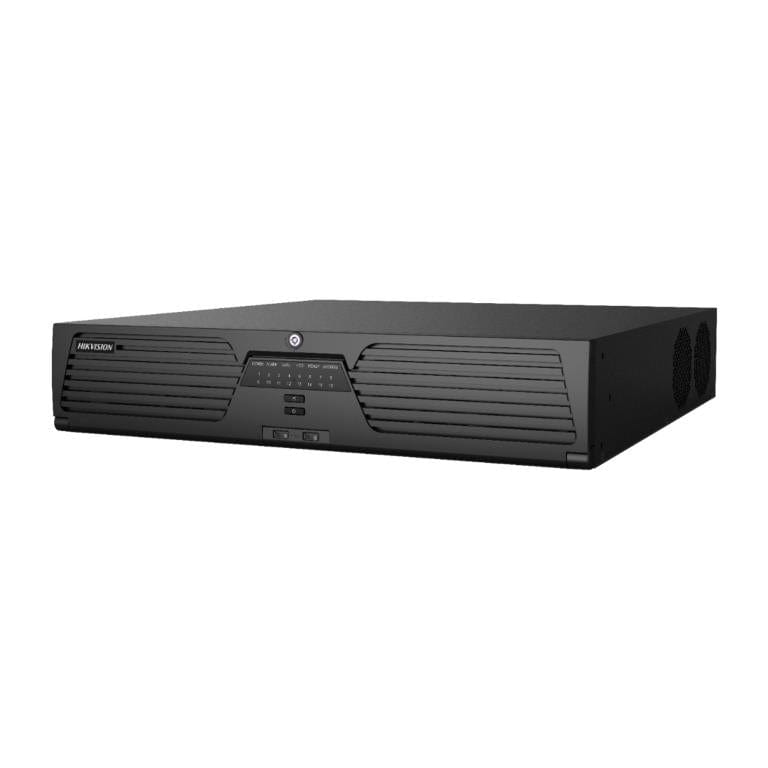

Hikvision 9600 DeepinMind Series 32-ch 4K 3U NVR IDS-9632NXI-I8/X

Hikvision 9600 DeepinMind Series 32-ch 4K 3U NVR IDS-9632NXI-I8/X

Features

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• 320 Mbps Incoming Bandwidth
• 256 Mbps Outgoing Bandwidth
• Up to 16-ch perimeter protection
• Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
• Up to 8-ch video structuralization
• Up to 32-ch IP cameras can be connected (Additional Switch required)
• Up to 16-ch 1080p decoding capability
• 16x Alarm In
• 8x Alarm Out
• 2x USB 2.0 Front panel
• 1x USB 3.0 Rear panel
• Serial Interface: RS-232; RS-485; Keyboard
• Supports RAID0, RAID1, RAID5, RAID6, RAID10
• 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• 2-ch, RCA (Linear, 1 KΩ) Audio Output
• 1-ch, RCA (2.0 Vp-p, 1 k Ω) Two-Way Audio

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading

HD Video Output

• Provide independent 2x HDMI and 2x VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• Up to 8 SATA interfaces for HDD connection
• Up to 16-ch synchronous playback

Smart & POS Function

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR (Automatic Number-Plate Recognition), and people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

• 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in

Typical Application

Facial Recognition and Face Picture Comparison

Modeling and analyzing face pictures captured by cameras. Realize list alarm and stranger alarm via face picture library. Search target people by picture and name features.

Perimeter Protection

Adopt deep learning algorithm to reduce false alarm, effectively reduces the false alarm caused by tree branches, leaves, shadow, light, vehicles, small animals, etc.

Video Structuralization

Extracting the face picture, human body and vehicle features from live videos, which is used for the tracking and retrieval of human and vehicles.
