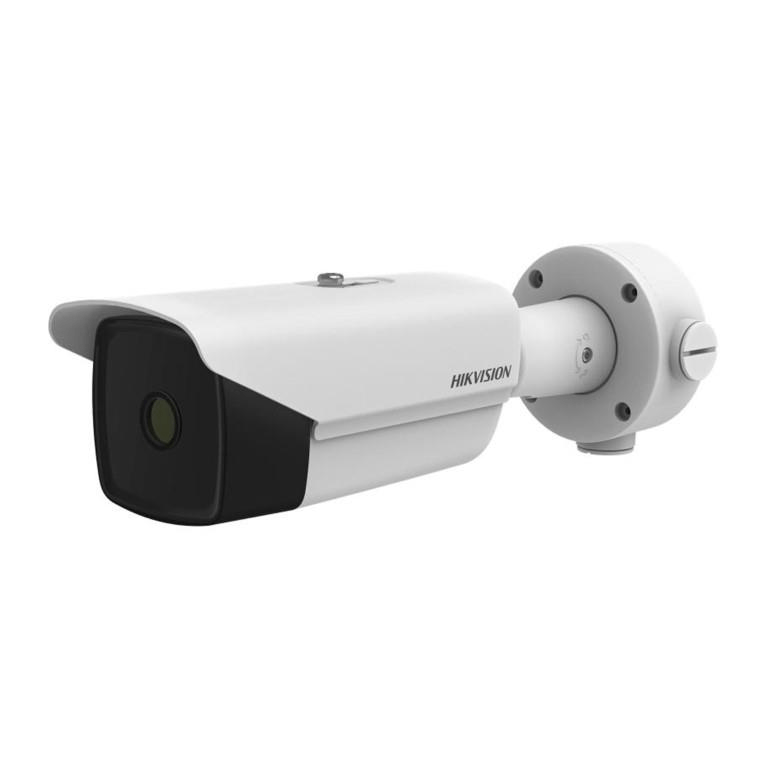

Hikvision 9.7mm Thermal Security Network Bullet Camera DS-2TD2138-10/QY

Hikvision 9.7mm Thermal Security Network Bullet Camera DS-2TD2138-10/QY

Hikvision DS-2TD2138-10/QY Anti-Corrosion Thermal Network Bullet Camera is applied to perimeter protection and fireprevention purposes in critical infrastructures such as airport, railway, prison, power station, 4S stores, and so on. With the vanadium oxide uncooled focal plane sensor, it enhances the thermal image quality. It adopts anti-corrosion coating to meet the requirements of used in anti-corrosion environment.

Features

• Vanadium Oxide Uncooled Focal Plane Arrays Image Sensor
• 384 x 288 resolution
• NETD < 35 mK (25°C, F1.0)
• 12 μm Pixel Pitch
• 8 μm to 14 μm Spectral Range
• 9.7 mm focal lens
• 2x, 4x, 8x Digital Zoom
• 1.24 mrad IFOV
• Horizontal FOV: 26.0° x Vertical FOV: 20.0°
• 100 m VCA Range For Humans
• 300 m VCA Range For Vehicles
• Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee
• IP67 Standard
• TVS 6000V lightning protection, surge protection, voltage transient protection
• IK10-rated housing
• 1.0V [p-p]/75Ω, PAL/NTSC/BNC Analog Output
• 2x, alarm input (0 to 5 VDC)
• 2x, alarm output (alarm response actions configurable)
• 1x Audio Input, 3.5 mm Mic in/Line in interface
• 1x RJ45 10/100MB self-adaptive Ethernet interface
• 1x RS-485 interface (half duplex)
• 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block ; PoE (802.3af, class 3)
• *Power supply is not included
