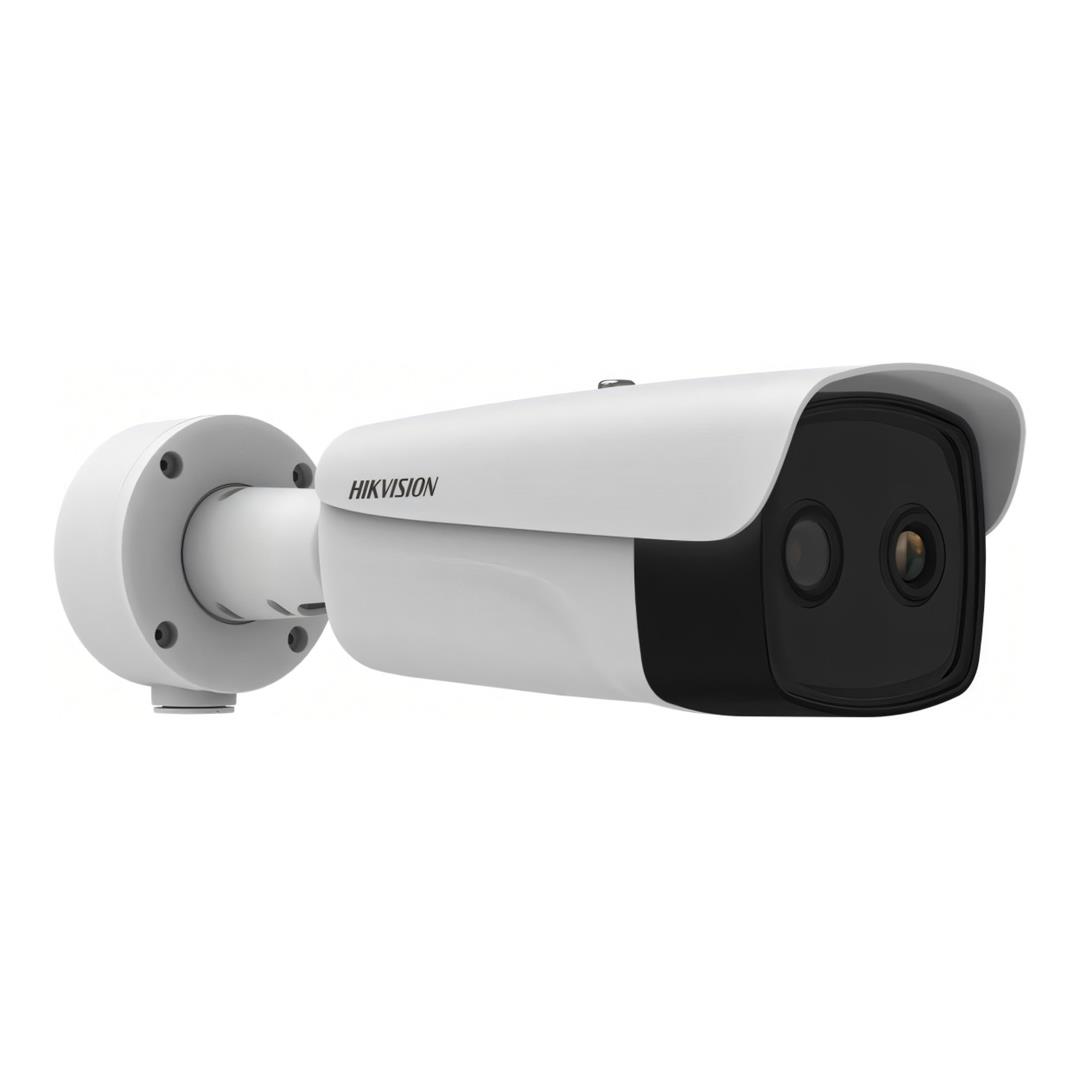

Hikvision 9.7mm Thermal and Optical Bi-spectrum Network Bullet Camera HM-TD2638-10/G1/T3Y

Hikvision 9.7mm Thermal and Optical Bi-spectrum Network Bullet Camera HM-TD2638-10/G1/T3Y

The Hikvision HM-TD2638-10/G1/T3Y is an anti-corrosion bi-spectrum network bullet camera combining 384 × 288 thermal imaging with a high-resolution 4MP optical camera for advanced perimeter protection, temperature monitoring and fire prevention. Its 9.7mm thermal lens works alongside a 6.4mm optical lens with up to 50m infrared illumination, while Hikvision's GUANLAN Large-Scale AI Model provides enhanced human and vehicle detection with reduced false alarms. Fire and smoking detection, temperature exception alarms, NEMA 4X anti-corrosion protection and rugged IP67/IK10 construction make it well suited to critical infrastructure and demanding outdoor environments.

Key Features

• Thermal and optical bi-spectrum imaging: Combines a 384 × 288 thermal detector with a 4MP optical camera for comprehensive day and night surveillance.
• 9.7mm thermal lens: Provides a 26.5° × 19.8° thermal field of view for focused perimeter and temperature monitoring.
• 4MP optical imaging: 1/2.7-inch Progressive Scan CMOS sensor delivers detailed optical images at up to 2688 × 1520 resolution.
• GUANLAN Large-Scale AI Model: Provides extended human and vehicle detection distances while helping reduce false alarms.
• Temperature exception alarm: Supports temperature monitoring from -20°C to +150°C for early identification of abnormal temperature conditions.
• Fire and smoking detection: Integrated intelligent algorithms support proactive fire-prevention applications.
• Up to 50m infrared: Integrated IR illumination supports optical monitoring in complete darkness.
• Anti-corrosion construction: NEMA 4X protection complements IP67 weather resistance and IK10 vandal resistance for demanding outdoor environments.

384 × 288 High-Sensitivity Thermal Imaging

The thermal channel uses a vanadium oxide uncooled focal plane array with 384 × 288 resolution, a 12μm pixel pitch and NETD of ≤20mK at 25°C, F1.0. This high thermal sensitivity allows the camera to detect small differences in temperature while maintaining effective surveillance where conventional visible-light imaging may be limited.

9.7mm Thermal Lens

This specific HM-TD2638-10/G1/T3Y configuration incorporates a 9.7mm F1.0 thermal lens with a 26.5° horizontal and 19.8° vertical field of view. The focused thermal coverage makes it suitable for perimeter surveillance, critical infrastructure monitoring and temperature-based detection applications.

4MP Optical Imaging with 50m IR

The optical channel incorporates a 1/2.7-inch Progressive Scan CMOS sensor with a maximum resolution of 2688 × 1520 and a 6.4mm fixed lens. Minimum illumination reaches 0.0089 lux at F1.6 with AGC enabled, while integrated infrared illumination provides visibility at 0 lux over distances of up to 50 metres.

GUANLAN AI Perimeter Protection

Hikvision's GUANLAN Large-Scale AI Model is designed to extend human and vehicle detection distances while maintaining a very low false-alarm rate. Intelligent perimeter functions include line crossing, intrusion, region entrance and region exit detection, allowing the camera to focus security events on relevant targets.

Temperature, Fire and Smoking Detection

The HM-TD2638-10/G1/T3Y supports temperature exception alarms across a measurement range of -20°C to +150°C with specified accuracy of ±8°C. Dedicated fire and smoking detection algorithms provide additional early-warning capabilities for industrial facilities, solar farms and other critical environments.

Anti-Corrosion Outdoor Construction

An anti-corrosion coating and NEMA 4X protection make the camera suitable for environments where resistance to corrosive conditions is required. IP67 weather protection and IK10 vandal resistance further enhance durability for exposed outdoor surveillance installations.

Technical Specifications

What’s in the Box:

• 1 × Hikvision HM-TD2638-10/G1/T3Y Anti-Corrosion Bi-spectrum Network Bullet Camera
• 1 × Pre-Installed 32GB microSDHC Card

Protect critical outdoor infrastructure with combined 384 × 288 thermal and 4MP optical imaging, GUANLAN AI perimeter protection, temperature exception monitoring, fire and smoking detection, 50m infrared illumination and rugged NEMA 4X, IP67 and IK10 protection using the Hikvision HM-TD2638-10/G1/T3Y.
