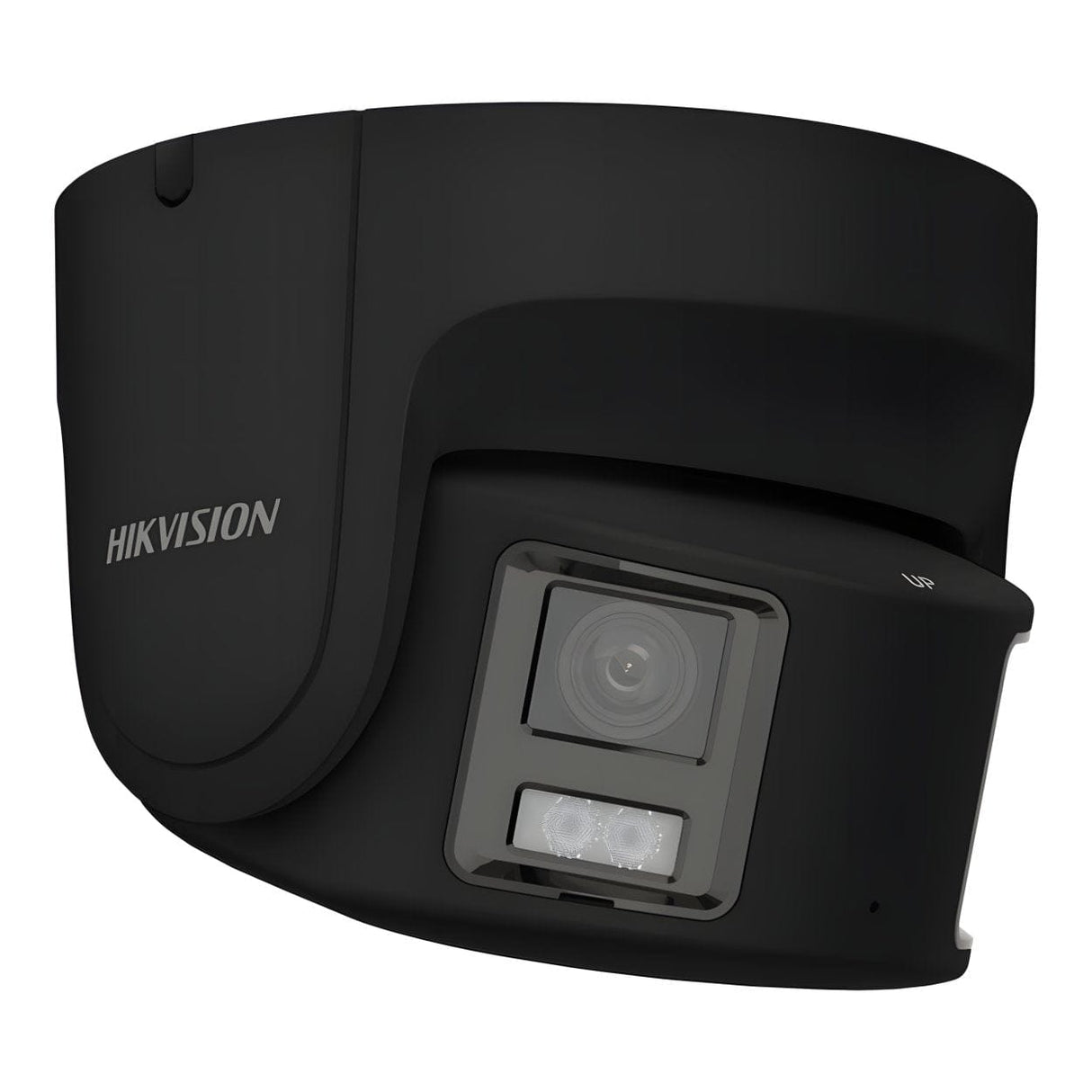

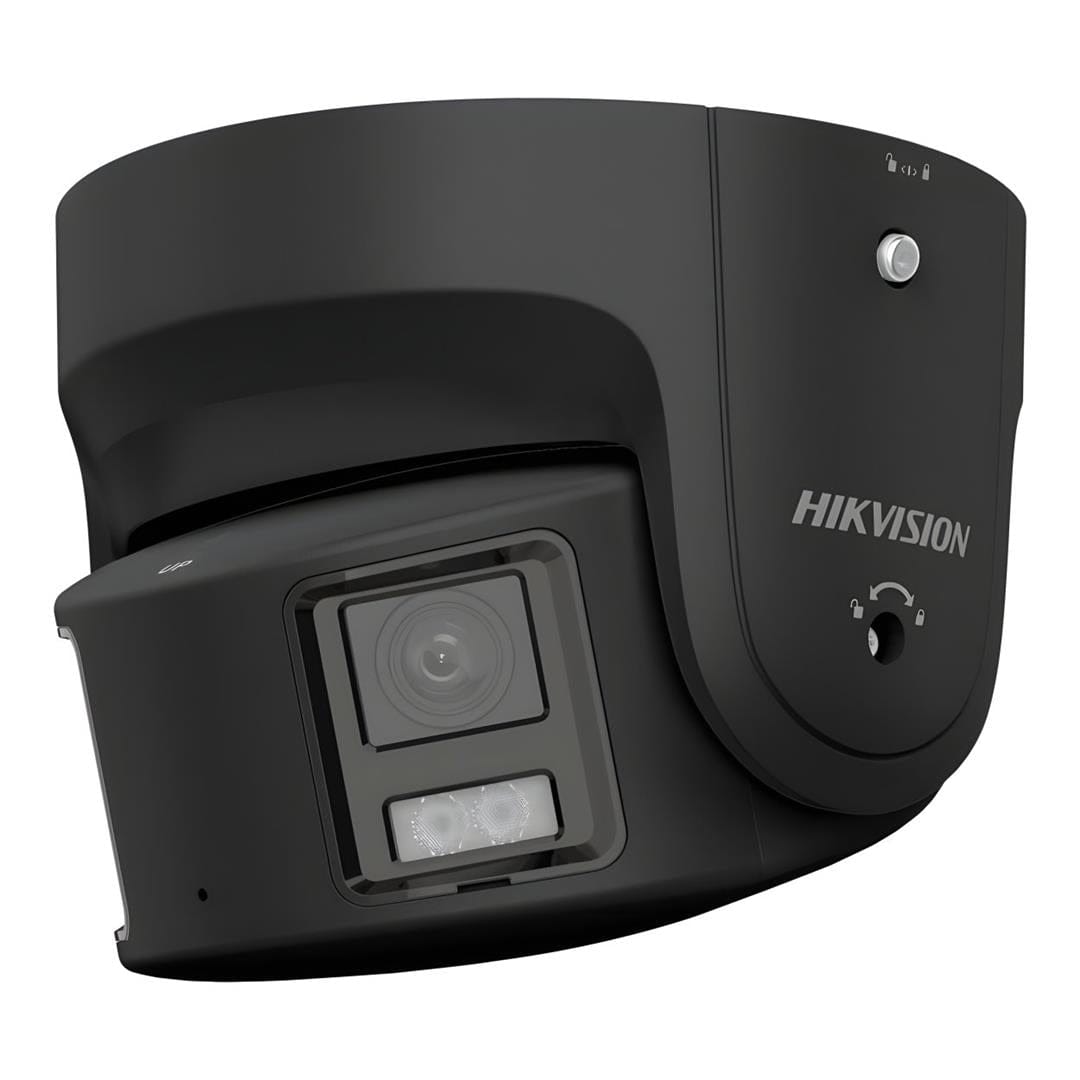

Hikvision 8MP Panoramic ColorVu Fixed Turret Network Camera DS-2CD2387G2P-LSU/SL(4mm)/BLACK

Hikvision 8MP Panoramic ColorVu Fixed Turret Network Camera DS-2CD2387G2P-LSU/SL(4mm)/BLACK

Features:

• High quality imaging with 8 MP resolution
• One image that presents all the scenes covered by the camera
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Water and dust resistant (IP67)

Technical Specifications:

Camera

Image Sensor
2 × 1/1.8" Progressive Scan CMOS

Max. Resolution
5120 × 1440

Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time
1/3 s to 1/100,000 s

Angle Adjustment
Pan: 0° to 30°, tilt: -75° to 75°

Lens
Lens Type: Fixed focal lens, Dual lens: 4 mm
Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 3.6 m to ∞
DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes

Video
Main Stream:

• WDR On: 50 Hz: 12.5 fps (5120 × 1440), 60 Hz: 15 fps (5120 × 1440)
• WDR Off: 50/60 Hz: 20 fps (5120 × 1440)

Sub-Stream:

• WDR On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272), 60 Hz: 15 fps
• WDR Off: 50/60 Hz: 20 fps (1920 × 536, 960 × 272)

Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1/G.726)/32–192 Kbps (MP2L2)/8–320 Kbps (MP3)/16–64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Built-in Microphone: Yes
Built-in Speaker: Max. power: 1.2 W, max sound pressure 10 cm: 95 dB
Audio Interface: 1 input (line in), 1 output (line out), terminal block

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, G, T), ISAPI, SDK, ISUP
User/Host: Up to 32 users; 3 user levels: administrator, operator, user
Security: Password protection, HTTPS encryption, 802.1X (EAP-MD5), watermark, IP filter, basic/digest auth for HTTP/HTTPS, WSSE, RTP/RTSP over HTTPS, control timeout, security audit log, TLS 1.2, host authentication (MAC)
Network Storage: NAS (NFS, SMB/CIFS), ANR, NVR, memory card encryption and health detection with Hikvision cards
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required: IE 10, 11; Plug-in free: Chrome 57+, Firefox 52+, Edge 89+; Local service: Chrome 57+, Firefox 52+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable via software/web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 8 rectangular privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive
On-Board Storage: microSD/microSDHC/microSDXC up to 512 GB

Alarm & Event
Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key: Yes
Basic Event: Motion detection (human/vehicle), alarm input/output, flashing alarm light, audible alarm, exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm, recording, capture, audible warning, white light flashing
Deep Learning Function – Perimeter Protection: Line crossing, intrusion, region entrance/exiting; supports alarm triggering by human/vehicle

General
Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W; Ø5.5 mm coaxial plug; PoE: IEEE 802.3af, Class 3, 36–57 V, 0.35–0.22 A, max. 12.5 W
Material: Base: metal, cover: metal
Dimension: Ø155 mm × 155.3 mm (Ø6.1 × 6.1")
Package Dimension: 230 mm × 230 mm × 230 mm (9" × 9" × 9")
Weight: Approx. 1110 g (2.4 lb); With Package: Approx. 1900 g (4.2 lb)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% non-condensing
Startup & Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% non-condensing
Language: 33 languages including English, Russian, German, French, Spanish, Japanese, Korean, Traditional Chinese, Thai, Vietnamese, Portuguese (Brazil), Ukrainian
General Function: Anti-banding, heartbeat, password reset via email, password protection, one-key reset
Flashing Light: Yes
Approval – EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014; RCM: AS/NZS CISPR 32:2015; IC: ICES-003: Issue 7
Safety: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1:2014/A11:2017
Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, REACH: EC 1907/2006
Protection: IP67: IEC 60529-2013
