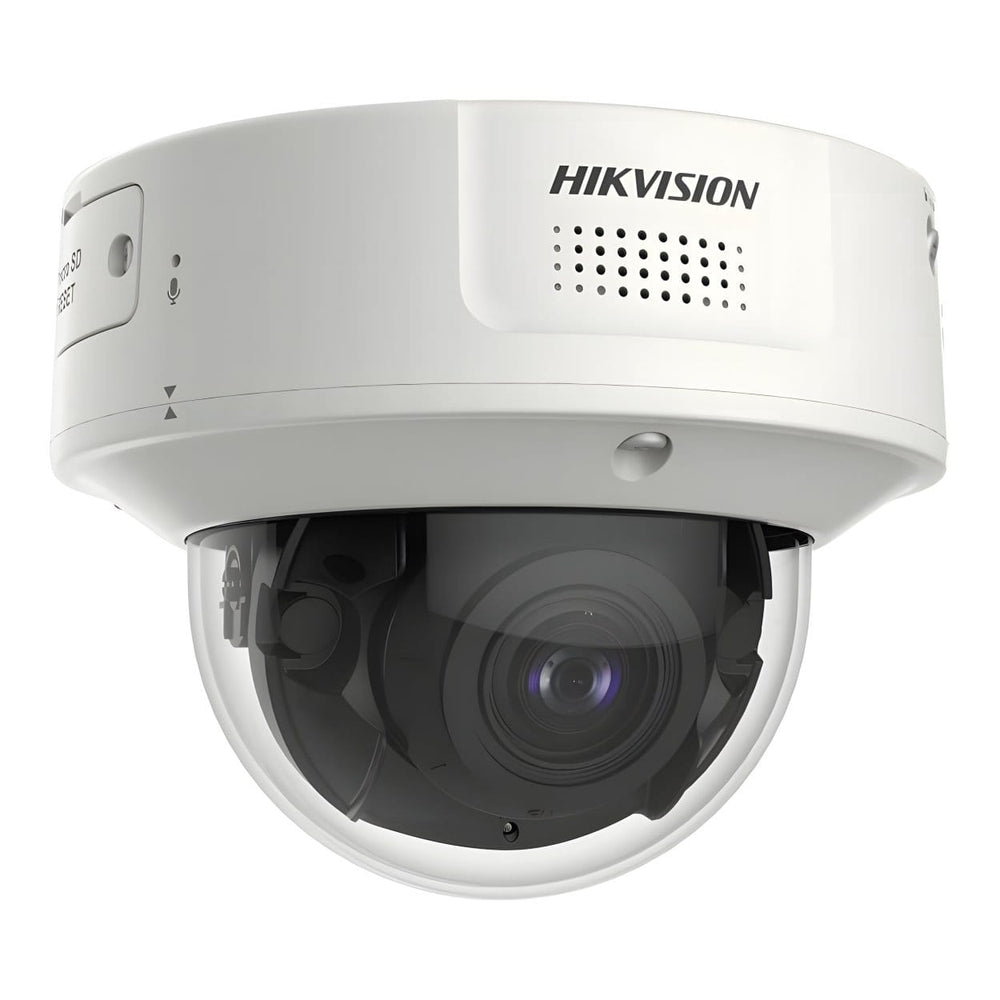

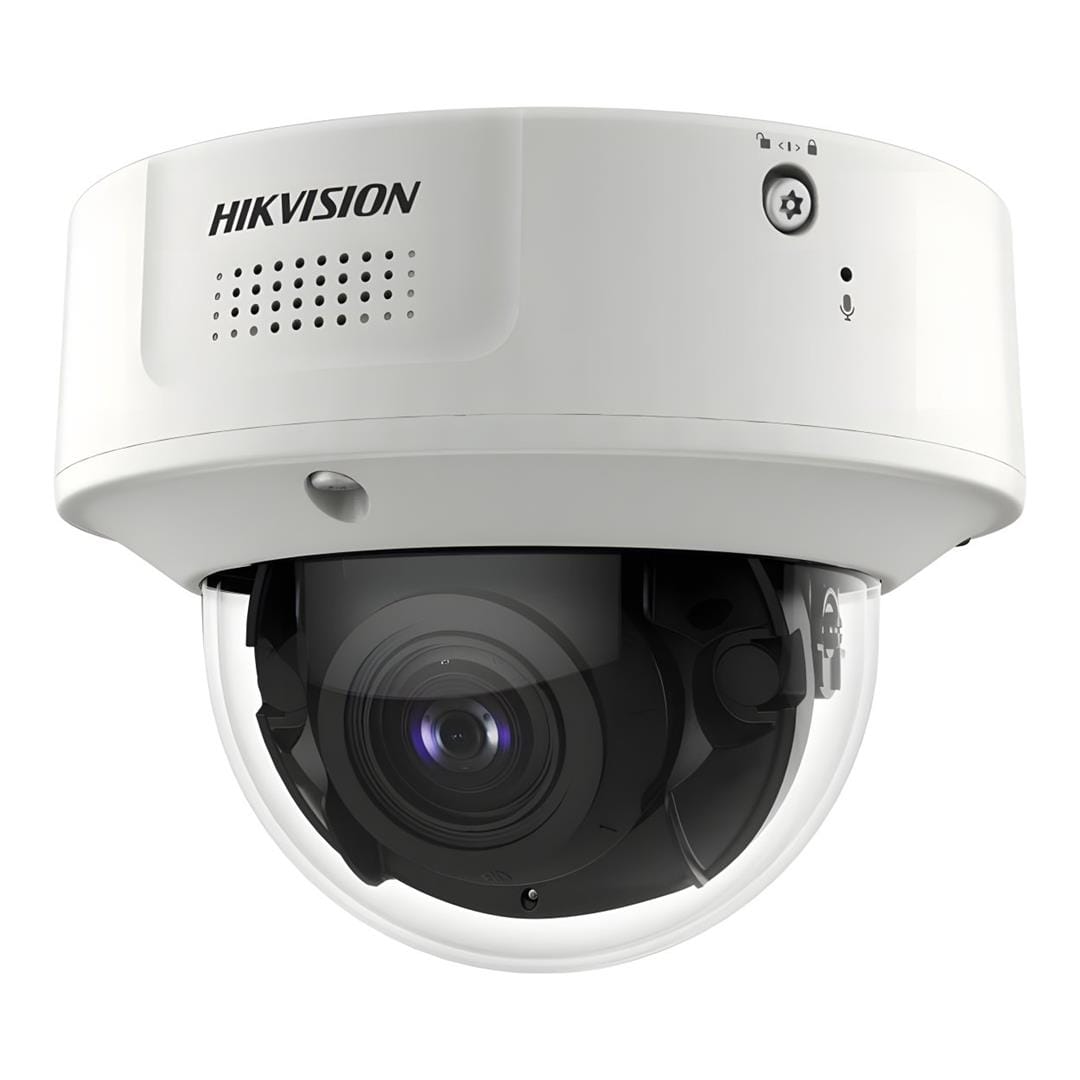

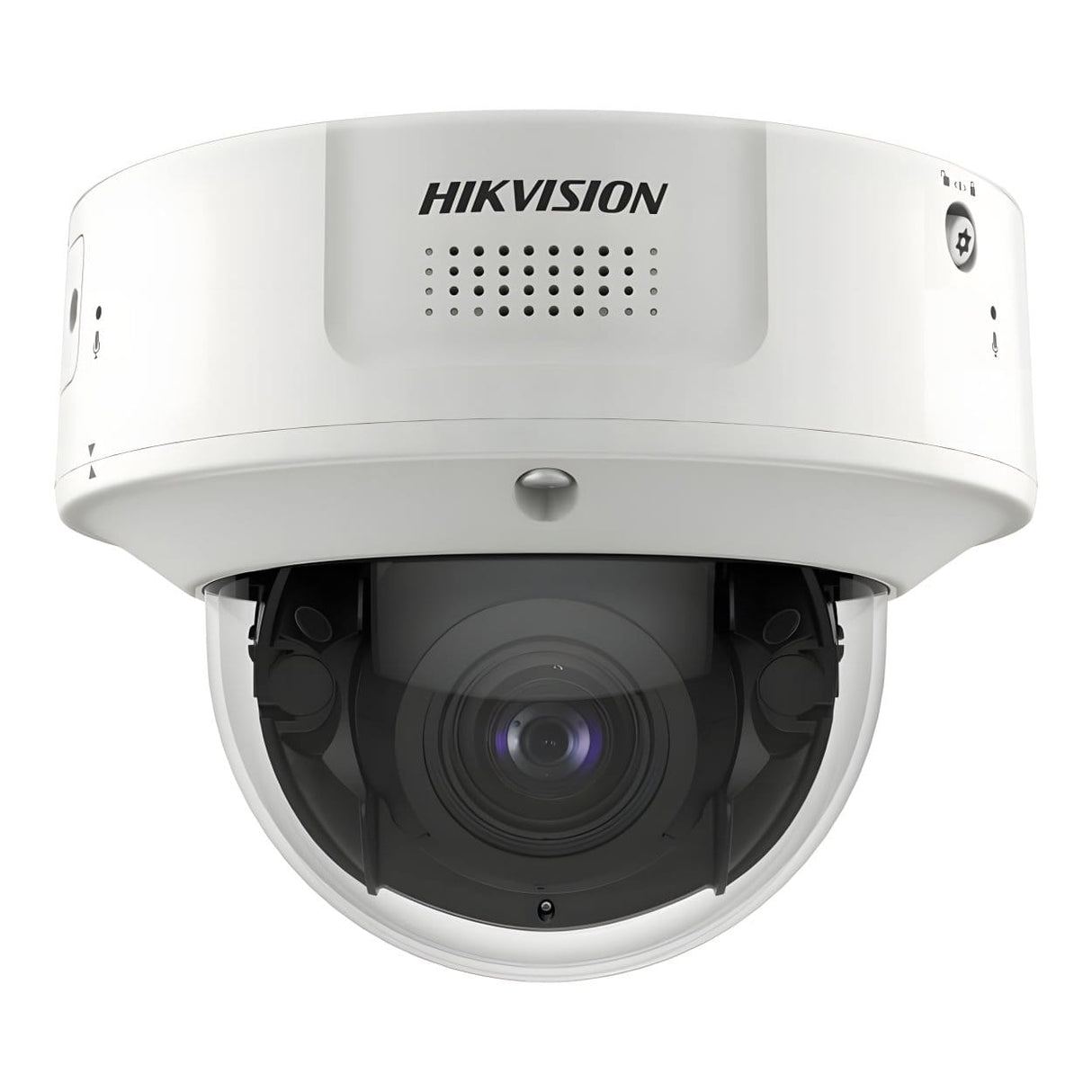

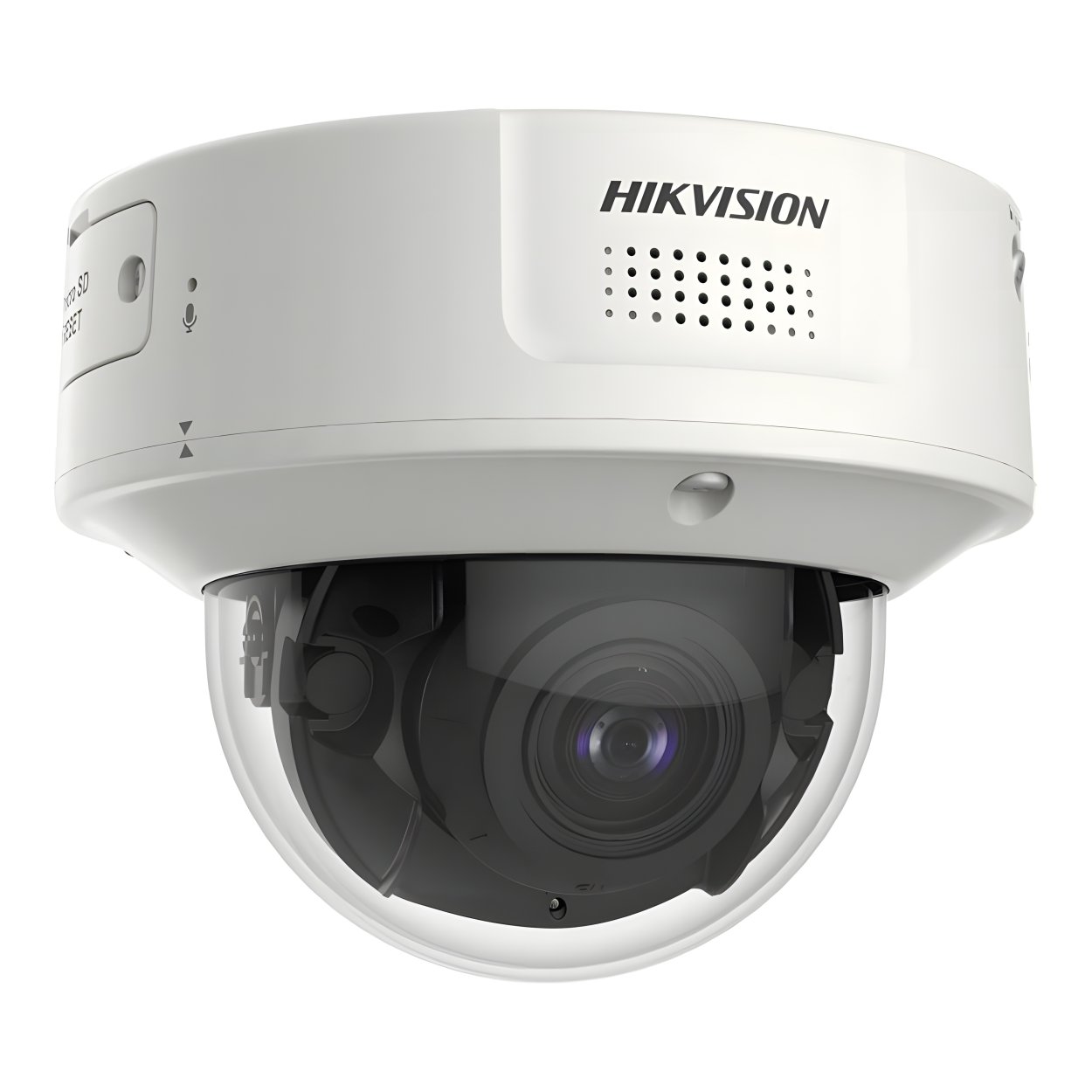

Hikvision 8MP DeepinView Moto Varifocal Dome Camera iDS-2CD7186G2-IZS(8-32mm)

Hikvision 8MP DeepinView Moto Varifocal Dome Camera iDS-2CD7186G2-IZS(8-32mm)

Features:

• High quality imaging with 8 MP resolution
• Excellent low-light performance via DarkFighter 2.0 technology
• Capture vehicles and humans of different speed clearly via ShotN technology
• Clear imaging against strong back light due to 140 dB AWDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
• High frame rate, up to 8MP@60fps and 2MP@120fps
• Built-in dual-mic and speaker for real-time audio security
• Built-in G-sensor for vibration detection
• Built-in power meter for historical power statistics

Technical Specifications:

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Maximum Resolution: 3840 × 2160
Minimum Illumination: Color: 0.0005 Lux @ (F1.2, AGC On), B/W: 0.0001 Lux @ (F1.2, AGC On), 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day/Night: IR-Cut Filter, Blue Glass Module (Reduced Ghosting)
Angle Adjustment: Pan 0° to 355°, Tilt 0° to 75°, Rotate 0° to 355°

Lens
Lens Type: Motorized Varifocal Lens, 2.8 to 12 mm or 8 to 32 mm (Optional)
Focal Length and Field of View:

• 2.8 to 12 mm: Horizontal 112.3° to 41.2°, Vertical 58.1° to 23.1°, Diagonal 137.4° to 47.3°
• 8 to 32 mm: Horizontal 41.8° to 15°, Vertical 22.9° to 8.5°, Diagonal 48.7° to 17.1°
  Focus: Auto, Semi-Auto, Manual
  Iris Type: P-Iris
  Aperture: 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73

DORI
OODPCVS (Wide):

• 2.8 to 12 mm: Overview 108.8 m, Outline 54.4 m, Discern 27.2 m, Perceive 17.4 m, Characterize 8.7 m, Validate 4.4 m, Scrutinize 1.5 m
• 8 to 32 mm: Overview 272.5 m, Outline 136.3 m, Discern 68.1 m, Perceive 43.6 m, Characterize 21.8 m, Validate 10.9 m, Scrutinize 3.6 m
  OODPCVS (Tele):
• 2.8 to 12 mm: Overview 270.0 m, Outline 135.0 m, Discern 67.5 m, Perceive 43.2 m, Characterize 21.6 m, Validate 10.8 m, Scrutinize 3.6 m
• 8 to 32 mm: Overview 725.0 m, Outline 362.5 m, Discern 181.3 m, Perceive 116.0 m, Characterize 58.0 m, Validate 29.0 m, Scrutinize 9.7 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: 2.8 to 12 mm: 40 m, 8 to 32 mm: 60 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

HEOP
Open Resources: Memory 150 MB, Smart RAM 2200 MB, eMMC 1288 MB
Computing Power: 5 TOPS
Open Capability: HEOP 2.0 OpenDevSDK
Deep Learning Structure: Caffe, PyTorch, TensorFlow
Programming Language: C, C++

AI Open Platform
Model Specification: Up to 4 Models
Model Types: Detection Model, Classification Model, Mixed Model

Video

Main Stream
Monitoring Mode:

• 50 Hz: Up to 50 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1280 × 720), Up to 100 fps (1920 × 1080)
• 60 Hz: Up to 60 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1280 × 720), Up to 120 fps (1920 × 1080)
  Smart Mode:
• 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
Frame Rate: 25 fps (1280 × 720, 704 × 576, 640 × 480) at 50 Hz, 30 fps (1280 × 720, 704 × 480, 640 × 480) at 60 Hz

Third Stream
Frame Rate: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) at 50 Hz, 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) at 60 Hz

Fourth Stream
Frame Rate: 25 fps (704 × 576, 640 × 480) at 50 Hz, 30 fps (704 × 480, 640 × 480) at 60 Hz

Fifth Stream
Frame Rate: 25 fps (704 × 576, 640 × 480) at 50 Hz, 30 fps (704 × 480, 640 × 480) at 60 Hz

Video Compression
Video Compression: Main Stream: H.265+, H.265, H.264+, H.264; Sub-Stream: H.265, H.264, MJPEG; Third Stream: H.265, H.264; Fourth Stream: H.265, H.264, MJPEG; Fifth Stream: H.265, H.264, MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 Encoding
Region of Interest (ROI): 4 Fixed Regions per Stream
Target Cropping: Yes
e-PTZ: Supports Patrol and Auto Tracking Settings

Audio
Audio Type: Mono Sound
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Bit Rate: 64 Kbps (G.711u/A), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, MQTT, MQTTS, X.509 Authentication, 802.1X EAP-GTC, MSCHAP V2
Simultaneous Live View: Up to 20 Channels
API: ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, G, T, M)
Users: Up to 32 Users
User Levels: Administrator, Operator, User
Security: Password Protection, Complex Passwords, HTTPS Encryption, 802.1X Authentication, Watermark, IP Address Filter, HTTP/HTTPS Authentication, WSSE Authentication, RTP/RTSP over HTTPS, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 Level 2), AES128/256
Smooth Streaming: Yes
Client Software: iVMS-4200, Hik-Connect, Hik-Central
Network Storage: NAS (NFS, SMB/CIFS), ANR, Memory Card Encryption and Health Detection Supported
Web Browser Support: IE 10/11, Chrome 57+, Firefox 52+, Edge 89+, Safari 11+

Image Parameters Switch: Yes
Image Settings: Rotate, Saturation, Brightness, Contrast, Sharpness, White Balance, AGC
Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range: 140 dB
Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
Privacy Mask: 8 Programmable Polygon Masks
SNR: ≥ 52 dB
Picture Overlay: 128 × 128, 24-Bit BMP Logo Overlay
Image Stabilization: EIS

Interface
Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) for Debugging
Ethernet Interface: 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Port
On-Board Storage: microSD, microSDHC, microSDXC Support up to 1 TB
Built-In Microphones: 2
Built-In Speaker: 1.5 W Maximum Power, 98 dB Maximum Sound Pressure, 10 m Range
Audio Interface:

• 1 × Line-In (3.5 mm)
• 1 × Line-Out (3.5 mm)
  Alarm Interface: 2 Inputs, 2 Outputs (24 VDC/24 VAC, 1 A Max.)
  RS-485: 1 × Half-Duplex Port
  Reset Key: Yes
  Power Output: 12 V DC, Maximum 100 mA

Events

Basic Events
Motion Detection, Video Tampering Alarm, Network Disconnection, IP Address Conflict, Illegal Login, HDD Full, HDD Error, Crying Sound Detection, Gunshot and Explosion Detection, Scream Detection, Glass Break Detection

Smart Events
Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection

Linkage Actions
Upload to FTP, NAS, Memory Card, Notify Surveillance Centre, Send Email, Trigger Alarm Output, Trigger Recording, Trigger Capture, Audible Warning

Deep Learning Functions

Multi-Target-Type Detection
Dynamic Mosaic Mask: Supported
ShotN Technology: Supported
Simultaneous Detection: Human Body, Face, Vehicle
Captured Features: 7 Face Features, 13 Vehicle Features, 2 Human Body Features

Face Capture
Maximum Faces Detected Simultaneously: 120
Maximum Face Pictures Captured per Frame: 40
Maximum Face Uploads: 10 Pictures per Second
Face Swing Range: -60° to 60°
Face Tilt Range: -30° to 30°
Face Features Captured: 7

Face Comparison
Face Libraries: Up to 10
Faces per Library: 30,000
Total Face Capacity: 150,000
Face Library Encryption: Supported

Perimeter Protection
Functions: Line Crossing, Intrusion, Region Entrance, Region Exiting
Target Filtering: Human and Vehicle
Combined Event Alarms: Supported

Activity Analysis
Detection: Smoking, Phone Usage
Attributes: Head and Shoulders, Hands, Faces, Phone Usage, Smoking

People Counting
Supports Multi-Dimension People Counting, People Flow Statistics, Real-Time Uploading, Scheduled Reports, Dynamic Deduplication, Face Feature Deduplication, Data Replenishment

Queue Management
Detection Regions: Up to 8
Detection Modes: Regional Queue Monitoring, Waiting Time Detection
Reporting: Real-Time Data, Scheduled Data, Comparative Efficiency Reports

Heat Map
Types: Space Heat Map, Time Heat Map Line Chart

Hard Hat Detection
Maximum Targets: 30
Shield Regions: Up to 4

Regional People Counting
Detection Regions: Up to 8
Detection Modes: People Density, Number Exception, Waiting Time Exception
Real-Time Number Search: Supported

On/Off Duty Detection
Detection Regions: Up to 8
Detection Modes: Absence Detection, On/Off Duty Detection

PPE Detection
Detects Hard Hats and Reflective Clothing
Supported Hard Hat Colours: Red, Orange, Yellow, Blue, White, Others

General
Power Input: 12 V DC ±20%, 24 VAC ±20%, PoE IEEE 802.3at Type 2 Class 4
Maximum Power Consumption: 15.7 W
Material: Metal Base, Metal Cover
Dimensions: Ø144.3 × 114.1 mm
Package Dimensions: 244 × 174 × 173 mm
Weight: Approx. 1100 g
Weight with Packaging: Approx. 1482 g
Storage Conditions: -40°C to 65°C, ≤95% RH Non-Condensing
Operating Conditions: -40°C to 65°C (-H Model) or -30°C to 65°C (Standard Model), ≤95% RH Non-Condensing
Languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Functions: Heartbeat, One-Key Reset, Mirror, Password Protection
Cable Length: 0.25 m
Heater: Available on -H Models
Device Management: Supports DS-FM2466 Alarm Box Expansion (6 Inputs, 6 Outputs)
Integrated Connector Panel: No

Certifications and Approvals

EMC
Certification: CE-EMC, RCM, IC, KC

Safety
Certification: CB, CE-LVD, BIS, LOA

Environmental
Certification: CE-RoHS, WEEE, REACH

Protection
Protection Rating: IP67, IK10

Anti-Corrosion Protection
Protection Standard: NEMA 4X (-Y Models)

Automotive and Railway
Compliance: EN50121-4

Other
PVC Free: Yes
