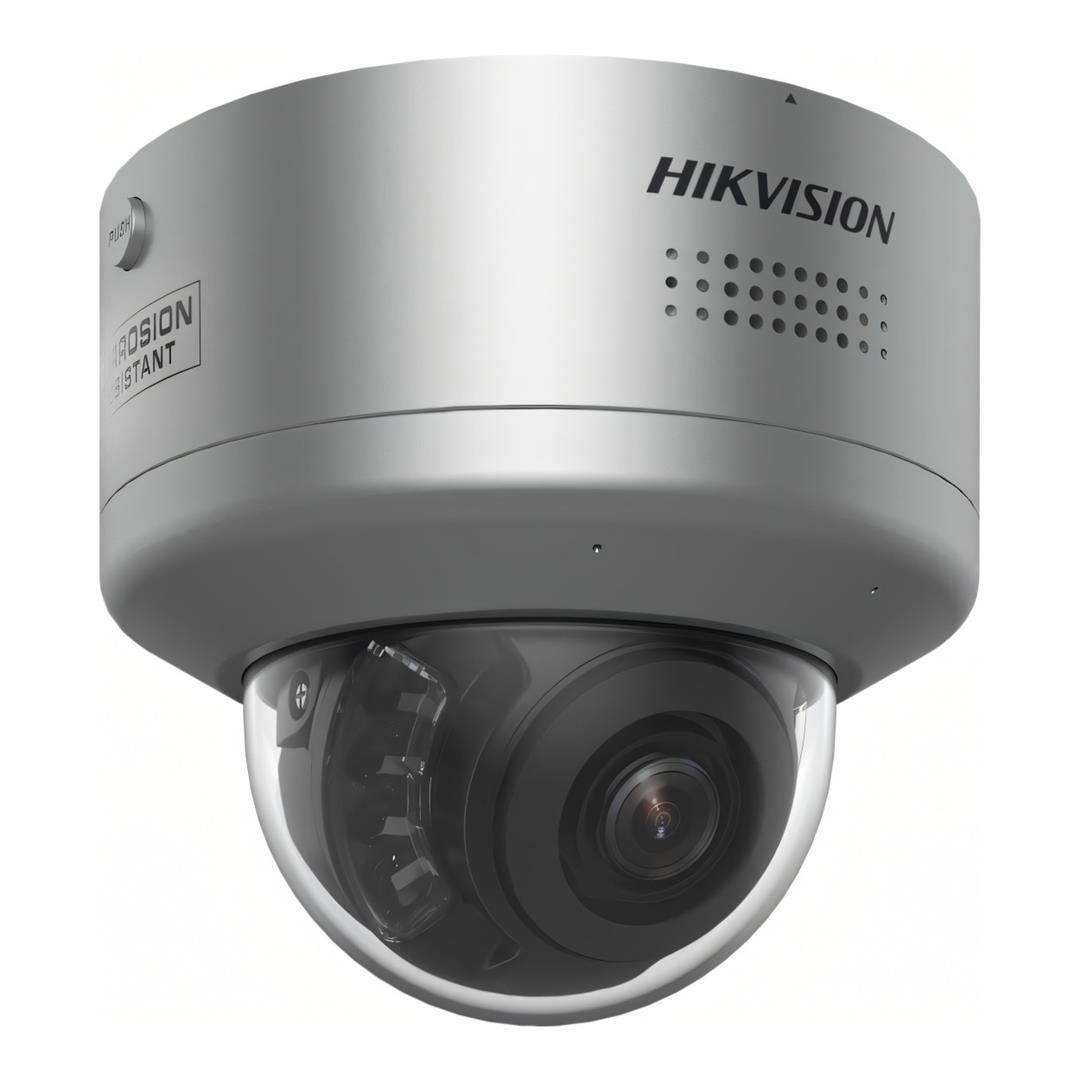

Hikvision 8MP 8-32mm DeepinView PTRZ Moto Varifocal Dome Camera IDS-2CD7586G2-XZHSY(8-32MM)

Hikvision 8MP 8-32mm DeepinView PTRZ Moto Varifocal Dome Camera IDS-2CD7586G2-XZHSY(8-32MM)

The Hikvision iDS-2CD7586G2-XZHSY(8-32mm) is an advanced 8MP DeepinView PTRZ motorized varifocal dome network camera designed for intelligent, high-performance surveillance in demanding environments. A 1/1.8-inch Progressive Scan CMOS sensor delivers detailed 3840 × 2160 4K imaging, while the 8–32mm motorized varifocal lens provides adjustable medium- to long-range coverage. Advanced deep-learning analytics, high-frame-rate recording, 140dB WDR, PTRZ remote adjustment and rugged IP67, IK10 and NEMA 4X protection make it well suited to professional security installations.

Key Features

• 8MP 4K imaging: Captures detailed surveillance footage at up to 3840 × 2160 resolution using a 1/1.8-inch Progressive Scan CMOS sensor.
• 8–32mm motorized varifocal lens: Provides adjustable medium- to long-range surveillance coverage with a horizontal field of view from approximately 41.8° to 15°.
• PTRZ remote adjustment: Remote pan, tilt, rotate and zoom functionality helps simplify installation, positioning and configuration.
• High-frame-rate recording: Supports up to 8MP at 60fps and 1080p at 120fps in supported monitoring modes.
• Advanced low-light imaging: Minimum illumination reaches 0.0005 lux in colour and 0.0001 lux in black and white.
• Up to 60m supplemental lighting: Integrated IR and white-light illumination provides additional visibility in dark environments.
• Advanced DeepinView analytics: Supports intelligent functions including multi-target detection, face capture and comparison, perimeter protection, people counting, queue management and hard-hat detection.
• IP67, IK10 and NEMA 4X protection: Weather-resistant, vandal-resistant and moderately corrosion-resistant construction supports demanding installations.

8MP 4K DeepinView Imaging

The iDS-2CD7586G2-XZHSY uses a 1/1.8-inch Progressive Scan CMOS sensor to deliver a maximum resolution of 3840 × 2160. High-frame-rate monitoring supports up to 60fps at 8MP and up to 120fps at 1920 × 1080 in 60Hz monitoring mode, providing improved capture of rapidly moving subjects.

8–32mm Motorized Varifocal Lens with PTRZ

This specific configuration features an 8–32mm motorized P-Iris varifocal lens with an approximately 41.8° to 15° horizontal field of view. PTRZ functionality provides remote pan, tilt, rotate and zoom adjustment, allowing installers to configure camera positioning and framing more efficiently.

Advanced Low-Light Performance

The camera is designed for demanding low-light surveillance, with minimum illumination reaching 0.0005 lux in colour and 0.0001 lux in black and white. Integrated IR and white supplemental lighting provides a monitoring range of up to 60 metres for the 8–32mm configuration.

Deep-Learning Video Analytics

Embedded deep-learning technology enables advanced analytics including simultaneous human body, face and vehicle detection, face capture and comparison, perimeter protection, people counting, queue management, regional people counting, heat mapping, on/off-duty detection and hard-hat detection. These capabilities make the camera suitable for security applications requiring more than conventional motion detection.

Professional Audio and Alarm Interfaces

Two built-in microphones and a built-in speaker provide integrated audio functionality, while dedicated line-level audio input and output provide additional installation flexibility. The camera also incorporates two alarm inputs, two alarm outputs and an RS-485 interface for integration with compatible security equipment.

Technical Specifications

What’s in the Box:

• 1 × Hikvision iDS-2CD7586G2-XZHSY(8-32mm) 8MP DeepinView PTRZ Motorized Varifocal Dome Network Camera

Deploy advanced intelligent surveillance with 8MP 4K imaging, an 8–32mm motorized varifocal lens, PTRZ remote adjustment, high-frame-rate capture, deep-learning video analytics and rugged IP67, IK10 and NEMA 4X protection using the Hikvision iDS-2CD7586G2-XZHSY(8-32mm).
