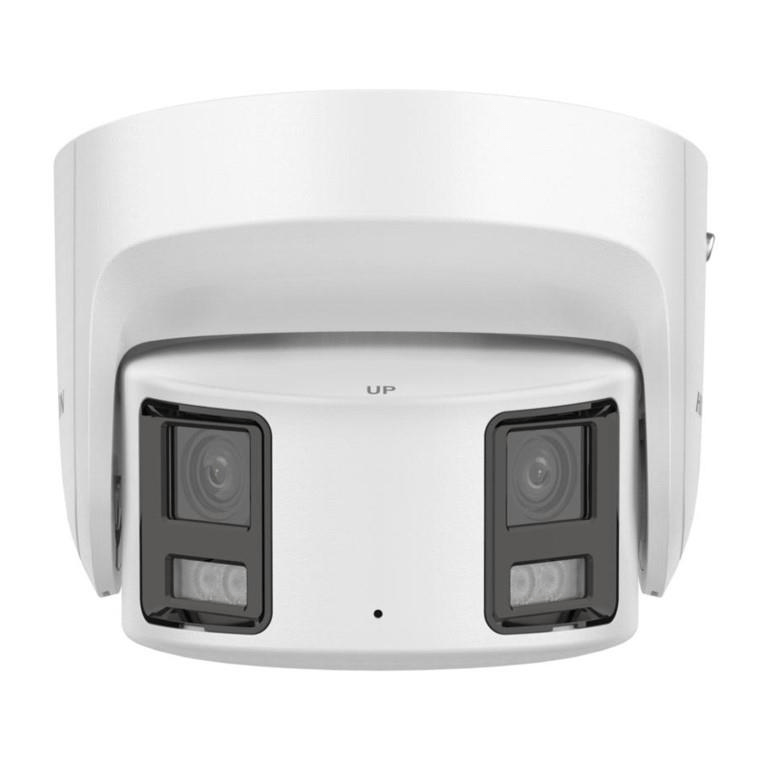

Hikvision 8MP 4mm Panoramic ColorVu Fixed Turret Network Camera DS-2CD2387G2P-LSU/SL(4mm)

Hikvision 8MP 4mm Panoramic ColorVu Fixed Turret Network Camera DS-2CD2387G2P-LSU/SL(4mm)

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

Features

• High quality imaging with 8 MP resolution
• 2x 1/1.8" Progressive Scan CMOS Image Sensor
• 5120 x 1440 Max. Resolution
• Dual 4mm Fixed focal lenses
• Horizontal FOV: 180°, Vertical FOV: 44°
• DORI: D: 77 m, O: 30 m, R: 15 m, I: 7 m
• One image that presents all the scenes covered by the camera
• 24/7 colorful imaging
• Up to 30m Smart Supplement White Light Range
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Built-In Microphone
• 1x Audio input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• 1x Audio output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• 1x Alarm input, 1x Alarm output (max. 24 VDC, 1 A)
• Water and dust resistant (IP67)
• 1x RJ45 10/100Mbps self-adaptive Ethernet port
• 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug ; PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
Max. Resolution: 5120 × 1440
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 30°, Tilt: -75° to 75°

Lens
Lens Type: Fixed focal lens, Dual lens: 4 mm
Focal Length & FOV: 4 mm, horizontal FOV 180°, vertical FOV 44°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 3.6 m to ∞

DORI
DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes

Video
Main Stream: WDR On: 50 Hz: 12.5 fps (5120 × 1440), 60 Hz: 15 fps (5120 × 1440). WDR Off: 50 Hz: 20 fps (5120 × 1440), 60 Hz: 20 fps (5120 × 1440)
Sub-Stream: WDR On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272), 60 Hz: 15 fps (1920 × 536, 960 × 272). WDR Off: 50 Hz: 20 fps (1920 × 536, 960 × 272), 60 Hz: 20 fps (1920 × 536, 960 × 272)
Video Compression: Main stream H.265+/H.265/H.264+/H.264, Sub-stream H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream

Audio
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Built-in Microphone: Yes
Built-in Speaker: Max. power 1.2 W, max. sound pressure 95 dB at 10 cm
Audio Interface: 1 input (line in) terminal block, max input amplitude 3.3 Vpp, input impedance 4.7 KΩ, 1 output (line out) terminal block, max output amplitude 3.3 Vpp, output impedance 100 Ω

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host: Up to 32 users, 3 levels: administrator, operator, user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR, memory card encryption and health detection supported with high-end Hikvision memory cards

Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11. Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+. Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 8 rectangular privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot supporting microSD, microSDHC, microSDXC up to 512 GB

Alarm & Event
Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key: Yes
Basic Event: Motion detection with support for alarm triggering by specified target types (human and vehicle), alarm input/output, flashing alarm light output, audible alarm output, exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function: Perimeter protection with line crossing, intrusion, region entrance, region exiting, supports alarm triggering by specified target types (human and vehicle)

General
Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug; PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material: Base metal, cover metal
Dimension: Ø155 mm × 155.3 mm (Ø6.1" × 6.1")
Package Dimension: 230 mm × 230 mm × 230 mm (9" × 9" × 9")
Weight: Approx. 1110 g (2.4 lb.)
With Package Weight: Approx. 1900 g (4.2 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Language: 33 languages including English, Russian, German, French, Spanish, Portuguese, and others
General Function: Anti-banding, heartbeat, password reset via email, password protection, one-key reset
Flashing Light: Yes

Approval
EMC: FCC 47 CFR Part 15 Subpart B, CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, RCM AS/NZS CISPR 32:2015, IC ICES-003 Issue 7
Safety: UL 62368-1, IEC 62368-1:2014+A11, CE-LVD EN 62368-1:2014/A11:2017
Environment: CE-RoHS 2011/65/EU, WEEE 2012/19/EU, Reach Regulation (EC) No 1907/2006
Protection: IP67 IEC 60529-2013
