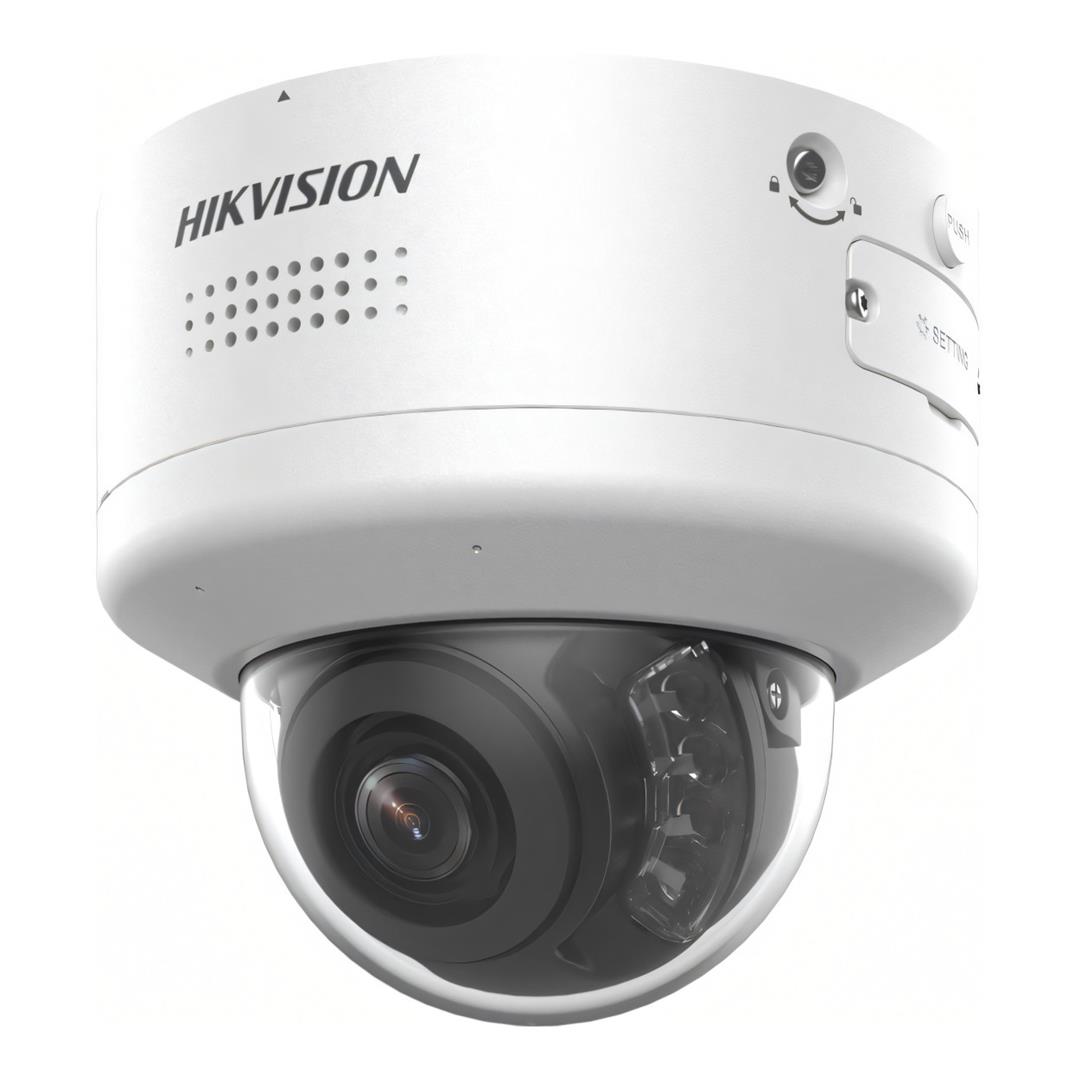

Hikvision 8MP 2.8-12mm DeepinView PTRZ Moto Varifocal Dome Camera IDS-2CD7586G2-XZHSY(2.8-12MM)
The Hikvision iDS-2CD7586G2-XZHSY(2.8-12mm) is an 8MP DeepinView PTRZ motorised varifocal dome network camera engineered for advanced professional surveillance. Its 1/1.8-inch sensor combines 4K resolution with DarkFighter 2.0 low-light technology and 140dB WDR, while the 2.8–12mm motorised P-Iris lens and remote PTRZ adjustment simplify installation and scene configuration. Advanced deep-learning analytics, integrated audio, high-frame-rate video and IP67, IK10 and NEMA 4X protection make it suitable for demanding indoor and outdoor security deployments.
Key Features
- 8MP imaging with up to 3840 × 2160 resolution.
- DarkFighter 2.0 ultra-low-light technology with 140dB WDR.
- 2.8–12mm motorised P-Iris varifocal lens with remote PTRZ adjustment.
- IR and white supplementary illumination with up to 40m monitoring range.
- High frame rate of up to 8MP at 60fps and 1080p at 120fps in supported monitoring mode.
- Advanced DeepinView analytics for perimeter, face, people, queue and PPE applications.
- IP67 weather resistance, IK10 vandal resistance and NEMA 4X anti-corrosion protection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Product Series | DeepinView |
| Model | iDS-2CD7586G2-XZHSY(2.8-12mm) |
| Product Type | 8MP DeepinView PTRZ Motorised Varifocal Dome Network Camera |
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | Colour: 0.0005 Lux @ F1.2, AGC On / B&W: 0.0001 Lux @ F1.2, AGC On / 0 Lux with IR |
| Low-Light Technology | DarkFighter 2.0 |
| Wide Dynamic Range | 140dB |
| Shutter Speed | 1s to 1/100,000s |
| Day / Night | IR Cut Filter with Blue Glass Module |
| Lens | 2.8–12mm Motorised Varifocal |
| Iris | P-Iris |
| Aperture | F1.47 to F2.53 |
| Horizontal Field of View | 112.3° to 41.2° |
| Vertical Field of View | 58.1° to 23.1° |
| Diagonal Field of View | 137.4° to 47.3° |
| Focus | Auto / Semi-Auto / Manual |
| PTRZ Adjustment | Pan: 0° to 355° / Tilt: 0° to 85° / Rotate: 0° to 355° / Motorised Zoom |
| Supplementary Light | IR / White Light |
| Supplementary Light Range | Up to 40m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850nm |
| Maximum Frame Rate | Up to 60fps at 3840 × 2160 / Up to 120fps at 1920 × 1080 in 60Hz Monitoring Mode |
| Video Streams | Up to 5 |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Image Enhancement | BLC / HLC / 3D DNR / Distortion Correction / Defog / EIS |
| Privacy Mask | 8 Programmable Polygon Privacy Masks |
| AI Computing Power | 5 TOPS |
| Deep Learning Functions | Perimeter Protection / Multi-Target Detection / Face Functions / People Counting / Regional People Counting / Queue Management / Heat Map / On-Off Duty Detection / PPE Detection / AcuSeek |
| AcuSeek | Supports Searching for Humans, Licence Plates, Vehicles, Non-Motorised Vehicles and Animals with Compatible AcuSeek NVRs / Servers |
| Built-In Microphones | 2 |
| Built-In Speaker | 1 |
| Audio Interface | 1 × Line Input / 1 × Line Output |
| Ethernet | 1 × RJ45 10/100/1000Mbps Self-Adaptive Ethernet Port |
| On-Board Storage | microSD / microSDHC / microSDXC, Up to 1TB |
| Alarm Interface | 2 Inputs / 2 Outputs |
| RS-485 | 1 × Half-Duplex RS-485 |
| Video Output | 1 × CVBS Service Output |
| Auxiliary Power Output | 12V DC, Maximum 100mA |
| ONVIF | Profiles S / G / T / M |
| Power Input | 12V DC ±20% / IEEE 802.3at PoE+ |
| Maximum Power Consumption | 24W |
| Built-In Heater | Yes |
| Vibration Detection | Built-In G-Sensor |
| Power Monitoring | Built-In Power Meter |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Anti-Corrosion Protection | NEMA 4X (-Y Model) |
| Body Material | Aluminium Alloy |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | 95% RH or Less, Non-Condensing |
| Dimensions | Ø155 × 140.4mm |
| Weight | Approx. 1.3kg |
Deploy the Hikvision iDS-2CD7586G2-XZHSY for advanced 8MP surveillance with high-frame-rate 4K imaging, remote PTRZ configuration, powerful DeepinView analytics and robust environmental protection.
