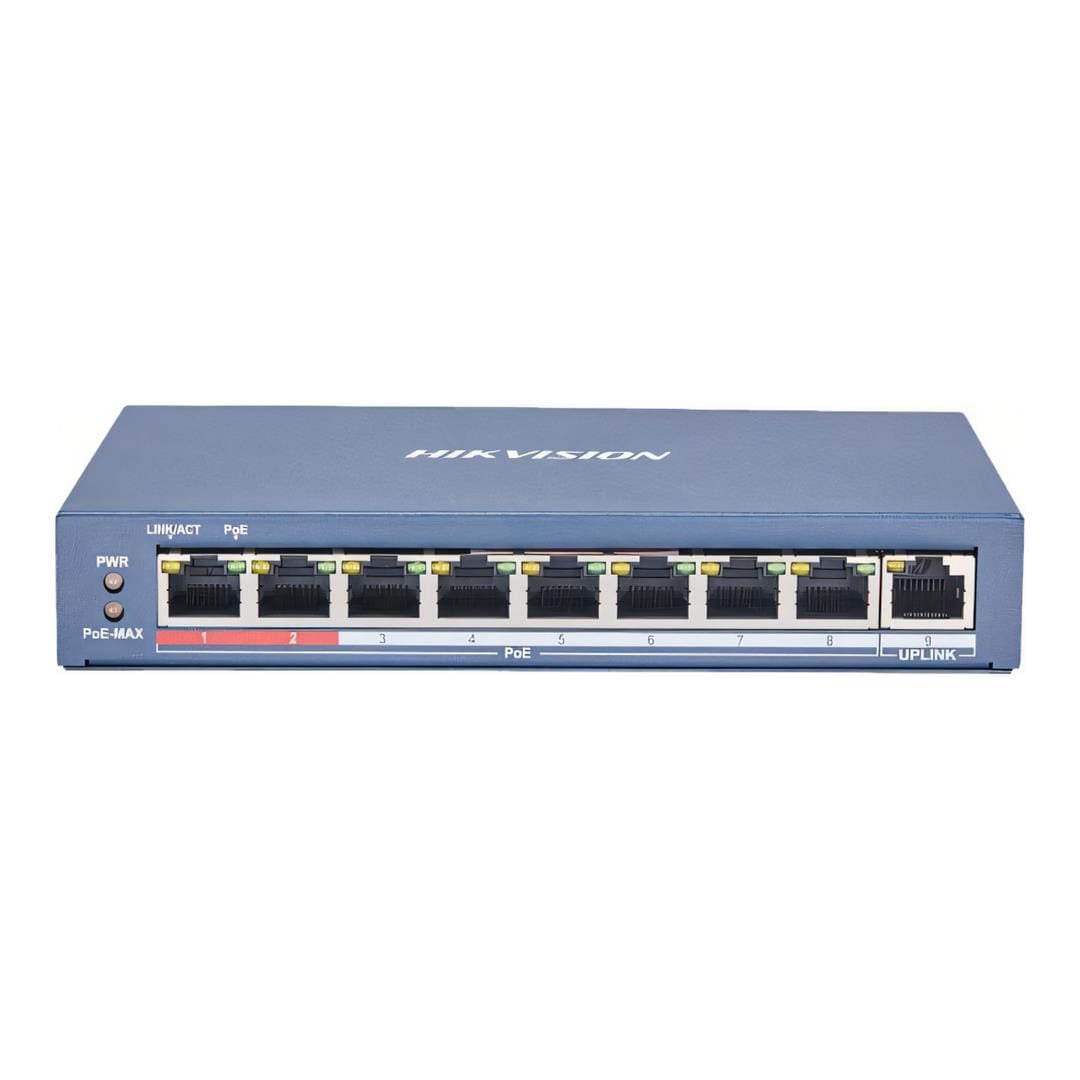

Hikvision 8-Port Fast Ethernet Unmanaged POE Switch DS-3E0109P-E(C)

Hikvision 8-Port Fast Ethernet Unmanaged POE Switch DS-3E0109P-E(C)

The Hikvision DS-3E0109P-E(C) is an 8-port Fast Ethernet unmanaged PoE switch designed for IP surveillance and other PoE network installations. It provides eight 10/100Mbps PoE ports together with a dedicated 10/100Mbps RJ45 network port, a total PoE budget of 115W and up to 30W of power per PoE port. Intelligent PoE management, long-range transmission of up to 300m on supported ports, VIP priority ports and built-in 6kV surge protection make it particularly well suited to CCTV networks where reliable camera connectivity and power delivery are required.

Key Features

• 8-port Fast Ethernet unmanaged PoE switch.
• 8 × 10/100Mbps PoE RJ45 ports.
• 1 × 10/100Mbps RJ45 network port.
• IEEE 802.3af and IEEE 802.3at PoE support.
• Up to 30W PoE output per port.
• 115W total PoE power budget.
• Intelligent PoE power management.
• 8-core adaptive PoE power supply helps reduce cable power loss.
• Long Range mode supports transmission up to 300m on ports 1–4.
• VIP priority forwarding on ports 1–2.
• 1.8Gbps switching capacity.
• 1.34Mpps packet forwarding rate.
• 2K MAC address table.
• 6kV surge protection.
• Durable metal enclosure.
• Fanless design for quiet, reliable operation.
• Desktop and wall-mounted installation options.

8-Port PoE Connectivity

The DS-3E0109P-E(C) provides eight 10/100Mbps RJ45 ports capable of supplying PoE power to compatible network devices. A separate 10/100Mbps RJ45 network port provides the uplink connection, creating a straightforward solution for connecting multiple IP cameras or other compatible PoE devices to an existing network.

115W PoE Power Budget

The switch supports IEEE 802.3af and IEEE 802.3at PoE standards and provides up to 30W of power per PoE port, subject to its total 115W PoE power budget. Intelligent PoE management helps control power allocation when connected devices approach or exceed the available power capacity.

Up to 300m Long-Range Transmission

Long Range mode allows ports 1 through 4 to support network and PoE transmission over distances of up to 300m. Hikvision notes that achievable long-range performance can vary depending on the connected camera model and the type and condition of the network cable.

8-Core Adaptive Power Supply

The switch supports 8-core adaptive PoE power delivery, using the Ethernet cable conductors to help reduce power loss over longer cable runs. This functionality is particularly useful in surveillance installations where cameras may be positioned at substantial distances from the network switch.

VIP Priority Ports

Ports 1 and 2 operate as VIP ports. When available network bandwidth becomes insufficient, traffic from these ports receives preferential forwarding, helping protect important video streams in bandwidth-constrained surveillance networks.

6kV Surge Protection

Integrated 6kV surge protection helps protect the switch against electrical surges, improving reliability in demanding surveillance environments and installations where network cabling may be exposed to electrical disturbances.

Fanless Metal Construction

The DS-3E0109P-E(C) uses a robust metal enclosure with a fanless cooling design. With compact dimensions of 170 × 27.6 × 93.1mm and support for both desktop and wall-mounted installation, it can be deployed conveniently in CCTV cabinets, equipment rooms and other network locations.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-3E0109P-E(C) 8-Port Fast Ethernet Unmanaged PoE Switch

The Hikvision DS-3E0109P-E(C) combines eight Fast Ethernet PoE ports, a substantial 115W PoE budget and intelligent power management with long-range transmission and VIP traffic prioritisation. Its 6kV surge protection, fanless metal construction and straightforward unmanaged operation make it a practical network switch for professional IP surveillance installations.
