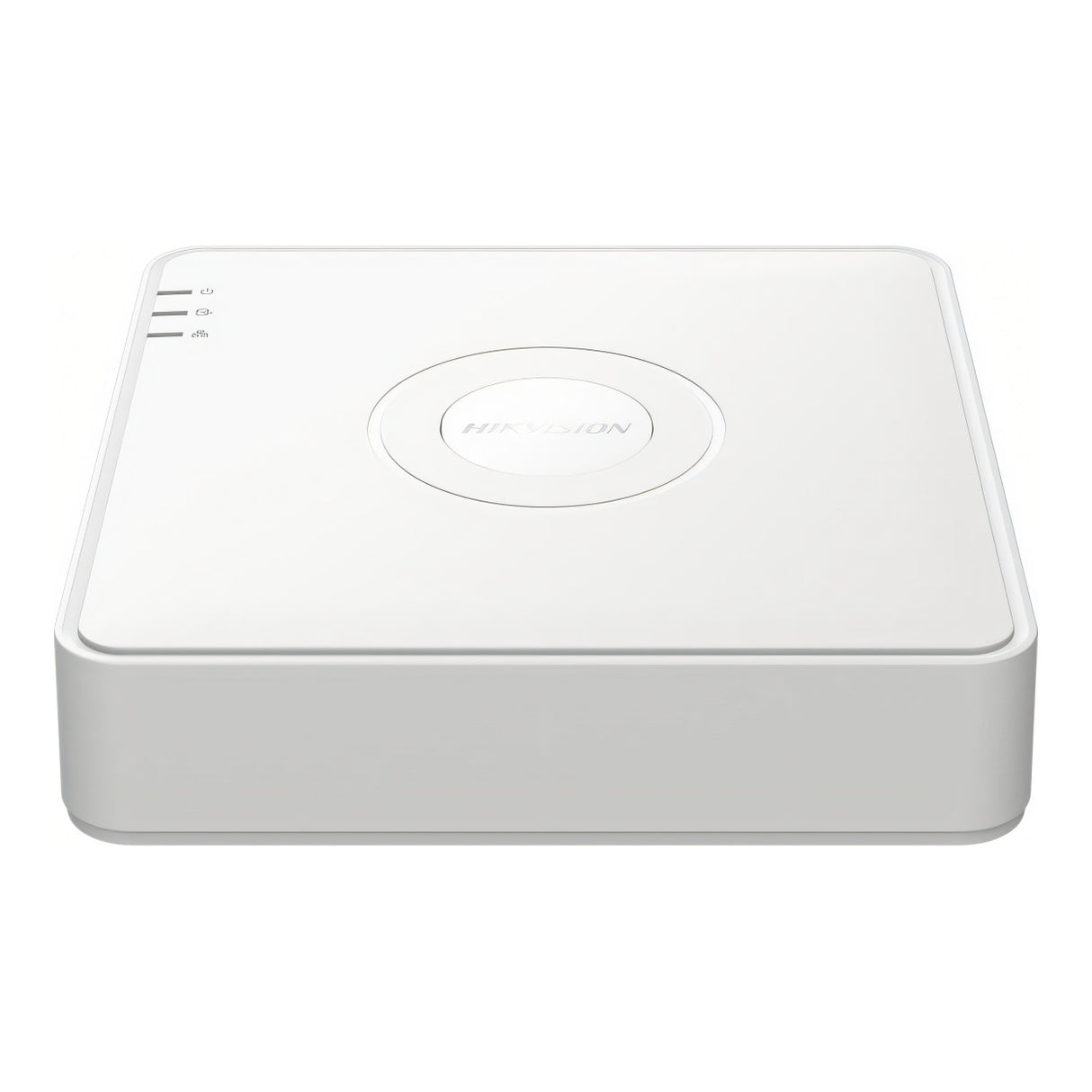

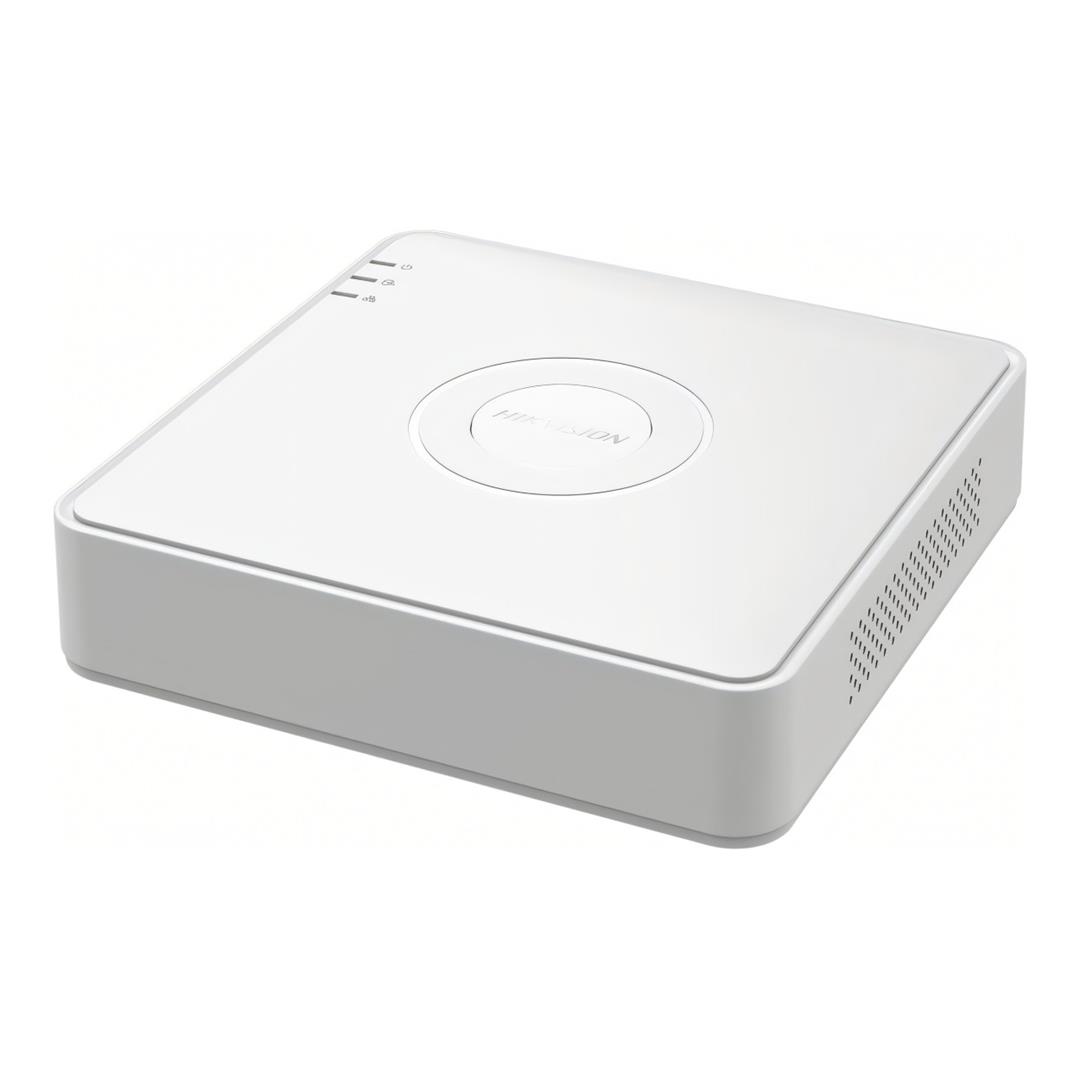

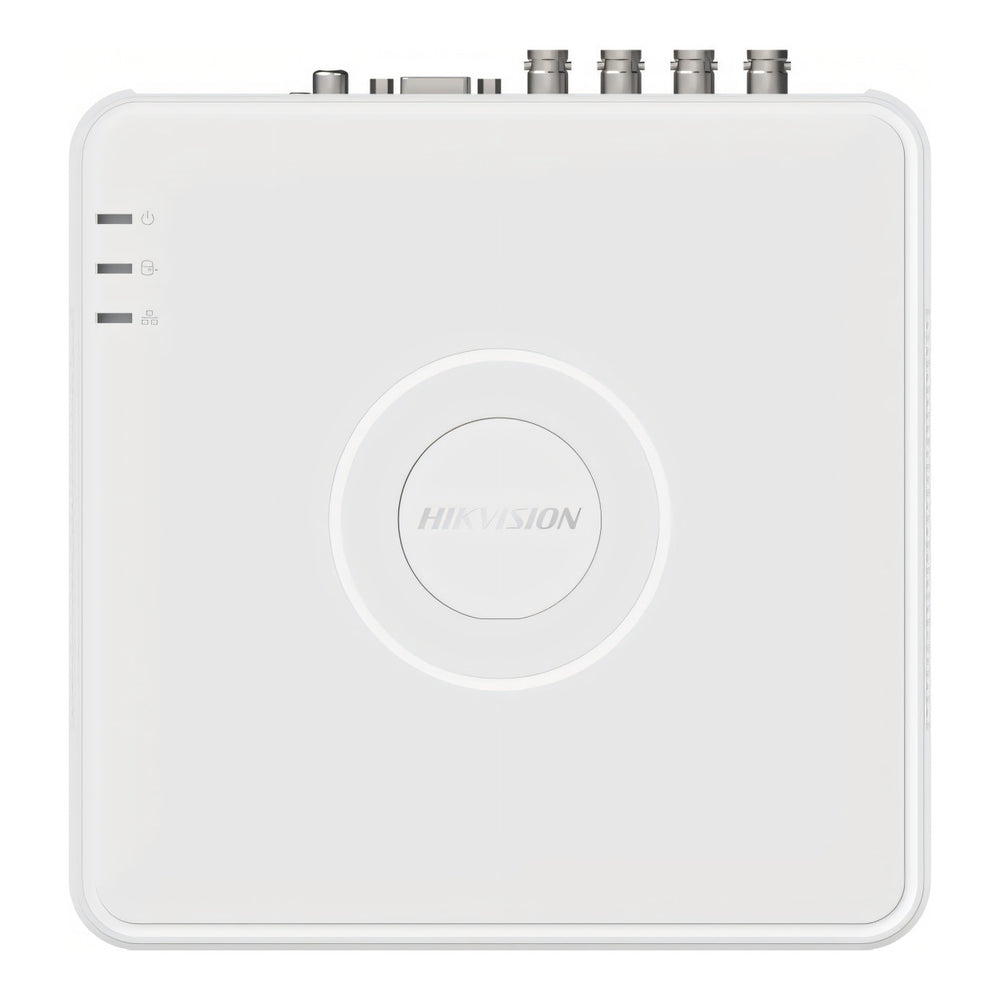

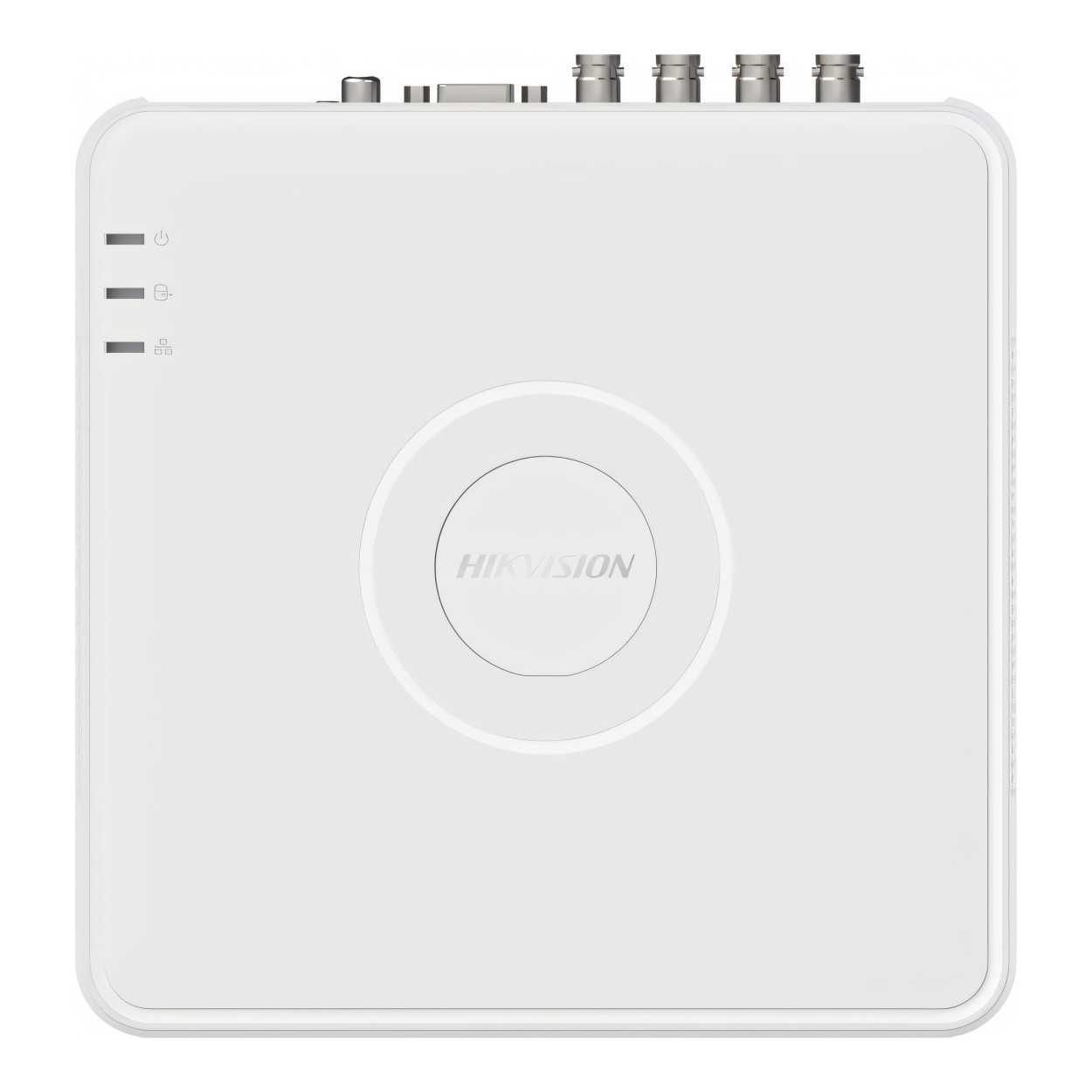

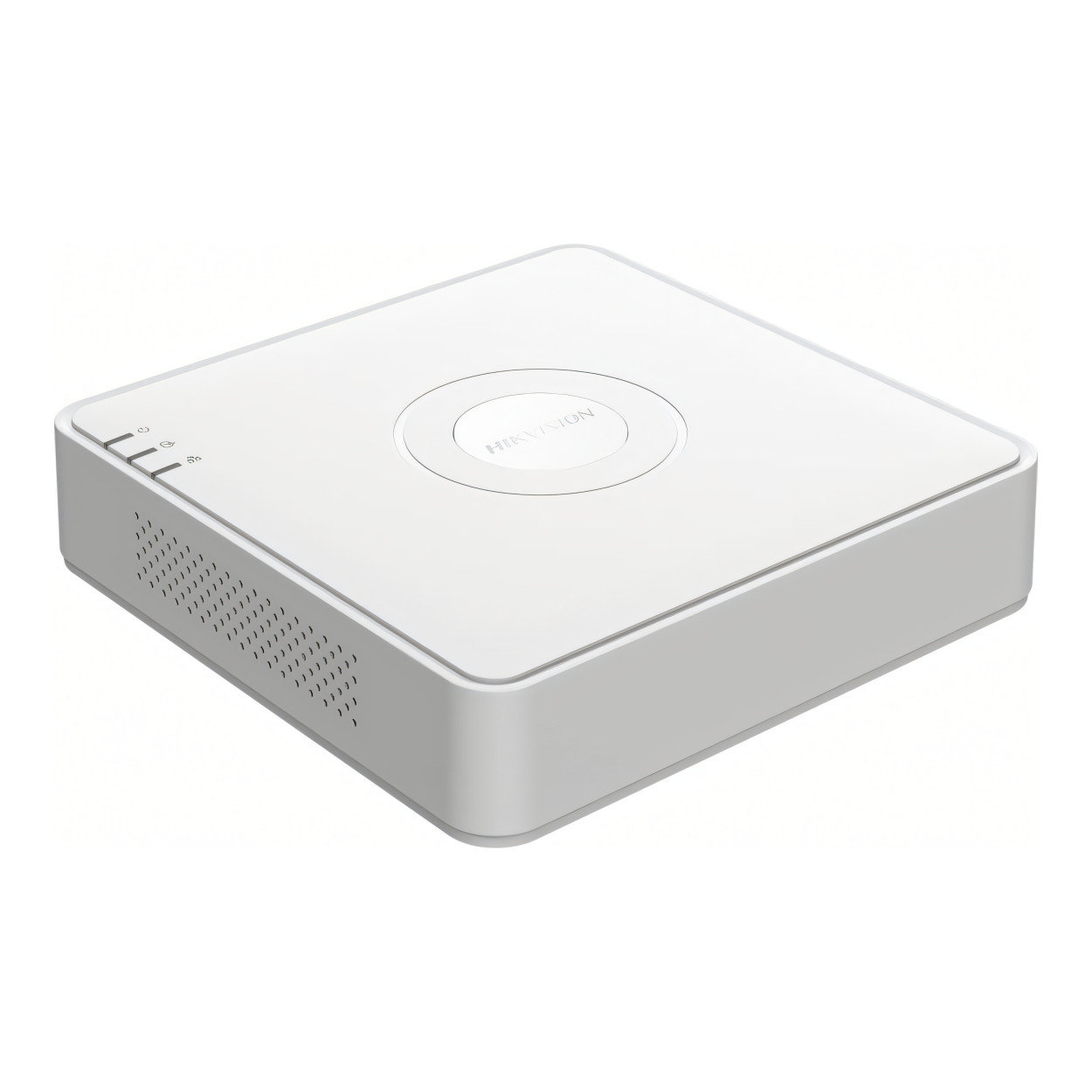

Hikvision 8-channel 1080P Mini 1U H.265 AcuSense DVR IDS-7108HQHI-M1/T

Hikvision 8-channel 1080P Mini 1U H.265 AcuSense DVR IDS-7108HQHI-M1/T

The Hikvision iDS-7108HQHI-M1/T is an 8-channel AcuSense DVR designed for analogue and hybrid video surveillance systems. It combines support for HDTVI, AHD, HDCVI, CVBS and IP cameras with deep-learning Motion Detection 2.0, helping distinguish people and vehicles from other movement and making recorded events easier to review. H.265 Pro+ compression and support for a single high-capacity SATA drive provide practical recording and storage for home, retail and business security installations.

Key Features

• 8 analogue BNC video inputs support HDTVI, AHD, HDCVI and CVBS cameras for flexible surveillance installations.
• Motion Detection 2.0 uses deep-learning human and vehicle classification to help reduce false alarms caused by other moving objects.
• Deep-learning perimeter protection supports human and vehicle analysis on up to 4 channels.
• H.265 Pro+ video compression helps improve encoding efficiency and reduce storage requirements.
• Supports additional IP cameras, with up to 12 IP channels available in Enhanced IP Mode.
• Encoding capability up to 3K / 5 MP Lite at 12 fps supports higher-resolution compatible cameras.
• One SATA interface supports an HDD with a capacity of up to 10 TB for local video storage.

AcuSense Human and Vehicle Classification

Hikvision Motion Detection 2.0 uses deep-learning technology to classify human and vehicle targets on analogue channels. By distinguishing these targets from movement caused by objects such as leaves and changing lights, the recorder can help reduce unnecessary motion events and supports quicker searches by object or event type.

Perimeter Protection

Deep-learning perimeter protection provides human and vehicle analysis on up to 4 channels. This gives compatible surveillance systems additional event filtering for monitored areas where identifying relevant people or vehicles is important.

Hybrid Camera Support

The iDS-7108HQHI-M1/T supports HDTVI, AHD, HDCVI and CVBS cameras through its 8 BNC inputs while also supporting IP cameras. Two additional IP channels provide up to 10 IP channels in a hybrid configuration, while Enhanced IP Mode can provide up to 12 IP channels, subject to the recorder's applicable operating limitations.

Efficient Video Compression

Support for H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 provides flexibility across compatible surveillance equipment. H.265 Pro+ is designed to improve encoding efficiency and reduce the amount of storage required for recorded video.

Local Storage and Playback

A single SATA interface supports a hard drive with a capacity of up to 10 TB, providing local storage for surveillance recordings. The recorder also supports 8-channel synchronous playback and smart search functions for more efficient review of recorded events.

Audio and Display Connectivity

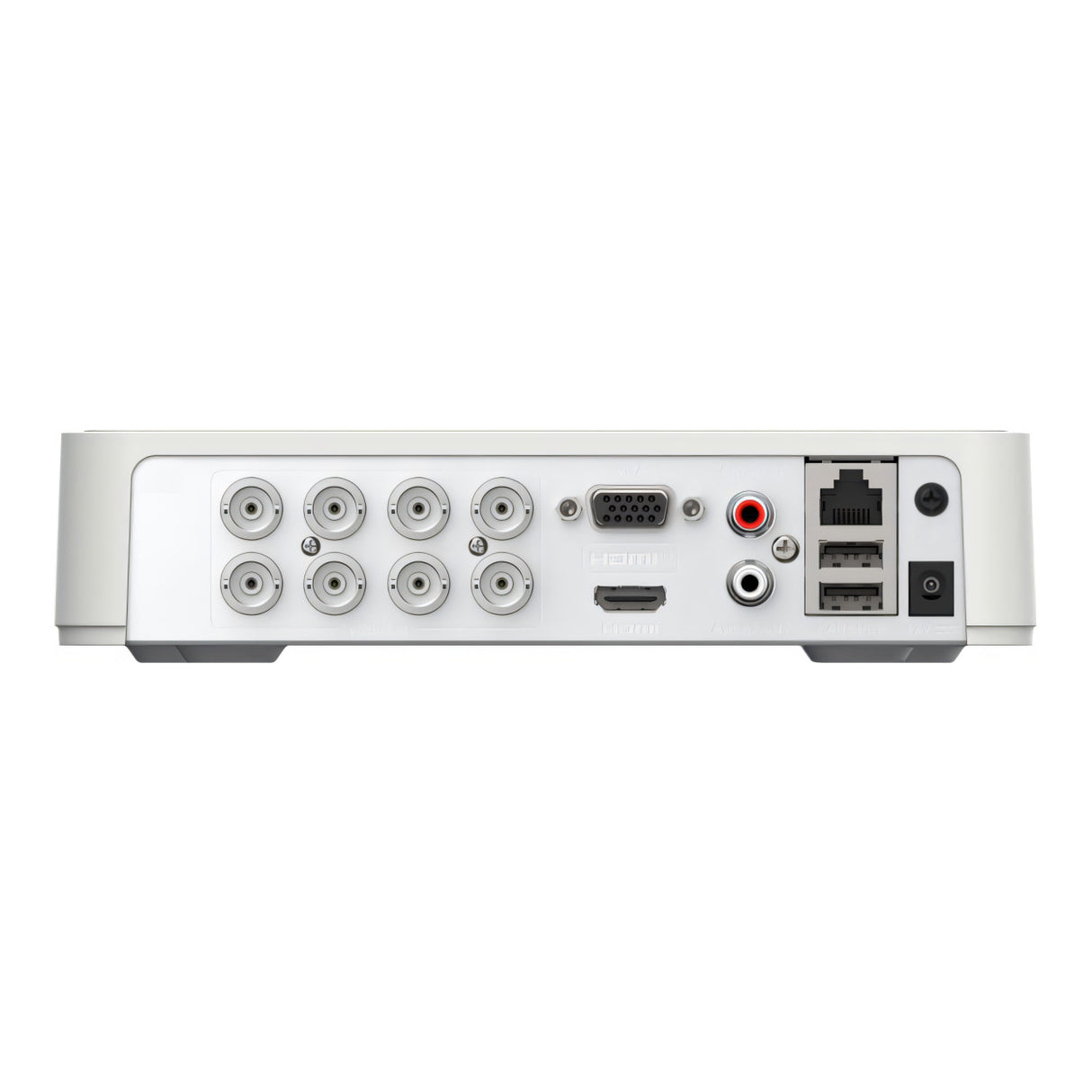

Audio over coaxial cable is supported with compatible cameras, helping simplify installations where video and audio need to travel over the same coaxial connection. HDMI and VGA outputs provide simultaneous local display connectivity at resolutions up to 1920 × 1080.

Technical Specifications

What’s in the Box:

• Hikvision iDS-7108HQHI-M1/T AcuSense DVR

Build or upgrade a flexible analogue and IP surveillance system with AcuSense human and vehicle classification using the Hikvision iDS-7108HQHI-M1/T.
