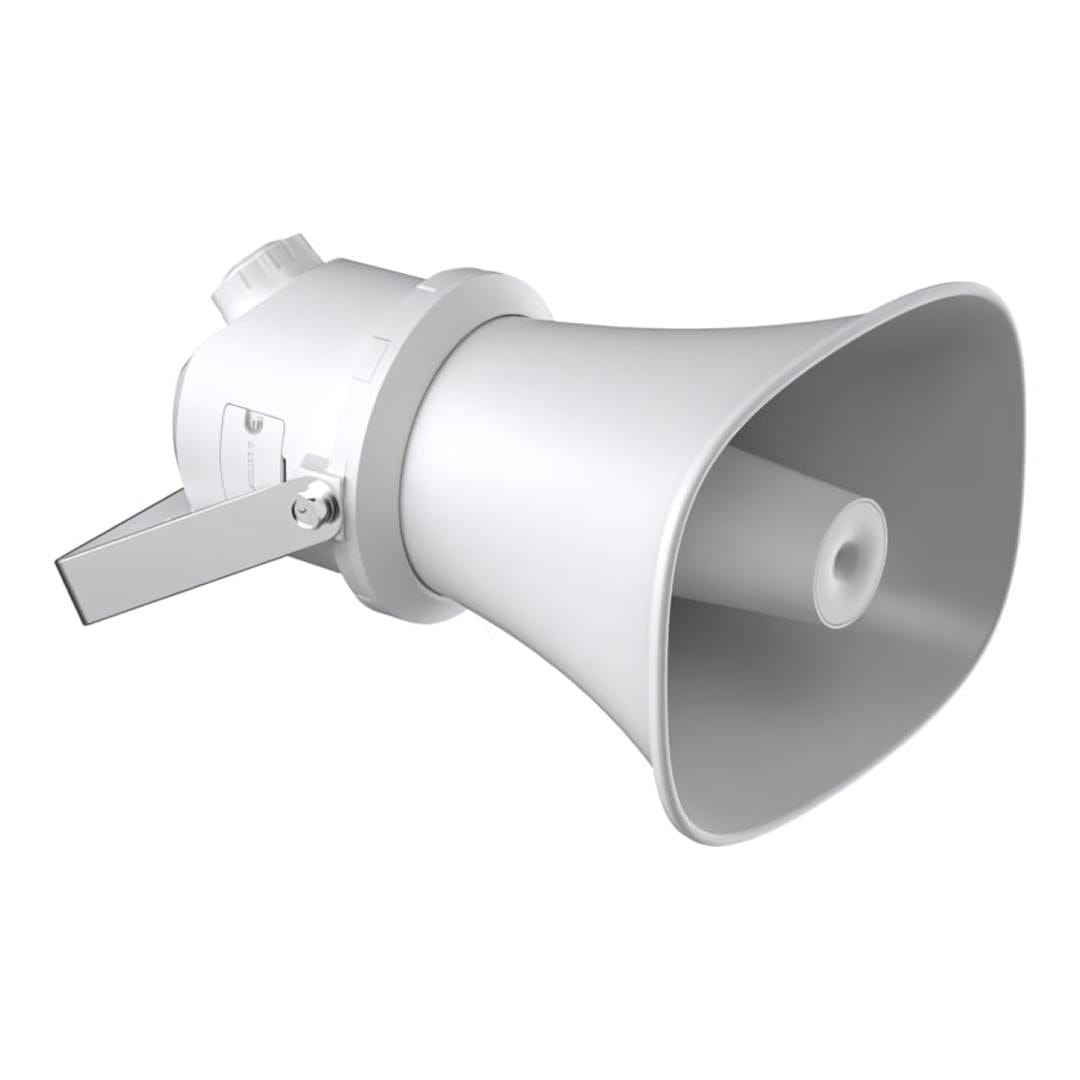

Hikvision 7W Network Horn Speaker DS-QAZ1307G1-E(C)

Hikvision 7W Network Horn Speaker DS-QAZ1307G1-E(C)

Features:

• Rated Power: 7W
• Sensitivity(1 m, 1 W): 110 dB
• Max. SPL: 121 dB
• Frequency Response: 300 Hz to 13 kHz
• Support PoE
• Support schedule/live/emergency broadcast, alarm linkage, two-way audio, TTS

Technical Specifications:

Microphone Type: electret
Microphone Amount: 2
Microphone Frequency Response: 100 Hz to 20 kHz
Microphone Sensitivity: -42 dBV/Pa
Microphone Sampling Rate: 48 kHz
Microphone Quantization Bits: 16 bit

Speaker Rated Power: 7 W
Speaker Impedance: 8 Ω
Speaker Max. Acoustic Pressure: 121 dBSPL
Speaker Sensitivity (1 m, 1 W): 110 dB
Speaker Direction: 70° horizontal by 100° vertical
Speaker Frequency Response: 300 Hz to 13 kHz
Speaker SNR: 85 dB

Audio Algorithm: AEC, AGC, ANS, DRC
Audio Bit Rate: G.711ulaw (64 Kbps) / G.711alaw (64 Kbps) / MP3 (128 Kbps)
Audio File Format: MP3, WAV
NTP Timing: Support
Broadcast: Regular broadcast, live broadcast, emergency broadcast
Two-Way Audio: Support
Speech Synthesis Languages: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

Network Protocol: IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API): ISAPI, ISUP, SIP, RTP, ONVIF
Client: Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

Communication Method: Support wired network communication
Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port × 1
Local Storage: Built-in 4 GB EMMC (Audio file storage is 1 GB)
API Support: ISAPI, ISUP, SIP, ONVIF
Reset Support: Yes

Material: Metal
Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity: <90% (No condensation)
Supported Languages: 41 languages (English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese)

Dimensions: 182 mm × 265 mm × 239 mm (7.18" × 10.62" × 9.42")
Power: POE IEEE 802.3at 16.4 W (max)
Package Dimensions: 310 mm × 245 mm × 350 mm (12.2" × 9.6" × 13.8")
Device Weight: Approx. 2.1 kg (4.63 lb)
Package Weight: Approx. 3.0 kg (6.61 lb)
Color: White

Packing List:

• Device × 1

• Threading cap × 1

• Regulatory Compliance and Safety Information × 1

Approval Protection: IP67, IK10

EMC Compliance: CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7

Safety Compliance: CB: IEC 62368-1:2014
CE-LVD: EN 62368-1:2014/A11:2017

Environmental Compliance: CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
REACH: Regulation (EC) No 1907/2006
