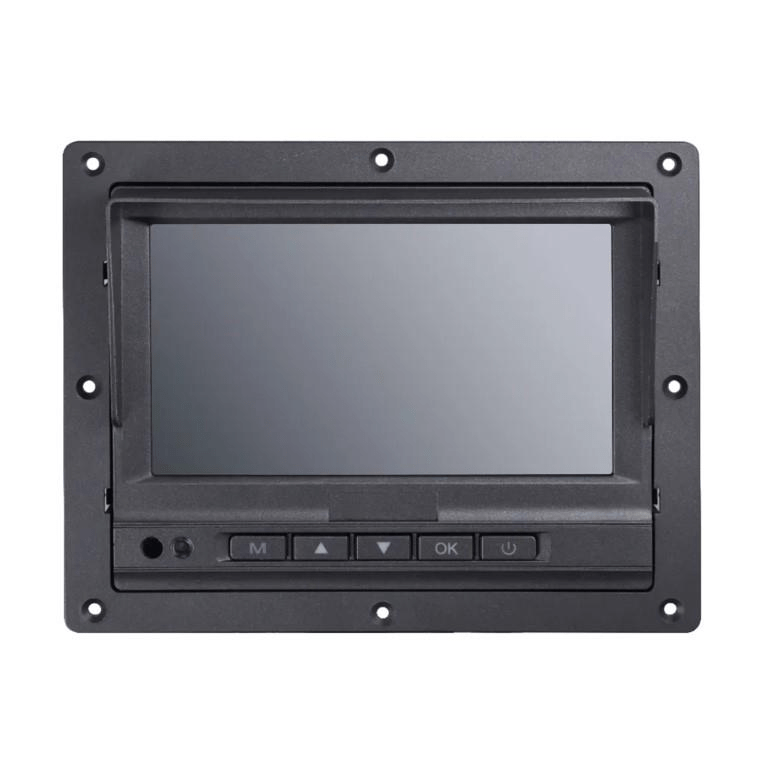

Hikvision 7-inch 800 x 480p TFT LCD Mobile Monitor DS-MP1301

Hikvision 7-inch 800 x 480p TFT LCD Mobile Monitor DS-MP1301

Features

• Real-time live view of the rear-view camera when the vehicle is backing off and other connected camera.
• Support 3-ch video input including one channel connecting to the mobile DVR, one channel connecting to the rear-view camera and one reserved channel connecting to the other camera.
• Support 2-ch alarm input.
• Manual switch of the 3-ch video and auto switch to the video of the channel triggering alarm.

Technical Specification

Size: 17.78cm (7 inch)

Display: TFT-LCD

Resolution: 800 x 480 pixel RGB

Backlight: LED

Brightness: Adjustable

Visual angle: 130°

System: PAL/NTSC

Display mode: Mode 1: Manual switch ; Mode 2: Auto switch

Mobile DVR video output: 1-ch. Four-pin aviation male plug, connecting to the mobile DVR.

Rear-view camera video input: 1-ch. Four-pin aviation male plug, connecting to the rear-view camera

The other camera video input: 1-ch (reserved). Four-pin aviation male plug, connecting to the other camera.

Protection grade: IP54

Mounting type: Embedded mounting; Bracket mounting
