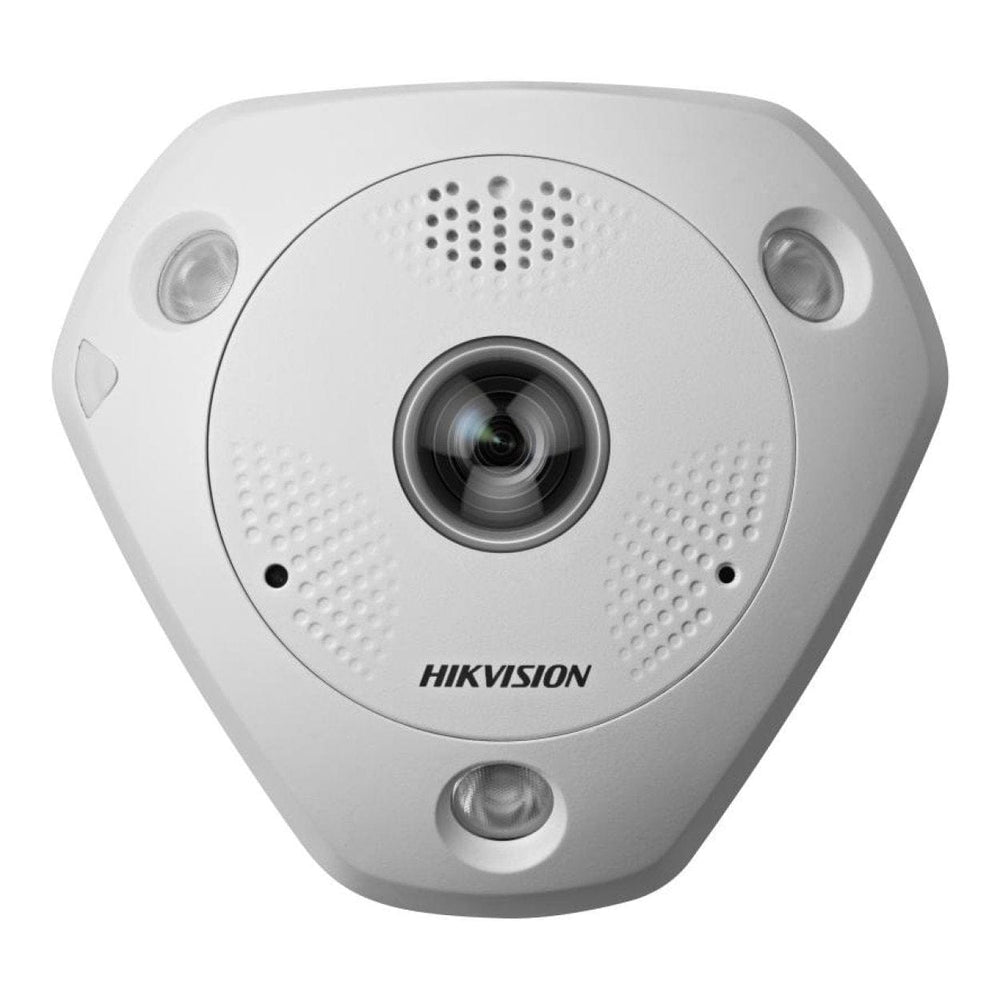

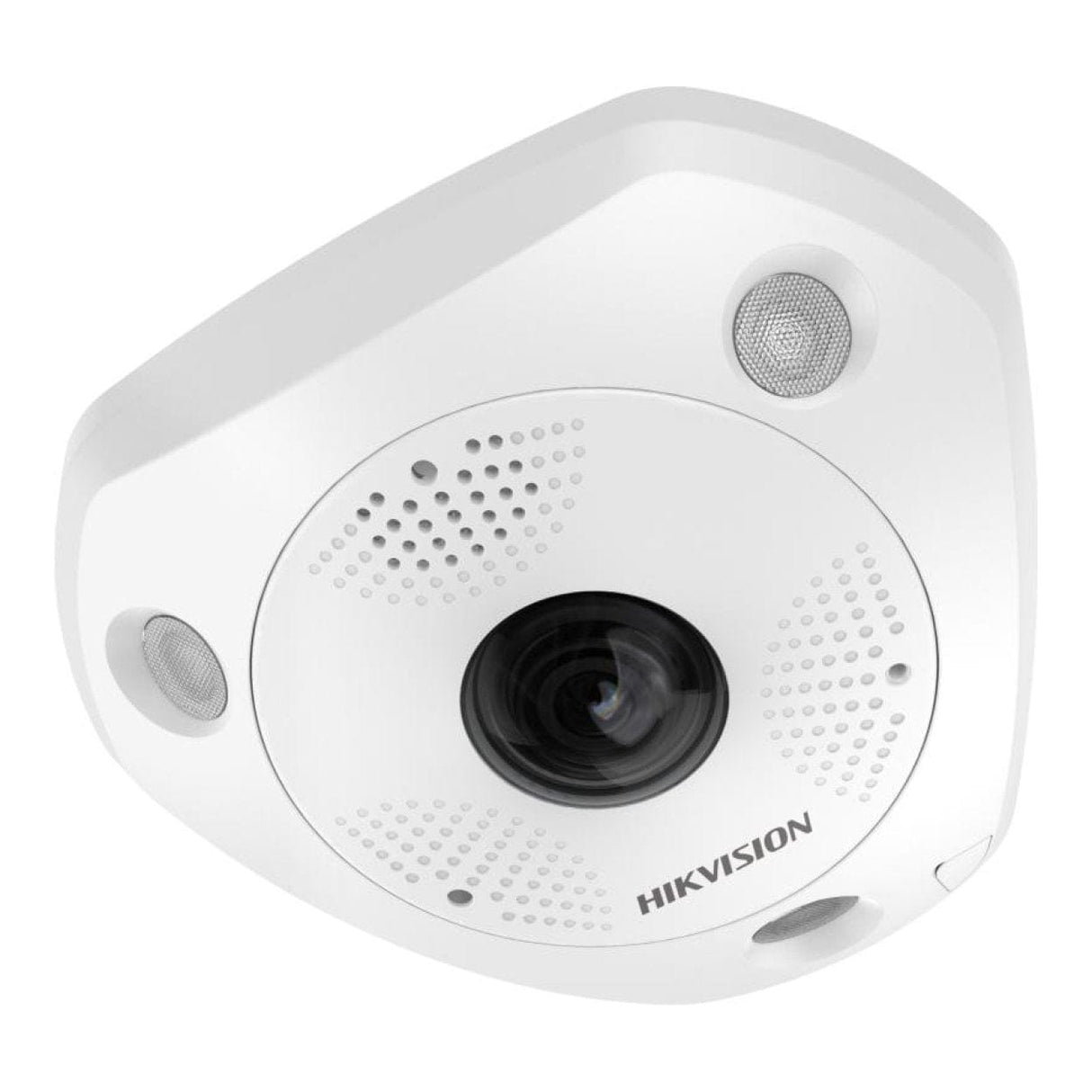

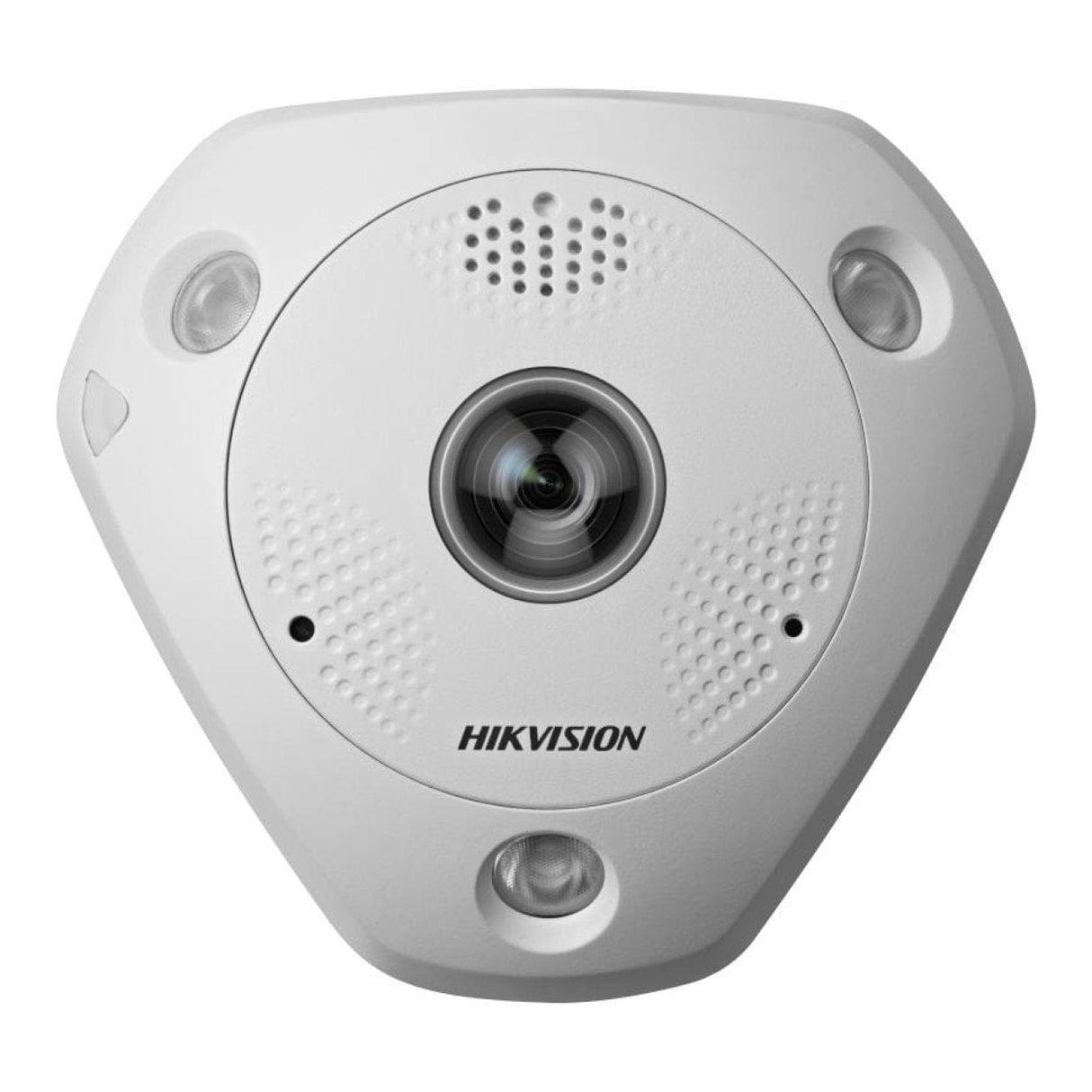

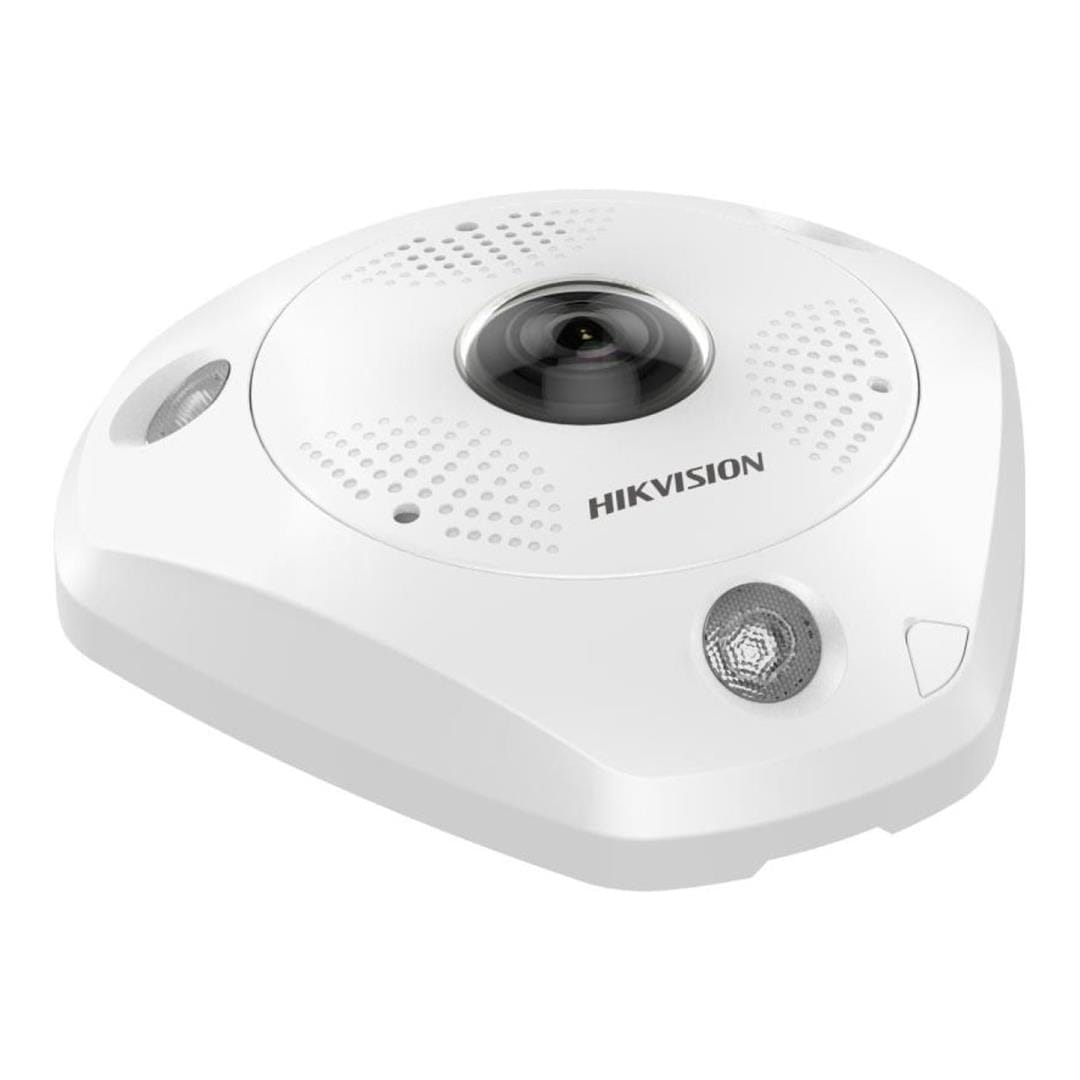

Hikvision 6MP DeepinView Fisheye Network Camera DS-2CD6365G0-IVS(2mm)

Hikvision 6MP DeepinView Fisheye Network Camera DS-2CD6365G0-IVS(2mm)

Features:

• Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
• Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
• Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
• Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
• High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
• Each image is clear and detailed
• Water and dust resistant (IP67) and vandal resistant (IK10)

Technical Specifications:

Camera

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 2560
Min. Illumination Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0.005 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter

Lens
Lens Type Fixed focal lens, 2 mm
Focal Length & FOV 2 mm, horizontal FOV 172°, vertical FOV 172°
Iris Type Fixed
Aperture F2.25
Depth of Field 0.2 m to ∞

DORI D: 23.2 m, O: 9.2 m, R: 4.6 m, I: 2.3 m

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 15 m
Supplement Light Number 3
IR Wavelength 850 nm
Smart Supplement Light Yes

HEOP
Memory 60 MB
Smart RAM 800 MB
eMMC 2 GB
Computing Power 2 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe, TensorFlow, PyTorch
Programming Language C, C++

Video
Main Stream 50 Hz: 25 fps / 60 Hz: 30 fps. Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280. 180 Panorama View: 2048 × 1536, 1920 × 1440. 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720. Panorama View: 2048 × 1536, 1920 × 1440. 4PTZ View: 1024 × 768 each camera. Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024; cameras 02-04: 1024 × 768. 4PTZ Fusion View: 2048 × 1536, 1600 × 1200
Sub-Stream 50 Hz: 25 fps / 60 Hz: 30 fps. Fisheye View: 720 × 720, 480 × 480. 180 Panorama View: 640 × 480, 320 × 240. 180 Dual Channel Panorama View: 640 × 480, 320 × 240. Panorama View: 640 × 360, 320 × 240. 4PTZ View: 640 × 480, 320 × 240. Fisheye + 3PTZ View: camera 01: 720 × 720, cameras 02-04: 640 × 480, 320 × 240
Video Compression Main stream: H.265+/H.265/H.264+/H.264. Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions per stream

Fisheye Display
Mount Type Wall/table/ceiling mounting
Decoding Mode Hardware and software decoding
Display Mode 20 modes total. Software: fisheye, 180 panorama, 360 panorama, 360+PTZ, 360+3PTZ, 360+6PTZ, 360+8PTZ, 2PTZ, 4PTZ, fisheye+3PTZ, fisheye+8PTZ, hemisphere, AR hemisphere, cylinder. Hardware: fisheye, 180 panorama, 180 dual channel panorama, panorama, 4PTZ, fisheye+3PTZ, 4PTZ fusion

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Audio Sampling Rate 8/16/32/48 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Simultaneous Live View Up to 20 channels
API ONVIF Profile S/G/T, ISAPI, SDK, ISUP, SIP support
User/Host Up to 32 users, 3 levels: administrator, operator, user
Security Password protection, HTTPS, 802.1X (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP filter, basic/digest HTTP authentication, WSSE/digest Open Network Video Interface, RTP/RTSP over HTTPS, control timeout, TLS 1.2, MAC host authentication
Network Storage NAS (NFS, SMB/CIFS), ANR, memory card encryption and health detection

Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser Plug-in live view: IE10/11. Plug-in free: Chrome 57+, Firefox 52+, Edge 89+, Safari 11+

Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client or browser
Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger
WDR Digital
Image Enhancement BLC, HLC, 3D DNR, distortion correction, defog
Privacy Mask 8 programmable polygon masks
Picture Overlay Logo overlay: 128 × 128, 24-bit BMP

Interface
Ethernet Interface 1 RJ45 10/100/1000 Mbps
On-Board Storage microSD/microSDHC/microSDXC, up to 256 GB
Built-in Microphone Yes, 2
Built-in Speaker Yes, 1
Audio Input/Output 1 input, 3.5 mm, max 3.3 Vpp, impedance 4.7 KΩ; 1 output, 3.5 mm, max 3.3 Vpp, impedance 100 Ω
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
RS-485 1, half duplex, self-adaptive (HIKVISION, Pelco-P/D)
Reset Key 1

Event
Basic Event Motion detection, video tampering, alarm input/output, network exception, IP conflict, illegal login, HDD full/error
Smart Event Line crossing, intrusion, region entrance/exiting, scene change, audio exception, defocus, unattended baggage, object removal
Linkage Upload to FTP/NAS/memory card, notify center, email, trigger alarm/output, recording, capture

Deep Learning Function
People Counting Counts entering, exiting, passing by; real-time or scheduled upload; email reports daily/weekly/monthly/annually; supports up to 3 detection regions
Queue Management Up to 8 detection regions, supports 2 detection modes (regional queue, waiting time), report generation, raw data export, real-time and scheduled upload
Heat Map Space and time heat map line chart
Intersection Analysis Up to 10-way intersection flow detection and reporting

General
Power 12 VDC ± 20%, 0.75 A, max. 9 W, or PoE IEEE 802.3af, Class 3, max. 10 W
Material Metal
Dimension 167.4 × 152.8 × 55 mm (6.6" × 6" × 2.2")
Package Dimension 260 × 230 × 135 mm (10.2" × 9.1" × 5.3")
Weight Approx. 700 g (1.54 lb), With Package: 1274 g (2.81 lb)
Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity ≤95% non-condensing
Startup & Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity ≤95% non-condensing
Language 33 languages including English, Russian, Chinese, Spanish, French, Korean, Japanese, Portuguese (Brazil), etc.
General Function Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding
Heater Yes
Cable Length 0.31 m (1.02 ft)

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32:2015; IC: ICES-003 Issue 7
Safety CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
Environment CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; REACH: EC 1907/2006
Protection IP67, IK10
