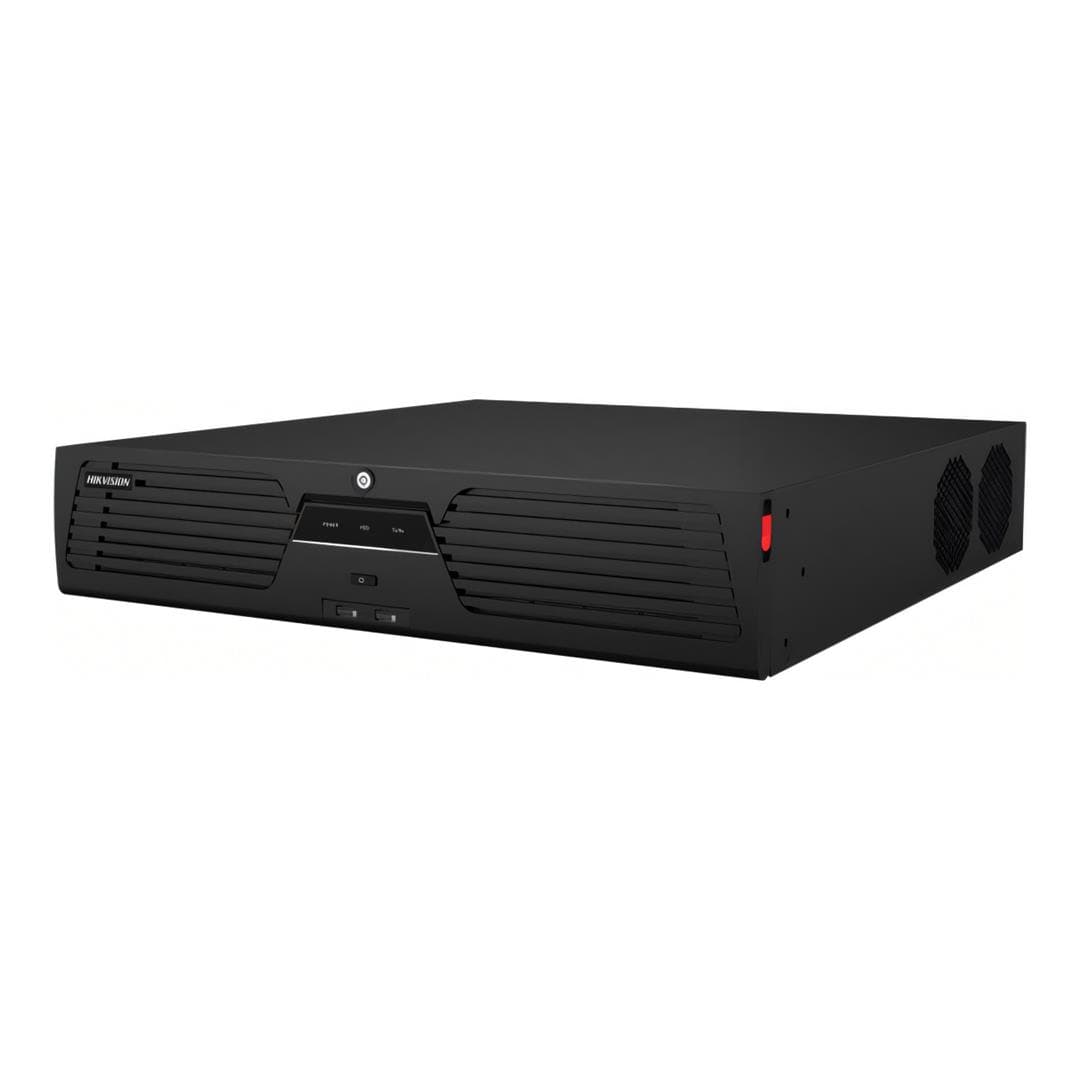

Hikvision 64-channel 2U 4K AcuSense NVR DS-9664NXI-I8/S(E)

Hikvision 64-channel 2U 4K AcuSense NVR DS-9664NXI-I8/S(E)

The Hikvision DS-9664NXI-I8/S(E) is a 64-channel AcuSense Network Video Recorder designed for large-scale professional IP surveillance systems. It combines support for up to 64 IP cameras with deep-learning-based intelligent analytics, high-capacity 384Mbps incoming bandwidth, 4K display output and eight SATA storage interfaces. Advanced perimeter protection, facial recognition, smart search and H.265+ compression make it a powerful central recording platform for commercial, industrial and enterprise security environments.

Key Features

• 64-channel AcuSense Network Video Recorder.
• Professional 2U recorder platform.
• Supports up to 64 IP camera inputs.
• Up to 384Mbps incoming network bandwidth.
• Up to 32-channel 1080p decoding capability.
• H.265+, H.265, H.264+ and H.264 video formats.
• Deep-learning-based intelligent analytics.
• Up to 4-channel perimeter protection.
• Human and vehicle target classification for perimeter events.
• Up to 4-channel facial recognition for video streams.
• Up to 8-channel facial recognition for face pictures.
• Independent HDMI and VGA video outputs.
• HDMI video output at up to 4K resolution.
• 8 × SATA interfaces for internal HDD storage.
• Up to 16-channel synchronous playback.
• Dual Gigabit Ethernet interfaces.
• Compatible with Hikvision and supported third-party network cameras.
• Smart search and smart playback functionality.
• Multiple VCA event support.
• POS information overlay and event integration.

64-Channel IP Video Recording

The DS-9664NXI-I8/S(E) provides connectivity for up to 64 IP cameras, making it suitable for large commercial and enterprise surveillance deployments. Its E-variant specification provides up to 384Mbps incoming network bandwidth, supporting high-density recording from compatible network cameras.

AcuSense Deep-Learning Intelligence

Integrated AcuSense technology uses deep-learning algorithms to provide intelligent surveillance analytics through the NVR. Supported functionality includes perimeter protection and facial recognition, helping security operators identify relevant events and targets more efficiently.

Perimeter Protection

The E variant supports up to four channels of NVR-side perimeter protection. Human and vehicle classification helps distinguish relevant targets from other movement, reducing false alarms in compatible intrusion and line-crossing detection applications.

Facial Recognition

Facial-recognition functionality supports up to four channels for video-stream analysis and up to eight channels for face-picture analysis on the E variant. These capabilities provide additional tools for face capture, comparison and intelligent investigation within compatible surveillance deployments.

Up to 32-Channel 1080p Decoding

The DS-9664NXI-I8/S(E) provides high-density decoding capability of up to 32 channels of 1080p video. This enables large multi-camera layouts to be monitored locally while supporting up to 16 channels of synchronous playback for efficient incident review.

Efficient H.265+ Compression

Support for H.265+, H.265, H.264+ and H.264 provides broad compatibility with modern IP surveillance cameras. Hikvision states that H.265+ can reduce required recording storage by up to 75%, helping make more efficient use of installed hard-drive capacity.

4K Display Output

Independent HDMI and VGA display connectivity provides flexible local monitoring options. The E variant supports HDMI output at up to 4K resolution, allowing high-resolution footage and multi-camera layouts to be displayed on compatible UHD monitors.

Eight-Bay Storage Platform

Eight SATA interfaces provide extensive internal storage capability for surveillance-class hard drives. The multi-drive architecture is well suited to installations requiring continuous recording from numerous cameras or extended footage retention periods.

Dual Gigabit Networking

Two self-adaptive 10/100/1000Mbps Ethernet interfaces provide high-speed network connectivity for camera traffic, remote access and integration with wider surveillance infrastructure.

Smart Search and Playback

Smart search allows operators to identify activity within selected areas of recorded video, while smart playback helps improve footage-review efficiency. The recorder also supports multiple Video Content Analytics events for event-driven surveillance workflows.

POS Integration

POS information can be overlaid on live video and recorded footage, allowing compatible transaction data to be associated with surveillance video. POS events can also trigger recording and alarm actions for suitable retail and commercial applications.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-9664NXI-I8/S(E) 64-Channel AcuSense Network Video Recorder

The Hikvision DS-9664NXI-I8/S(E) combines 64-channel IP video recording with AcuSense deep-learning analytics, 384Mbps incoming bandwidth, high-density 1080p decoding and an eight-drive storage platform. With intelligent perimeter and facial analysis, 4K display capability, dual Gigabit networking and smart search functionality, it provides a powerful central recorder for demanding professional surveillance environments.
