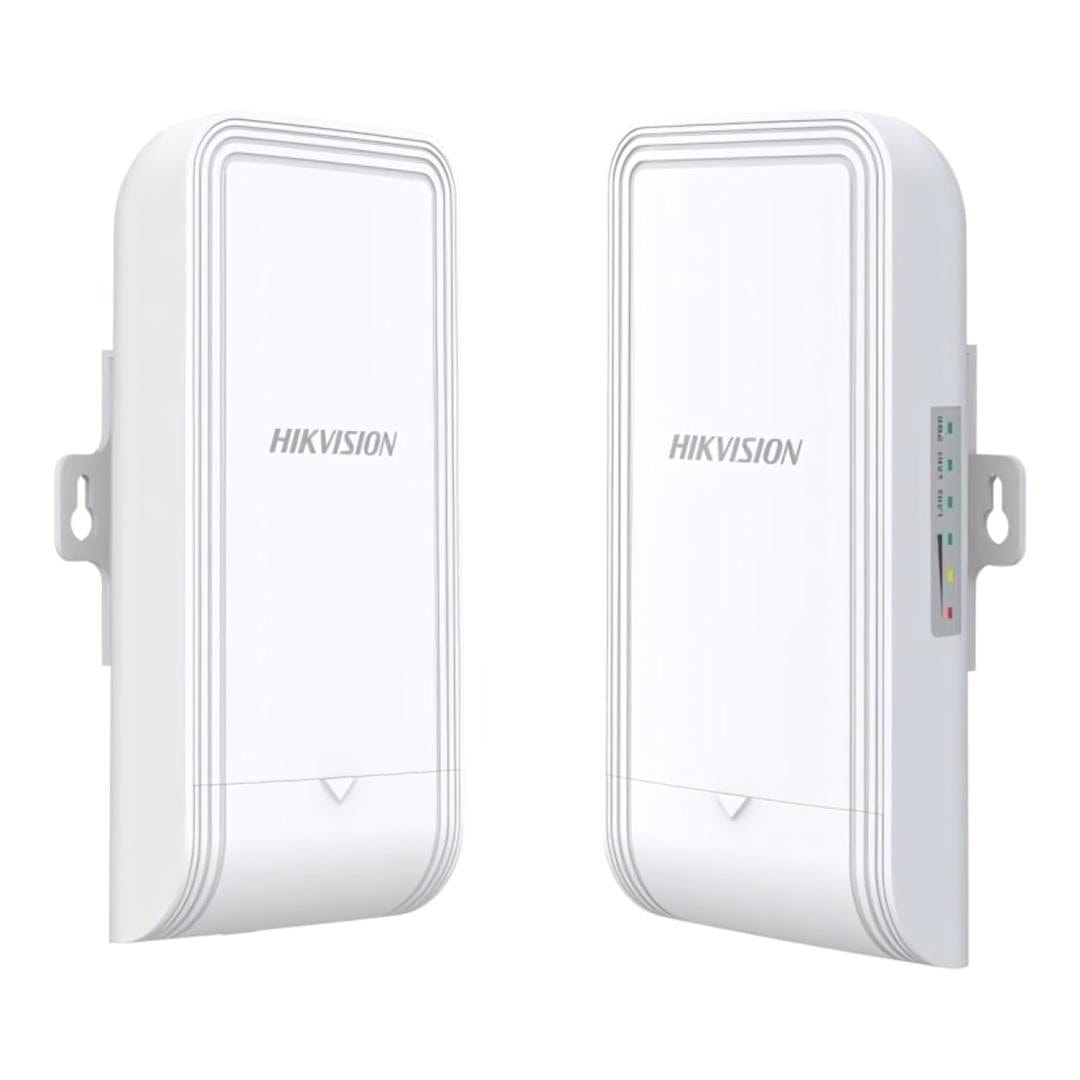

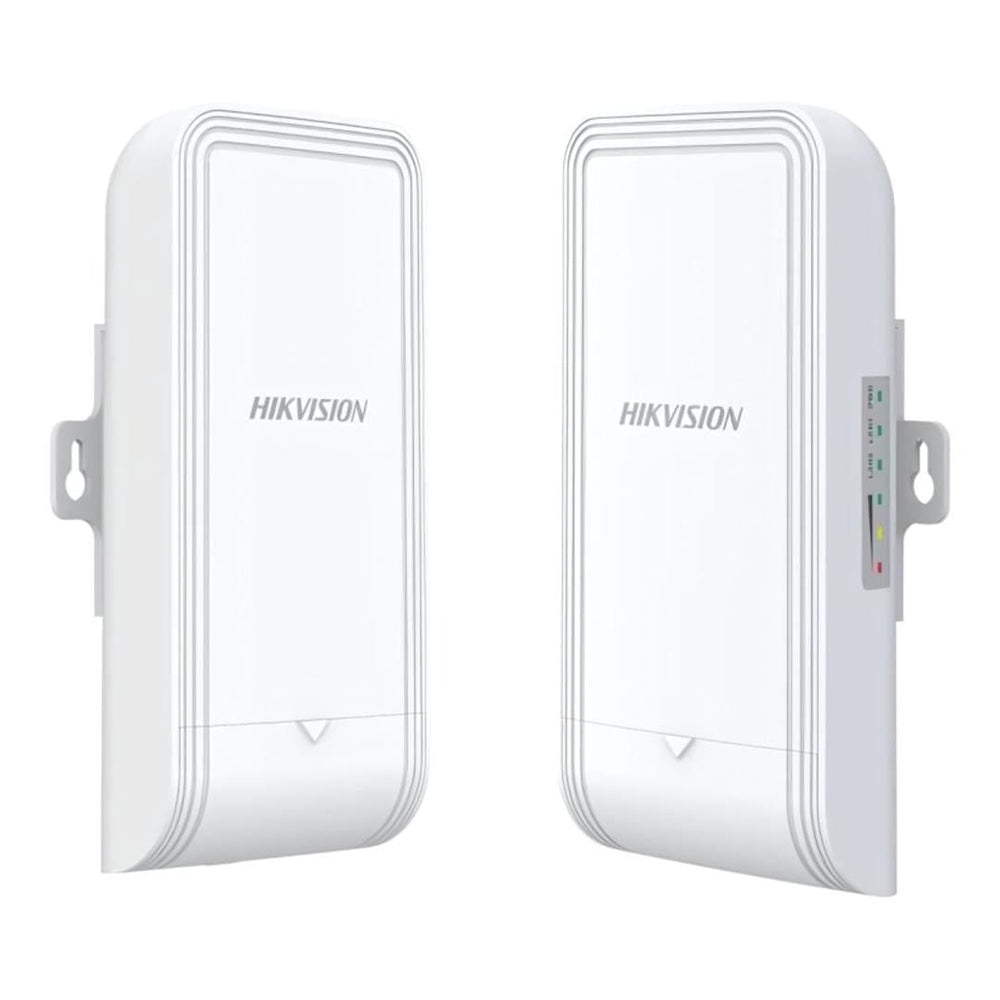

Hikvision 5Ghz 867Mbps 3KM Wireless Bridge Kit DS-3WF3000-EI-5AC/P

Hikvision 5Ghz 867Mbps 3KM Wireless Bridge Kit DS-3WF3000-EI-5AC/P

The wireless bridge can be applied in industries, such as wireless video security, railway, transportation, power and other industries, wireless video/data transmission, wireless coverage, carrier wireless backbone network construction, Wi-Fi wireless coverage, rural information construction, and wireless network coverage. The long-distance transmission of the device can guarantee multi-channel HD video transmission.

Features:

• Up to 3 km wireless transmission distance
• 867 Mbps 802.11ac wireless bridge
• Built-in 8 dBi 2 x 2 MIMO antenna
• Visualized topology management
• Standard PoE Input & Output
• Plug and Play

Technical Specifications:

General
Product Dimensions (W × H × D): 90.8 × 187.87 × 57.87 mm (3.58 × 7.4 × 2.28 in)
Package Dimensions (W × H × D): 256 × 231 × 86 mm (10.07 × 9.09 × 3.38 in)
Net Weight: 0.26 kg (0.57 lb) per device
Gross Weight: 1.1 kg (2.43 lb)
Packing Method: Packed in pairs
Working Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity: 5% to 95% (no condensation)
Storage Temperature: -40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity: 5% to 95% (no condensation)
Installation Mode: Pole mounting
Ingress Protection: IP55
Power Consumption: Typical 2.43 W (1-ch 2MP IPC), Max 3.6 W

Wireless Parameter
Max Transmission Rate (Air Interface): ≤ 867 Mbps
Wireless Standard: IEEE 802.11 a/n/ac
Working Frequency Band: 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5825 MHz
Antenna Gain: 8 dBi
Antenna Angle: Horizontal 50° / Vertical 50° (3 dB beamwidth)
Transmitting Power: 22 dBm @ 11ac 80 MHz MCS0 (may vary by local regulations)
Receiving Sensitivity: -84 ± 2 dBm @ AC80-MCS0
Throughput Rate: PTP: 90 Mbps / 0.5 km (AC80), 90 Mbps / 1 km (AC80), 40 Mbps / 3 km (AC80); PTMP (1 to 4): 20 Mbps / 3 km (AC80)

PoE Power Supply
PoE Port: AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3af PoE OUT
PoE Power Budget: 10 W
PoE Distance: 100 m

Hardware Parameter
Network Interface: 2 × 10/100 Mbps RJ45 ports
LED Indicator: Power, LAN, Signal intensity
Reset: Hardware resetting button
Power Supply: 48 V PoE / 12–24 V DC

Software Function
Application Function: IFM, IPM, DFS, TPC
Channel Width: 20 / 40 / 80 MHz
Channel Selection: Auto / manual
Security Mode: WPA2-PSK
Security Mechanism: Wireless network name hidden
Network Protocol: NTP, SADP, HTTPS / HTTP, SSH
Management Method: HCP, Web, iVMS-4200, HPP
System Log: Syslog, Control center information
Upgrade: Web, iVMS-4200, HCP, HPP
HPP Functions: One-click activation and remote management via Hik-Partner Pro: Reboot device, Restore device, Display topology information, Display AP-CPE connection status including signal intensity, background noise, sending & receiving rate, Configure wireless settings (mode, SSID, password, channel, bandwidth, power), Bridge alignment, Spectrum scanning, PoE output management

Approval
EMC: CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32:2015)
Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, Second Edition), CE-LVD (EN 62368-1:2014+A11:2017)
Chemistry: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (Regulation (EC) No.1907/2006)
Radio: EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17

What’s in the Box:

• Wireless Bridge × 2
• PoE Power Supply × 2
• AC Cord × 2
• Quick Start Guide × 1
• Regulatory Compliance and Safety Information × 1
• Binding Tape × 4
