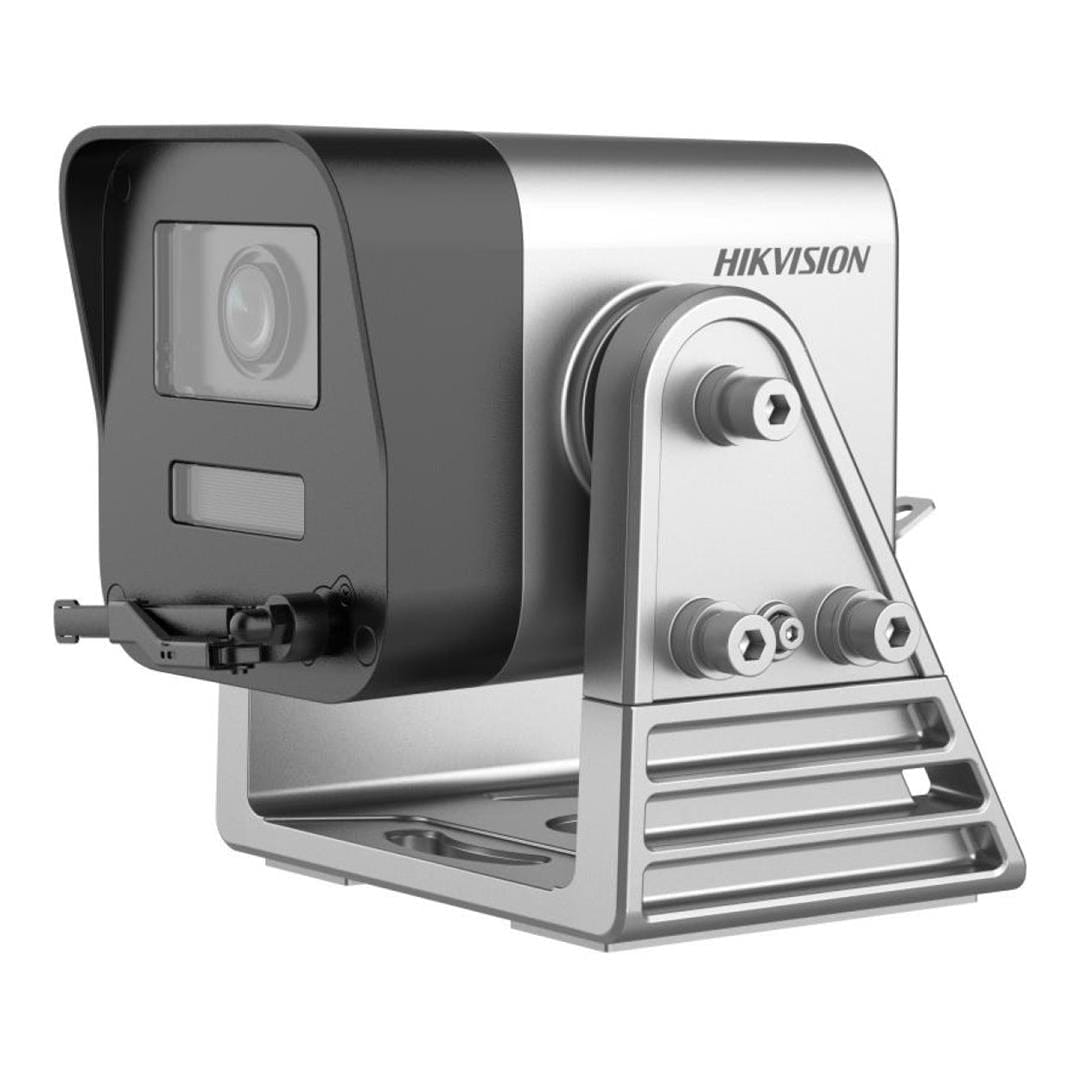

Hikvision 4MP Gantry Crane Varifocal Network Camera DS-2XV6646G0-LIZHRS(2.8-12mm)

Hikvision 4MP Gantry Crane Varifocal Network Camera DS-2XV6646G0-LIZHRS(2.8-12mm)

Features:

• High quality imaging with 4 MP resolution
• Supports low latency, camera decoding with a delay as low as 100 ms
• Expansive night view with up to 50 m white light distance and 80 m IR distance
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Easy installation with Power over Ethernet (PoE) technology and 9 to 36 VDC power input
• Supports Hikvision Embedded Open Platform (HEOP) with 8 TOPS computing power and importing third party applications
• A built-in wiper(-R) removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments
• Water and dust resistant (IP68)

Technical Specifications:

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light; B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -15° to 15°, Tilt: -120° to 45°

Lens
Focus: Auto, Semi-auto, Manual
Focal Length & FOV:

• 2.8 to 12 mm, horizontal FOV 99.6° to 39.8°, vertical FOV 52.3° to 22.4°, diagonal FOV 119.9° to 45.7°

• 8 to 12 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
  Iris Type: Auto-iris
  Aperture: 2.8 to 12 mm: Max. F1.47; 8 to 32 mm: Max. F1.7

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range:

• 2.8 to 12 mm: IR up to 50 m, White Light up to 30 m

• 8 to 32 mm: IR up to 80 m, White Light up to 50 m

HEOP
Open Resources: System memory: 150 MB; Smart RAM: 1800 MB; Flash: 3200 MB
Computing Power: 8 TOPS
Deep Learning Structure: Caffe, PyTorch, TensorFlow
Programming Language: C, C++

Video
Main Stream: 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression: Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 5 fixed regions for main stream
Target Cropping: Yes

Audio
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 48 kHz
Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC / MP3
Audio Bit Rate: 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32–192 Kbps (MP2L2) / 8–320 Kbps (MP3)
Audio Type: Mono sound

Network
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View: Up to 20 channels
API: ONVIF, ISAPI, SDK, ISUP
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host: Up to 32 users, 3 levels: administrator, operator, user
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), memory card encryption and health detection supported
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required: IE 10, IE 11; Plug-in free: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Wide Dynamic Range (WDR): 120 dB
Image Stabilization: EIS
Picture Overlay: LOGO picture can be overlaid (128 × 128, 24 bit BMP)
Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
Image Enhancement: BLC, HLC, 3D DNR, Defog
Image Parameters Switch: Yes
SNR: ≥ 50 dB
Privacy Mask: 8 programmable polygon masks

Interface
Video Output: 1 Vp-p Composite Output (75 Ω/CVBS, debugging only)
Ethernet Interface: 1 × 1000 M self-adaptive, 8-core M12 aviation plug
On-Board Storage: Built-in memory card slot, microSD/microSDHC/microSDXC, up to 512 GB
Audio: 1 input (line in), 1 output (line out)
Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
RS-485: 1 (Half duplex, HIKVISION, Pelco-P/D, self-adaptive)

Event
Basic Event: Motion detection (human/vehicle), video tampering, exception (network disconnected, IP conflict, illegal login, HDD full/error)
Smart Event: Scene change, audio exception, defocus, unattended baggage, object removal
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, email, trigger alarm, recording, capture

Deep Learning Function
Perimeter Protection: Line crossing, intrusion, region entrance/exiting, alarm by human/vehicle
Dynamic Area Protection:

1. Person detection while camera moves

2. Max. targets: 64

3. For 2/4/8 MP, target size 32×32~256×256, High Mode

4. Target size ≥64×64, Low Mode

General
Power: 9–36 VDC, 2.65–0.65 A, max. 24 W; PoE IEEE 802.3at, Class 4
Material: ADC12
Dimension: 155 × 177 × 171 mm (6.1" × 7.0" × 6.7")
Package Dimension: 295 × 275 × 260 mm (11.6" × 10.8" × 10.2")
Weight: 2.525 kg (5.57 lb); With Package: 3.535 kg (7.79 lb)
Storage Conditions: -40 °C to 60 °C, humidity ≤ 95% non-condensing
Startup & Operating Conditions: -40 °C to 60 °C, humidity ≤ 95% non-condensing
Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian)
Wiper: Yes

General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval
EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety: CB: IEC 62368-1: 2014
Protection: IP68: IEC 60529:1989+AMD1:1999+AMD2:2013
Transport Certification: IATA Dangerous Goods Regulations, IMDG Code, Railway Dangerous Goods List
