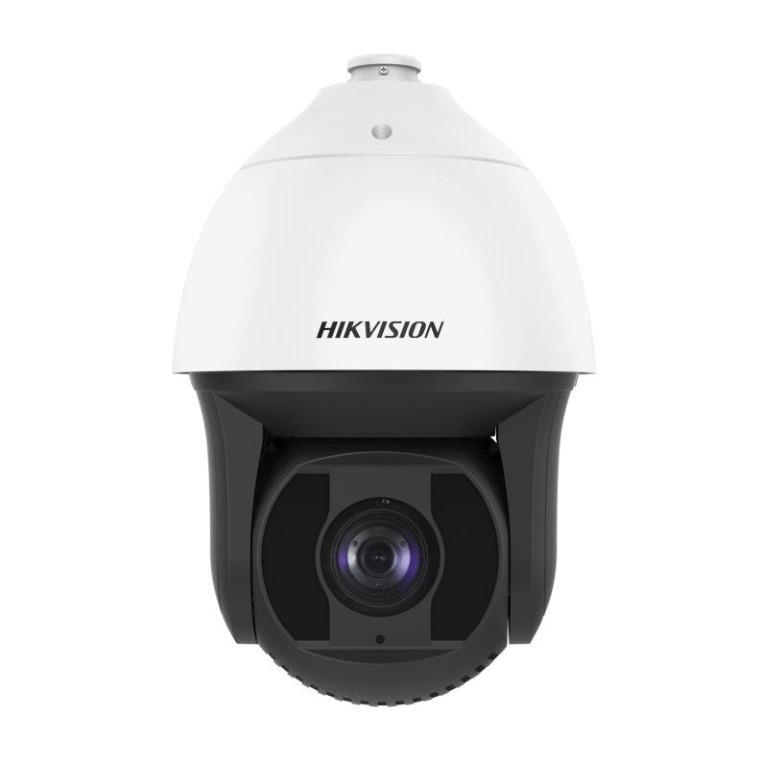

Hikvision 4MP 8-inch 42X DarkFighter IR Network PTZ Speed Dome DS-2DF8442IXS-AEL(T5)

Hikvision 4MP 8-inch 42X DarkFighter IR Network PTZ Speed Dome DS-2DF8442IXS-AEL(T5)

Hikvision DS-2DF8442IXS-AEL(T5) 4MP 42× Network IR PTZ Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 42× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

Features:

• 1/1.8" Progressive Scan CMOS
• High quality imaging with 4 MP resolution
• Max. Resolution - 2560 × 1440
• 6.0 mm to 252 mm Lens
• Horizontal FOV: 56.6° to 1.7° (wide-tele)
• Vertical FOV: 33.7° to 0.9° (wide-tele)
• Diagonal FOV: 63.4° to 1.9° (wide-tele)
• Excellent low-light performance with DarkFighter technology
• Auto, semi-auto, manual, rapid focus
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• 360° Movement Range (Pan)
• -20° to 90° (auto flip) Movement Range (Tilt)
• Expansive night view with up to 400 m IR distance
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Supports face capture to detect, capture, grade, and select faces in motion
• Supports road traffic to detect vehicles
• 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater) (Purchase PSU separately)
• Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) (Purchase PSU separately)

Technical Specifications:

Camera
Image Sensor: 1/1.8" progressive scan CMOS
Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/1 s to 1/30,000 s
Day & Night: IR cut filter
Zoom: 42x optical, 16x digital
Max. Resolution: 2560 × 1440

Lens
Focus: Auto, semi-auto, manual, rapid focus
Focal Length: 6.0 mm to 252 mm
Zoom Speed: Approx. 4.5 s (optical, wide-tele)
FOV:

• Horizontal: 56.6° to 1.7° (wide-tele)
• Vertical: 33.7° to 0.9° (wide-tele)
• Diagonal: 63.4° to 1.9° (wide-tele)

Aperture: Max. F1.2

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 400 m
Smart Supplement Light: Yes

PTZ
Movement Range (Pan): 360°
Movement Range (Tilt): -20° to 90° (auto flip)
Pan Speed: Configurable from 0.1° to 210°/s; Preset speed: 280°/s
Tilt Speed: Configurable from 0.1° to 150°/s; Preset speed: 250°/s
Proportional Pan: Yes
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Yes
Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning: Yes
PTZ Status Display: Yes
Preset Freezing: Yes
Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream:

• 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
• 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream:

• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG

H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main profile
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 8 fixed regions for each stream

Audio
Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)

Network
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API: ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users, 3 levels: Administrator, Operator, User
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Client: HikCentral, iVMS-4200, Hik-Connect
Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Defog: Optical Defog
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range (WDR): 140 dB WDR
Image Stabilization: Yes, built-in gyroscope to improve EIS performance
Regional Exposure: Yes
Regional Focus: Yes
Privacy Mask: Up to 24 masks, polygon region, mosaic mask, mask color configurable

Interface
Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE
On-board Storage: Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB
Alarm: 7 inputs, 2 outputs
Audio: 1 input (line in), max. input amplitude: 2-2.4 Vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Video Output: 1.0 V[p-p]/75Ω, PAL, NTSC, BNC connector
RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (preset, patrol scan, pattern scan)
Basic Event: Motion detection, video tampering alarm, alarm input and output, exception
Smart Event: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
Smart Tracking: Manual tracking, auto-tracking

Deep Learning Function
Face Capture: Support detecting up to 30 faces simultaneously. Supports detecting, tracking, capturing, grading, selecting faces in motion, and outputting the best face picture
Face Comparison: Yes
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggering by specified target types (human and vehicle)
Road Traffic and Vehicle Detection: Support vehicle detection (license plate, vehicle model, and vehicle color recognition)

General
General Function: Mirror, password protection, watermark, IP address filter
Power: 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Dimension: ⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14")
Weight: Approx. 8 kg (17.64 lb.)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
