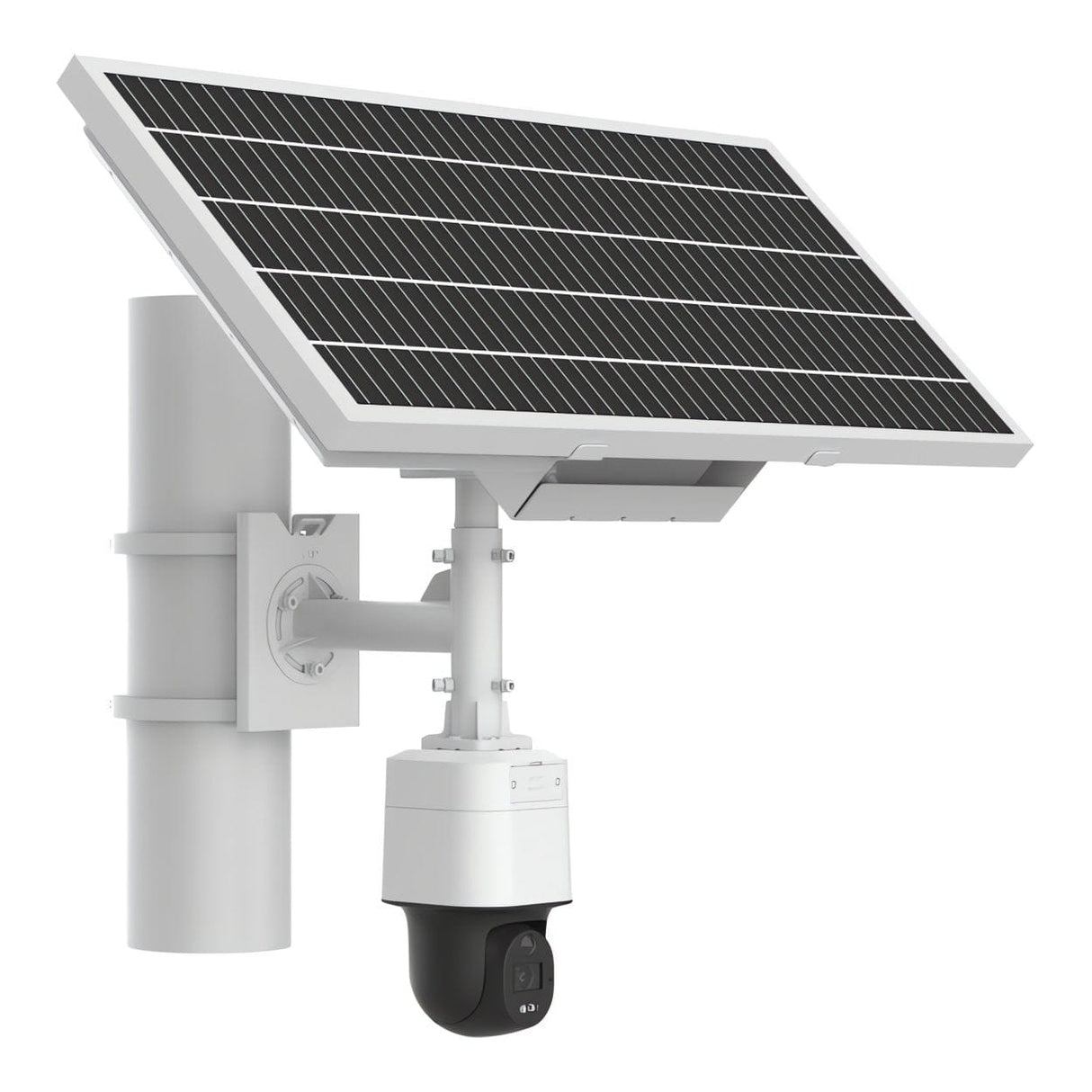

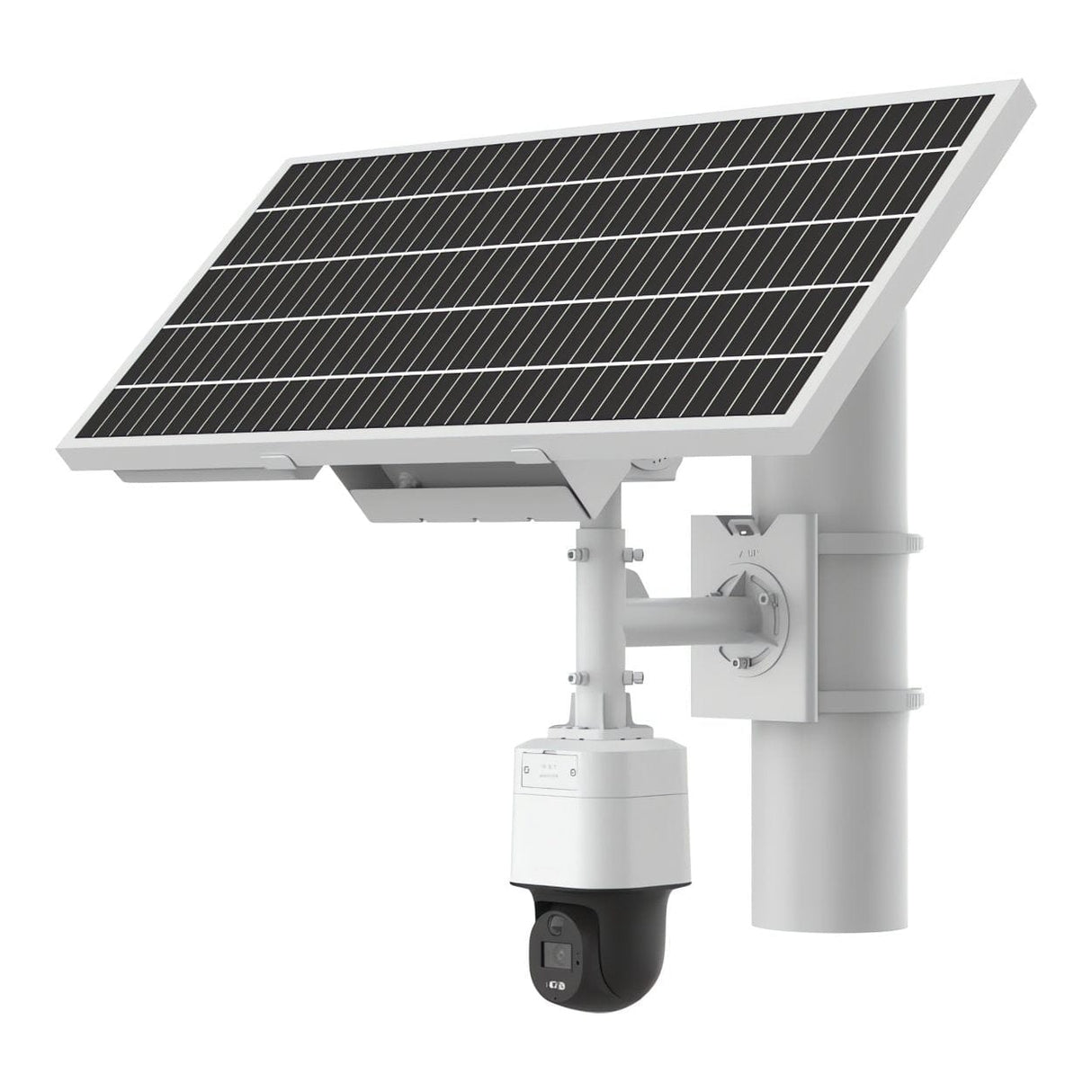

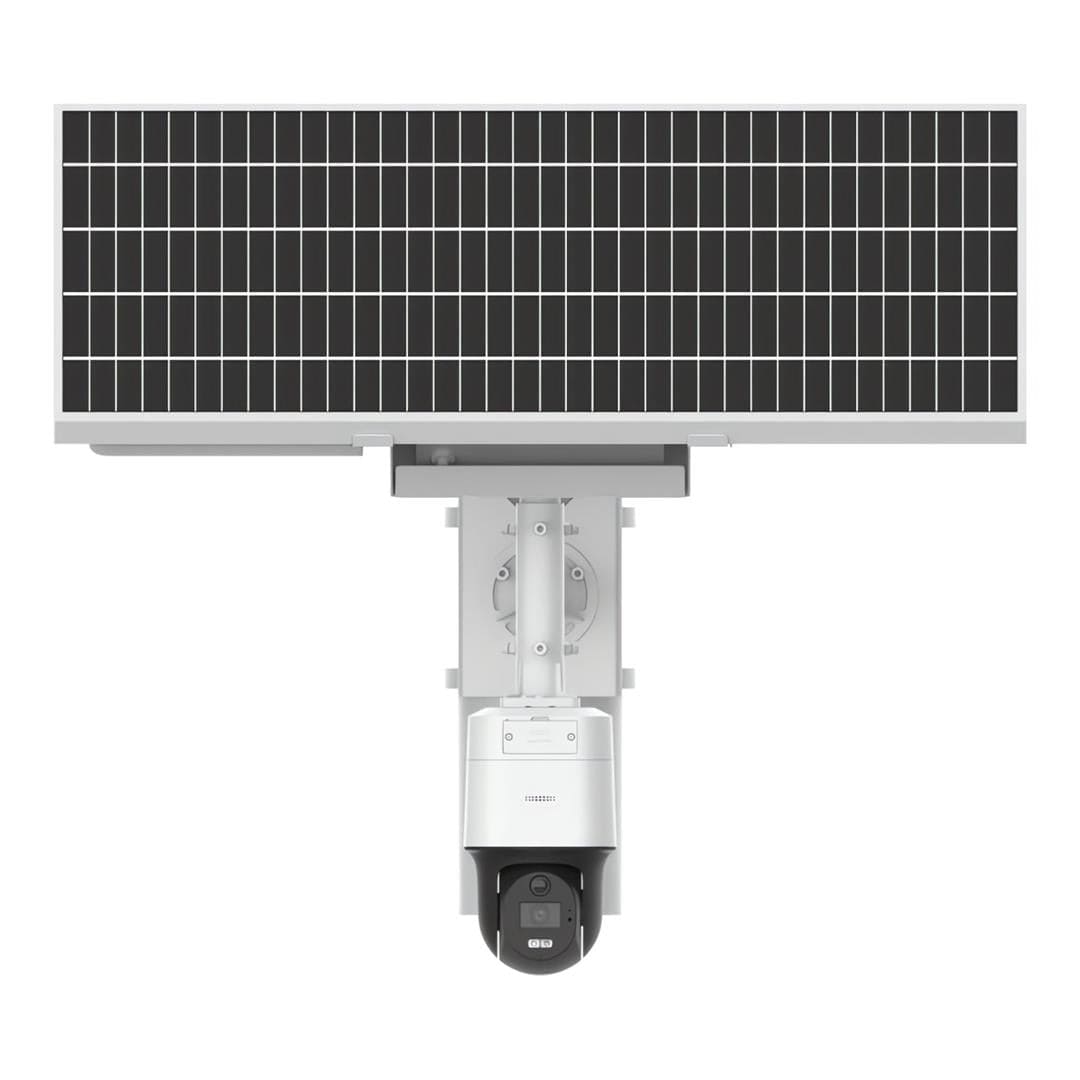

Hikvision 4MP 4mm ColorVu Solar-powered Security PT Camera Kit DS-2XS3Q47G1-LD/4G/C18S40(4mm)

Hikvision 4MP 4mm ColorVu Solar-powered Security PT Camera Kit DS-2XS3Q47G1-LD/4G/C18S40(4mm)

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

Features

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
• IP65 Protection

Technical Specification

Image Sensor: 1/3" Progressive Scan CMOS

Max. Resolution: 2688 × 1520

Angle Adjustment

• Solar panel: pan: 0° to 358°, tilt: -40° to 0°
• Camera: pan: 0° to 340°, tilt: -5° to 105°

Focal Length: 4 mm

FOV: Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°

Depth of Field: 2.7 m to ∞

DORI: D: 82 m, O: 32 m, R: 16 m, I: 8 m

Supplement Light Type: White Light

Supplement Light Range: Performance mode: up to 30 m, proactive mode: up to 10 m

Smart Supplement Light: Yes

Built-in Microphone: Yes

Built-in Speaker: Yes

Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Mobile Communication

SIM Card Type: Micro SIM

Uplink and Downlink Data Rate: Cat 4, uplink: 50 Mbps Mbps, downlink: 150 Mbps

Frequency

• LTE-TDD: B38/B40/B41
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28
• WCDMA: B1/B5/B8
• GSM: B3/B5/B8

Power

Power Supply

• 12 VDC ± 25%
• *For debugging only
• 40 W (deviation: ± 2 W) Solar panels

Power supply interface: Ø5.5 mm Coaxial power plug

Extened solar panel interface: Four-core aviation connector

Battery

Battery Type: Ternary Lithium

Capacity: 8.4 Ah × 2 packs

Max. Charging Voltage: 12.6 V

Battery Voltage: 9 V to 12.6 V

Battery Life: More than 500 cycles

Cycle Lifetime

• Performance mode: 3.6 days
• Proactive mode: 6 days
• Standby mode: 30 days
