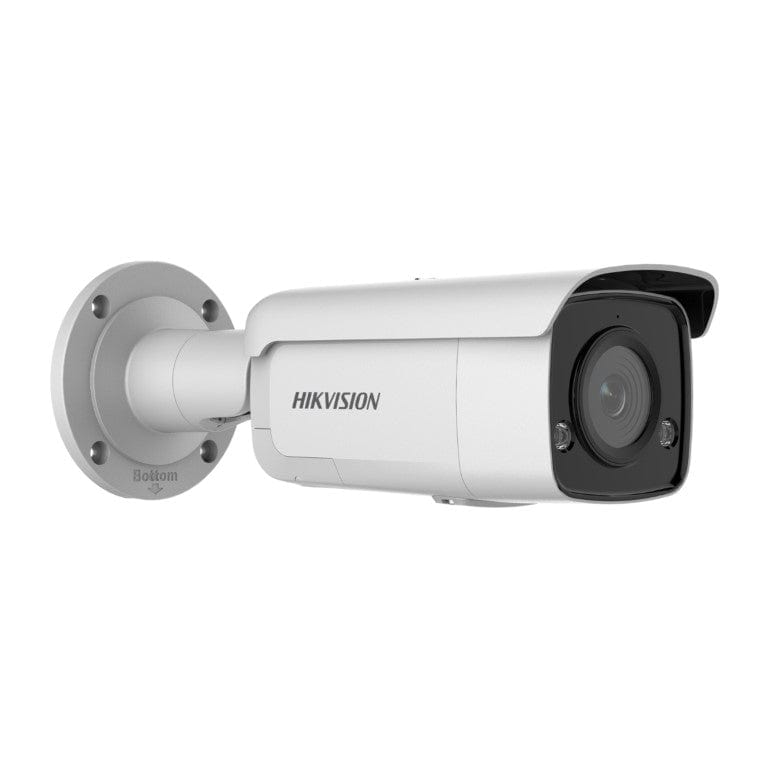

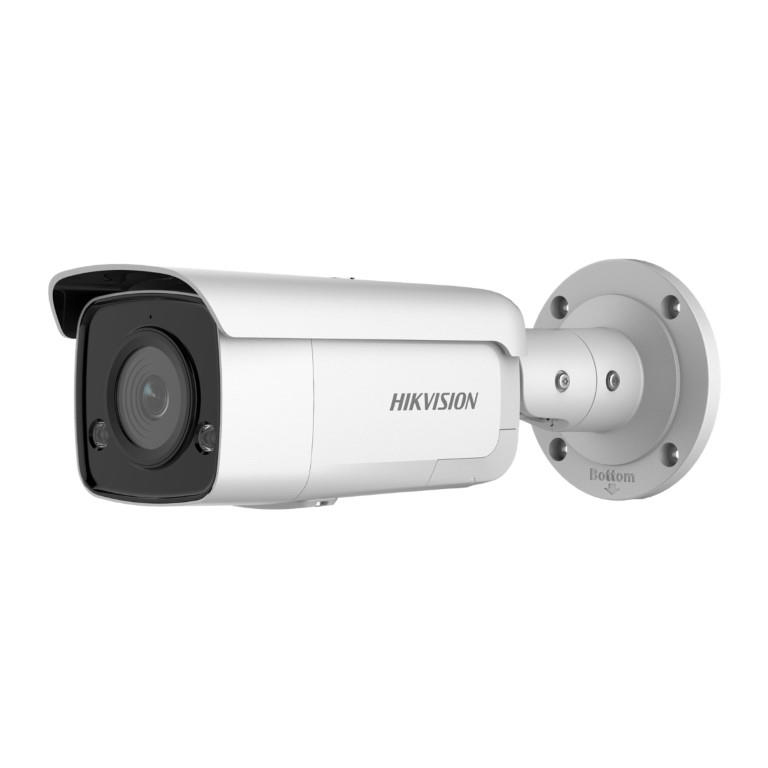

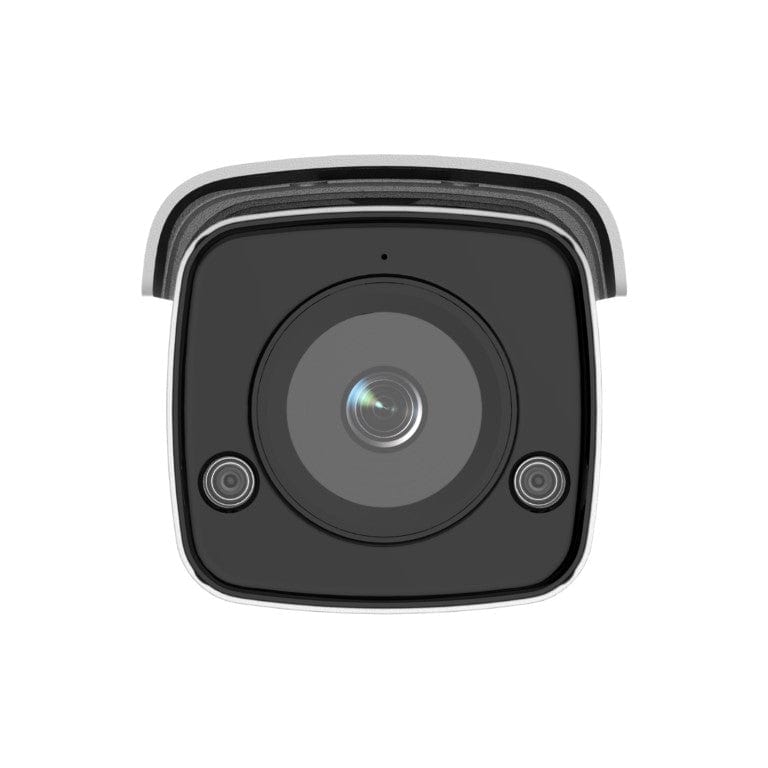

Hikvision 4MP 4mm AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera Powered-by-DarkFighter DS-2CD2T46G2-ISU/SL 4MM

Hikvision 4MP 4mm AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera Powered-by-DarkFighter DS-2CD2T46G2-ISU/SL 4MM

Features:

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP67)

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV:

• 2.8 mm: Horizontal FOV 103°, Vertical FOV 55°, Diagonal FOV 123°
• 4 mm: Horizontal FOV 83°, Vertical FOV 45°, Diagonal FOV 98°
• 6 mm: Horizontal FOV 53°, Vertical FOV 29°, Diagonal FOV 62°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.4

DORI
2.8 mm: D 60.0 m, O 23.8 m, R 12.0 m, I 6.0 m
4 mm: D 80.0 m, O 31.7 m, R 16.0 m, I 8.0 m
6 mm: D 120.0 m, O 47.6 m, R 24.0 m, I 12.0 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 60 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Third stream is supported under certain settings

Video Compression:
Main stream: H.265 / H.264 / H.265+ / H.264+
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile / Main Profile / High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR / VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio
Audio Type: Mono sound
Audio Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Bit Rate:

• 64 Kbps (G.711ulaw/G.711alaw)
• 16 Kbps (G.722.1/G.726)
• 32 to 192 Kbps (MP2L2)
• 8 to 320 Kbps (MP3)
• 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users, 3 user levels (Administrator, Operator, User)
Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for ONVIF
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client
iVMS-4200, Hik-Connect, Hik-Central

Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M / 100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
Built-in Microphone: Yes
Built-in Speaker: Power 2 W, Max. sound pressure level 97 dB @ 10 cm

Audio Interface
1 input (line in), terminal block, max. input amplitude 3.3 Vpp, input impedance 2.2 kΩ
1 output (line out), terminal block, max. output amplitude 3.3 Vpp, output impedance 10 Ω

Alarm
Visual alarm
1 input, 1 output (max. 24 VDC / 24 VAC, 1 A)

Reset Key
Yes

Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene Change Detection: Yes

Linkage
Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning

Deep Learning Function
Face Capture: Yes

General
Power:
12 VDC ±25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W

Dimension:
Ø105 mm × 287.6 mm (Ø4.1" × 11.3")

Package Dimension:
386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1")

Approx. Weight: 1135 g (2.5 lb.)
With Package Weight: Approx. 1624 g (3.6 lb.)

Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Startup and Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Language:
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32:2015); IC (ICES-003: Issue 6, 2016); KC (KN 32:2015, KN 35:2015)

Safety:
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am1:2009 + Am2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am1:2009 + Am2:2013, IEC 62368-1:2014); LOA (IEC/EN 60950-1)

Environment:
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection:
IP67 (IEC 60529-2013)
