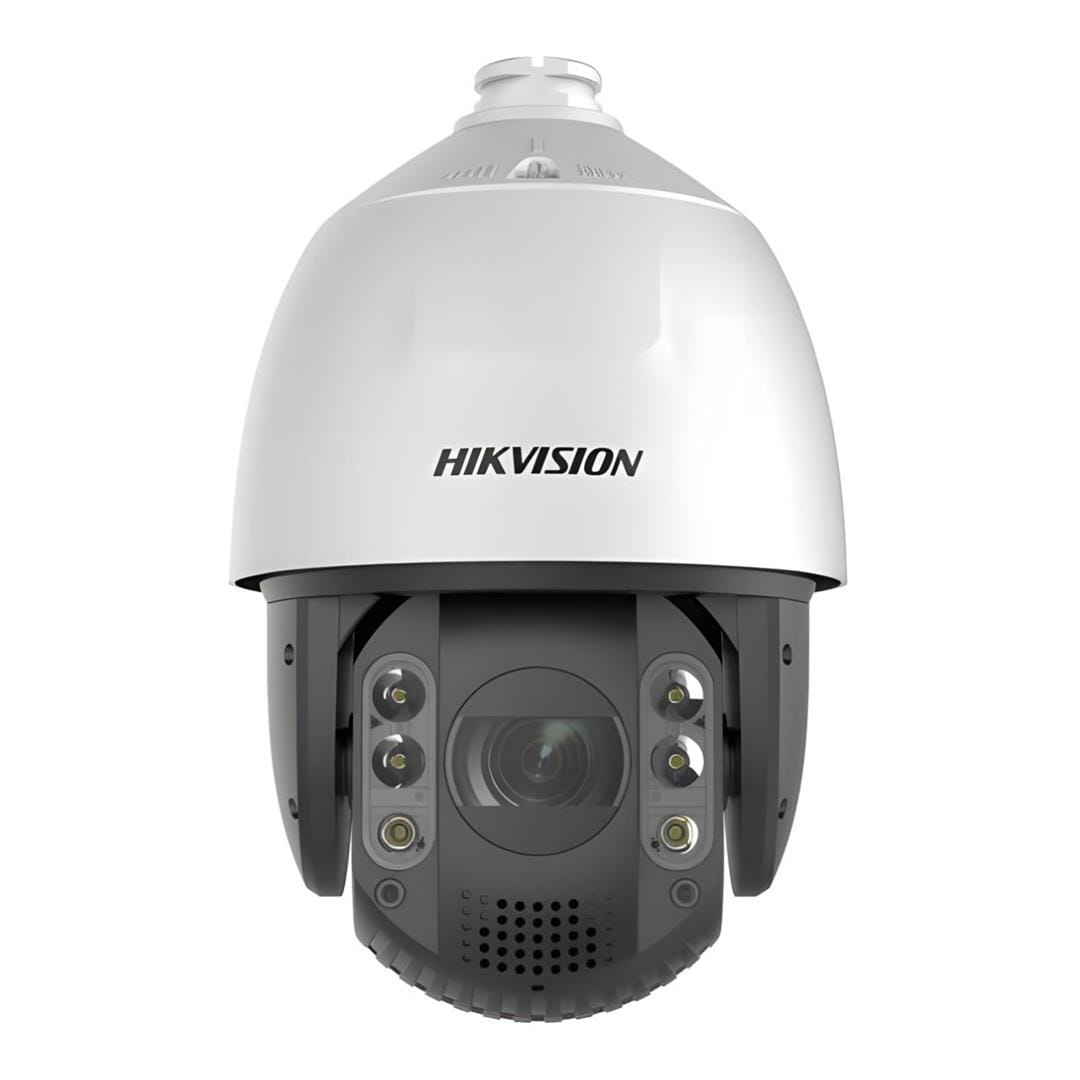

Hikvision 4MP 32X Powered by DarkFighter IR Network Speed Dome DS-2DE7A432IW-AEB

Hikvision 4MP 32X Powered by DarkFighter IR Network Speed Dome DS-2DE7A432IW-AEB

Features:

• 1/1.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 200 m IR distance
• Focuses on human and vehicle targets classification based on deep learning
• Face capture: Up to 5 faces captured at the same time

Technical Specifications:

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Maximum Resolution: 2560 × 1440
Minimum Illumination:

• Colour: 0.005 Lux @ (F1.5, AGC ON)
• B/W: 0.001 Lux @ (F1.5, AGC ON)
• 0 Lux with IR

Shutter Speed: 1/1 s to 1/30,000 s
Day and Night Mode: IR Cut Filter

Zoom
Optical Zoom: 32×
Digital Zoom: 16×
Slow Shutter: Yes

DORI Distances

• Detect (25 px/m): 2046.9 m
• Observe (63 px/m): 812.3 m
• Recognize (125 px/m): 409.4 m
• Identify (250 px/m): 204.7 m

Lens

Focal Length: 5.9 mm to 188.8 mm

Field of View

• Horizontal: 50.8° to 2.6°
• Vertical: 29.4° to 1.5°
• Diagonal: 57.4° to 3°

Focus Modes

• Auto
• Semi-Auto
• Manual

Maximum Aperture: F1.5
Zoom Speed: Approx. 4.8 s

Illuminator

Supplement Light Type: IR
IR Distance: Up to 200 m

PTZ

Pan Range: 360°
Tilt Range: -15° to 90° (Auto Flip)

Pan Speed: 0.1° to 160°/s (Preset: 240°/s)
Tilt Speed: 0.1° to 120°/s (Preset: 200°/s)

Proportional Pan: Yes
Presets: 300
Preset Freezing: Yes

Patrol Scan: 8 Patrols (Up to 32 Presets Each)
Pattern Scan: 4 Patterns

Park Actions

• Preset
• Pattern Scan
• Auto Scan
• Tilt Scan
• Random Scan
• Frame Scan
• Panorama Scan

3D Positioning: Yes
PTZ Status Display: Yes
Scheduled Tasks

• Preset
• Pattern Scan
• Patrol Scan
• Auto Scan
• Tilt Scan
• Random Scan
• Frame Scan
• Panorama Scan
• Dome Reboot
• Dome Adjust

Power-Off Memory: Yes

Video

Main Stream

• 50 Hz:
  • 2560 × 1440 @ 25 fps
  • 1920 × 1080 @ 25 fps
  • 1280 × 960 @ 25 fps
  • 1280 × 720 @ 25 fps
• 60 Hz:
  • 2560 × 1440 @ 24 fps
  • 1920 × 1080 @ 24 fps
  • 1280 × 960 @ 24 fps
  • 1280 × 720 @ 24 fps

Sub-Stream

• 50 Hz: 704 × 576, 640 × 480, 352 × 288 @ 25 fps
• 60 Hz: 704 × 480, 640 × 480, 352 × 240 @ 24 fps

Third Stream

• 50 Hz:
  • 1920 × 1080
  • 1280 × 960
  • 1280 × 720
  • 704 × 576
  • 640 × 480
  • 352 × 288 @ 25 fps
• 60 Hz:
  • 1920 × 1080
  • 1280 × 960
  • 1280 × 720
  • 704 × 480
  • 640 × 480
  • 352 × 240 @ 24 fps

Video Compression

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

Video Bit Rate: 32 Kbps to 16,384 Kbps

H.264 Profiles

• Baseline
• Main
• High

H.265 Profile: Main
SVC Support: H.264 and H.265 Encoding

Region of Interest (ROI):

• 8 Fixed Regions per Stream

Audio

Audio Compression

• G.711alaw
• G.711ulaw
• G.722.1
• G.726
• MP2L2
• AAC
• PCM

Audio Sampling Rates

• 8 kHz
• 16 kHz
• 32 kHz
• 48 kHz

Environment Noise Filtering: Yes

Network

Supported Protocols

• IPv4
• IPv6
• HTTP
• HTTPS
• 802.1x
• QoS
• FTP
• SMTP
• UPnP
• SNMP
• DNS
• DDNS
• NTP
• RTSP
• RTCP
• RTP
• TCP/IP
• UDP
• IGMP
• ICMP
• DHCP
• PPPoE
• Bonjour

Simultaneous Live View: Up to 20 Channels
User Capacity: Up to 32 Users

Storage

Memory Card Support

• microSD
• microSDHC
• microSDXC
• Up to 256 GB

General

Power Supply

• 24 VAC
• Hi-PoE
• Maximum Consumption: 42 W

Material: ADC12
Dimensions: Ø 220 mm × 363.3 mm
Product Weight: Approx. 5 kg

Operating Temperature: -30 °C to 65 °C
Operating Humidity: ≤ 90% (Non-Condensing)

Protection

Ingress Protection Rating: IP66
Impact Rating: IK10
Lightning Protection: TVS 6000 V Surge Protection
