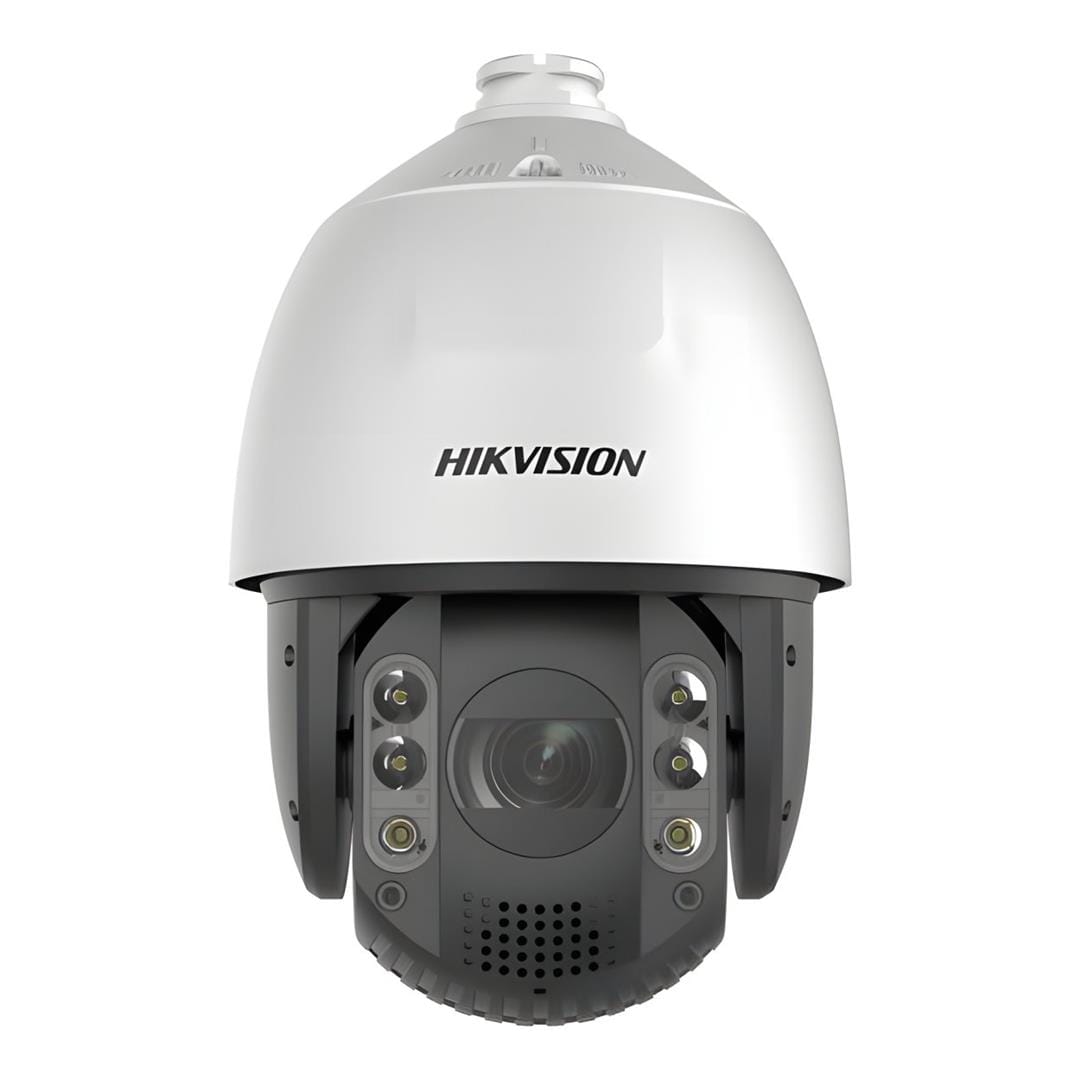

Hikvision 4MP 32X DarkFighter IR Acusense Network Speed Dome Camera DS-2DE7A432IWG-EB

Hikvision 4MP 32X DarkFighter IR Acusense Network Speed Dome Camera DS-2DE7A432IWG-EB

Features:

• 1/1.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
• 32 × optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 200 m IR distance
• Focuses on human and vehicle targets classification based on deep learning
• Face capture: Up to 5 faces captured at the same time

Technical Specifications:

Camera

Image Sensor
1/1.8-Inch Progressive Scan CMOS

Maximum Resolution
2560 × 1440

Minimum Illumination
Color: 0.005 Lux @(F1.5, AGC On)
B/W: 0.001 Lux @(F1.5, AGC On)
0 Lux With IR

Shutter Speed
1/1 s To 1/30,000 s

Day/Night Mode
IR Cut Filter

Zoom

• 32× Optical Zoom
• 16× Digital Zoom

Slow Shutter
Yes

Lens

Focal Length
5.9 mm To 188.8 mm

Field Of View

• Horizontal: 50.8° To 2.6°
• Vertical: 29.4° To 1.5°
• Diagonal: 57.4° To 3°

Focus Mode
Auto, Semi-Auto, Manual

Aperture
Maximum F1.5

Zoom Speed
Approx. 4.8 s

Illuminator

Supplement Light Type
IR

IR Distance
Up To 200 m

PTZ

Movement Range

• Pan: 360°
• Tilt: -15° To 90° (Auto Flip)

Pan Speed
0.1° To 160°/s (Preset Speed: 240°/s)

Tilt Speed
0.1° To 120°/s (Preset Speed: 200°/s)

Proportional Pan
Yes

Presets
300

Preset Freezing
Yes

Patrol Scan
8 Patrols, Up To 32 Presets Per Patrol

Pattern Scan
4 Pattern Scans

Park Actions

• Preset
• Pattern Scan
• Auto Scan
• Tilt Scan
• Random Scan
• Frame Scan
• Panorama Scan

3D Positioning
Yes

PTZ Status Display
Yes

Scheduled Tasks

• Preset
• Pattern Scan
• Patrol Scan
• Auto Scan
• Tilt Scan
• Random Scan
• Frame Scan
• Panorama Scan
• Dome Reboot
• Dome Adjust
• Auxiliary Output

Power-Off Memory
Yes

Video

Main Stream

50 Hz

• 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz

• 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz

• 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz

• 24 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz

• 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz

• 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

• Main Stream: H.265+, H.265, H.264+, H.264
• Sub-Stream: H.265, H.264, MJPEG
• Third Stream: H.265, H.264, MJPEG

Video Bit Rate
32 Kbps To 16,384 Kbps

H.264 Type
Baseline Profile, Main Profile, High Profile

H.265 Type
Main Profile

Scalable Video Coding (SVC)
H.264 And H.265 Encoding

Region Of Interest (ROI)
8 Fixed Regions Per Stream

Audio

Audio Compression

• G.711
• G.722.1
• G.726
• MP2L2
• PCM
• MP3
• AAC-LC

Audio Bit Rate

• 64 Kbps (G.711)
• 16 Kbps (G.722.1)
• 16 Kbps (G.726)
• 32 To 192 Kbps (MP2L2)
• 16 To 64 Kbps (AAC-LC)
• 8 To 320 Kbps (MP3)

Audio Sampling Rate

• MP2L2: 16 kHz, 32 kHz, 48 kHz
• AAC-LC: 16 kHz, 32 kHz, 48 kHz
• PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering
Yes

Network

Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View
Up To 20 Channels

API Support
ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

User Access
Up To 32 Users With 3 Levels:

• Administrator
• Operator
• User

Security Features

• Password Protection
• HTTPS Encryption
• 802.1X Authentication
• Watermark
• IP Address Filtering
• RTP/RTSP Over HTTPS
• TLS 1.2 And TLS 1.3
• MAC Address Authentication

Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client Software

• iVMS-4200
• HikCentral Pro
• Hik-Connect

Web Browser Support
IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+


Image Settings

• Saturation
• Brightness
• Contrast
• Sharpness
• Gain
• White Balance

Day/Night Switching
Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)
120 dB

Signal-To-Noise Ratio (SNR)

52 dB

Defog
Digital Defog

Image Stabilization
EIS

Image Enhancement

• BLC
• HLC
• 3D DNR

Privacy Mask
24 Programmable Polygon Masks

Regional Focus
Yes

Regional Exposure
Yes

Interface

Ethernet Interface
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port

On-Board Storage
MicroSD / MicroSDHC / MicroSDXC Card Slot (Up To 512 GB)

Built-In Speaker
1 Built-In Speaker (Effective Distance Up To 30 m)

Audio Interface

• 1 × Line-In
• 1 × Line-Out

Alarm Interface

• 2 × Alarm Inputs
• 1 × Alarm Output

Reset
Yes

Event And Analytics

Basic Events

• Motion Detection
• Video Tampering Alarm
• Exception
• Alarm Input And Output

Smart Events

• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exit Detection
• Unattended Baggage Detection
• Object Removal Detection
• Audio Exception Detection

Linkage Actions

• Upload To FTP/NAS/Memory Card
• Notify Surveillance Center
• Send Email
• Trigger Alarm Output
• Trigger Recording
• Audible Warning
• White Light Flashing
• PTZ Actions

Smart Tracking
Manual Tracking, Auto Tracking

Deep Learning Functions

Face Capture

• Detects Up To 5 Faces Simultaneously
• Supports Detection, Capture, Grading, And Selection Of Best Face Image

General

Power Supply
36 V DC ± 25%, Hi-PoE

Maximum Power Consumption
42 W

Material
ADC12

Dimensions
Ø220 × 363.3 mm

Weight
Approx. 5 kg

Operating Conditions
-30 °C To 65 °C (-22 °F To 149 °F), ≤ 90% RH Non-Condensing

Demist Function
Yes

Compliance And Protection

EMC Certifications
CE-EMC, RCM, IC, KC

Safety Certifications
UL 62368-1, IEC 60950-1, IEC 62368-1, EN 62368-1, BIS, LOA (SANS IEC60950-1)

Environmental Compliance
CE-RoHS, WEEE, REACH

Protection Rating

• IP67
• IK10
• TVS 6000 V Lightning Protection
• Surge Protection
• Voltage Transient Protection
