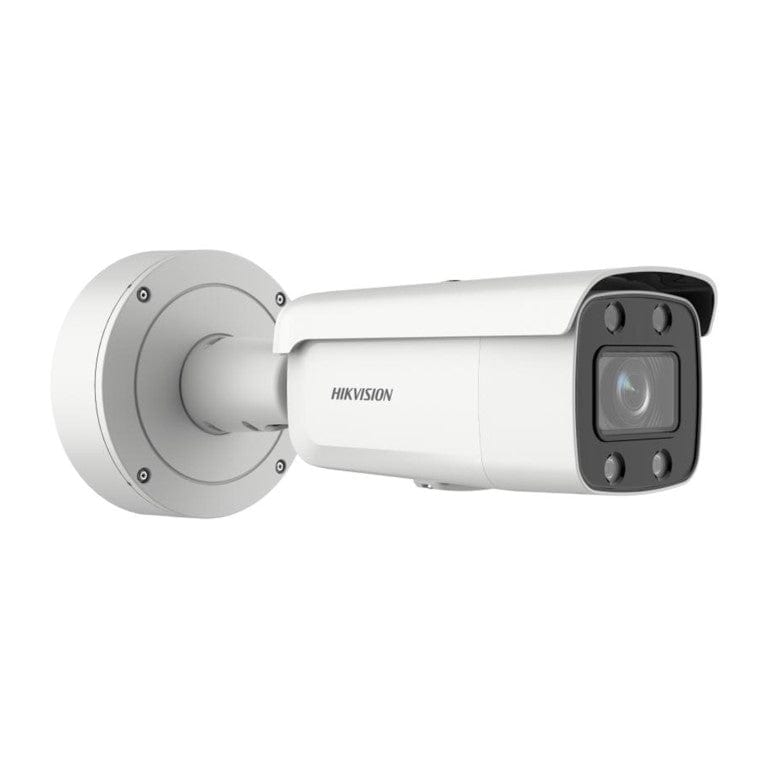

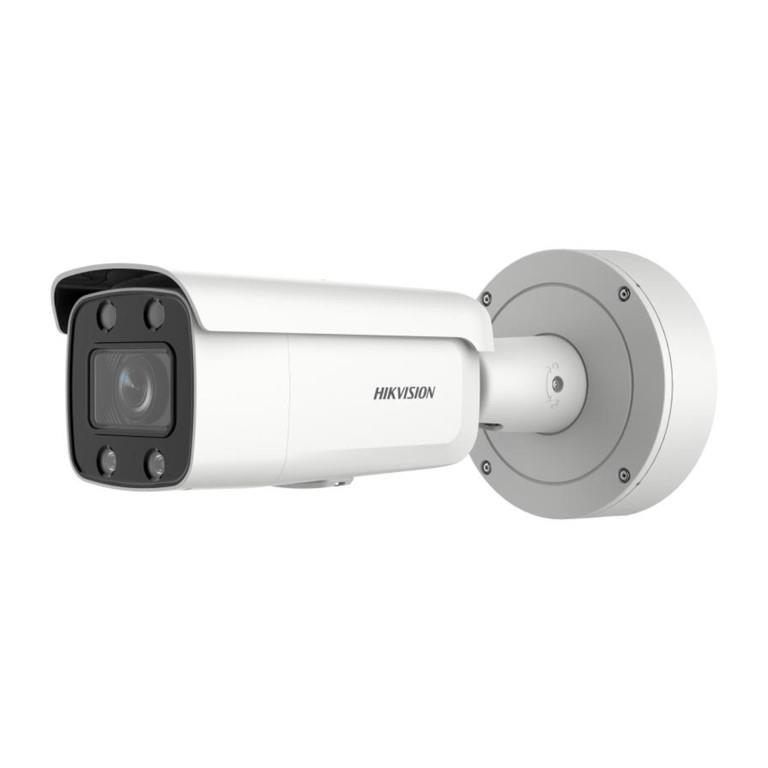

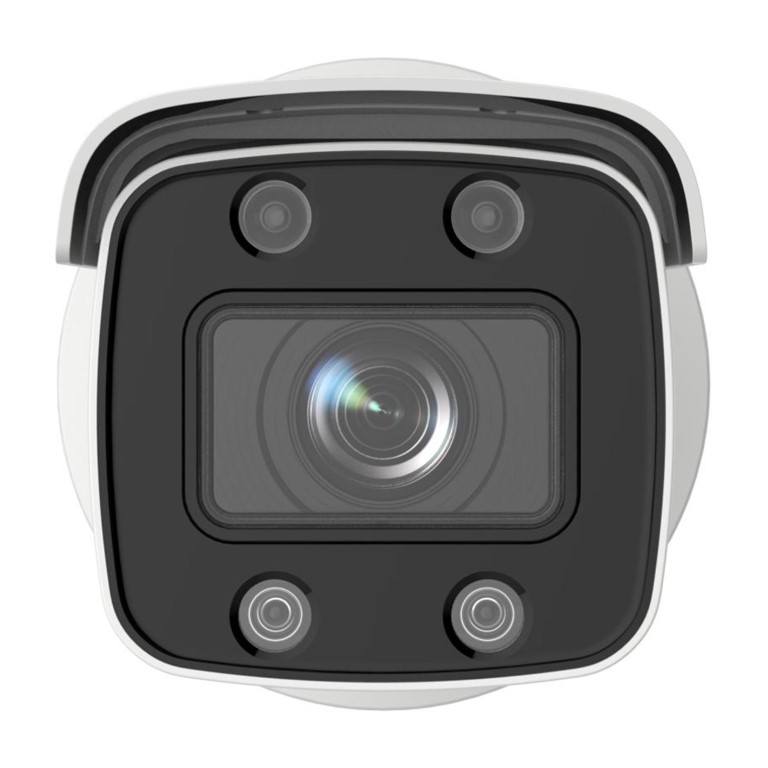

Hikvision 4MP 3.6-9mm ColorVu Motorized Varifocal Bullet Network Camera DS-2CD2647G2-LZS(3.6-9mm)

Hikvision 4MP 3.6-9mm ColorVu Motorized Varifocal Bullet Network Camera DS-2CD2647G2-LZS(3.6-9mm)

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

Features:

• High quality imaging with 4MP resolution
• Max. Resolution - 2688 × 1520
• 3.6 to 9 mm Varifocal lens
• Motorized varifocal lens for easy installation and monitoring
• D: 69 m to 124 m
• O: 27.4 m to 49.3 m
• R: 13.8 m to 24.8 m
• I: 6.9 m to 12.4 m
• Smart Supplement Light
• Up to 60m White Light Range
• 24/7 colorful imaging
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• 1/1.8" Progressive Scan CMOS Image Sensor
• Min. Illumination Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• 12 VDC ± 25% 1.21 A, max. 14.5 W, two-core terminal block (Purchase PSU separately)
• PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W (Purchase PSU separately)

Technical Specifications:

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Varifocal lens, motorized lens, 3.6 to 9 mm
Focal Length & FOV:
3.6 to 9 mm: Horizontal FOV 92.3° to 48°, Vertical FOV 48.4° to 27°, Diagonal FOV 112.2° to 55°
Lens Mount: Ø20
Iris Type: Fixed
Aperture: F1.0

DORI
D: 69 m to 124 m
O: 27.4 m to 49.3 m
R: 13.8 m to 24.8 m
I: 6.9 m to 12.4 m

Illuminator
Supplement Light Type: White Light
Supplement Light Range: Up to 60 m
Smart Supplement Light: Yes

Video
Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Third stream is supported under certain settings.

Video Compression:
Main stream: H.265 / H.264 / H.265+ / H.264+
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264
Third stream is supported under certain settings.

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile / Main Profile / High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR / VBR
Scalable Video Coding (SVC): H.265 and H.264 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio
Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate:

• 64 Kbps (G.711ulaw / G.711alaw)
• 16 Kbps (G.722.1 / G.726)
• 32 to 192 Kbps (MP2L2)
• 8 to 320 Kbps (MP3)
• 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users, 3 user levels: Administrator, Operator, User
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1 / 1.2, WSSE and digest authentication for ONVIF
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser:
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M / 100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
Audio:

• 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
• 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm: 1 input, 1 output (max. 24 VDC / 24 VAC, 1 A)
Reset Key: Yes

Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types: human and vehicle)
Scene Change Detection: Yes

Linkage: Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function
Face Capture: Yes

General
Power:
12 VDC ±25%, 1.21 A, max. 14.5 W, two-core terminal block
PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W

Dimension: 327.9 mm × 97.9 mm × 90.9 mm (12.9" × 3.9" × 3.6")
Package Dimension: 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Approx. Weight: 1520 g (3.4 lb.)
With Package Weight: 2521 g (5.6 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); LOA (IEC/EN 60950-1)

Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
