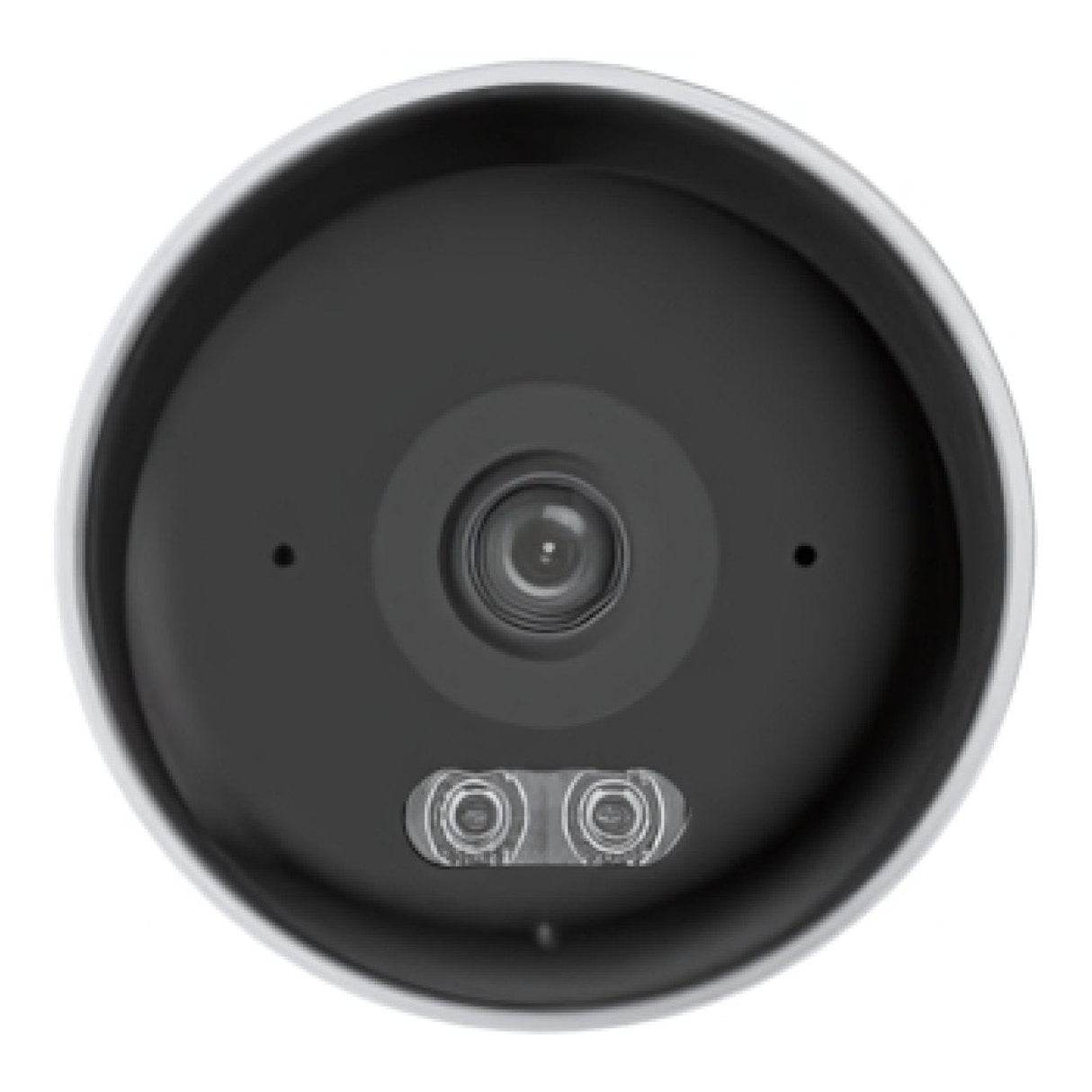

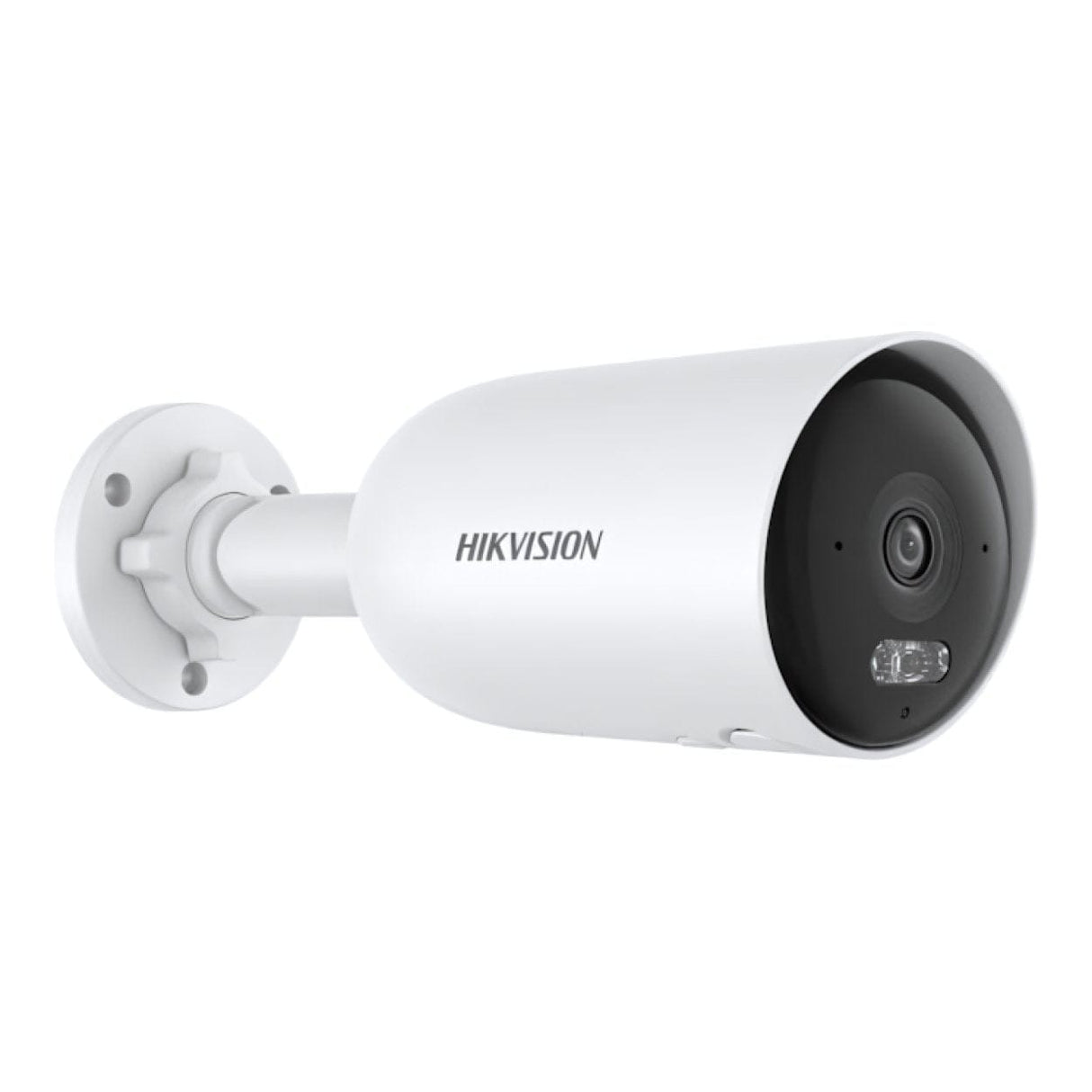

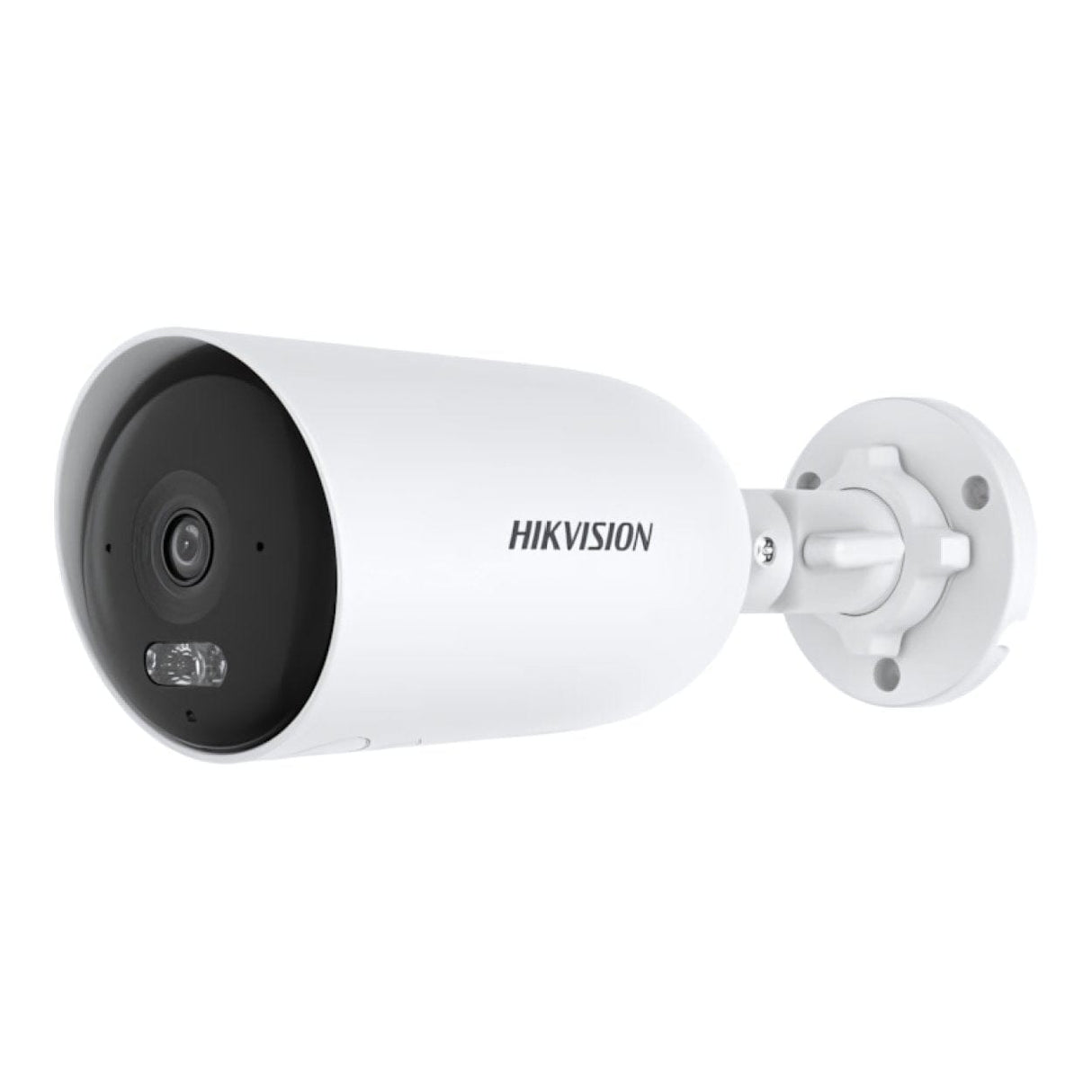

Hikvision 4MP 24/7 Solar 4G Camera DS-2CFS04/4G(4mm)

Hikvision 4MP 24/7 Solar 4G Camera DS-2CFS04/4G(4mm)

Features:

• Support AOV Mode：24/7 video recording
• 8 W solar panel and 9000 mAh battery
• Support 4G LTE data transmission
• Smart Hybrid Light: 30 m white light and IR
• Motion Detection 2.0: Support person and vehicle detection
• Built-in microphone and speaker, support two-way audio
• Water and dust resistant (IP66)

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & Field of View:
2.8 mm: Horizontal 98.5°, Vertical 53.1°, Diagonal 115.9°
4 mm: Horizontal 78.3°, Vertical 42.8°, Diagonal 91.2°
Aperture: F1.6
Lens Mount: M12
Iris Type: Fixed
Depth of Field:
2.8 mm: 1.4 m to ∞
4 mm: 1.4 m to ∞

DORI
2.8 mm: Detect 63.4 m, Observe 25.2 m, Recognize 12.7 m, Identify 6.3 m
4 mm: Detect 78.0 m, Observe 31 m, Recognize 15.6 m, Identify 7.8 m

Illuminator
Supplement Light Type: IR and White Light
Supplement Light Range: Up to 30 m
IR Wavelength: 850 nm
Smart Supplement Light: Yes

Video
Main Stream:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Video Compression: H.265
Video Bit Rate: 32 Kbps to 8 Mbps
H.265 Profile: Main Profile
Bit Rate Control: CBR, VBR

Audio
Audio Compression: G.711ulaw
Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw)
Audio Sampling Rate: 8 kHz / 16 kHz
Environment Noise Filtering: Yes

Network
Simultaneous Live View: Up to 6 channels
API: ISAPI, SDK
User/Host: Up to 32 users (Administrator, Operator, User)

Client & Mobile Communication
Client: Hik-Connect
Mobile Communication Standard: LTE-TDD
Supported Frequencies:
EU LTE-FDD: B1 / 3 / 5 / 7 / 8 / 20 / 28
LA LTE-FDD: B2 / 3 / 4 / 5 / 7 / 8 / 28 / 66
Data Rate: LTE Cat 1 – Uplink 5.1 Mbps, Downlink 10.3 Mbps
SIM Card Type: Nano SIM

Image Settings: Brightness, contrast, white balance, saturation, sharpness
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: Digital WDR

Interface
On-Board Storage: microSD / microSDHC / microSDXC up to 512 GB
Built-in Microphone: Yes, 1 microphone
Built-in Speaker: Yes, 1 speaker
Reset Key: Yes

Event
Basic Event: Motion detection (human and vehicle targets supported)
Linkage: FTP/memory card upload, notify surveillance center, trigger recording, capture, audible warning

General
Power Supply: 5 V, 2 A
Material: Plastic
Dimensions: Ø81.6 mm × 221.3 mm
Weight: Approx. 480 g
Package Dimensions: 320 mm × 228 mm × 148 mm
Weight with Package: Approx. 1540 g
Startup & Operating Conditions: 0 °C to 50 °C, ≤95% RH (non-condensing)
Storage Conditions: −20 °C to 25 °C, ≤70% RH (non-condensing)
General Functions: Mirror, flash log
Flashing Light: Yes

Battery
Battery Type: Lithium
Capacity: 9000 mAh (3.7 V)
Battery Voltage: 6 V to 8.4 V
Max. Charging Voltage: 8.4 V
Operating Temperature:
Charging: 0 °C to 45 °C
Discharging: −20 °C to 55 °C
Cycle Lifetime: ≥80% capacity after 800 cycles

Approvals & Compliance
RF: CE-RED compliant
EMC: CE-EMC compliant
Safety: IEC 62368-1, CE-LVD compliant
Environment: RoHS, WEEE, REACH compliant

Protection
Ingress Protection: IP66

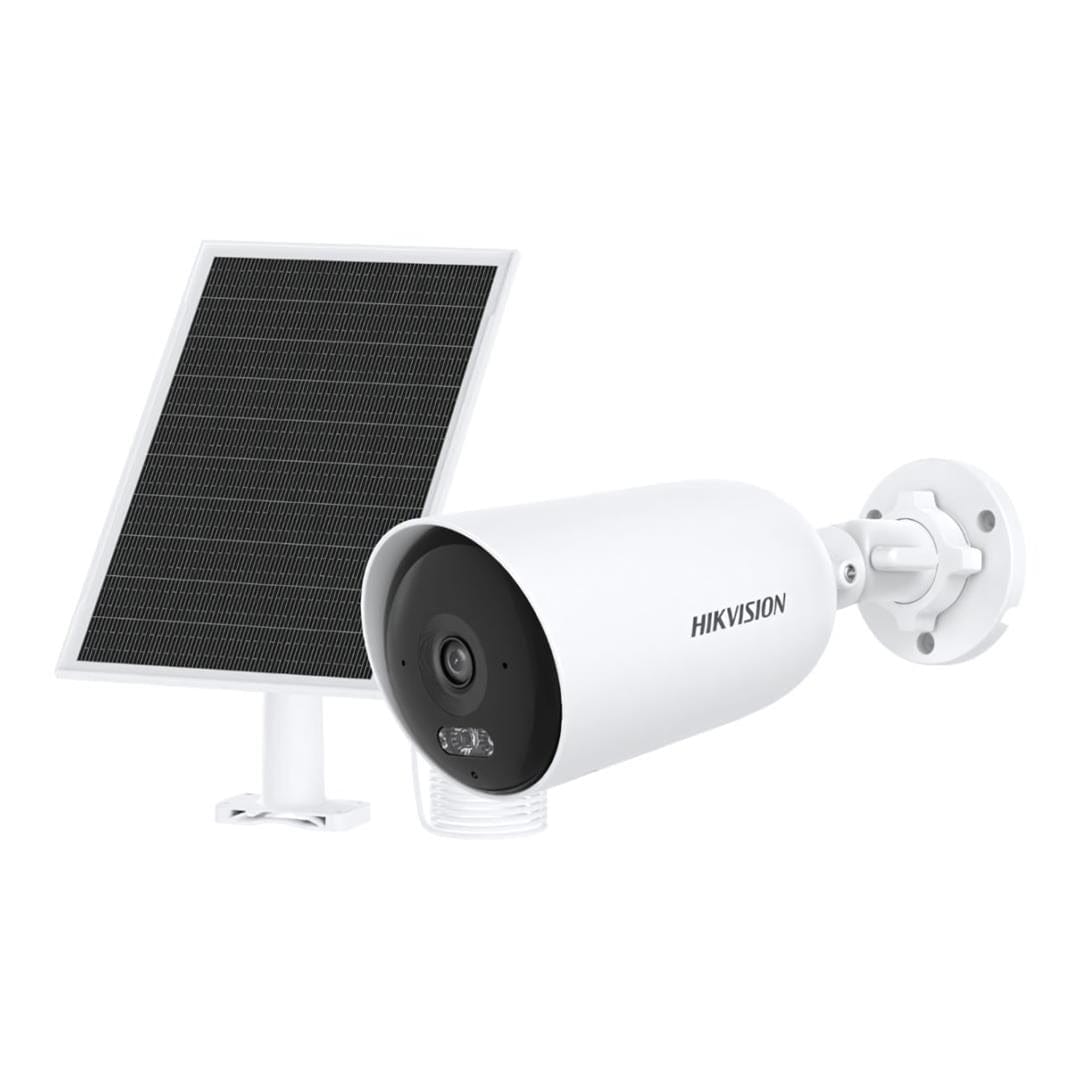

Solar Power
Solar Panel Type: Monocrystalline silicon
Power Consumption: 8 W
Solar Panel Dimensions & Weight: 263.8 × 171.7 × 18.5 mm / 450 g
Working Temperature: −40 °C to 85 °C
Ingress Protection: IP65
