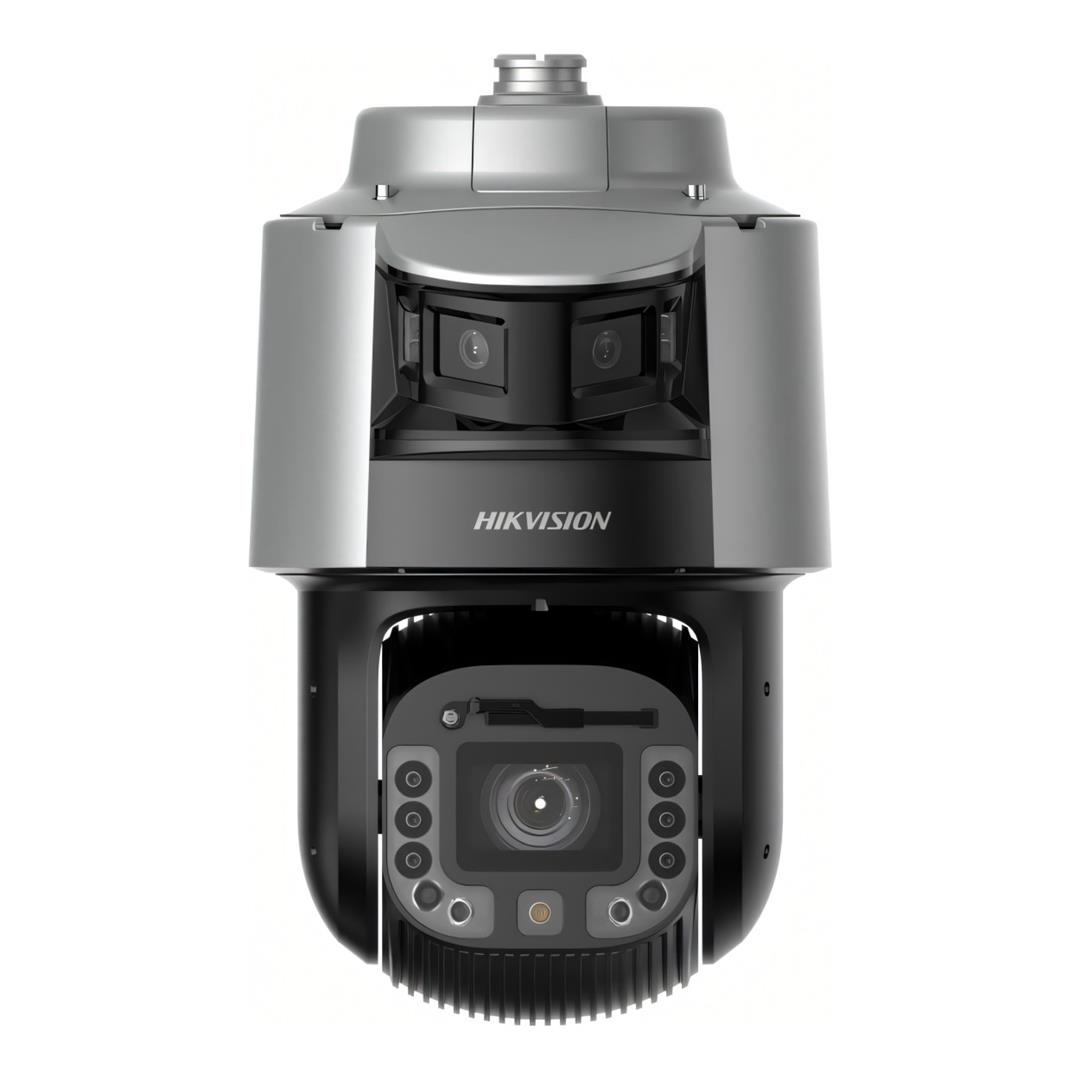

Hikvision 4MP 2.8mm TandemVu 8C Series Panoramic 25X DarkFighter Network Speed Dome DS-2SF8C425MXG-ELW/26(F0)
The Hikvision DS-2SF8C425MXG-ELW/26(F0) is a TandemVu Ultra Series PTZ network camera designed to provide wide-area situational awareness and detailed long-range surveillance simultaneously. Its panoramic channel delivers high-resolution 24/7 colour imaging across an approximately 190° field of view, while the dedicated 4MP PTZ channel provides 25× optical zoom, DarkFighter low-light performance and up to 300m IR illumination. Deep-learning perimeter protection, intelligent tracking and rugged IP67 and IK10 construction make it suitable for demanding large-area security applications.
Key Features
- TandemVu design combines panoramic and PTZ imaging in a single surveillance unit.
- 6MP panoramic channel with approximately 190° horizontal field of view.
- 4MP PTZ channel with 25× optical and 16× digital zoom.
- 24/7 colour panoramic imaging with DarkFighter low-light PTZ performance.
- Up to 30m white light for the panoramic channel and 300m IR for the PTZ channel.
- Deep-learning perimeter protection, multi-target detection and intelligent tracking.
- IP67 weather resistance and IK10 vandal-resistant construction.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Product Series | Ultra Series TandemVu |
| Model | DS-2SF8C425MXG-ELW/26(F0) |
| Product Type | TandemVu Panoramic & PTZ Network Camera |
| Panoramic Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Panoramic Maximum Resolution | 3632 × 1632 |
| Panoramic Lens | 2.8mm Fixed Lens |
| Panoramic Aperture | F1.0 |
| Panoramic Horizontal Field of View | 190° ±5° |
| Panoramic Vertical Field of View | 80° ±5° |
| Panoramic Minimum Illumination | Colour: 0.005 Lux @ F1.4, AGC On / B&W: 0.001 Lux @ F1.4, AGC On / 0 Lux with Light |
| Panoramic Supplementary Light | White Light, Up to 30m |
| Panoramic Tilt Adjustment | 12° to 24° |
| PTZ Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| PTZ Maximum Resolution | 2560 × 1440 |
| PTZ Lens | 6–150mm |
| Optical Zoom | 25× |
| Digital Zoom | 16× |
| PTZ Aperture | F1.6 |
| PTZ Horizontal Field of View | 58.5° to 3.1° |
| PTZ Vertical Field of View | 34° to 1.7° |
| PTZ Minimum Illumination | Colour: 0.0005 Lux @ F1.3, AGC On / B&W: 0.0001 Lux @ F1.3, AGC On / 0 Lux with IR |
| PTZ Supplementary Light | IR, Up to 300m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120dB – Panoramic and PTZ Channels |
| Pan Range | 360° Endless |
| PTZ Tilt Range | -20° to 90° |
| PTZ Pan Speed | 0.1° to 160°/s, Preset Speed up to 240°/s |
| Presets | 300 |
| Patrols | 8 Patrols, Up to 32 Presets per Patrol |
| Pattern Scans | 4 |
| 3D Positioning | Supported |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Bit Rate | 32Kbps to 16Mbps |
| Image Enhancement | HLC / 3D DNR / Digital Defog / EIS |
| Deep Learning Functions | Perimeter Protection / Multi-Target-Type Detection / Human Body & Face Capture |
| Smart Tracking | Supported on PTZ Channel |
| Smart Linkage | Manual Tracking / Tracking Takeover / Linked Tracking Capture |
| Ethernet | 1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port |
| On-Board Storage | microSD / microSDHC / microSDXC, Up to 256GB |
| Network Storage | NAS (NFS / SMB/CIFS) / ANR |
| Alarm Interface | 7 Inputs / 2 Outputs |
| Audio Interface | 1 × Line Input / 1 × Line Output |
| RS-485 | 1 × Half-Duplex RS-485 |
| Network API | ISUP / ISAPI / SDK / ONVIF |
| Power Input | 36V DC ±25% / Hi-PoE |
| Maximum Power Consumption | 60W |
| Wiper | Yes |
| Demist | Yes |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Surge Protection | 6000V TVS Lightning / Surge / Voltage Transient Protection |
| Body Material | ADC12 |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 95% RH or Less, Non-Condensing |
| Dimensions | Ø290 × 453.2mm |
| Weight | Approx. 10.5kg |
| Panoramic DORI (Detect / Observe / Recognise / Identify) | 77.0m / 30.5m / 15.4m / 7.7m |
| PTZ DORI at Tele (Detect / Observe / Recognise / Identify) | 2965.5m / 1176.8m / 593.1m / 296.6m |
Monitor expansive areas without sacrificing long-range detail using the Hikvision DS-2SF8C425MXG-ELW/26(F0), combining panoramic awareness, powerful 25× PTZ zoom and intelligent tracking in one rugged surveillance platform.
