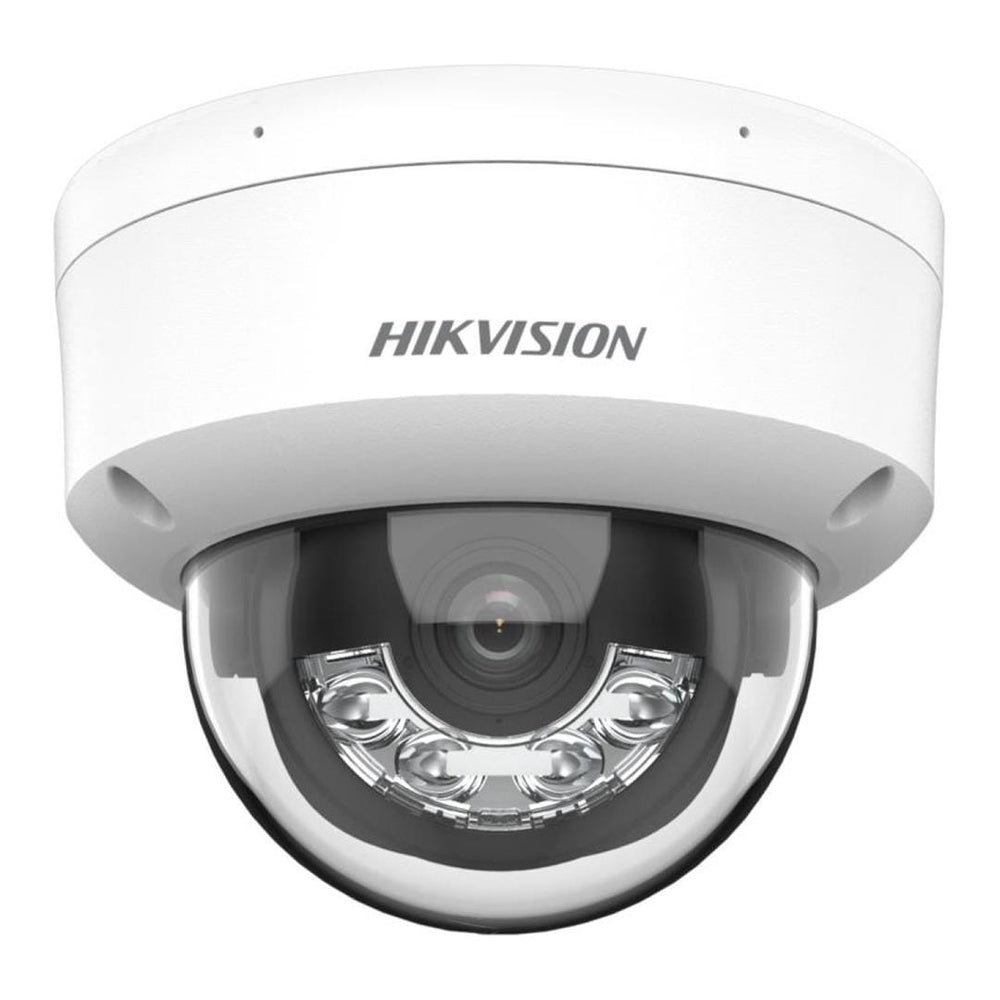

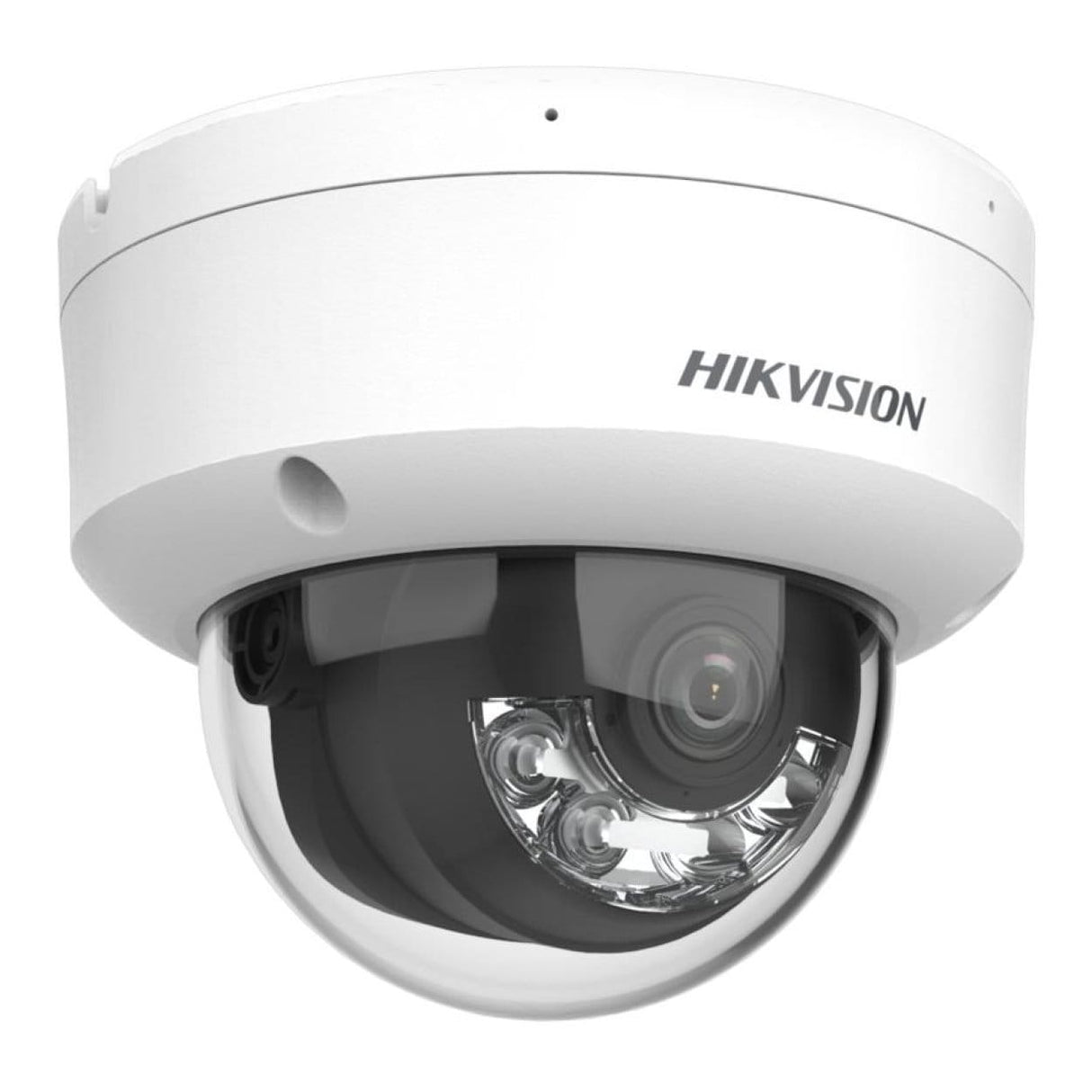

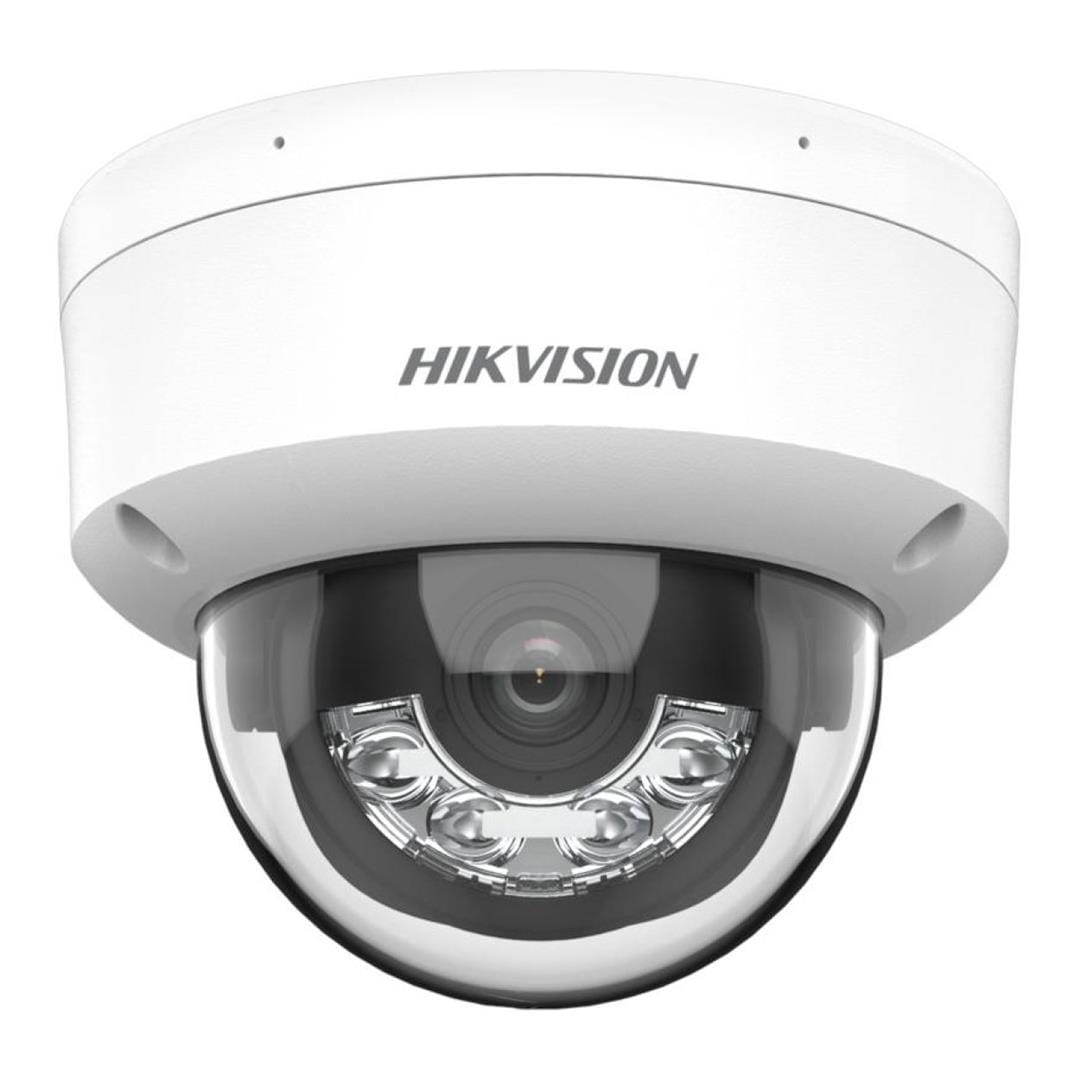

Hikvision 4MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2141G0-LIU(2.8mm)
R 1,39900
Unit price
/
Unavailable
Hikvision 4MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2141G0-LIU(2.8mm) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Hikvision 4MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2141G0-LIU(2.8mm)
Features:
- High quality imaging with 4 MP resolution
- Smart Hybrid Light advanced technology with long range
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal resistant (IK08)
- Efficient H.265+ compression technology
Technical Specifications:
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 x 1440 |
| Min. Illumination | Color: 0.005 Lux @ F1.6, AGC ON B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355° Tilt: 0° to 75° Rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 98°, Vertical FOV 54°, Diagonal FOV 114° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps at 2560 x 1440; 25 fps at 1920 x 1080, 1280 x 720 60 Hz: 20 fps at 2560 x 1440; 24 fps at 1920 x 1080, 1280 x 720 |
| Sub-Stream | 50 Hz: 25 fps at 1280 x 720, 640 x 480, 640 x 360 60 Hz: 24 fps at 1280 x 720, 640 x 480, 640 x 360 |
| Video Compression | Main stream: H.265+, H.265, H.264+, H.264 Sub-stream: H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Network | |
| Security | Password protection, watermark, HTTP authentication, WSSE, ONVIF authentication, security audit log, host authentication |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI, SDK, Open Network Video Interface Profile S and Profile T |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| General | |
| Power | 12 VDC ±25%, 0.5 A, max. 6 W PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | Metal & Plastic |
| Dimension | Ø121.4 mm x 97.7 mm |
| Package Dimension | 150 mm x 150 mm x 141 mm |
| Weight | Approx. 550 g |
| With Package Weight | Approx. 800 g |
| Operating Conditions | -30 °C to 60 °C. Humidity 95% or less, non-condensing |
| Protection | |
| Protection Rating | IP67: IEC 60529-2013 IK08: IEC 62262:2002 |
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 x 1440 |
| Min. Illumination | Color: 0.005 Lux @ F1.6, AGC ON B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355° Tilt: 0° to 75° Rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 98°, Vertical FOV 54°, Diagonal FOV 114° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps at 2560 x 1440; 25 fps at 1920 x 1080, 1280 x 720 60 Hz: 20 fps at 2560 x 1440; 24 fps at 1920 x 1080, 1280 x 720 |
| Sub-Stream | 50 Hz: 25 fps at 1280 x 720, 640 x 480, 640 x 360 60 Hz: 24 fps at 1280 x 720, 640 x 480, 640 x 360 |
| Video Compression | Main stream: H.265+, H.265, H.264+, H.264 Sub-stream: H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Network | |
| Security | Password protection, watermark, HTTP authentication, WSSE, ONVIF authentication, security audit log, host authentication |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI, SDK, Open Network Video Interface Profile S and Profile T |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Notify surveillance center, send email, trigger capture |
| General | |
| Power | 12 VDC ±25%, 0.5 A, max. 6 W PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | Metal & Plastic |
| Dimension | Ø121.4 mm x 97.7 mm |
| Package Dimension | 150 mm x 150 mm x 141 mm |
| Weight | Approx. 550 g |
| With Package Weight | Approx. 800 g |
| Operating Conditions | -30 °C to 60 °C. Humidity 95% or less, non-condensing |
| Protection | |
| Protection Rating | IP67: IEC 60529-2013 IK08: IEC 62262:2002 |
