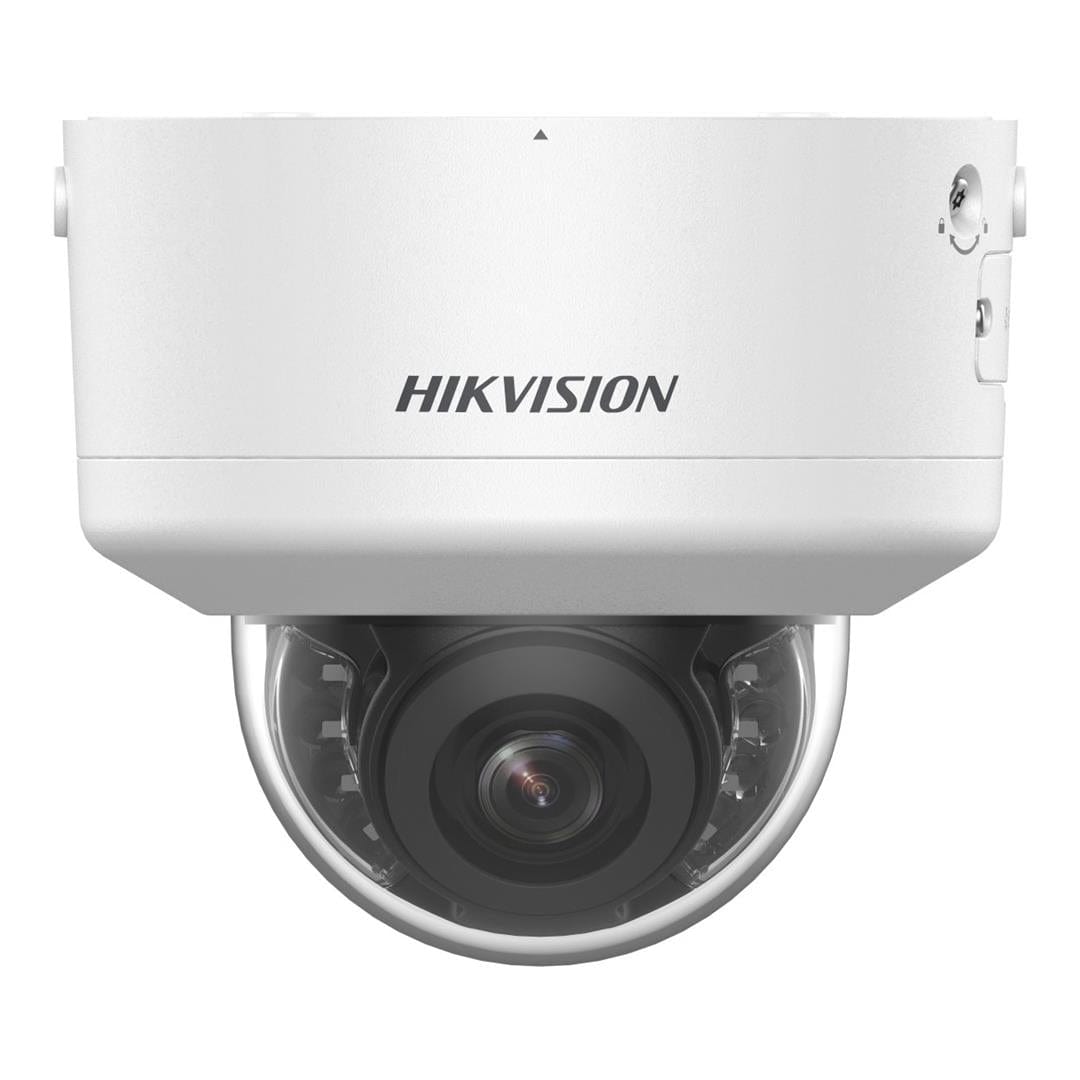

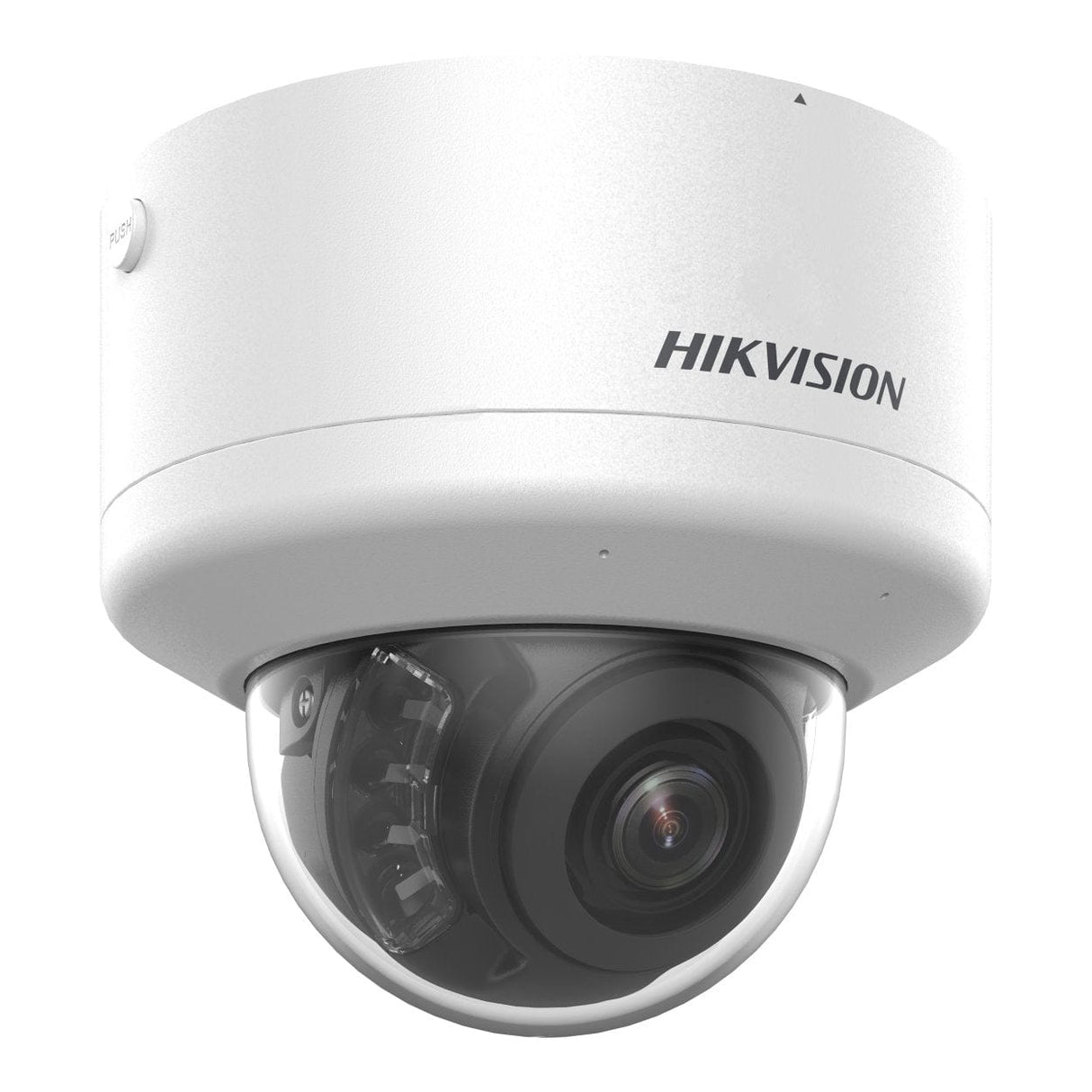

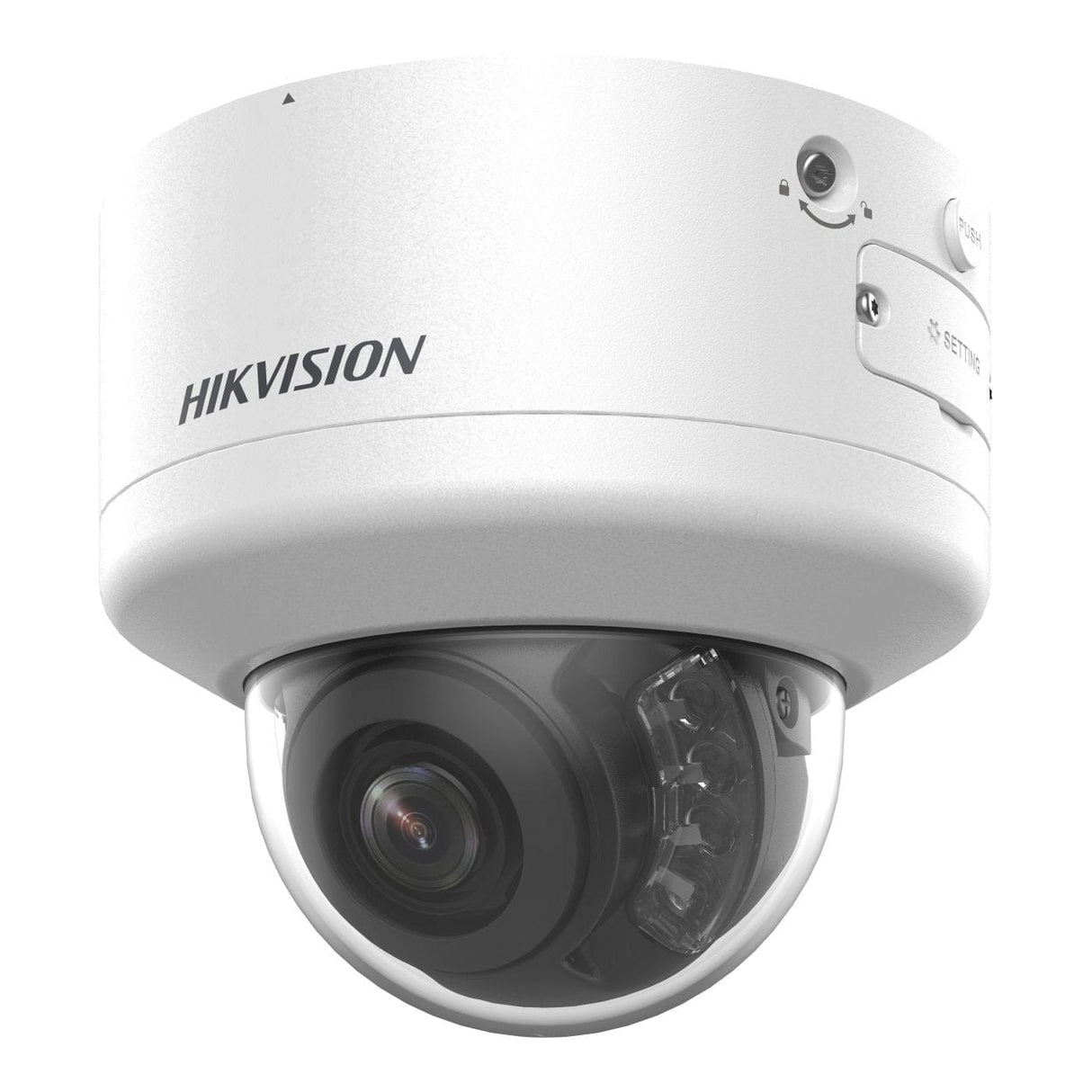

Hikvision 4MP 2.8-12mm Smart Hybrid Light with ColorVu Motorized PTRZ Varifocal Dome Network Camera DS-2CD2747G2H-LIPTRZS(2.8-12mm)

Hikvision 4MP 2.8-12mm Smart Hybrid Light with ColorVu Motorized PTRZ Varifocal Dome Network Camera DS-2CD2747G2H-LIPTRZS(2.8-12mm)

Features

• Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
• 24/7 colorful imaging via ColorVu technology
• IR light & White light & Smart Hybrid Light modes
• Clear imaging against strong back light due to 130 dB WDR technology
• Human and vehicle classification based on deep learning
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Audio and alarm interface available

Technical Specification

Image Sensor: 1/1.8" Progressive Scan CMOS

Max. Resolution: 2688 x 1520

Angle Adjustment

• Remote adjustment (Max. 1,000 cycles)
• Pan: 0° to 350°, Tilt: 0° to 85°, Rotate: 0° to 350°

Lens Type: Varifocal lens, Motorized lens

Focal Length: 2.8 to 12 mm

FOV: Horizontal FOV 114.6° to 41.8°, Vertical FOV 59.3°to 23.6°, Diagonal FOV 141.3°to 48.1°

Depth of Field: 1 m to ∞

DORI

• Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m
• Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

Supplement Light Type: IR, White Light

Supplement Light Range: Up to 40 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Audio

• 1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• 1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm: 1x input, 1x output (max. 24 VDC/24 VAC, 1 A)

Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Power

• 12 VDC ± 25%, 1.05 A, max. 12.6 W, reverse polarity protection, two-core terminal block,
• PoE: IEEE 802.3at, Class 4, max. 15 W
• Please note: Power supply is not included
