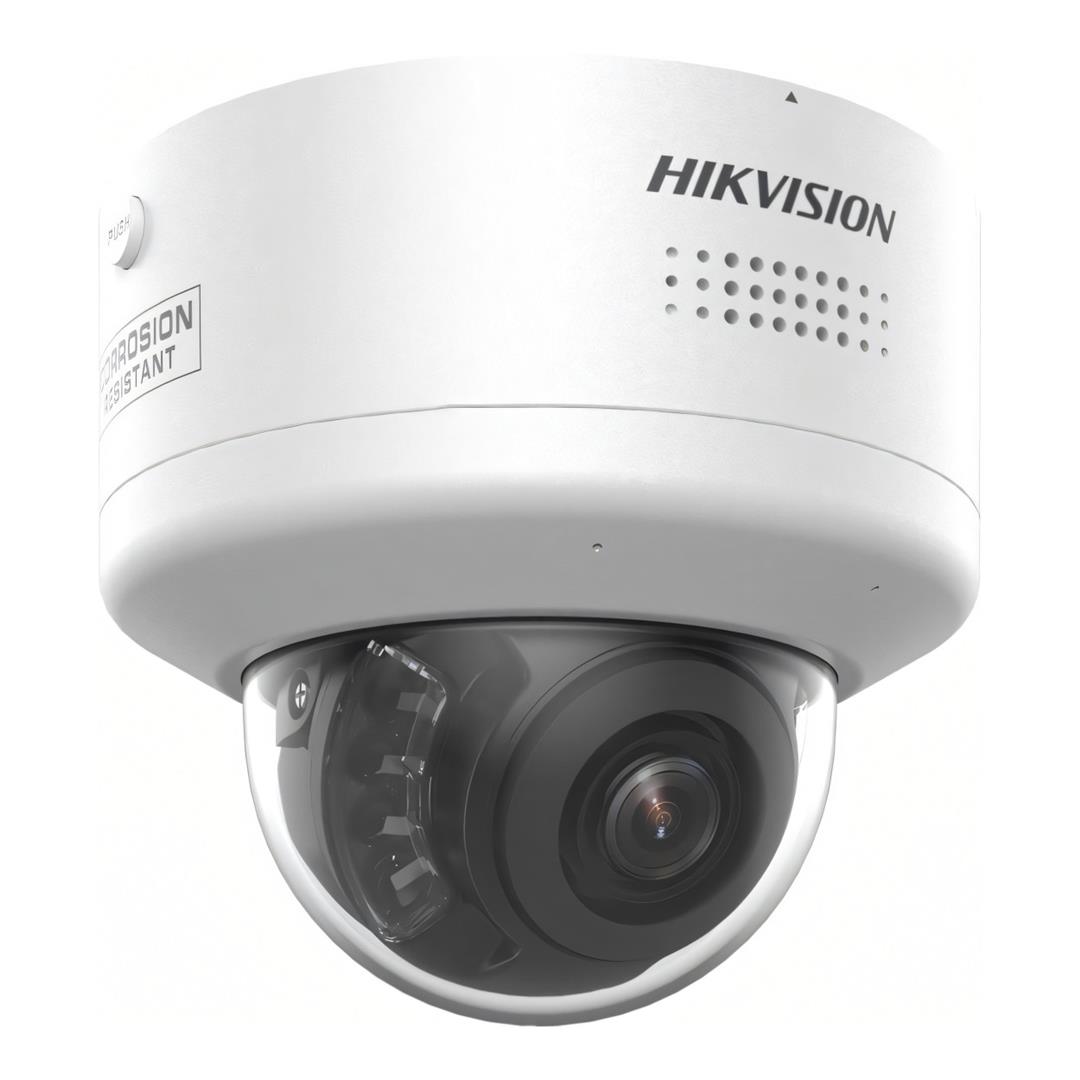

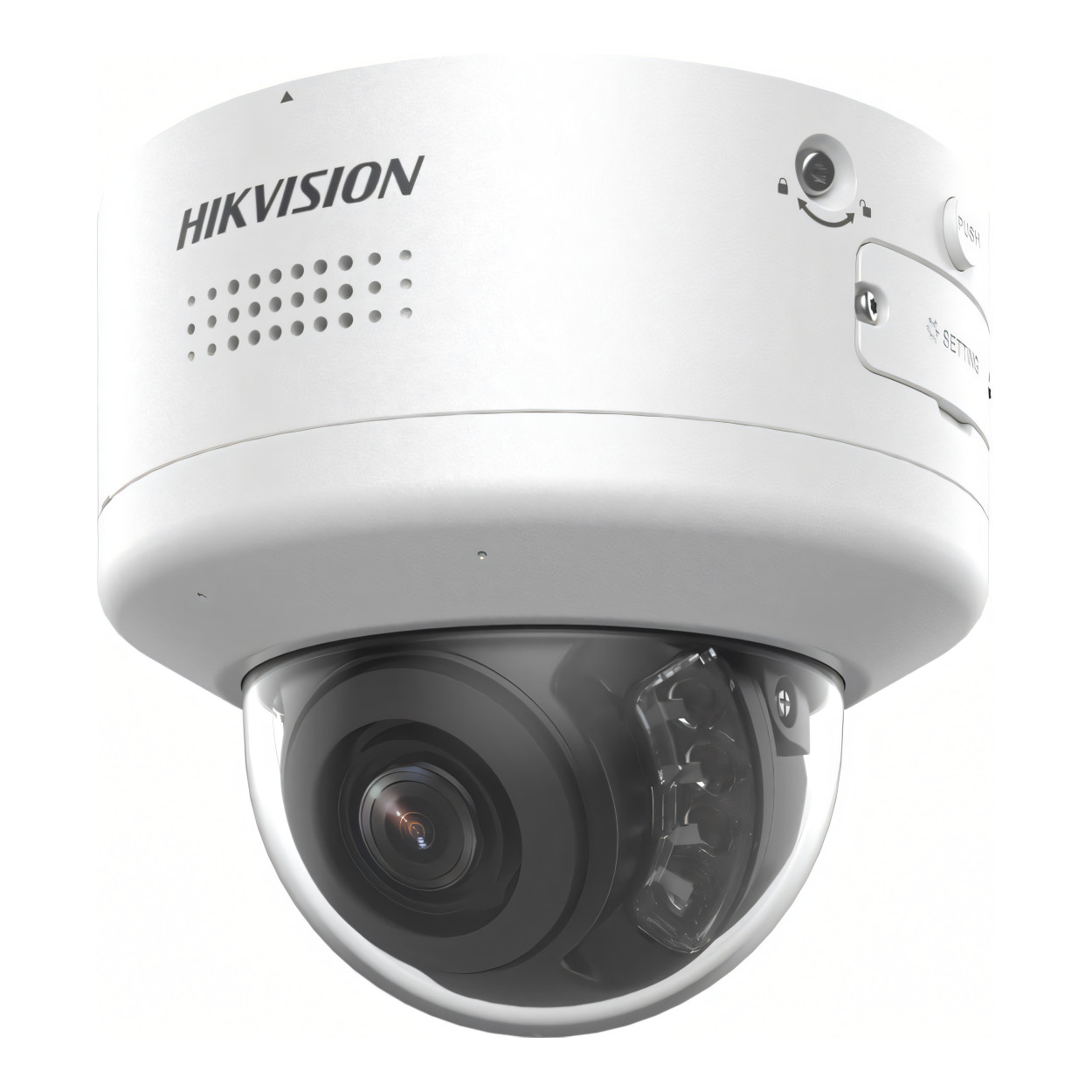

Hikvision 4MP 2.8-12mm DeepinView PTRZ Moto Varifocal Dome Camera IDS-2CD7546G2-XZHSY(2.8-12MM)
The Hikvision iDS-2CD7546G2-XZHSY(2.8-12mm) is a 4MP DeepinView PTRZ motorised varifocal dome network camera designed for advanced professional surveillance applications. Its 1/1.8-inch sensor, DarkFighter 2.0 technology and 150dB AWDR deliver detailed imaging across challenging lighting conditions, while the 2.8–12mm motorised P-Iris lens provides flexible scene coverage. Advanced deep-learning analytics, remote PTRZ adjustment, integrated audio and robust IP67, IK10 and NEMA 4X protection make it suitable for demanding indoor and outdoor deployments.
Key Features
- 4MP imaging with up to 2688 × 1520 resolution.
- DarkFighter 2.0 low-light technology and 150dB AWDR.
- 2.8–12mm motorised P-Iris varifocal lens with remote PTRZ adjustment.
- IR and white supplementary illumination with up to 40m monitoring range.
- High frame rate of up to 4MP at 60fps and 1080p at 120fps in supported monitoring mode.
- Advanced DeepinView analytics including face, human, vehicle, perimeter and people-counting functions.
- IP67 weather resistance, IK10 vandal resistance and NEMA 4X anti-corrosion protection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Product Series | DeepinView |
| Model | iDS-2CD7546G2-XZHSY(2.8-12mm) |
| Product Type | 4MP DeepinView PTRZ Motorised Varifocal Dome Network Camera |
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Colour: 0.0005 Lux @ F1.2, AGC On / B&W: 0.0001 Lux @ F1.2, AGC On / 0 Lux with IR |
| Low-Light Technology | DarkFighter 2.0 |
| Wide Dynamic Range | 150dB AWDR |
| Lens | 2.8–12mm Motorised Varifocal |
| Iris | P-Iris |
| Aperture | F1.47 to F2.53 |
| Horizontal Field of View | 114.6° to 41.8° |
| Vertical Field of View | 59.3° to 23.6° |
| Diagonal Field of View | 141.3° to 48.1° |
| Focus | Auto / Semi-Auto / Manual |
| PTRZ Adjustment | Pan: 0° to 355° / Tilt: 0° to 85° / Rotate: 0° to 355° |
| Supplementary Light | IR / White Light |
| Supplementary Light Range | Up to 40m |
| IR Wavelength | 850nm |
| Maximum Frame Rate | Up to 60fps at 2688 × 1520 / Up to 120fps at 1920 × 1080 in 60Hz Monitoring Mode |
| Video Streams | Up to 5 Streams |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Bit Rate | 32Kbps to 8Mbps |
| Image Enhancement | BLC / HLC / 3D DNR / Distortion Correction / Defog / EIS |
| Privacy Mask | 8 Programmable Polygon Masks |
| Deep Learning Computing Power | 2.5 TOPS |
| Deep Learning Functions | Multi-Target Detection / Face Capture & Comparison / Perimeter Protection / People Counting / Queue Management / Regional People Counting / Heat Map / On-Off Duty Detection / Activity Analysis / PPE Detection / AcuSeek |
| Built-In Microphones | 2 |
| Built-In Speaker | 1 |
| Audio Interface | 1 × Line Input / 1 × Line Output |
| Ethernet | 1 × RJ45 10/100/1000Mbps Self-Adaptive Ethernet Port |
| On-Board Storage | microSD / microSDHC / microSDXC, Up to 1TB |
| Alarm Interface | 2 Inputs / 2 Outputs |
| RS-485 | 1 × Half-Duplex RS-485 |
| Network Storage | NAS (NFS / SMB/CIFS) / ANR / Cloud Storage |
| ONVIF | Profiles S / G / T / M |
| Power Input | 12V DC ±20% / IEEE 802.3at PoE+ |
| Maximum Power Consumption | 22.4W |
| Built-In Heater | Yes |
| Vibration Detection | Built-In G-Sensor |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Anti-Corrosion Protection | NEMA 4X – Moderate Protection (-Y Model) |
| Body Material | Aluminium Alloy |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | 95% RH or Less, Non-Condensing |
| Dimensions | Ø155 × 140.4mm |
| Weight | Approx. 1.3kg |
Deploy the Hikvision iDS-2CD7546G2-XZHSY for advanced 4MP surveillance with flexible PTRZ installation, powerful DeepinView analytics and robust protection for demanding environments.
