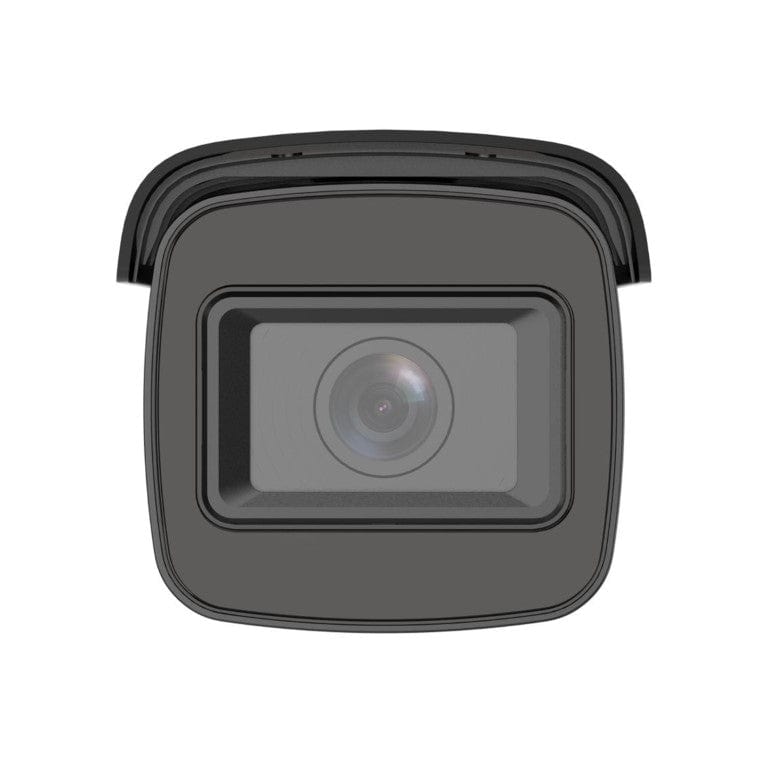

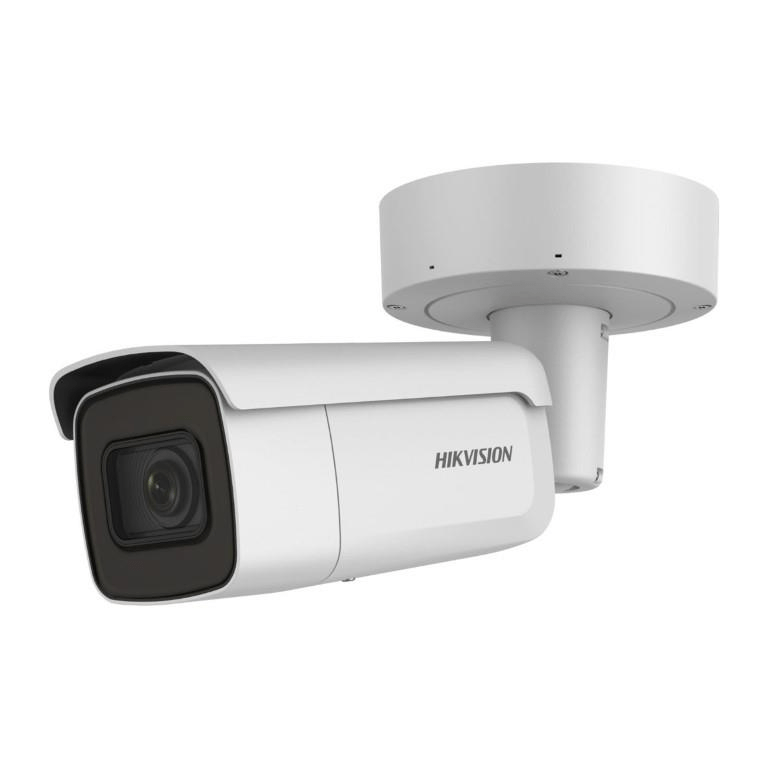

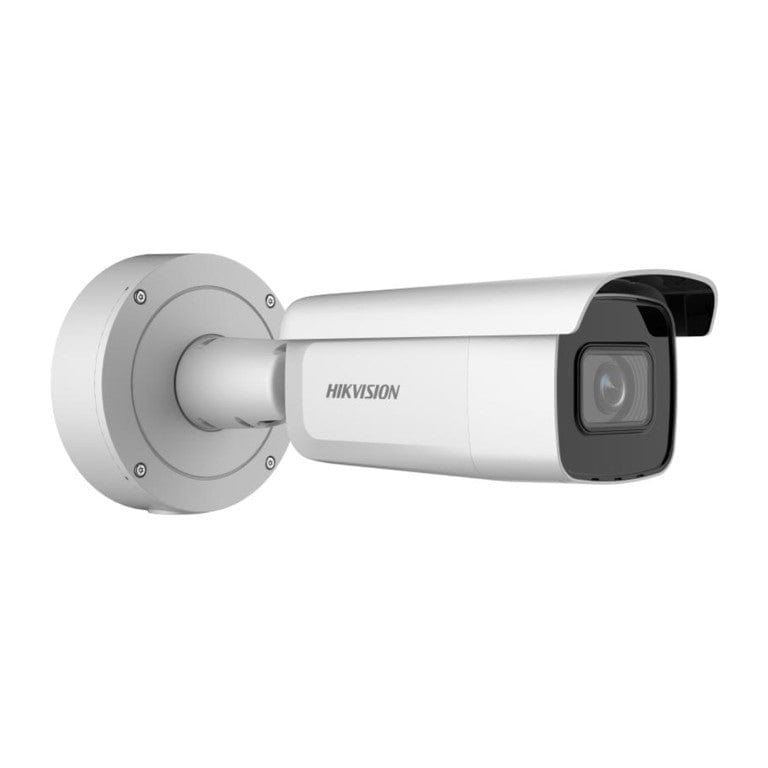

Hikvision 4MP 2.8-12mm AcuSense Motorized Varifocal Bullet Network Camera Powered by DarkFighter DS-2CD2646G2-IZS(2.8-12mm)

Hikvision 4MP 2.8-12mm AcuSense Motorized Varifocal Bullet Network Camera Powered by DarkFighter DS-2CD2646G2-IZS(2.8-12mm)

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Motorized varifocal lens for easy installation
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Audio and alarm interface available
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP66) and vandal-resistant (IK10)

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Varifocal lens, motor-driven lens, 2.8 to 12 mm
Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.4

DORI
2.8 to 12 mm:

• Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
• Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 60 m
Smart Supplement Light: Yes
IR Wavelength: Yes

Video
Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Third stream is supported under certain settings

Video Compression:

• Main stream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

Third stream is supported under certain settings

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T), ISAPI, ISUP, SDK
User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for ONVIF
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω

Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes

Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types), Scene change detection
Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function
Face Capture: Yes

General
Power: 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
Material: ADC12
Dimension: Ø144.1 mm × 345.7 mm (Ø5.7" × 13.6")
Package Dimension: 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight: Approx. 1445 g (3.2 lb.)
With Package Weight: Approx. 2571 g (5.7 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian)
General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IK10 (IEC 62262:2002), IP66 (IEC 60529-2013)
