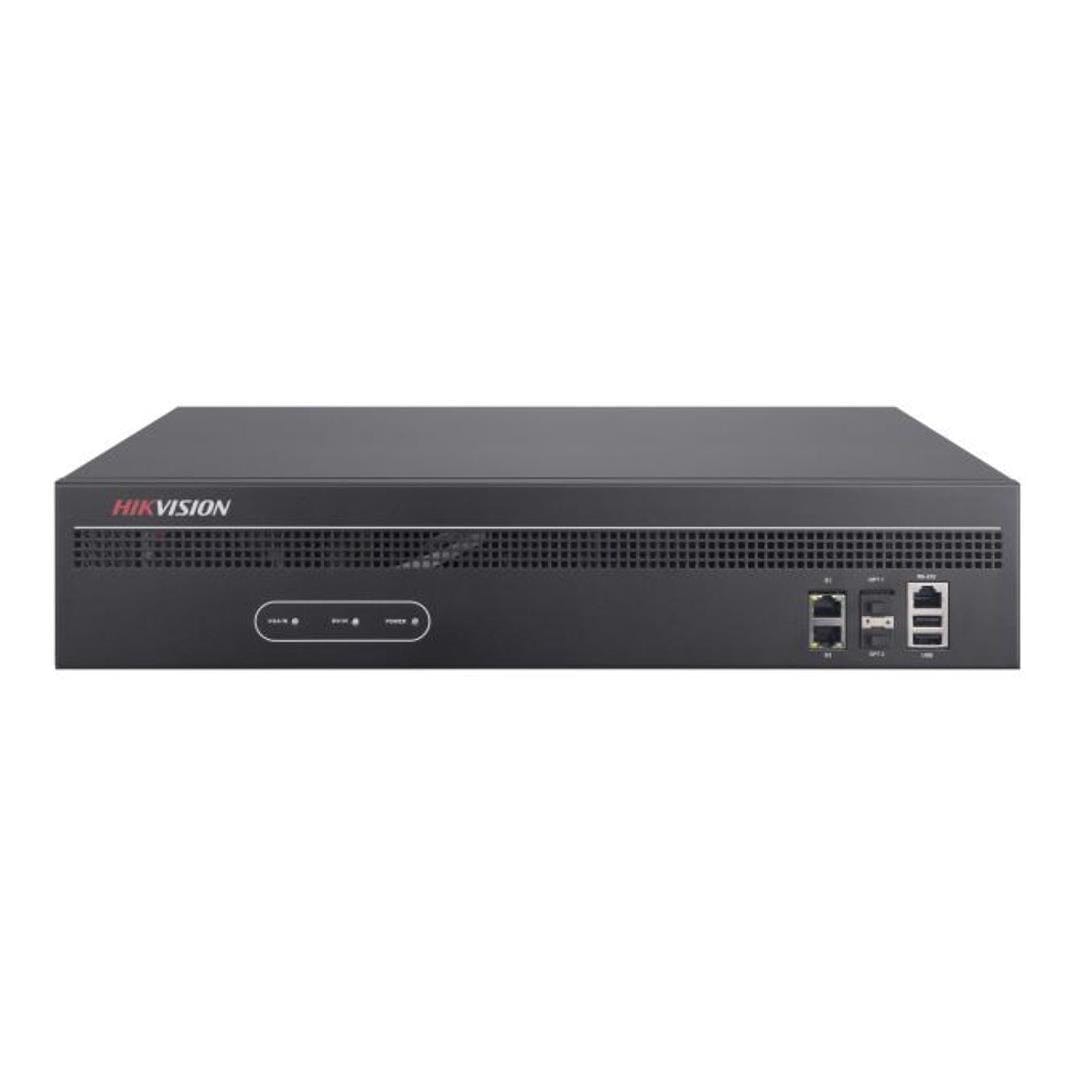

Hikvision 4K HDMI Decoder DS-6910UDI

Hikvision 4K HDMI Decoder DS-6910UDI

4K Decoder

• Provides HDMI (adaptable to DVI-D) and BNC output interfaces.
• Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for odd interface).
• H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
• PS, RTP, TS, ES, HIK encapsulation formats.
• Three encoding levels: baseline, main, and high-profile.
• G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
• Two decoding modes: active decoding and passive decoding.
• Remote video files' decoding output.
• Supports two-way audio via client software.
• Provides VGA and DVI input interfaces.
• Supports window opening, window roaming and window split.
• Supports multi-screen control with PC installed with RSC server.
• Gets stream and decodes via URL and RTSP from encoding devices.
• Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
• You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.
• Configurable LED width and height parameters when the LED is connected.
• Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
• Accessible by 2.4 MP DeepinView camera.
• Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback.
• You can enable or disable the smart information for the thermal network camera.
• Two-way audio.
• Port aggregation technology (Ethernet Channel).

Specifications

Network Interface: RJ45 interface: x2, 10/100/1000 Mbps adaptive; Optic interface: x2, 100 base-FX/1000 base-X, An RJ45 interface and an optic interface form a combo.

Serial Interface: RS-232 (RJ45) x 1, RS-485 x 1

Audio Output: 10 (DB15 x 2)

Two-way Audio In: 1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)

Two-way Audio Out: 1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)

Alarm In: 8

Alarm Out: 8
