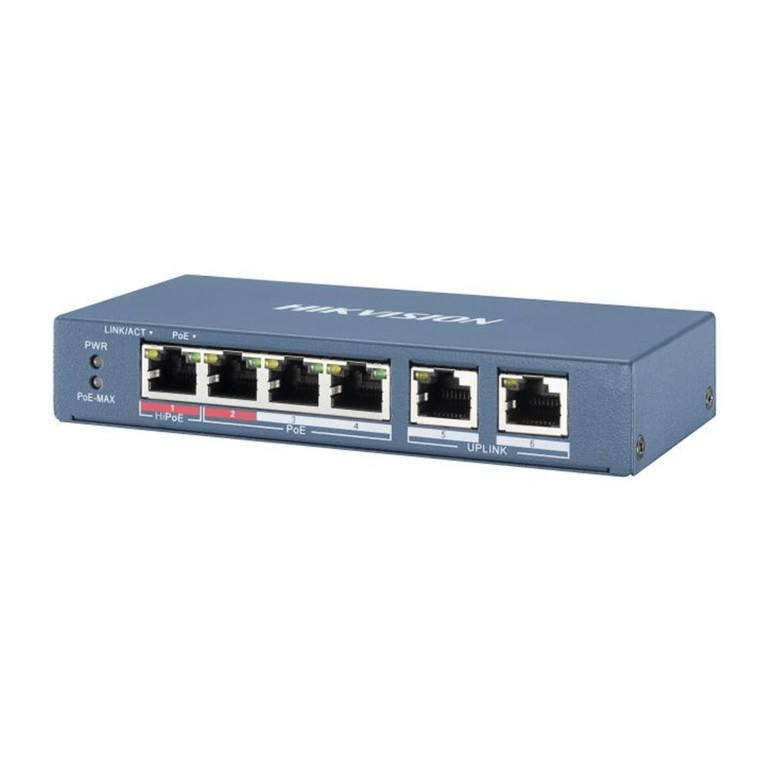

Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E
R 84900
Unit price
/
Unavailable
Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Next Business Day Shipping Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E
Features
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Technical Specification
Ports: 4x 10/100Mbps (Fast Ethernet) PoE port, 2x 10/100Mbps (Fast Ethernet) RJ45 port
MAC Address Table: 2 K
Switching Capacity: 1.20 Gbps
Packet Forwarding Rate: 0.89 Mpps
Internal Cache: 768 Kbits
PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
-
Hi-PoE: Port 1
-
PoE: Ports 2 to 4
Max. Port Power
-
Port 1: 60 W
-
Ports 2 to 4: 30 W
PoE Power Budget: 60 W
Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65 W
Power Consumption In Idle: 5 W
Installation Mode: Desk-Mounted, Wall-Mounted
Surge Protection: 6 KV
