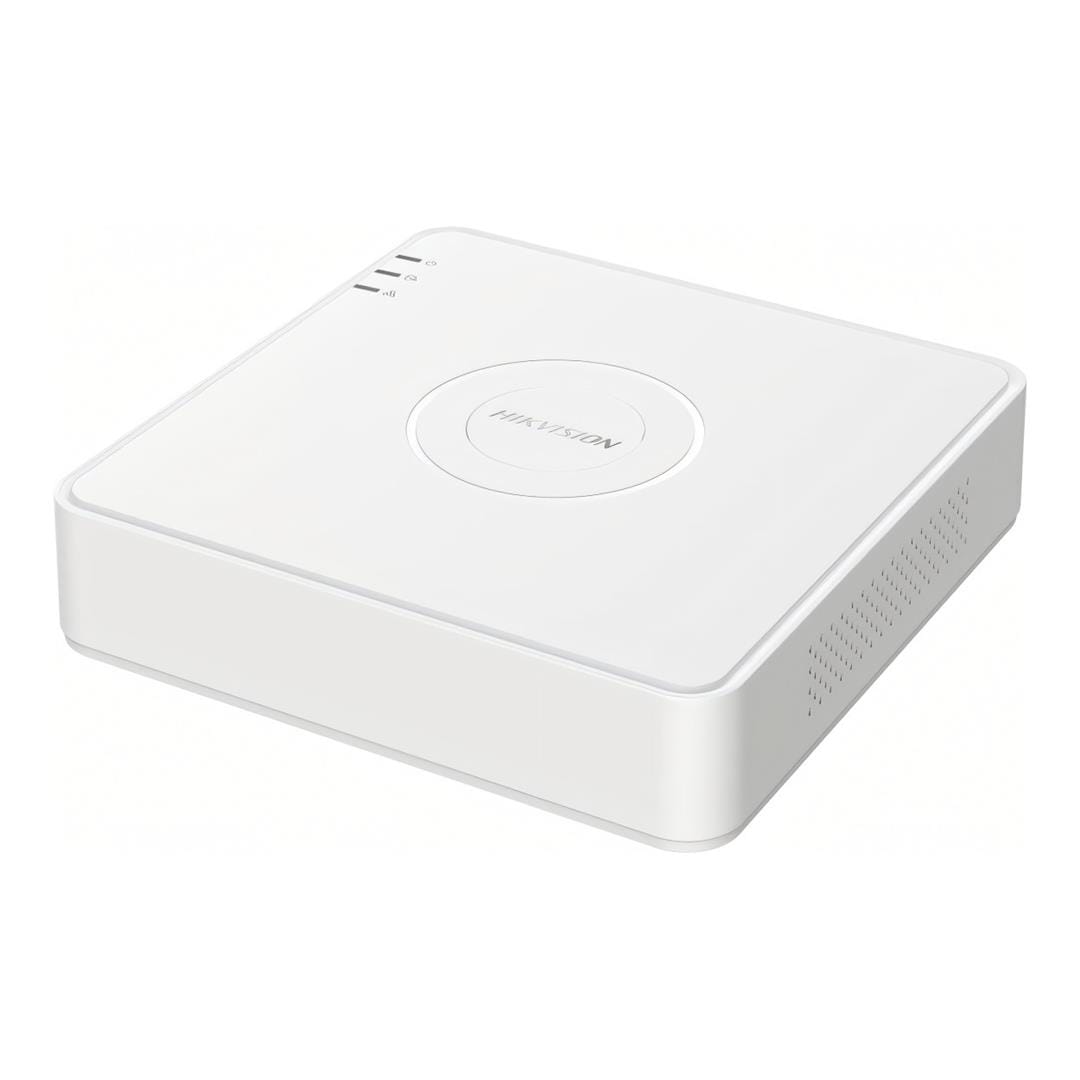

Hikvision 4-channel 1080P Mini 1U H.265 AcuSense DVR IDS-7104HQHI-M1/S(C)

Hikvision 4-channel 1080P Mini 1U H.265 AcuSense DVR IDS-7104HQHI-M1/S(C)

The Hikvision iDS-7104HQHI-M1/S(C) is a compact 4-channel 1080p Mini 1U AcuSense DVR designed for intelligent video surveillance installations. It combines support for HDTVI, AHD, CVI, CVBS and IP cameras with deep-learning Motion Detection 2.0 and perimeter protection. H.265 Pro+ compression helps reduce storage requirements, while support for up to six IP camera channels, a 10TB SATA hard drive and Hik-Connect connectivity provides flexibility for residential, retail and small-business security systems.

Key Features

• 4-channel 1080p Mini 1U AcuSense DVR.
• Deep-learning Motion Detection 2.0.
• Human and vehicle target classification.
• Deep-learning perimeter protection.
• Supports HDTVI, AHD, CVI, CVBS and IP camera inputs.
• Up to 6 IP camera channels with cameras up to 6MP.
• H.265 Pro+, H.265 Pro and H.265 video compression.
• Recording support up to 3K / 5MP Lite resolution.
• Up to 1080p at 15fps encoding capability.
• Audio transmission over coaxial cable.
• HDMI and VGA video outputs.
• 1 × SATA interface supporting up to a 10TB hard drive.
• 10/100Mbps Ethernet connectivity.
• 72Mbps total network bandwidth.
• Supports up to 32 remote connections.
• Compatible with supported USB Wi-Fi dongles.
• Hik-Connect support for convenient network management.
• Compact 200 × 200 × 45mm chassis.

AcuSense Motion Detection 2.0

The iDS-7104HQHI-M1/S(C) incorporates Hikvision AcuSense intelligence with deep-learning-based Motion Detection 2.0. The DVR can classify human and vehicle targets, helping surveillance systems focus on relevant movement rather than treating every detected motion event equally.

Deep-Learning Perimeter Protection

In addition to Motion Detection 2.0, the recorder supports deep-learning-based perimeter protection. This provides intelligent event analysis for compatible surveillance configurations and helps improve the efficiency of security monitoring and recorded-event searches.

Hybrid Camera Compatibility

The DVR supports HDTVI, AHD, CVI and conventional CVBS analogue video sources as well as IP cameras. This hybrid architecture provides flexibility when upgrading an existing coaxial surveillance installation or combining analogue and network cameras in a single recording system.

Up to 6 IP Camera Inputs

Although the recorder is based around four analogue video channels, Hikvision specifies support for up to six IP camera inputs, with compatible IP cameras supported at resolutions up to 6MP. This provides additional flexibility when expanding a surveillance system with network cameras.

Efficient H.265 Pro+ Compression

H.265 Pro+ compression can be enabled to improve encoding efficiency and reduce video-storage requirements. The recorder also supports H.265 Pro and H.265 compression, allowing efficient use of available hard-drive capacity and network bandwidth.

Up to 10TB SATA Storage

The iDS-7104HQHI-M1/S(C) provides one internal SATA interface supporting a hard drive with a capacity of up to 10TB. This allows recording capacity to be selected according to camera count, recording schedule, resolution and retention requirements.

Network and Remote Access

A 10/100Mbps RJ45 Ethernet interface provides wired network connectivity, with total network bandwidth rated at 72Mbps and support for up to 32 remote connections. Hik-Connect and DDNS are supported for convenient network management, while a compatible Wi-Fi dongle can be connected through USB when wireless network access is required.

Technical Specifications

What’s in the Box:

• 1 × Hikvision iDS-7104HQHI-M1/S(C) 4-Channel AcuSense DVR

The Hikvision iDS-7104HQHI-M1/S(C) combines four-channel hybrid analogue recording with AcuSense human and vehicle classification, perimeter protection and additional IP camera support. With H.265 Pro+ compression, up to 10TB SATA storage, Hik-Connect connectivity and compatibility with multiple analogue camera standards, it provides a compact intelligent recorder for modern hybrid surveillance installations.
