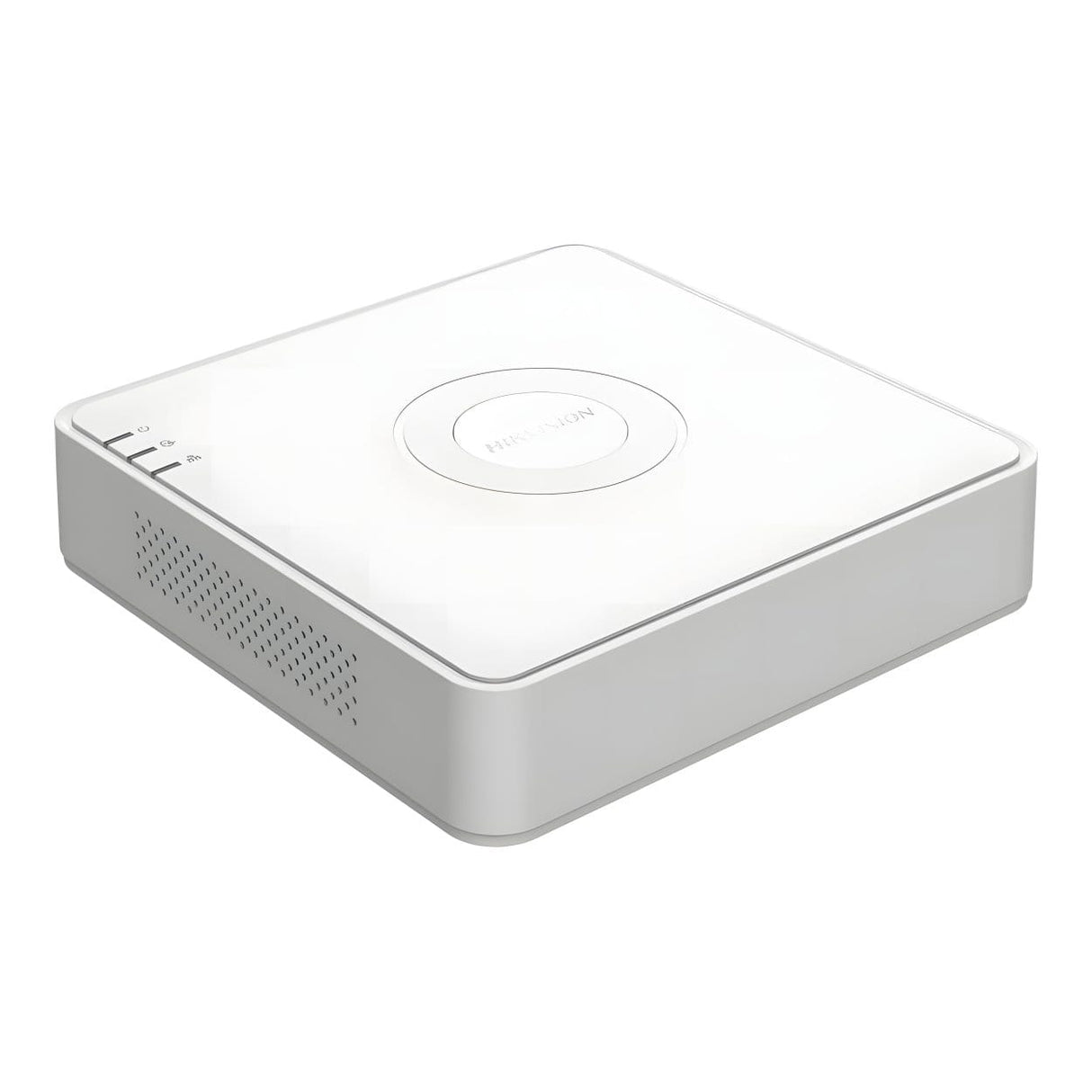

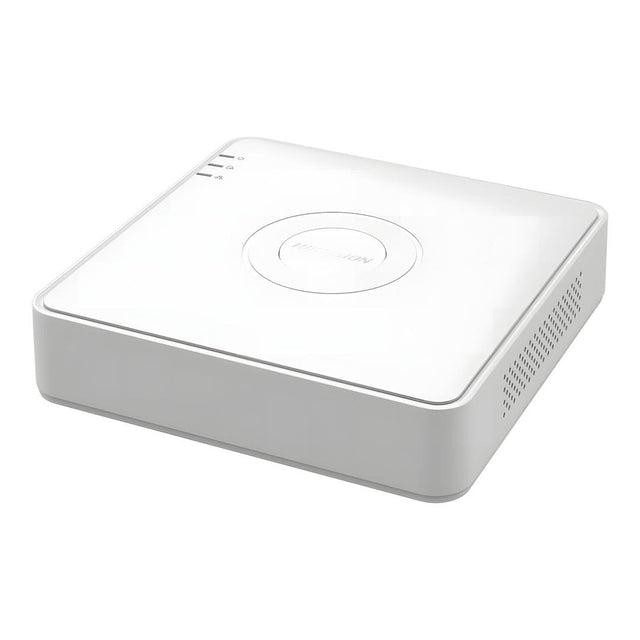

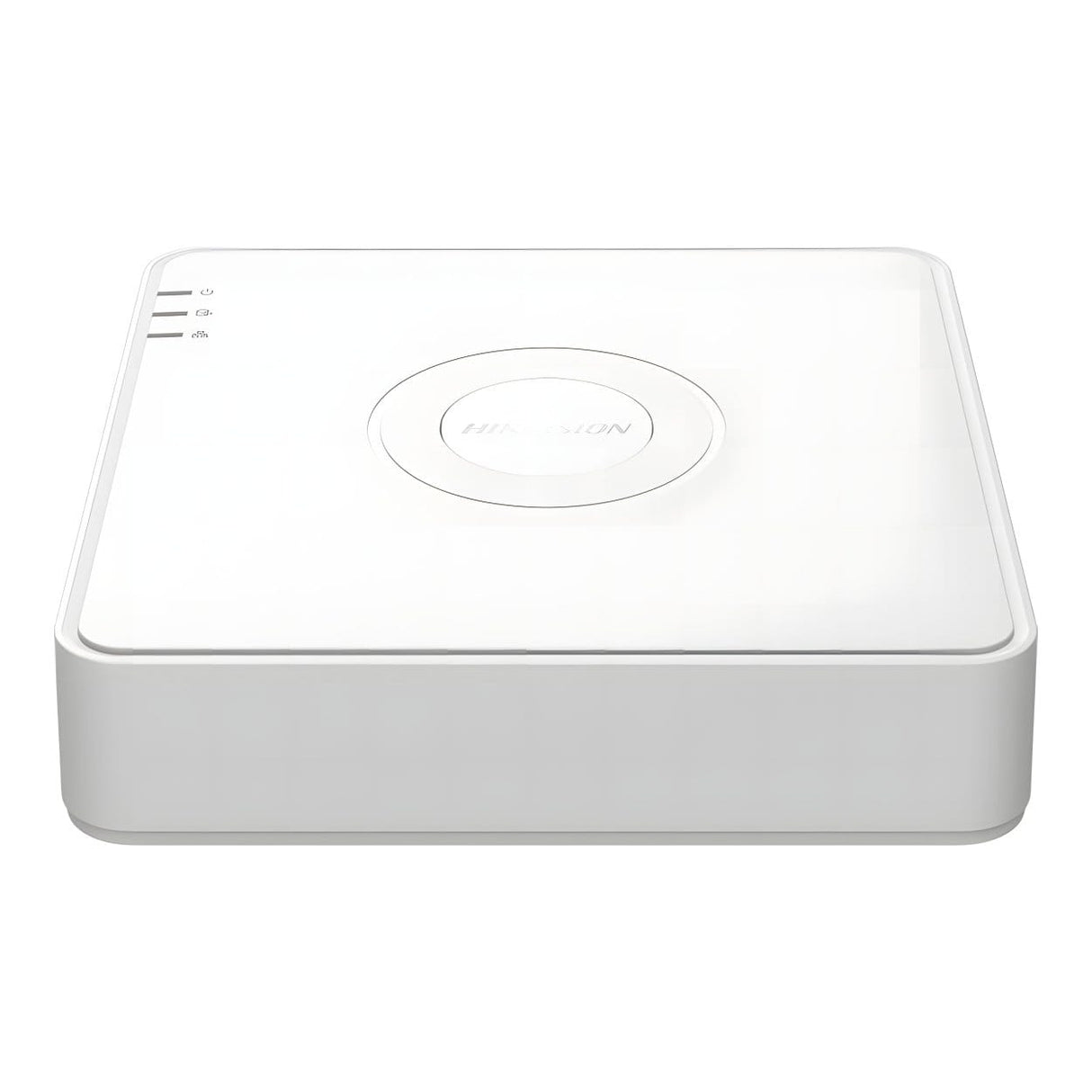

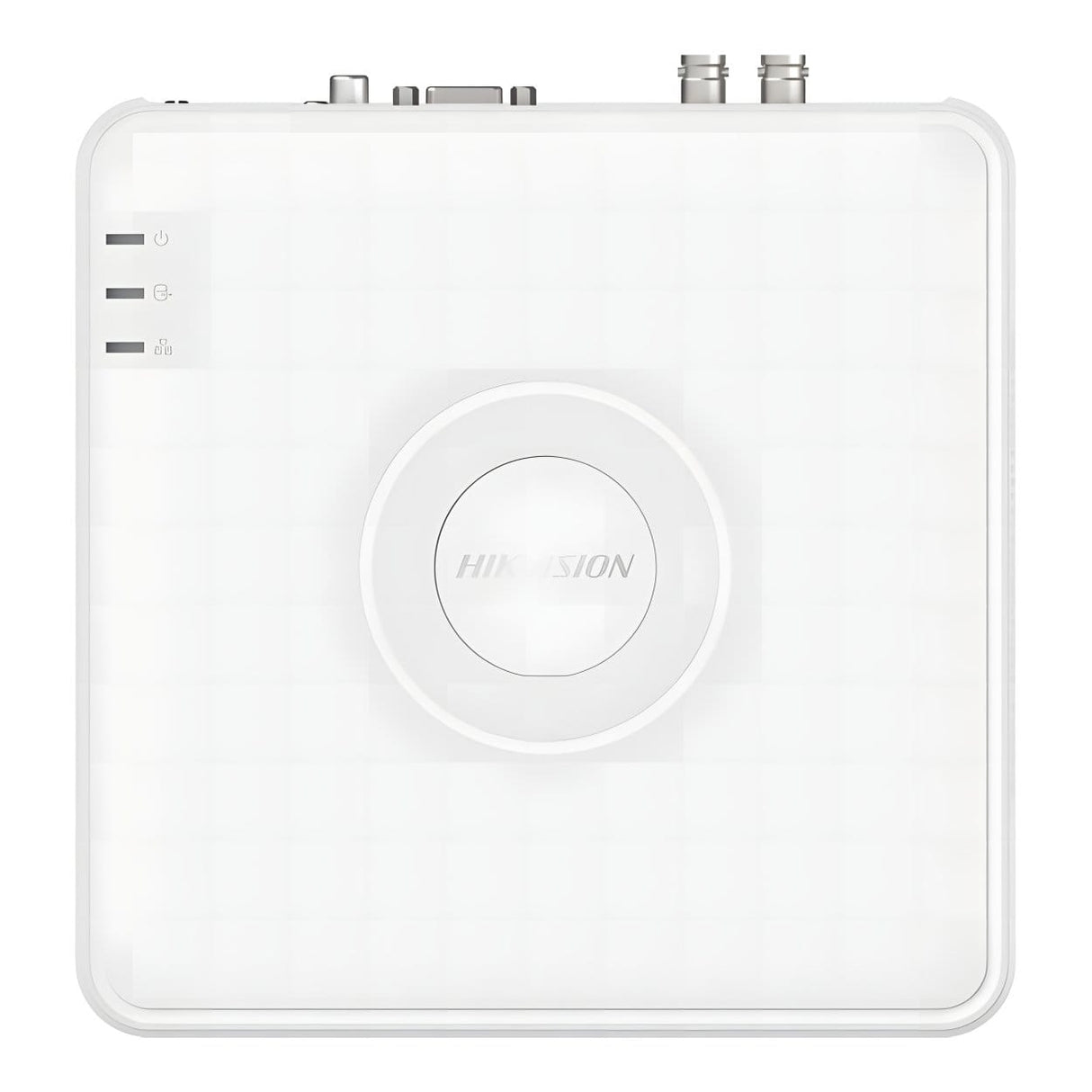

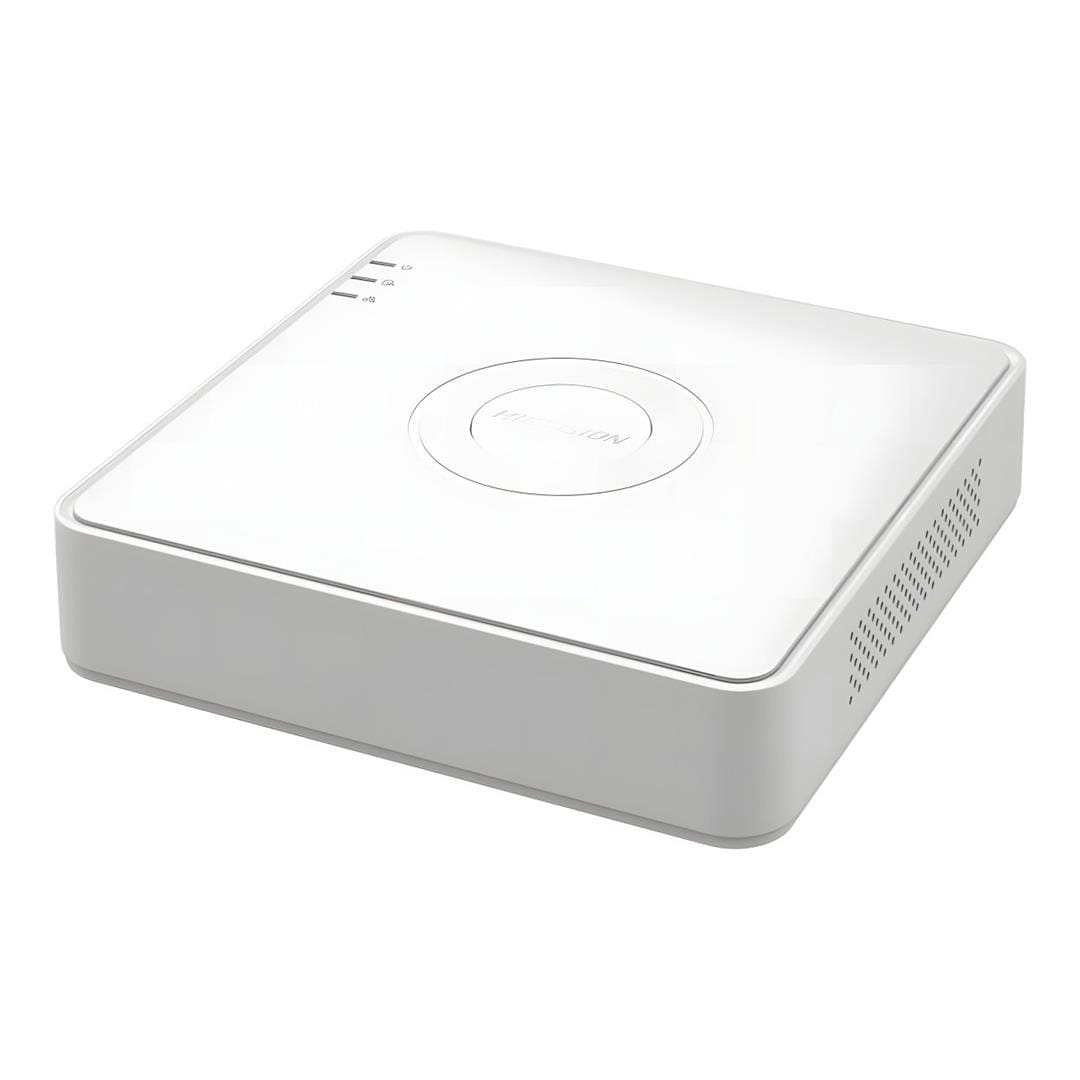

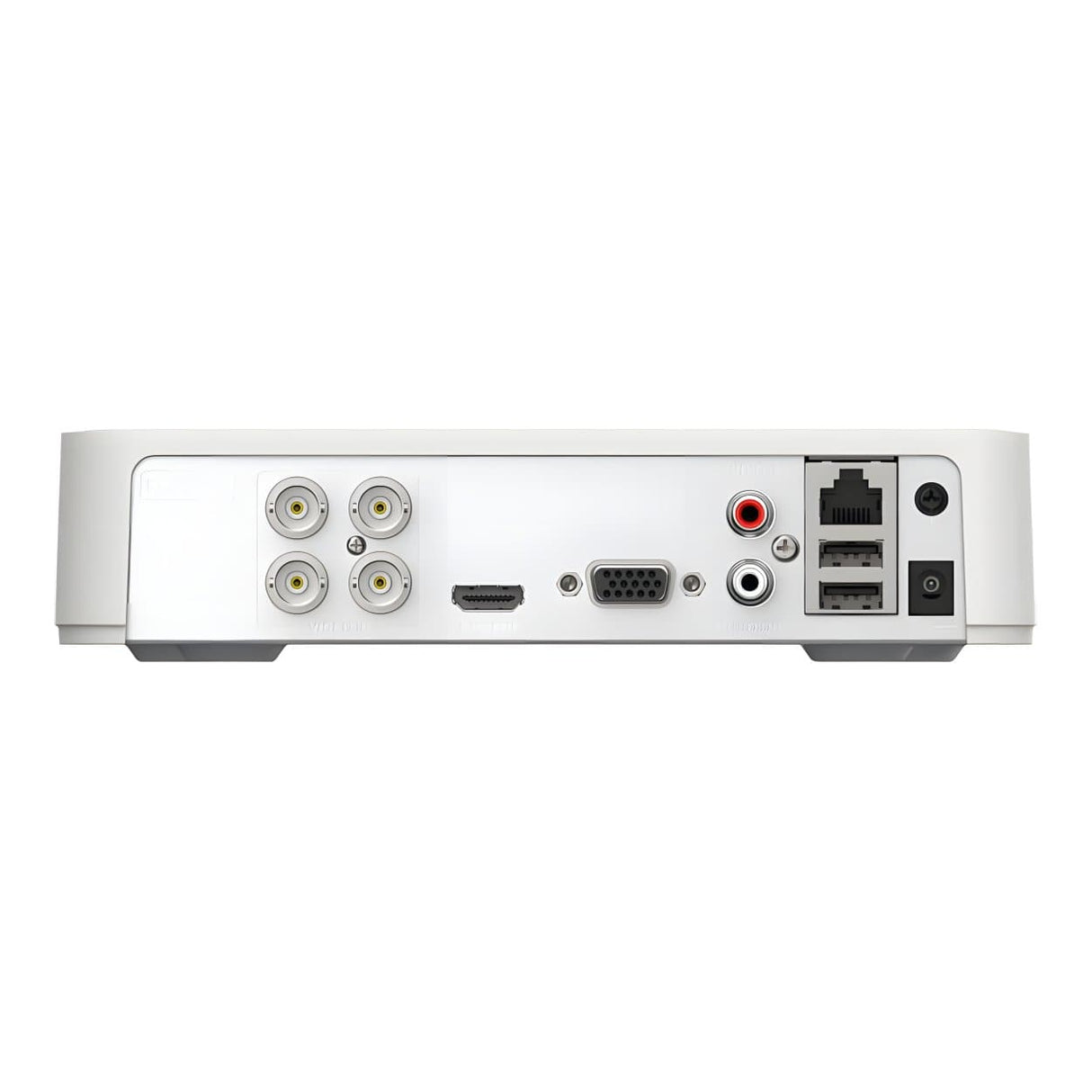

Hikvision 4-channel 1080p Lite Mini 1U H.265 DVR DS-7104HGHI-M1/T

Hikvision 4-channel 1080p Lite Mini 1U H.265 DVR DS-7104HGHI-M1/T

Features:

• Support all channels motion detection technology
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/CVI/AHD/IP/CVBS video inputs
• Audio over coaxial cable
• Support all channels HDTVI two-way audio technology
• Up to 5-ch IP camera inputs

Technical Specifications:

Smart Detection Features

Motion Detection 2.0
Deep Learning-Based Motion Detection 2.0 Enabled By Default For All Analog Channels

Human And Vehicle Analysis
Classifies Human And Vehicle Targets To Reduce False Alarms Caused By Objects Such As Leaves And Lights

Quick Search
Supports Quick Search By Object Or Event Type

Video And Audio

IP Video Input

• 1 Channel (Up To 5 Channels Supported)
• Supports Up To 2 MP Resolution
• Supports H.265+, H.265, H.264+, H.264 IP Cameras

Analog Video Input

• 4 Channels
• BNC Interface (1.0 Vp-p, 75 Ω)
• Supports Coaxitron Connection

Supported Video Standards

• HDTVI: 1080p25, 1080p30, 720p25, 720p30
• AHD: 1080p25, 1080p30, 720p25, 720p30
• HDCVI: 1080p25, 1080p30, 720p25, 720p30
• CVBS: Supported

HDMI Output

• 1 Channel
• 1920 × 1080 @ 60 Hz
• 1280 × 1024 @ 60 Hz
• 1280 × 720 @ 60 Hz

VGA Output

• 1 Channel
• 1920 × 1080 @ 60 Hz
• 1280 × 1024 @ 60 Hz
• 1280 × 720 @ 60 Hz

Video Output Mode
HDMI And VGA Simultaneous Output

Audio Input

• 1 Channel RCA (2.0 Vp-p, 1 KΩ)
• 4 Channels Via Coaxial Cable

Audio Output
1 Channel RCA (Linear, 1 KΩ)

Two-Way Audio
Uses First Audio Input

Synchronous Playback
4 Channels

Recording

Video Compression
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264

Encoding Resolution

• For 1080p Stream Access: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF
• For 720p Stream Access: 720p, WD1, 4CIF, VGA, CIF
• For SD Stream Access: WD1, 4CIF, VGA, CIF

Frame Rate

Main Stream

• 1080p Stream Access: Up To 25 fps (PAL) / 30 fps (NTSC)
• 720p Stream Access: Up To 25 fps (PAL) / 30 fps (NTSC)
• SD Stream Access: Up To 25 fps (PAL) / 30 fps (NTSC)

Sub-Stream

• 4CIF @ 15 fps
• CIF/QVGA @ 25 fps (PAL) / 30 fps (NTSC)

Video Bit Rate
32 Kbps To 4 Mbps

Stream Types
Video, Video And Audio

Audio Compression
G.711u

Audio Bit Rate
64 Kbps

Network

Total Bandwidth
64 Mbps

Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connections
Up To 32

Network Interface
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port

Storage And Interfaces

SATA Interface
1 × SATA

Maximum Storage Capacity
Up To 4 TB Per Disk

USB Interface

• Rear Panel: 2 × USB 2.0

Alarm Input / Output
Not Available

General

Power Supply
12 VDC, 1.5 A

Power Consumption
≤ 10 W (Without HDD)

Operating Temperature
-10°C To 55°C

Operating Humidity
10% To 90%

Dimensions (W × D × H)
200 × 200 × 48 mm

Weight
≤ 0.8 kg (Without HDD)
