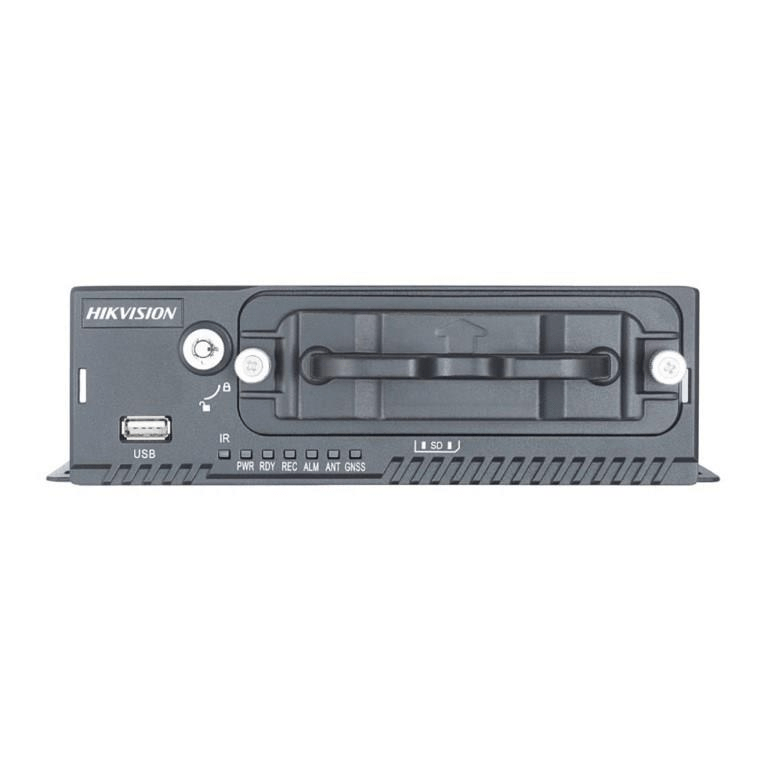

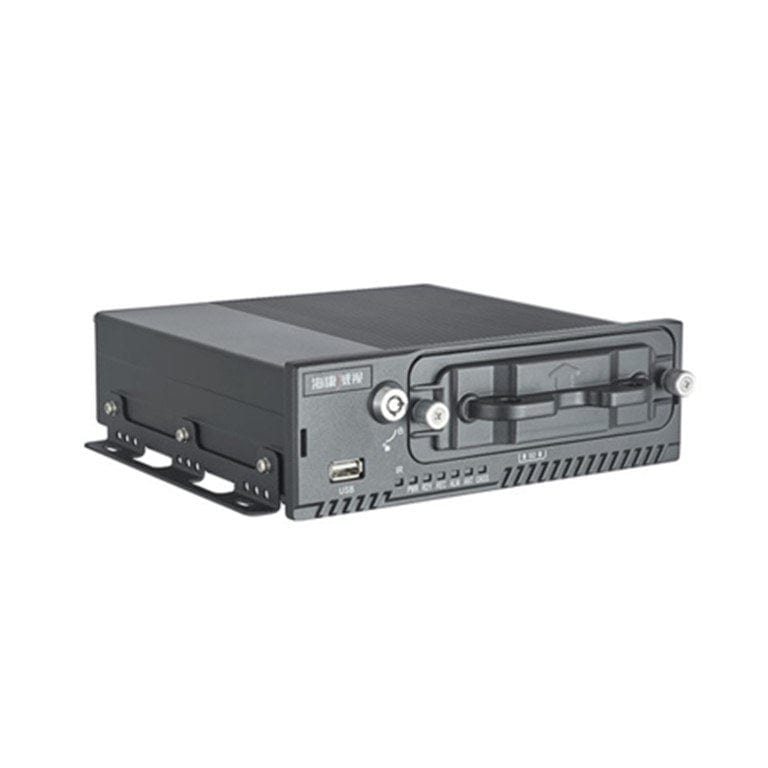

Hikvision 4-ch Mobile DVR DS-M5504HM-T/GW/WI58(1T)

Hikvision 4-ch Mobile DVR DS-M5504HM-T/GW/WI58(1T)

Features

• User-friendly GUI providing easy and flexible operations.
• Pluggable 3G/4G module and 5.8 G Wi-Fi module providing flexible data transmission solutions.
• Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
• Hikvision private protocol (4000 protocol) and ONVIF supported.
• Accept access of 4-ch TVI cameras with up to 720p/WD1 resolution for each channel.
• Accept access of 4-ch IP camera with up to 1080p resolution for each channel.
• supports 1x 2.5 inch HDD/SSD with up to 2 TB capacity.
• Pluggable dummy HDD via USB 3.0 interface
• Information collection interfaces collecting driving information such as left/right turn, braking, backing up, etc.
• Specialized aviation connectors ensuring signal stability.
• Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
• Battery protection avoids vehicle from running out of battery.
• Wide-range power input (+9 VDC to +32 VDC).
• Power-off protection prevents key data loss.
• Aluminum die-cast chassis with no fan design well adaptable to working environment.
• Software-based firewall supported.
• Connectable to PTZ camera and PTZ control is supported.
• Support accessing via WEB browser.
• Analog camera: 4-ch
• IP camera: 4-ch (extendable via PoE switch)
• Two-way audio: 1-ch (integrated in EXT.DEV interface)
