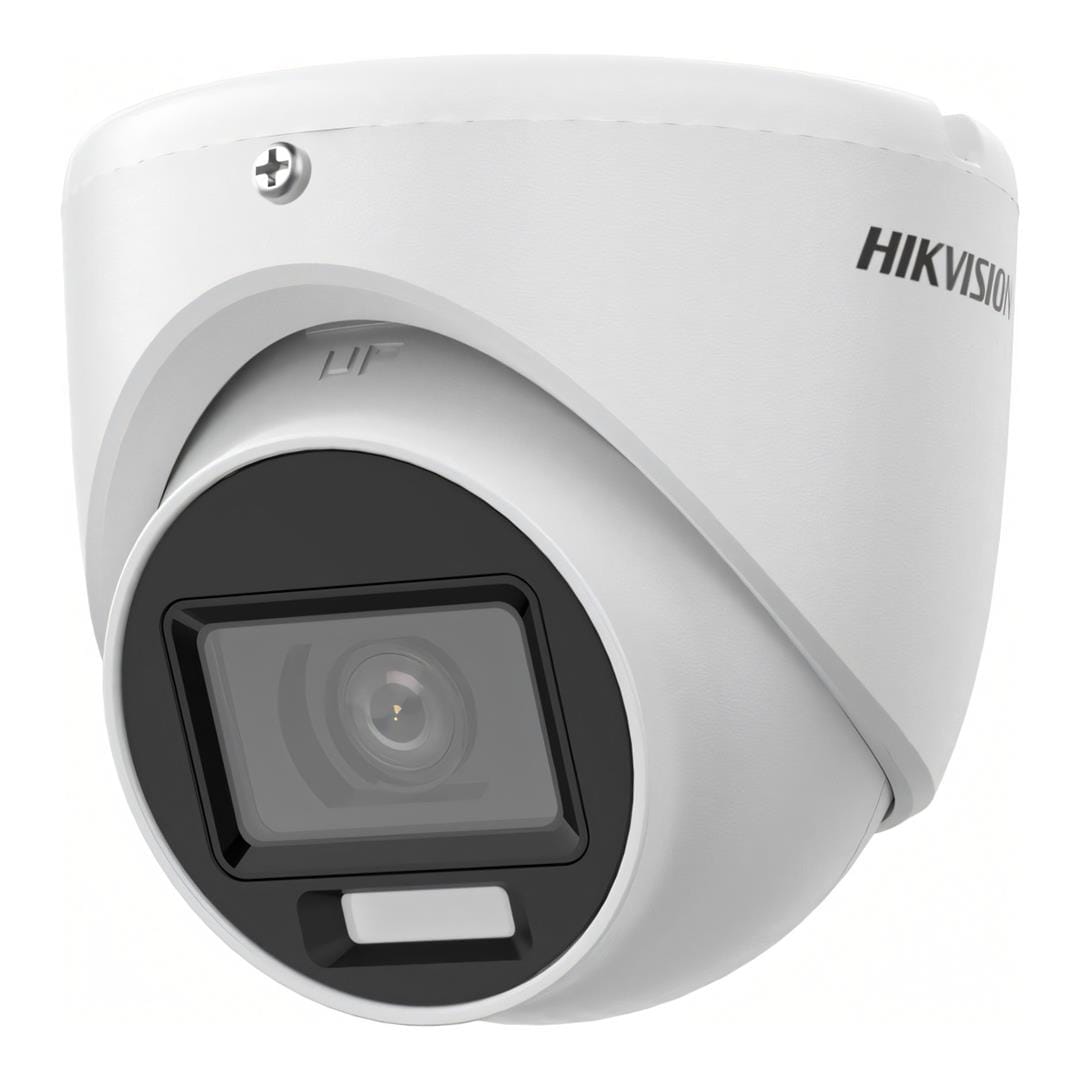

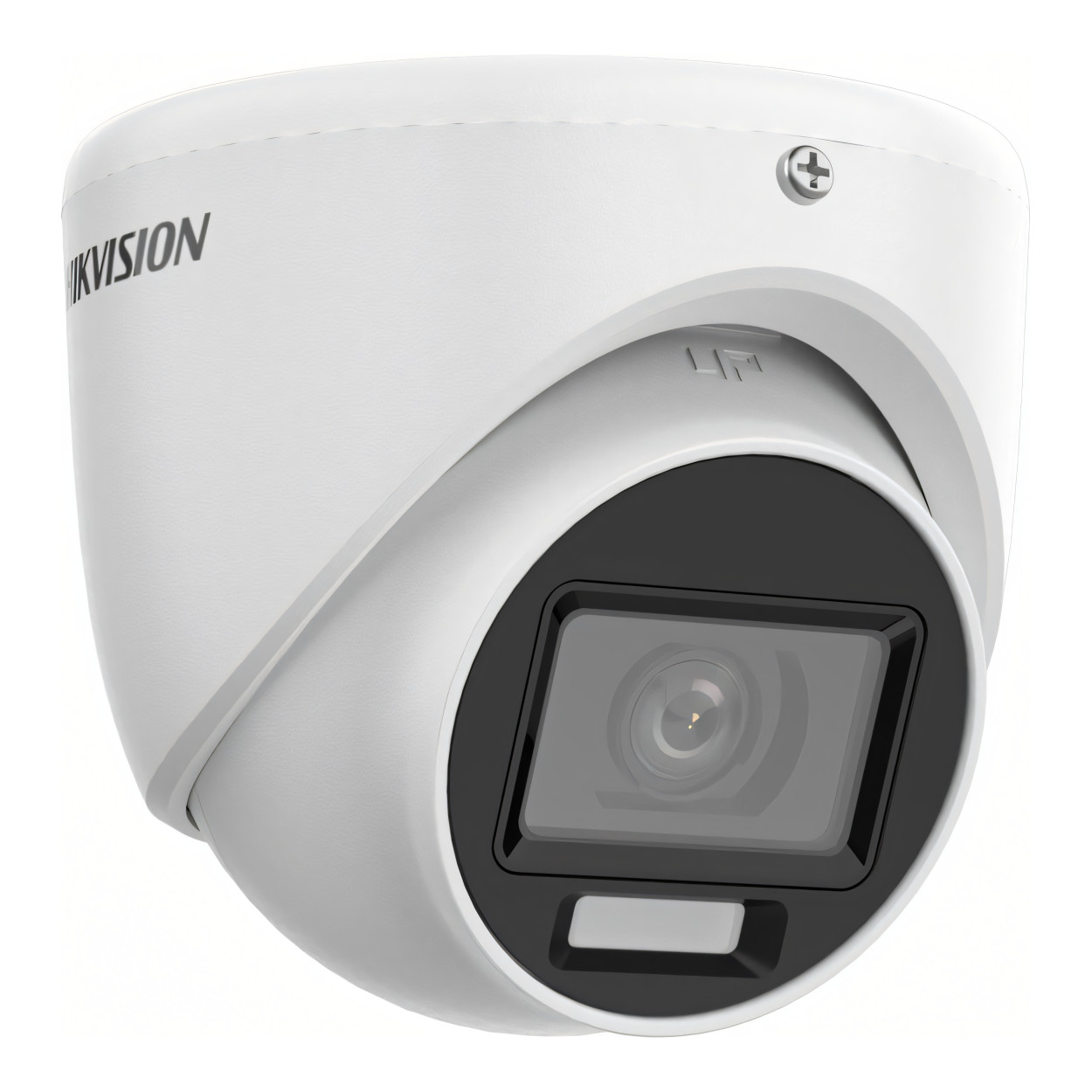

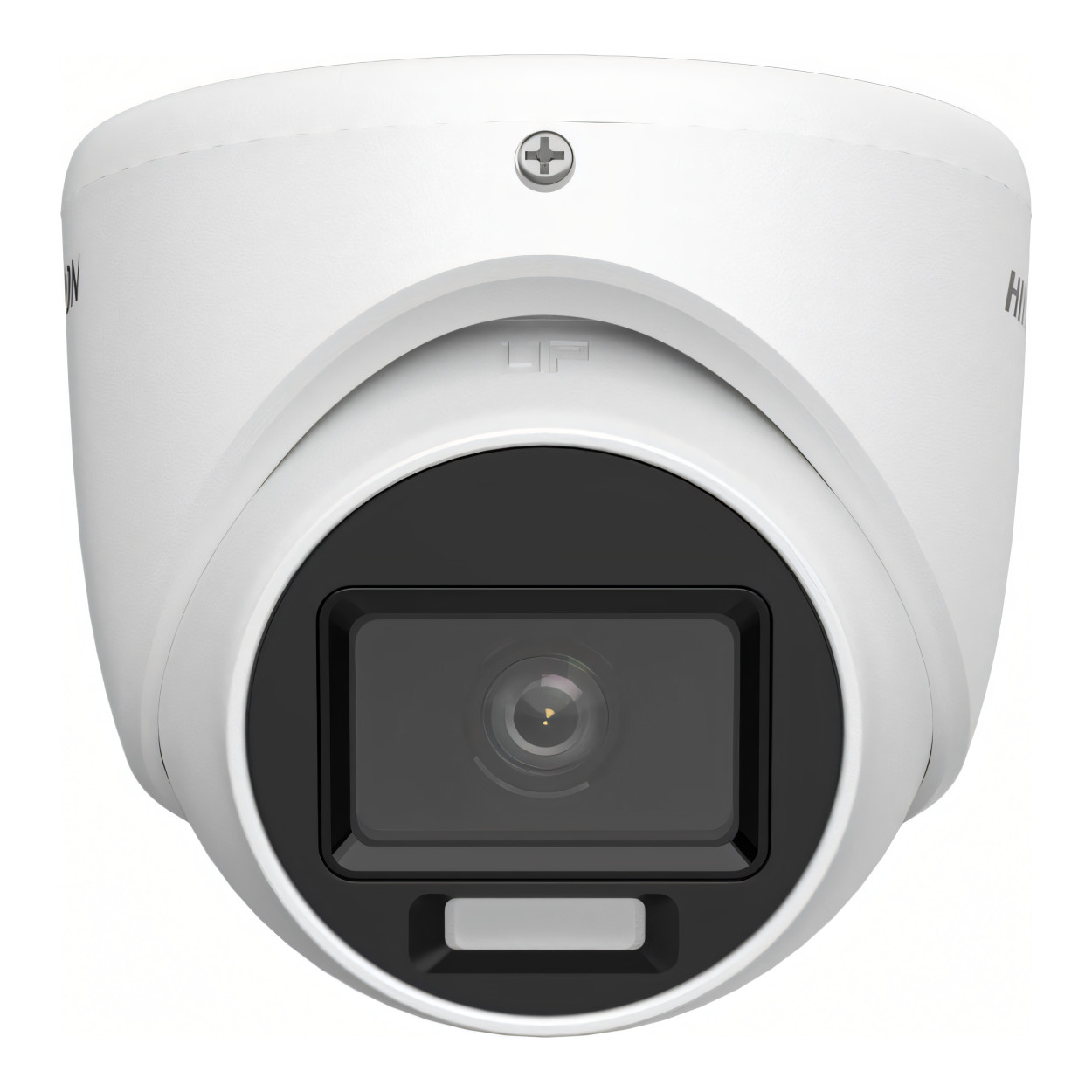

Hikvision 3K 3.6mm Smart Hybrid Light Audio Fixed Turret Camera DS-2CE76K0T-LMFS(3.6mm)

Hikvision 3K 3.6mm Smart Hybrid Light Audio Fixed Turret Camera DS-2CE76K0T-LMFS(3.6mm)

The Hikvision DS-2CE76K0T-LMFS(3.6mm) is a 3K Dual Light Audio Fixed Turret Camera designed for high-definition Turbo HD surveillance installations. Its 3K CMOS sensor delivers up to 2960 × 1665 resolution, while the 3.6mm fixed lens provides an 81.3° horizontal field of view. Integrated IR and white supplemental lighting provide flexible night surveillance, while a built-in microphone adds audio capture. With switchable TVI, AHD, CVI and CVBS output, a durable metal housing and IP67 protection, the camera is well suited to professional indoor and outdoor CCTV installations.

Key Features

• 3K Dual Light Audio Fixed Turret Camera.
• 3K CMOS image sensor.
• Maximum 2960 × 1665 resolution.
• 3.6mm fixed focal lens.
• 81.3° horizontal field of view.
• Integrated microphone with up to 5m pickup radius.
• Smart IR and white supplemental lighting.
• Up to 30m infrared illumination range.
• Up to 20m white-light illumination range.
• Switchable TVI, AHD, CVI and CVBS video output.
• TVI 3K video at up to 20fps.
• Digital WDR, BLC and HLC image enhancement.
• ICR day/night operation.
• Metal housing.
• IP67 water and dust resistance.
• Wide -40°C to 60°C operating temperature range.

3K High-Resolution Imaging

The DS-2CE76K0T-LMFS uses a 3K CMOS image sensor capable of producing images at resolutions up to 2960 × 1665. When using TVI output, the camera supports 3K video at up to 20fps, providing substantially more image detail than conventional Full HD analogue surveillance cameras.

3.6mm Fixed Lens

This specific camera variant is equipped with a 3.6mm fixed focal lens using an M12 mount. Hikvision specifies a horizontal field of view of 81.3°, vertical field of view of 50.7° and diagonal field of view of 102.4°, providing balanced scene coverage for general surveillance applications.

Dual Light Night Surveillance

The camera combines infrared and white supplemental lighting. Infrared illumination reaches up to 30m for discreet night surveillance, while white light reaches up to 20m when visible scene illumination is required. Smart lighting functionality helps manage supplemental illumination according to surveillance conditions.

Built-In Microphone

An integrated microphone adds audio capture to the video surveillance system. Hikvision specifies a microphone pickup radius of up to 5m, allowing compatible DVR systems to receive both video and audio from the camera installation.

Four Switchable Video Signals

The camera supports TVI, AHD, CVI and conventional CVBS output through a switchable analogue video interface. This multi-format design provides greater flexibility when integrating the camera with compatible existing or new surveillance recorders.

Digital Image Enhancement

Image processing capabilities include Digital WDR, backlight compensation, highlight compensation and global image enhancement. Brightness and sharpness adjustments are also available, while automatic gain control and Smart IR help optimise images under changing lighting conditions.

IP67 Metal Construction

The DS-2CE76K0T-LMFS features a metal housing with an IP67 protection rating for resistance against dust and water ingress. Its specified operating range of -40°C to 60°C further supports deployment across demanding indoor and outdoor surveillance environments.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-2CE76K0T-LMFS(3.6mm) 3K Dual Light Audio Fixed Turret Camera

The Hikvision DS-2CE76K0T-LMFS(3.6mm) combines detailed 3K imaging with dual IR and white-light illumination, integrated audio and broad analogue video-format compatibility. Its 3.6mm lens, IP67 metal housing and wide operating-temperature range make it a versatile turret camera for professional Turbo HD surveillance systems.
