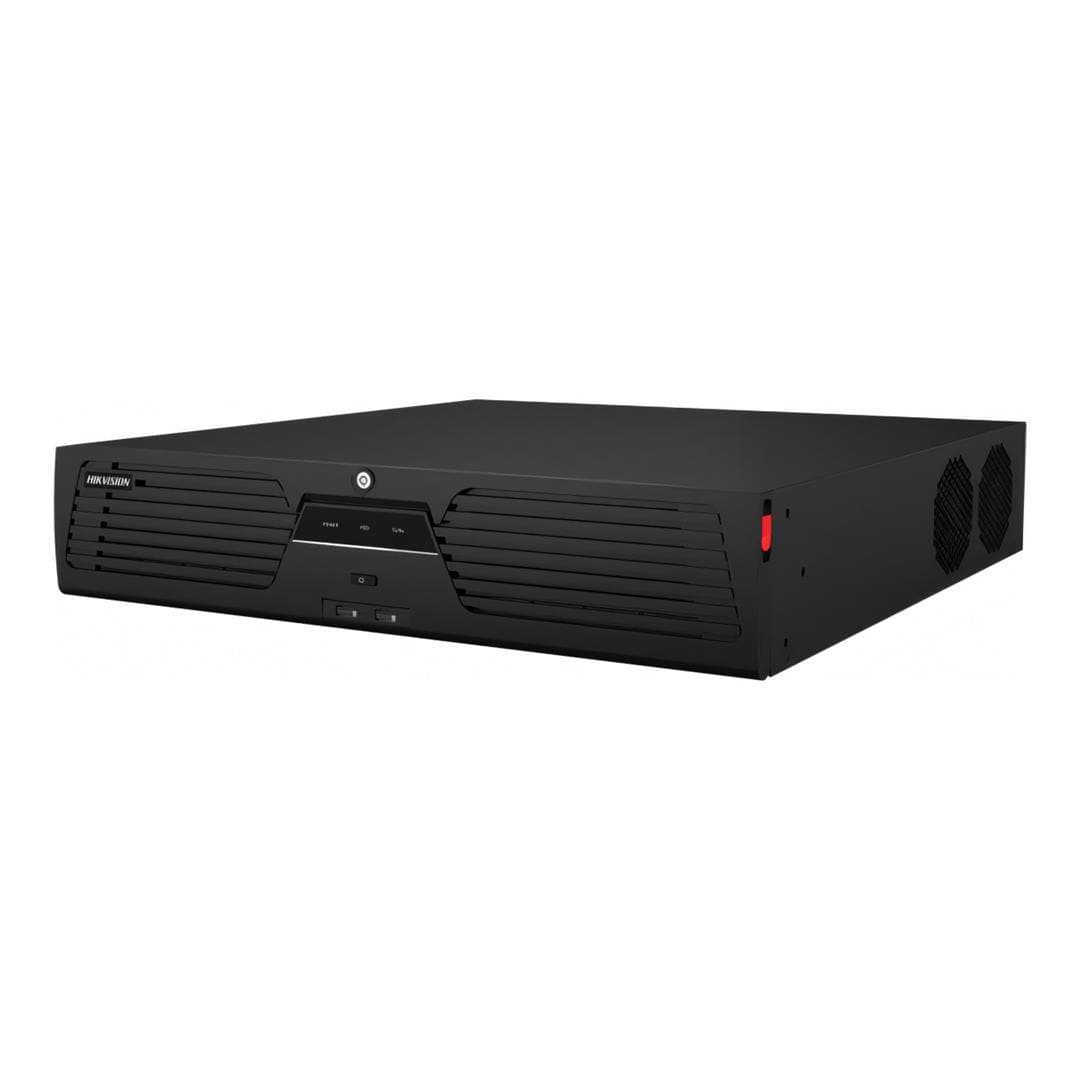

Hikvision 32-channel 2U 4K AcuSense NVR DS-9632NXI-I8/S(E)

Hikvision 32-channel 2U 4K AcuSense NVR DS-9632NXI-I8/S(E)

The Hikvision DS-9632NXI-I8/S(E) is a professional 32-channel AcuSense Network Video Recorder designed for high-capacity IP surveillance installations. It combines support for up to 32 network cameras with deep-learning-based intelligent analytics, 4K video output and extensive recording capacity through eight SATA interfaces. Advanced perimeter protection, facial recognition, smart search and efficient H.265+ compression make it well suited to commercial, industrial and enterprise surveillance environments.

Key Features

• 32-channel AcuSense Network Video Recorder.
• Supports up to 32 IP camera inputs.
• Up to 256Mbps incoming network bandwidth.
• Up to 32-channel 1080p decoding capability.
• H.265+, H.265, H.264+ and H.264 video formats.
• Deep-learning-based intelligent video analytics.
• Up to 4-channel perimeter protection.
• Human and vehicle target classification for perimeter events.
• Up to 4-channel facial recognition for video streams.
• Up to 8-channel facial recognition for face pictures.
• Independent HDMI and VGA video outputs.
• HDMI output at up to 4K resolution.
• Up to 8 SATA interfaces for HDD storage.
• Up to 16-channel synchronous playback.
• Smart search and smart playback functionality.
• Multiple VCA event support.
• POS information overlay on live view and playback.
• Compatible with Hikvision and supported third-party network cameras.

32-Channel IP Video Recording

The DS-9632NXI-I8/S(E) supports connection of up to 32 IP cameras, providing a central recording platform for medium to large surveillance installations. Up to 256Mbps of incoming network bandwidth allows the recorder to handle multiple high-resolution network video streams simultaneously.

AcuSense Deep-Learning Analytics

Integrated AcuSense intelligence uses deep-learning algorithms to provide advanced event analysis directly through the NVR. These capabilities help operators identify relevant surveillance events more efficiently and reduce the amount of time spent reviewing unrelated footage.

Perimeter Protection

The recorder supports up to four channels of perimeter protection. Human and vehicle target classification helps distinguish relevant targets from other movement, improving the accuracy of compatible intrusion and line-crossing detection applications.

Facial Recognition

Facial recognition functionality supports up to four channels for video-stream analysis and up to eight channels for face-picture analysis. This provides additional intelligent search and identification capabilities for compatible professional surveillance deployments.

Efficient H.265+ Compression

The DS-9632NXI-I8/S(E) supports H.265+, H.265, H.264+ and H.264 video formats. Hikvision states that H.265+ compression can reduce required storage space by up to 75%, helping extend recording retention while making more efficient use of installed hard-drive capacity.

Up to 32-Channel 1080p Decoding

Powerful decoding hardware supports up to 32 channels of 1080p video, enabling high-density live monitoring and playback. Up to 16 channels can be played back synchronously, allowing operators to review footage from multiple cameras at the same time.

4K HDMI Video Output

Independent HDMI and VGA outputs provide flexible local display connectivity. HDMI supports output at up to 4K resolution, allowing high-resolution surveillance footage and multi-camera layouts to be displayed on compatible UHD monitors.

Eight SATA Storage Interfaces

Up to eight SATA interfaces are provided for internal surveillance hard drives, enabling substantial local recording capacity. This makes the recorder suitable for installations requiring extended retention periods or continuous recording from numerous IP cameras.

Smart Search and Playback

Smart search allows operators to select an area within recorded video and locate relevant activity more efficiently. Smart playback further streamlines footage review, while support for multiple VCA events provides additional event-based recording and search capabilities.

POS Integration

The recorder supports POS information overlay on both live view and recorded footage. POS events can also trigger recording and alarm actions, making the NVR suitable for compatible retail surveillance environments where transaction data and video need to be correlated.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-9632NXI-I8/S(E) AcuSense Network Video Recorder

The Hikvision DS-9632NXI-I8/S(E) combines 32-channel IP recording with AcuSense deep-learning intelligence, high-density 1080p decoding, 4K display output and eight-drive storage capability. Advanced perimeter and facial analytics, efficient H.265+ compression and smart search functionality make it a powerful central recorder for demanding professional surveillance systems.
