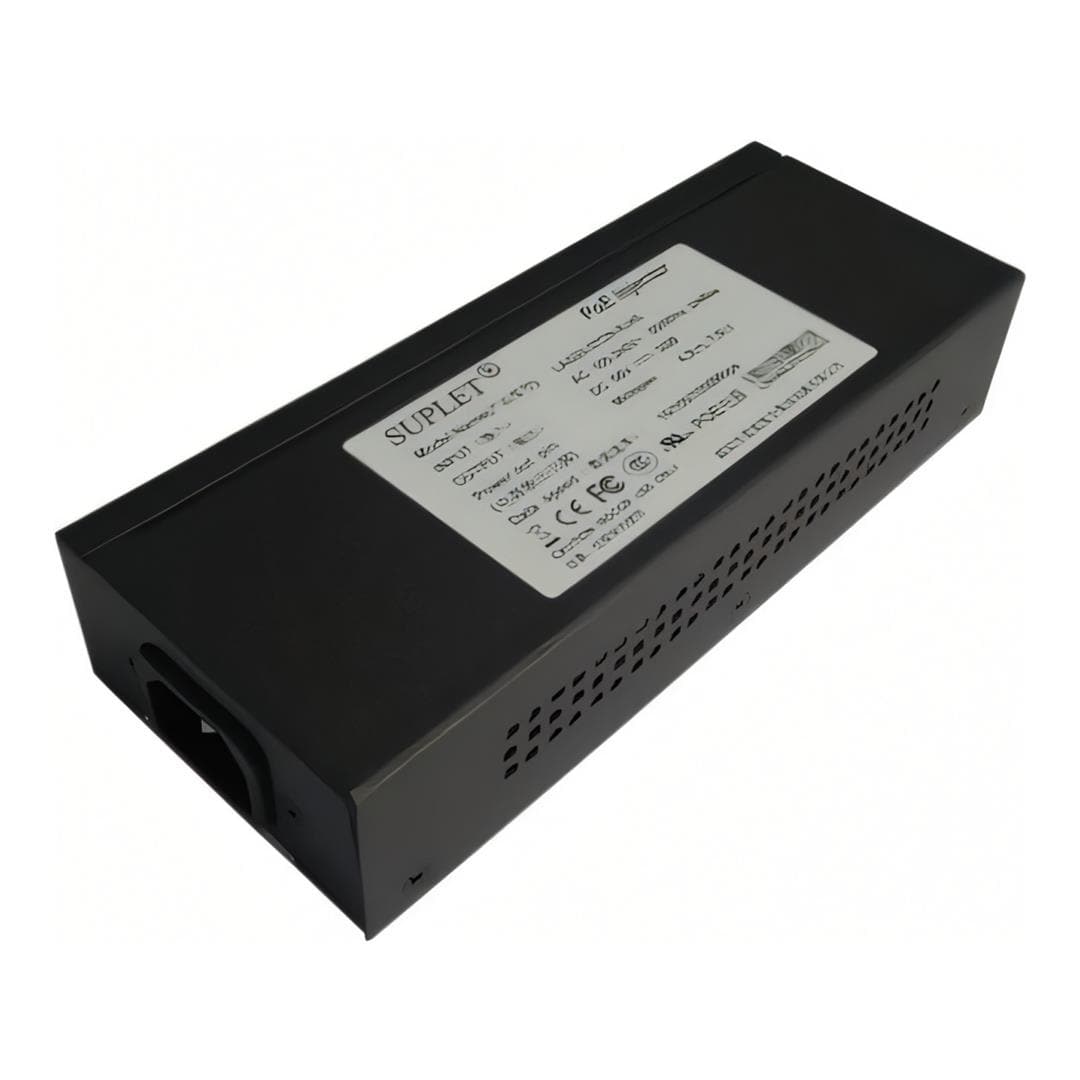

Hikvision 30W PoE Injector DS-2PA3000-POE

Hikvision 30W PoE Injector DS-2PA3000-POE

The Hikvision DS-2PA3000-POE is a 30W Gigabit PoE injector designed to deliver network data and electrical power to compatible IP devices over a single Ethernet cable. Supporting IEEE 802.3af and IEEE 802.3at PoE standards, it provides up to 30W of output power together with 10/100/1000Mbps data transmission. Integrated electrical protection, status indicators and a wide operating temperature range make it suitable for professional IP surveillance and network installations.

Key Features

• 30W Gigabit PoE injector.
• IEEE 802.3af and IEEE 802.3at PoE compatibility.
• Maximum 30W output power.
• 10/100/1000Mbps Ethernet data transmission.
• 2 × adaptive Gigabit RJ45 interfaces.
• Dedicated DATA/IN and PoE/DATA connections.
• 56V DC (-4% to +2%) output voltage.
• Output over-current protection.
• Short-circuit protection.
• Surge protection.
• Power and PoE status LED indicators.
• Wide -20°C to 60°C operating temperature range.
• Compact 185 × 70.8 × 37mm enclosure.
• CE marked and RoHS compliant.

30W PoE+ Power Delivery

The DS-2PA3000-POE delivers up to 30W of power through its PoE Ethernet connection. Compatibility with IEEE 802.3af and IEEE 802.3at standards enables it to power suitable network devices without requiring a separate power connection at the device location.

Gigabit Ethernet Connectivity

Two adaptive 10/100/1000Mbps RJ45 ports provide Gigabit Ethernet connectivity. The DATA/IN interface connects to the upstream network, while the PoE/DATA interface carries both network traffic and electrical power to the connected powered device.

Simplified IP Device Installation

By combining power and network data over an Ethernet connection, the DS-2PA3000-POE can simplify installation of compatible IP surveillance and networking equipment where a PoE-enabled network switch is not available. This is particularly useful for adding an individual PoE-powered device to an existing network.

Integrated Electrical Protection

The injector incorporates output over-current and short-circuit protection, while published product information also specifies surge protection. These protective functions are designed to improve reliability when the injector is used in professional network and surveillance installations.

Power and PoE Status Indicators

Integrated LED indicators provide visual confirmation of power and PoE operating status. Published specifications state that the module is operating normally when the MID and END indicators are illuminated.

Wide Operating Range

The DS-2PA3000-POE is specified for operation between -20°C and 60°C with operating humidity from 5% to 90%. Its compact 185 × 70.8 × 37mm enclosure allows it to be integrated into network cabinets and other suitable equipment locations.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-2PA3000-POE 30W Gigabit PoE Injector

The Hikvision DS-2PA3000-POE provides a convenient way to add IEEE 802.3af/at PoE power to a Gigabit Ethernet connection. With up to 30W output, dual Gigabit RJ45 interfaces, integrated electrical protection and a compact enclosure, it is well suited to powering compatible IP cameras and other PoE network devices where a PoE-enabled switch is not available.
