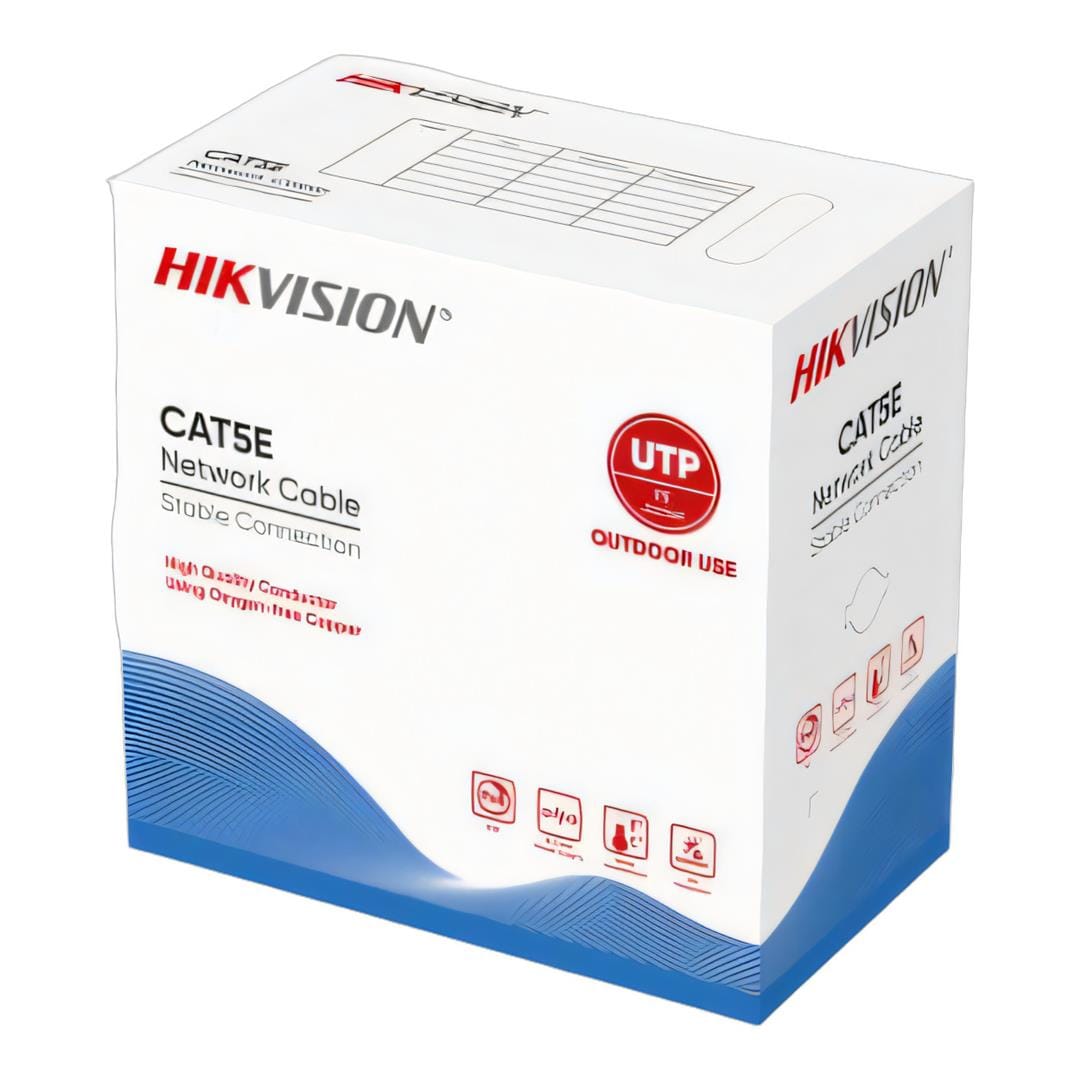

Hikvision 305m 0.5mm Copper CAT5E UTP Outdoor Network Cable DS-1LN5EO-UU/E

Hikvision 305m 0.5mm Copper CAT5E UTP Outdoor Network Cable DS-1LN5EO-UU/E

The Hikvision DS-1LN5EO-UU/E is a 305m Cat5e U/UTP outdoor network cable designed for professional data networking and IP surveillance installations. It combines 24 AWG solid bare copper conductors with HDPE insulation and a durable black PE outer sheath for outdoor deployment. Supporting Cat5e transmission performance across frequencies up to 100MHz, the cable provides a practical structured-cabling solution for compatible Ethernet, CCTV and network infrastructure.

Key Features

• Cat5e outdoor network cable.
• 305m cable length.
• 4-pair U/UTP unshielded construction.
• 24 AWG solid bare copper conductors.
• 0.50 ± 0.01mm conductor diameter.
• HDPE conductor insulation.
• Durable black PE outer sheath.
• 5.0 ± 0.3mm overall cable diameter.
• 100 ± 15Ω characteristic impedance across 1 to 100MHz.
• CPR Fca fire classification.
• Integrated rip cord for convenient sheath removal.
• Designed for outdoor network cabling applications.
• Complies with ISO/IEC 11801 and ANSI/TIA-568.2-D standards.
• RoHS 2.0 compliant.

Cat5e Network Performance

The DS-1LN5EO-UU/E is a Category 5e network cable designed for structured Ethernet cabling. Hikvision specifies electrical performance across the 1 to 100MHz frequency range, making it suitable for compatible Cat5e networking and IP surveillance applications.

Solid Copper Conductors

The cable uses solid bare copper conductors with a nominal diameter of 0.50 ± 0.01mm, corresponding to a 24 AWG conductor size. Solid-copper construction provides a purpose-built foundation for permanent structured cabling installations.

4-Pair U/UTP Construction

The DS-1LN5EO-UU/E uses four twisted pairs in an unshielded U/UTP configuration. No internal separator is used. The twisted-pair architecture is designed to maintain Cat5e transmission characteristics while providing a compact overall cable diameter.

PE Outdoor Sheath

A black polyethylene outer sheath protects the cable for outdoor deployment. Hikvision specifies a sheath thickness of 0.55 ± 0.03mm and an overall cable diameter of 5.0 ± 0.3mm. The cable also incorporates a rip cord to assist with sheath removal during termination.

305m Installation Length

Each package contains approximately 305m of cable, providing a convenient bulk length for professional structured-cabling projects. The long continuous run is well suited to CCTV, network infrastructure and other fixed Ethernet installations where cable is terminated on site.

Standards-Compliant Cabling

The DS-1LN5EO-UU/E is specified against ISO/IEC 11801 and ANSI/TIA-568.2-D cabling standards and carries a CPR Fca fire classification. Hikvision also specifies RoHS 2.0 compliance.

Technical Specifications

What’s in the Box:

• 1 × 305m Hikvision DS-1LN5EO-UU/E Cat5e U/UTP Outdoor Network Cable

The Hikvision DS-1LN5EO-UU/E combines 305m of Cat5e U/UTP cabling with solid 24 AWG copper conductors, HDPE insulation and a black PE outdoor sheath. Its standards-compliant construction and 100MHz Cat5e performance make it a practical bulk-cabling solution for professional outdoor Ethernet and IP surveillance installations.
