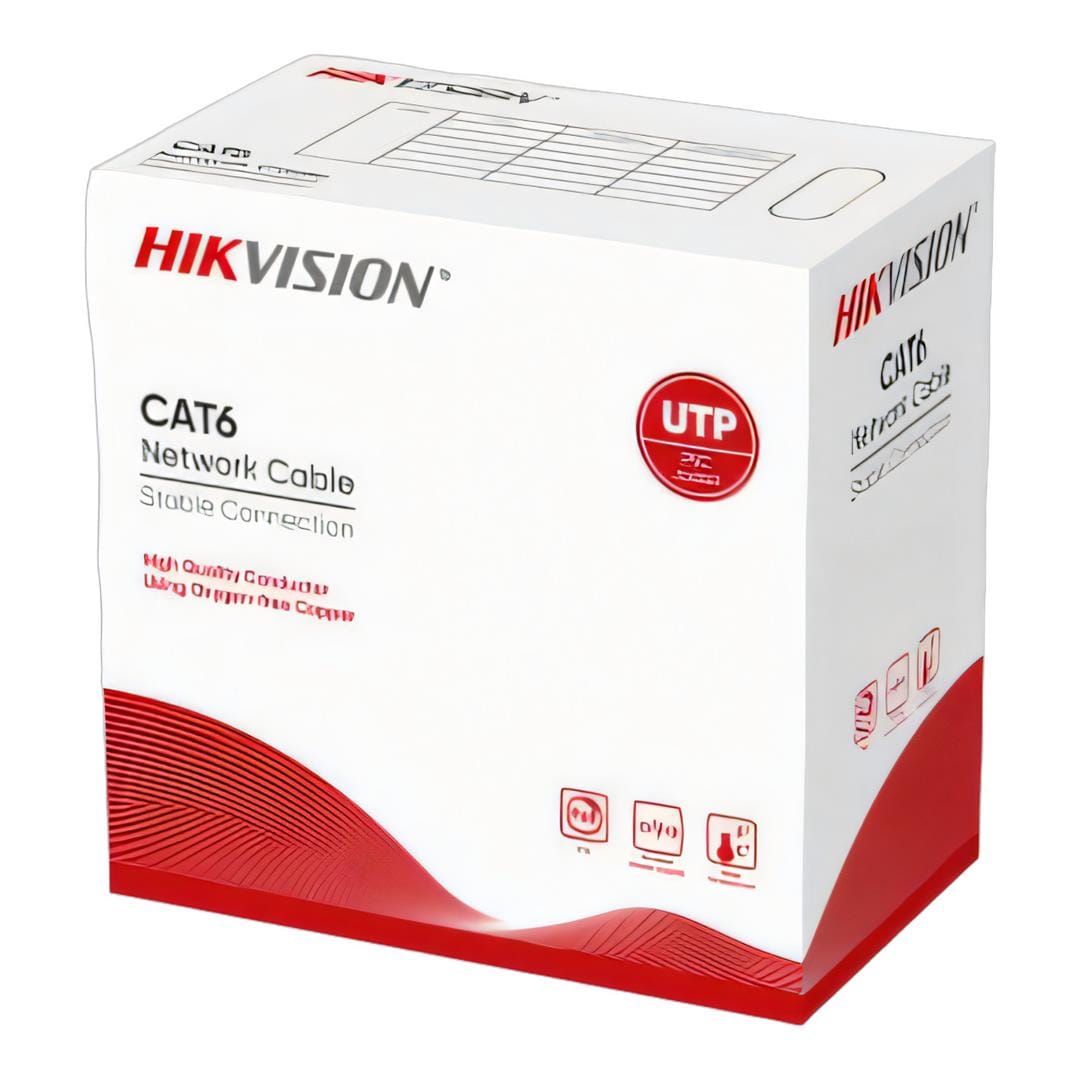

Hikvision 305m 0.55mm Copper CAT6 UTP Network Cable DS-1LN6U-G

Hikvision 305m 0.55mm Copper CAT6 UTP Network Cable DS-1LN6U-G

The Hikvision DS-1LN6U-G is a 305m Cat6 U/UTP network cable designed for professional structured cabling, Ethernet networking and IP surveillance installations. It uses four twisted pairs of 23 AWG solid bare copper conductors with 99.95% copper purity, HDPE insulation and a grey PVC outer sheath. With electrical performance specified across frequencies up to 250MHz, the cable provides a robust bulk-cabling solution for compatible Cat6 network infrastructure.

Key Features

• Cat6 bulk network cable.
• 305m cable length.
• 4-pair U/UTP unshielded construction.
• 23 AWG solid bare copper conductors.
• 99.95% copper purity.
• 0.55 ± 0.005mm conductor diameter.
• HDPE conductor insulation.
• Grey PVC outer sheath.
• 6.00 ± 0.30mm overall cable diameter.
• Integrated separator for Cat6 cable construction.
• Integrated rip cord for easier sheath removal.
• Electrical performance specified from 1 to 250MHz.
• Maximum DC resistance of 9.38Ω/100m.
• Designed for permanent structured network cabling.
• Complies with ISO/IEC 11801 and ANSI/TIA-568-C.2 specifications.
• RoHS 2.0 compliant.

Cat6 Network Cabling

The DS-1LN6U-G is designed as a Category 6 network cable for permanent structured cabling installations. Hikvision specifies electrical characteristics across the 1 to 250MHz frequency range, making the cable suitable for compatible Ethernet, IP surveillance and general network infrastructure.

99.95% Solid Copper Conductors

Each conductor is manufactured from 99.95% solid bare copper. Hikvision specifies a conductor diameter of 0.55 ± 0.005mm, corresponding to 23 AWG. The solid-copper construction is designed for fixed structured cabling where dependable electrical performance is required.

4-Pair U/UTP Construction

The cable uses four twisted pairs in an unshielded U/UTP configuration. An internal separator helps maintain pair positioning and transmission characteristics, while precise twisting is designed to support stable signal transmission and reduced interference between pairs.

HDPE Insulation and PVC Sheath

Individual conductors use HDPE insulation with a specified diameter of 0.98 ± 0.05mm. The complete cable is protected by a grey PVC outer sheath measuring 0.50 ± 0.10mm thick, resulting in an overall cable diameter of 6.00 ± 0.30mm.

305m Bulk Installation Length

The DS-1LN6U-G is supplied in a 305 ± 1.5m bulk length, making it suitable for professional installers terminating network runs on site. An integrated rip cord assists with removing the outer sheath during cable preparation and termination.

Electrical Performance

Hikvision specifies characteristic impedance of 100 ± 15Ω at frequencies up to 100MHz and 100 ± 25Ω from 100 to 250MHz. Maximum DC resistance is 9.38Ω per 100m, while delay skew is rated at no more than 45ns per 100m across the 1 to 250MHz range.

Technical Specifications

What’s in the Box:

• 1 × 305m Hikvision DS-1LN6U-G Cat6 U/UTP Network Cable

The Hikvision DS-1LN6U-G combines Cat6 performance with 23 AWG 99.95% solid copper conductors, HDPE insulation, an internal separator and a durable PVC sheath. Supplied in a 305m bulk length and specified for transmission characteristics up to 250MHz, it provides a professional cabling solution for compatible Ethernet and IP surveillance network installations.
