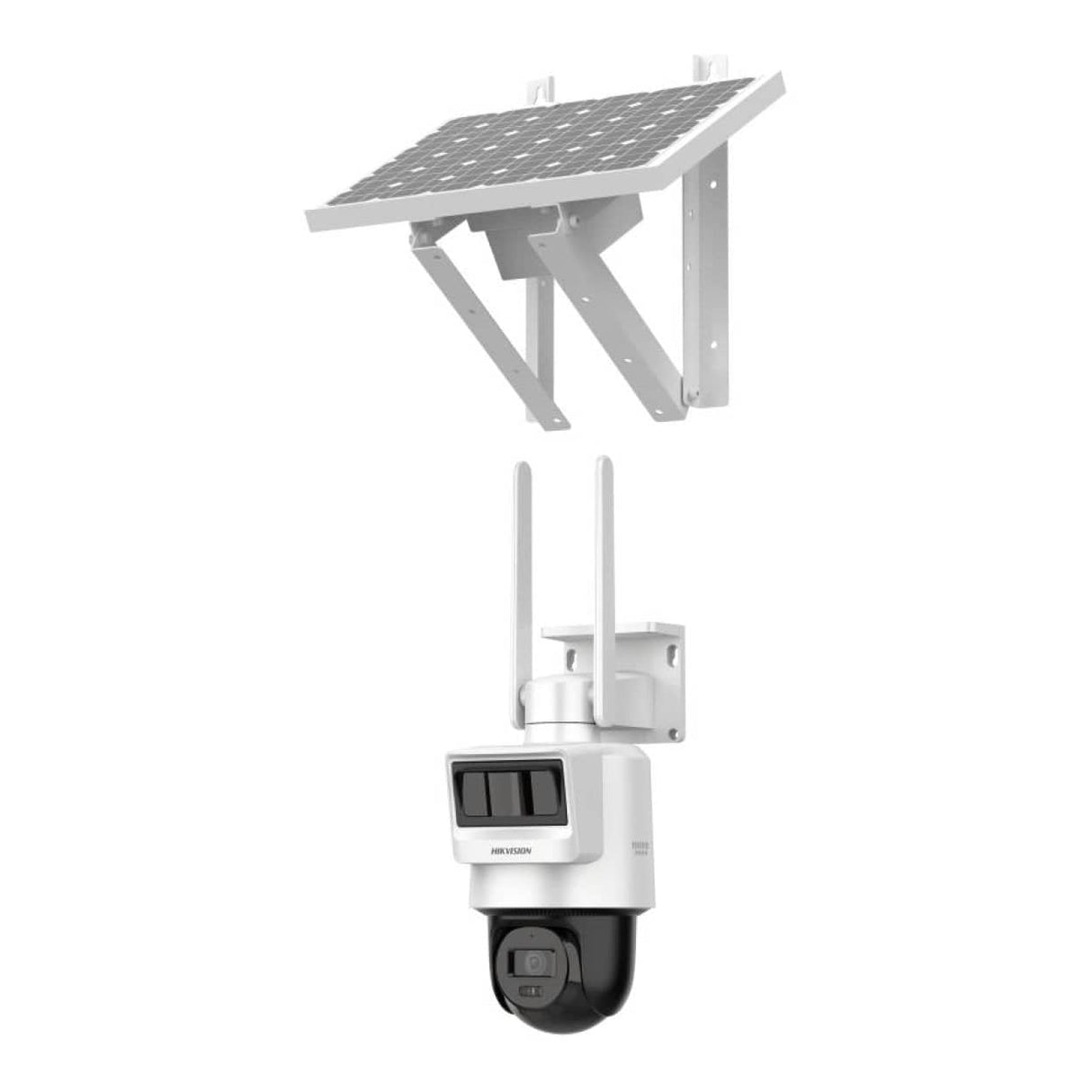

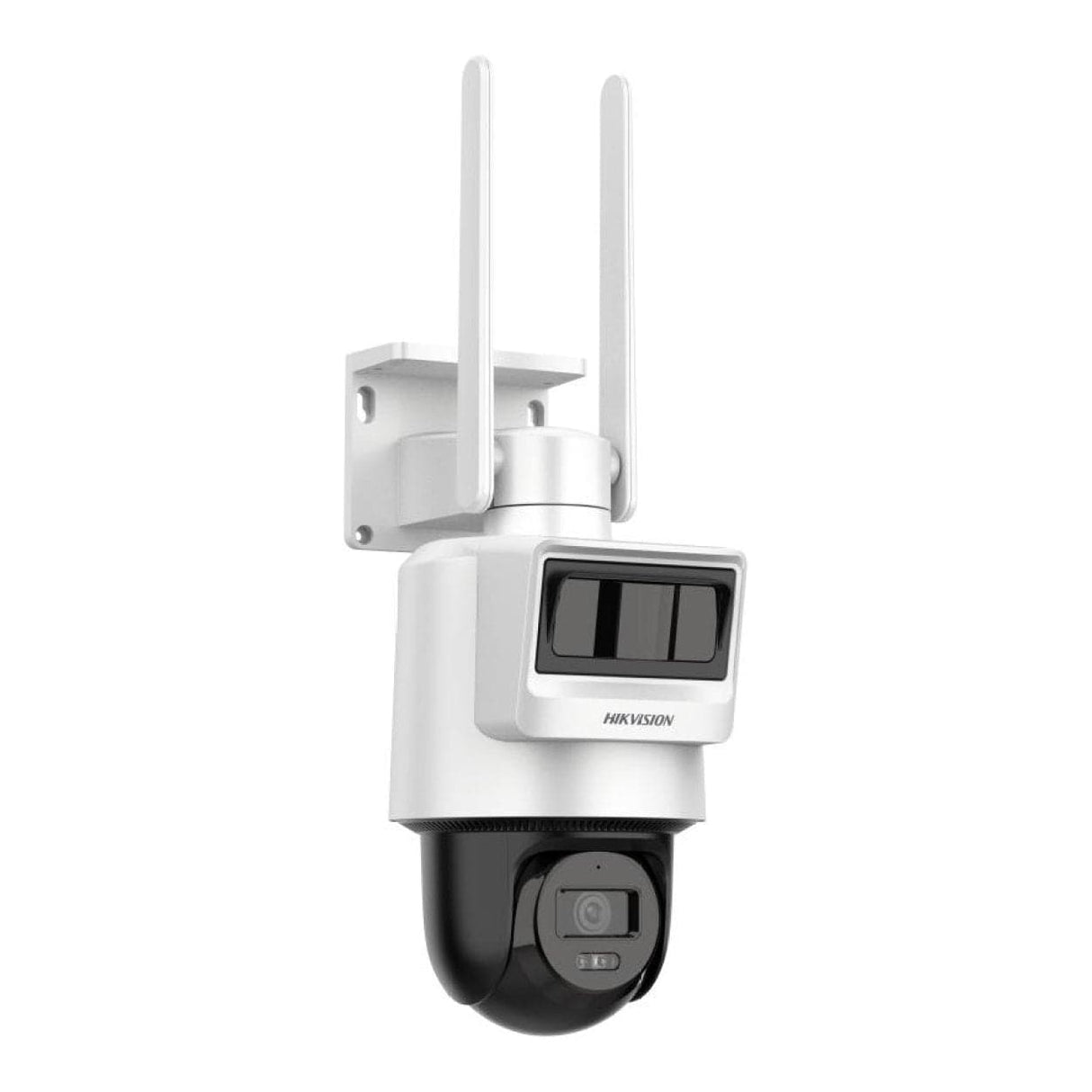

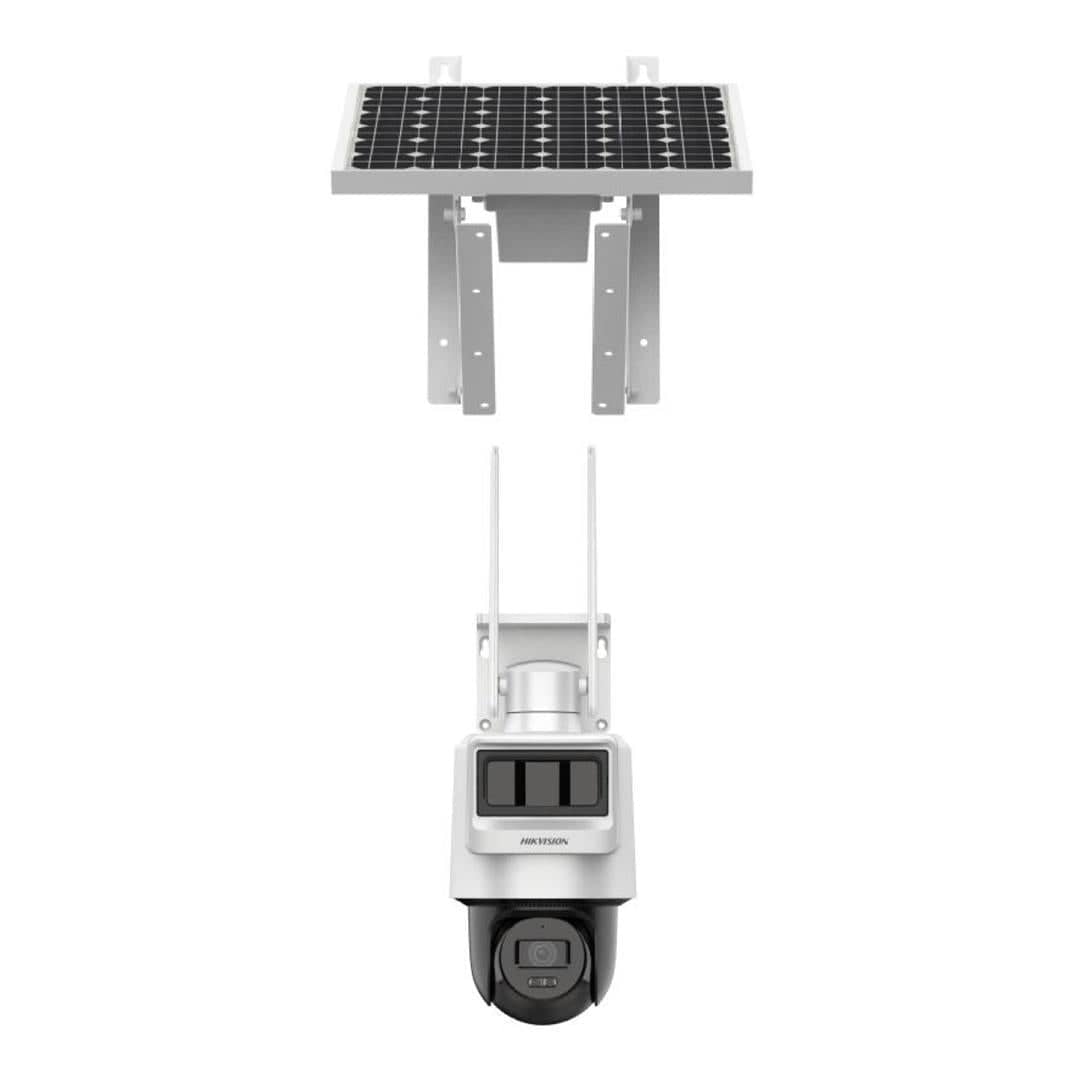

Hikvision 2MP Pro Solar-powered Security PT Camera DS-2DE2C200IWG-K/4G/C05S10

Hikvision 2MP Pro Solar-powered Security PT Camera DS-2DE2C200IWG-K/4G/C05S10

The Hikvision DS-2DE2C200IWG-K/4G/C05S10 is a compact 2 MP 4G solar-powered PTZ camera designed for remote monitoring without fixed network or power infrastructure. Equipped with a 1/2.9" progressive scan CMOS sensor, it delivers clear 1080p resolution with excellent low-light performance down to 0.01 Lux in color or 0 Lux with IR. The fixed 2.8 mm lens provides a wide 104° field of view, while the PTZ functionality allows pan up to 340° and tilt up to 80°, giving flexible coverage.

Features:

• High quality imaging with 2 MP resolution
• Dual transducers – PIR and Radar work together for higher detection accuracy
• Support 4G LTE data transmission
• Built-in microphone and built-in speaker for two-way audio and audio alarm
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP66)
• Support manual adjustment of the radar angle: 0°, 10°, and 20°

The camera integrates PIR and radar sensors for accurate human and vehicle detection, reducing false alarms. Infrared illumination extends visibility up to 30 meters, supported by smart IR technology. Built-in microphone and speaker enable real-time two-way audio, while onboard storage supports up to 512 GB via microSD card.

With 4G connectivity, the DS-2DE2C200IWG-K/4G/C05S10 supports LTE-FDD, LTE-TDD, and UMTS bands, making it ideal for mobile or off-grid deployments. The included lithium battery and solar panel ensure reliable continuous operation, delivering up to 27 hours runtime on a full charge without solar input.

The camera is housed in an IP66-rated enclosure for outdoor durability, and supports intelligent functions including motion detection, perimeter protection, and event-triggered recording. It is a versatile solution for construction sites, farms, traffic monitoring, and remote areas where wired connections are not feasible.

Technical Specifications:

Camera

Image Sensor: 1/2.9" Progressive Scan CMOS

Max Resolution: 1920 × 1080

Min Illumination: Color 0.01 Lux @ (F1.6, AGC ON), B/W 0 Lux with IR

Shutter Time: 1/3 s to 1/100,000 s

Day/Night: IR cut filter

Lens

Type: Fixed focal, 2.8 mm or 4 mm optional

FOV (2.8 mm): 104° (H), 57° (V), 121° (D)

FOV (4 mm): 84° (H), 45° (V), 100° (D)

Mount: M12

Iris: Fixed, F1.6

PTZ

Pan: 0°–340°, speed up to 25°/s

Tilt: 0°–80°, speed up to 25°/s

DORI

2.8 mm: D 45 m, O 18 m, R 9 m, I 4 m

4 mm: D 56 m, O 22 m, R 11 m, I 5 m

Illumination

Type: IR, 850 nm

Range: Up to 30 m

Smart IR: Supported

Video

Main Stream: 1080p/720p @ 12.5 fps (50 Hz), 15 fps (60 Hz)

Sub-Stream: 640 × 480 / 640 × 360 @ 12.5 fps (50 Hz), 15 fps (60 Hz)

Compression: H.265/H.264 (main), H.265/H.264/MJPEG (sub)

Bitrate: 32 Kbps–8 Mbps

Bitrate Control: CBR/VBR

ROI: 1 region (main stream)

Audio

Type: Mono

Compression: G.722.1, G.711, MP2L2, PCM, G.726, AAC-LC

Bitrate: 8–160 Kbps depending on codec

Noise Filtering: Yes

Network

Protocols: TCP/IP, DHCP, IPv4

API: ONVIF (S/G/T), ISAPI, SDK

Simultaneous Live View: Up to 6 channels

Users: Up to 32 (admin, operator, user)

Clients: Hik-Connect, HikCentral Pro, Hik-Partner Pro

Browsers: IE11, Chrome 57+, Firefox 52+, Edge 89+

Mobile Communication

Standards: LTE-FDD, LTE-TDD, UMTS

Frequency: EU B1/3/5/7/8/20/28, IN B1/3/5/8 + TDD B34/38/39/40/41, LA B2/3/4/5/7/8/28/66, NA B2/4/5/12/13/17/66/71 + UMTS B2/4/5

Data Rate: EU/IN/LA uplink 5.1 Mbps, downlink 10.3 Mbps; NA uplink 50 Mbps, downlink 150 Mbps

SIM: Nano SIM


WDR: Digital WDR

SNR: ≥ 52 dB

Switch: Day/Night/Auto/Schedule

Enhancement: BLC, HLC, 3D DNR

Adjustments: Saturation, brightness, contrast, sharpness, gain, white balance

Transducer

Type: PIR + Radar

Detection Angle: 80° (H), 30° (V)

Detection Range: Up to 12 m

Interface

Ethernet: 1 × RJ45 10/100 Mbps

Storage: microSD/SDHC/SDXC up to 512 GB

Audio: Built-in mic & speaker (95 dB @10 cm)

Reset: Supported

Event

Basic: Motion detection (human/vehicle), tampering, exception

Linkage: Record, capture, upload, notify center, audible warning

Power

Consumption: 1.85 W (4G), 80 mW standby, max 7 W

Supply: 12 VDC ±25% or 10 W solar panel

Connectors: 4-core aviation interface

Physical

Dimensions: 133.1 × 177.6 × 382/412 mm

Weight: 850 g (net), 4.7 kg (packaged)

Material: Plastic

Protection: IP66

Environment

Operating: 0 °C–50 °C, ≤95% RH

Storage: -30 °C–60 °C, ≤95% RH

Battery

Type: Ternary Lithium, 50.76 Wh

Runtime: 27 hours (1.85 W load)

Cycles: >800

Voltage: 9–12.6 V

Charge Temp: 0–45 °C

Discharge Temp: -20–55 °C

Certification

RF: CE-RED, IC, KC

EMC: CE-EMC, ICES-003, KN32, KN35

Safety: CB, CE-LVD, BIS

Environment: CE-RoHS, WEEE, REACH
