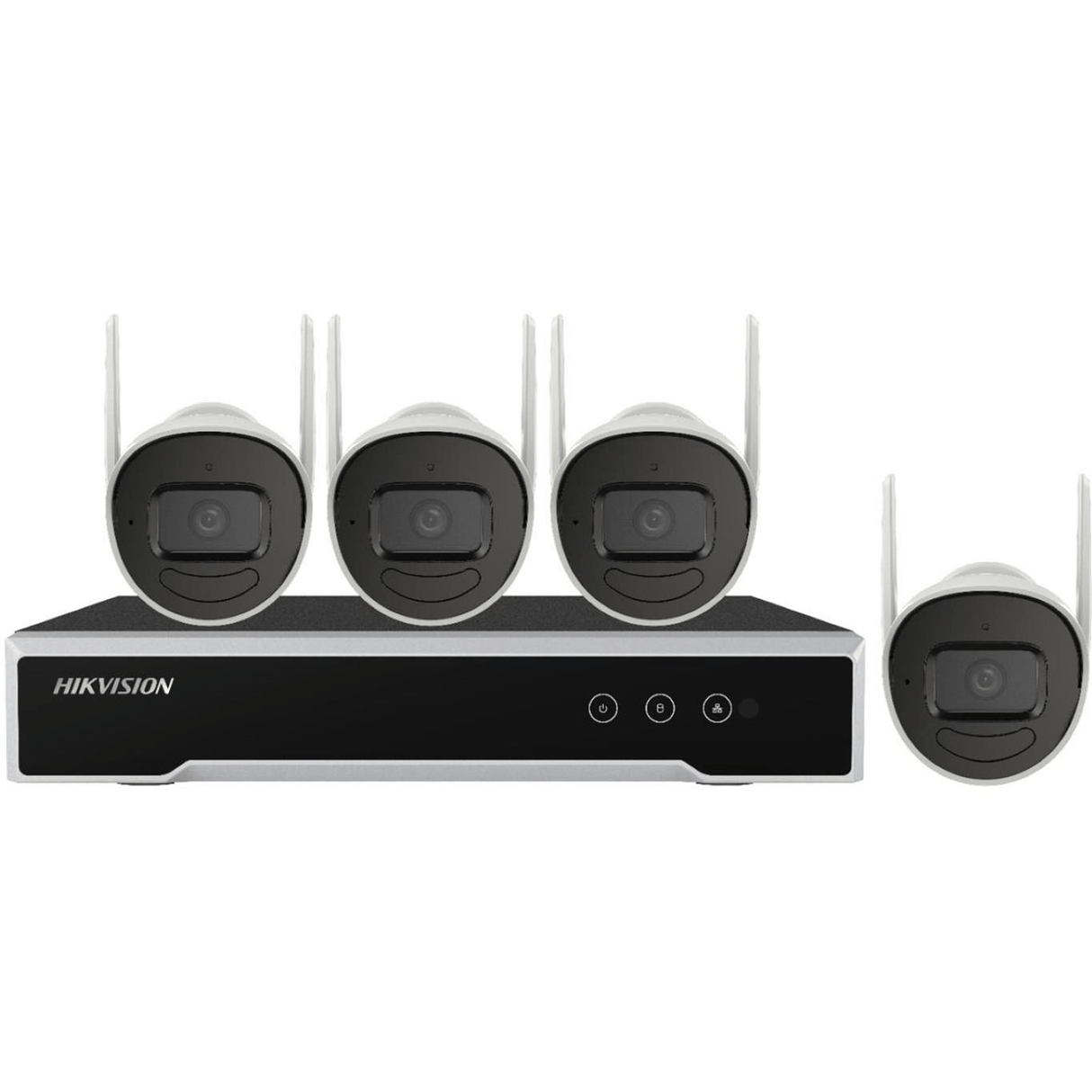

Hikvision 2MP H.265 Bullet WiFi NVR Kit

• One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 2-ch @ 2MP
• Four 2 MP bullet Wi-Fi cameras with efficient H.265 compression technology
• One network cable and one HDMI cable
• Pre-install 1 TB HDD
• Auto Wi-Fi connection and easy installation
• Hik-Connect cloud service and app for remote management and viewing of devices.

Camera

Camera Case Type: Bullet

Image Sensor: 1/2.7" Progressive Scan CMOS

Min. Illumination: Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed: 1/3 s to 1/100,000 s

Day &Night: IR cut filter

WDR: DWDR

Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Protection Level: IP66

Material: Front cover: metal, back cover: plastic

Wi-Fi Support: Yes

Camera/Lens

Focal Length: 2.8 mm

Aperture: F1.6

Focus: Fixed

FOV: 2.8 mm, horizontal FOV: 112°, vertical FOV: 59°, diagonal FOV: 134°

Lens Mount: M12

Camera/IR

IR Range: Up to 30 m

Camera/Compression Standard

• Video Compression: Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 32 Kbps to 8 Mbps
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate: 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes

Camera/Image

• Max. Resolution: 1920 × 1080

Main Stream:

• 50Hz: 25 fps (1920 × 1080, 1280 × 720)
• 60Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25 fps (640 × 360)

60Hz: 30 fps (640 × 360)

Image Setting: Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Camera/Network

• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
• General Function: Anti-flicker, heartbeat, password reset via e-mail
• Client: iVMS-4200, Hik-Connect

Camera/Interface

• Communication Interface: 1x RJ45 10M/100M self-adaptive Ethernet port
• Audio I/O: 1x Built-in mic

Camera/General

• Power Supply: 12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection
• Consumption: 12 VDC, 0.5 A, max. 6.0 W
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 95% or less (non-condensing)
• Dimension (W × D × H): 175.6 × 73.0 × 89.1 mm (6.9" × 2.9" × 3.5")
• 330 g (0.7 lb.)

NVR/Video And Audio

• IP Video Input: 4-ch
• Incoming/Outgoing Bandwidth: 50 Mbps/40 Mbps

HDMI/VGA Output

• 1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI/VGA simultaneous output

Audio Output: 1-ch, RCA (linear, 1 KΩ)

NVR/Decoding

• Video Resolution: 4 MP/3 MP/1080p/1.3 MP/720p
• Synchronous Playback: 4-ch
• Capability: 4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)

NVR/Network

• Network Interface: 1, RJ45 10/100M Ethernet interface
• Network Protocol: IPv6, UPnP™, NTP, SADP, DHCP
• Remote Connection: 16

NVR/Wi-Fi

• Frequency Band: 2.4 GHz
• Antenna Structure: 2 × 2MIMO
• Transmission Speed: 144 Mbps
• Transmission Standard: IEEE 802.11b/g/n

NVR/Auxiliary Interface

• SATA: 1
• Capacity: Up to 6 TB capacity for each disk
• USB Interface: Rear panel: 2 × USB 2.0

NVR/General

• Power Supply: 12 VDC
• Consumption (Without HDD And PoE Off): ≤ 12 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
• Weight (Without Hard Disk): ≤ 1.6 kg (3.5 lb.)

Kit

Accessories:

• Power cable: 4 × IPC power cables, 1 × NVR power cable
• Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch
• HDMI cable: 1 × HDMI cable, 2 m, black

Hard Drive: -1T:Pre-installed 1 TB HDD

Certification: FCC, CE

Weight (With Package): ≤ 7 kg (15.4 lb.)
