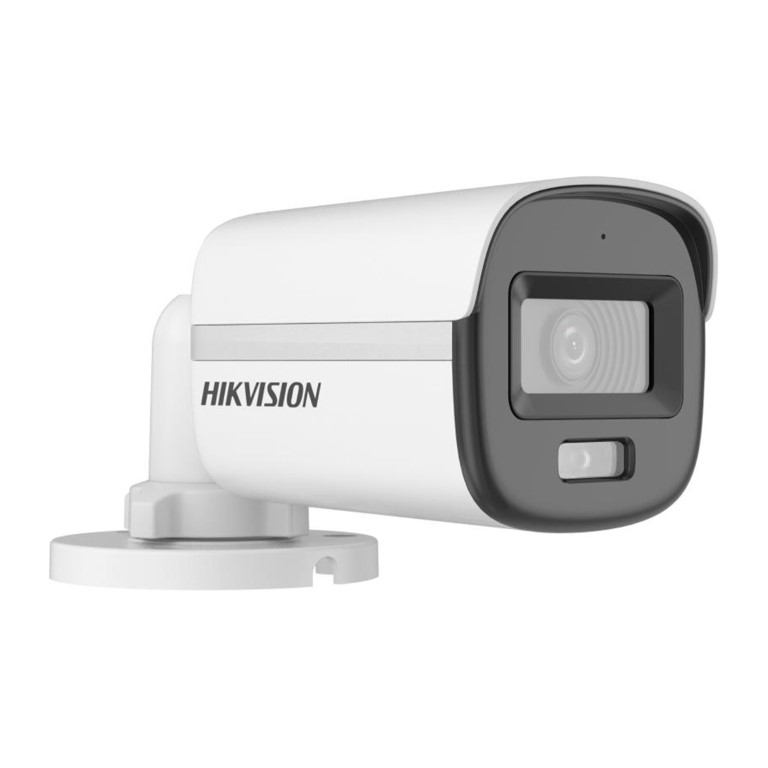

Hikvision 2MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-LPFS(2.8mm)

Hikvision 2MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-LPFS(2.8mm)

Features:

• High quality imaging with 2 MP CMOS
• 1920 x 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• 2.8 mm Fixed Focal Lens
• Horizontal FOV: 105°, Vertical FOV: 56°, Diagonal FOV: 126°
• Up to 20 m white light distance for bright night imaging
• Up to 20 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable
• Built-In Microphone
• 1-port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• 12 VDC ± 25%, max. 2.9 W
• *Power supply is not included

Technical Specifications:

Camera

Image Sensor
2 MP CMOS

Max. Resolution
1920 (H) × 1080 (V)

Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & Night
ICR

Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Signal System
PAL/NTSC

Lens
Lens Type
2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°

Lens Mount
M12

Microphone
Pickup Distance
In a radius of up to 5 m

Amount
1

Illuminator
Supplement Light Type
IR, White Light

Supplement Light Range
IR: Up to 20 m, White Light: Up to 20 m

Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT

Image Settings
Brightness, Sharpness, Anti-banding, AGC

Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC

Day/Night Mode
Auto/Color

Wide Dynamic Range (WDR)
Digital WDR

Noise Reduction
3D DNR/2D DNR

Image Enhancement
DWDR, BLC, HLC, Global

White Balance
Auto, Manual

Interface
Video Output
Switchable TVI/AHD/CVI/CVBS

General
Material
Plastic

Power
12 VDC ± 25%, max. 2.9 W
You are recommended to use one power adapter to supply the power for one camera.

Dimension
161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")
Approx. 235 g (0.52 lb.)

Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Communication
HIKVISION-C

Language
English

Approval
Protection
IP67
